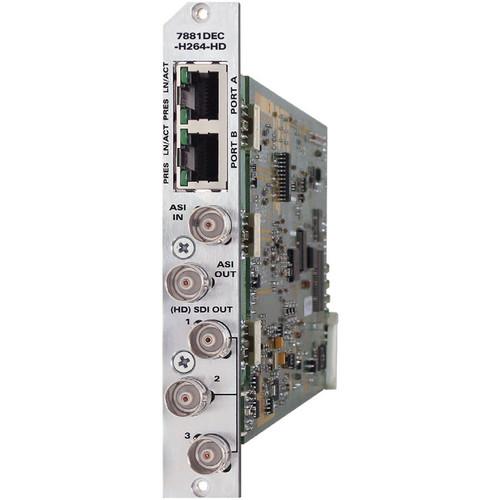

User Manual for Evertz Microsystems 7881DEC-H264HD H.264 AVC Decoder Click to enlarge the picture
Contents of the user manual for the Evertz Microsystems 7881DEC-H264HD H.264 AVC Decoder
- Product category: Signal Converters Evertz Microsystems
- Brand: Evertz Microsystems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evertz Microsystems Signal Converters
|
User manual for the Evertz Microsystems 7881DEC-H264HD H.264 AVC Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evertz Microsystems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evertz Microsystems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evertz Microsystems product will considerably shorten its lifespan!
|
Product description This version of the Evertz Microsystems 7881DEC-H264HD H.264/AVC Decoder includes a 3RU back plate for the 7800FR frame.
As the broadcast landscape continues to evolve, the need for a higher class of compression encoder that uses the latest in compression technology becomes more relevant to the overall success of the operation. The Evertz 7881DEC-H264HD(7881DEC) video contribution decoder is designed to satisfy this requirement--when paired with the 7881ENC-H264HD professional encoder.
This module has been designed for high quality, low latency compression of HD/SD-SDI video and audio signals over any transport network, including IP/MPLS, satellite and sonet. The decoder is equipped with an enhanced H.264/AVC (MPEG-4 Part 10) video compression engine designed to deliver high quality video with low latency--as low as 100 ms end to end.
The decoder also includes a dedicated control port that offers a built-in web server for quick and easy configuration, including true SNMP control from the VistaLINK NMS when paired with a frame controller. - H.264/AVC compression engine with up to eight channels of audio
- Simultaneous IP and ASI outputs
- As low as 100 ms low latency contribution
- SCTE104 to 35 for digital program insertion
- Support for BISS 0/1/E scrambling encryption
- Full integration with Compression System Manager software
- Web browser interface and/or SNMP for configuration and control
In the Box Evertz Microsystems 7881DEC-H264HD H.264/AVC Decoder (3RU Back Plate) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evertz Microsystems 7881DEC-H264HD H.264 AVC Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvertz Microsystems 7881DEC-H264HD+3RU Specs | Supported Resolutions | 1920 x 1080 at 25, 29.97
1280 x 720 at 50, 59.94
720 x 576 at 25 Hz (PAL)
720 x 480i at 29.97 Hz (NTSC) 480i: 720x480 | | Compression Format | Video: H.264/AVC (MPEG-4 Part 10)
Audio: MPEG-1 Audio Layer II, Dolby-E and Dolby AC-3 passthrough | | Connectivity | 1 x ASI input on BNC connector
3 x HD-SDI/SD-SDI output on BNC connector
1 x ASI output on BNC connector
2 x Ethernet on RJ-45 connector - for data and control | | Power Requirements | 12 VDC / 23 W - supplied by frame |
