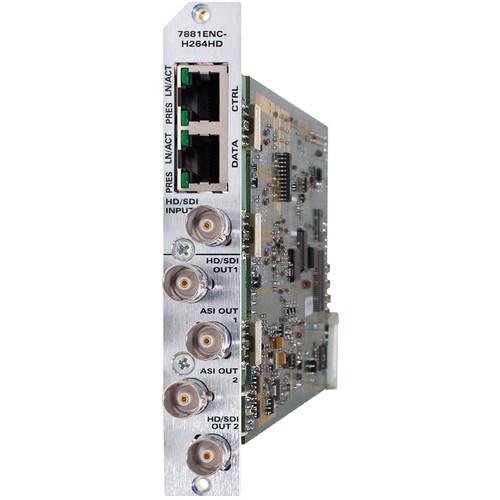

Product description This version of the Evertz Microsystems 7881ENC-H264HD H.264/AVC Encoder includes a 3RU back plate for the 7800FR frame.
As the broadcast landscape continues to evolve, the need for a higher class of compression encoder that uses the latest in compression technology becomes more relevant to the overall success of the operation. The Evertz 7881ENC-H264HD (7881ENC) video contribution encoder is designed to satisfy this requirement.
This module has been designed for high quality, low latency compression of HD/SD-SDI video and audio signals over any transport network, including IP/MPLS, satellite and sonet. The encoder is equipped with an enhanced H.264/AVC (MPEG-4 Part 10) video compression engine designed to deliver high quality video with low latency--as low as 100 ms end to end--when paired with Evertz's 7881DEC-H264HD professional decoder.
This device offers an auto-sensing HD/SD-SDI digital interface and video compression at user configurable bitrates of up to 80 Mb/s.
The encoder also includes a dedicated control port that offers a built-in web server for quick and easy configuration, including true SNMP control from the VistaLINK NMS when paired with a frame controller.
For those mission critical applications, the 7881ENC-H264HD can be smartly managed using the Evertz Compression System Manager (CSM) software, which offers complete provisioning, monitoring and redundancy management of the contribution compression head end. - Hot-swappable modular blade contribution encoder
- High density of up to 15 encoders in a single 7800FR class chassis
- H.264/AVC compression engine with up to eight channels of audio
- Simultaneous IP and ASI outputs
- As low as 100 ms low latency contribution
- SCTE104 to 35 for digital program insertion
- Support for BISS 0/1/E scrambling encryption
- Full integration with Compression System Manager software
- Web browser interface and/or SNMP for configuration and control
In the Box Evertz Microsystems 7881ENC-H264HD H.264/AVC Encoder (3RU Back Plate) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evertz Microsystems 7881ENC-H264HD H.264 AVC Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvertz Microsystems 7881ENC-H264HD+3RU Specs | Supported Resolutions | 1920 x 1080 at 25, 29.97
1280 x 720 at 50, 59.94
720 x 576 at 25 Hz (PAL)
720 x 480i at 29.97 Hz (NTSC) 480i: 720x480 | | Compression Format | Video: H.264/AVC (MPEG-4 Part 10)
Audio: MPEG-1 Audio Layer II, Dolby-E and Dolby AC-3 passthrough | | Connectivity | 1 x HD-SDI/SD-SDI and embedded audio input on BNC connector - with equalization
2 x HD-SDI/SD-SDI output on BNC connector - re-clocked
2 x ASI output on BNC connector
2 x Ethernet on RJ-45 connector - for data and control | | Power Requirements | 12 VDC / 23 W - supplied by frame |
