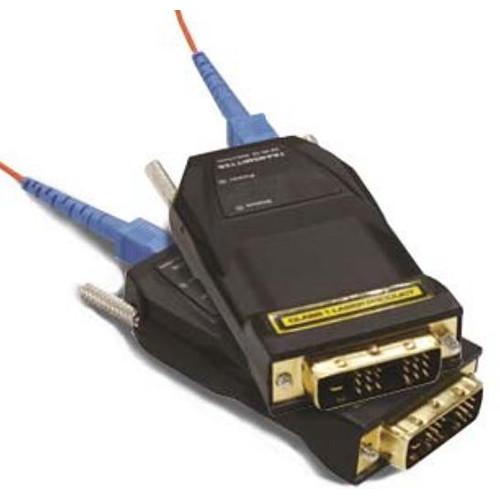

Product description The Single-Fiber DVI Extension Kit from Evertz Microsystems consists of a transmitter module and a receiver module, each with one SC-type connector for the fiber input and a DVI-D single-link plug for the video interface. The modules support a single-fiber extended transport of DVI signal to up to 3280’ over single-mode fiber, or 1640’ over multi-mode fiber, which allows users the flexibility to customize the cable length to their specific application.Signals can be extended over 50/125µm on single-mode, and 62.5/125µm on multi-mode fiber cable. The link supports up to WUXGA (1920 x 1200) at 60 Hz resolutions, and includes support for all resolutions supported by the VIP, VIP Advanced, and VIP-X products. The transmitter module can be powered by either the VIP module via +5V pin on the DVI connector, or by an AC/DC power adapter on the transmitter fiber module. The receiver module is powered from an AC/DC power adapter. -
- Extends digital video signals up to 3280’ using single-mode fiber, or 1640’ over multi-mode fiber
- Secure data without RFI/EMI emission or loss of video quality
- DVI-D single-link support
- Support resolutions up to 1920 x 1200 at 50 and 60 Hz
- Detachable modules allow for easy assembly without the need to string connectors through conduit, walls, or ceilings
- Self-EDID programming
In the Box Evertz Microsystems Single-Fiber DVI Extension Kit Transmitter Receiver 2 x Power Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Evertz Microsystems Single-Fiber DVI Extension Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvertz Microsystems DVI-EXTND-SC Specs | Input and Output Connectors | DVI Standard Compliant: Supports DVI 1.0, fully implemented by fiber optic and DDC2B by virtual DDC
Graphic Transmission Bandwidth: 1.65 Gb/s per graphic channel
DVI-D single-link | | Optical | Minimum: 10.5 dB
Optical Rise/Fall Time: 200 ps | | Connector Type | SC type (both mating ends) | | Fiber Cable Supported | 50/125 µm multi-mode or single-mode fiber
62.5/125 µm multi-mode or single-mode fiber | | Optical Power | Peak Optical Power per Channel: -2.0 dBm | | Amplitude | Optical Modulation Amplitude: 300 µW (per channel) | | Wavelength Range | 850 nm nominal | | Voltage | +5 V, 2 A | | Operating Temperature | 32 to 122°F / 0 to +50°C | | Humidity | 5 to 85% | | Dimensions (W x H x D) | 1.5 x 0.6 x 2.6" / 3.9 x 1.5 x 6.8 cm |
