User Manual for EVGA 400W Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 400W Power Supply
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 400W Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

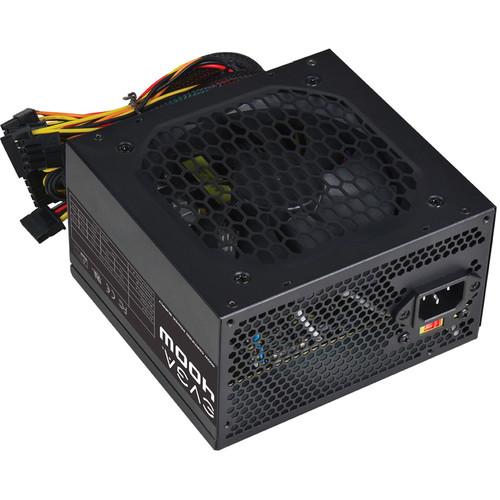

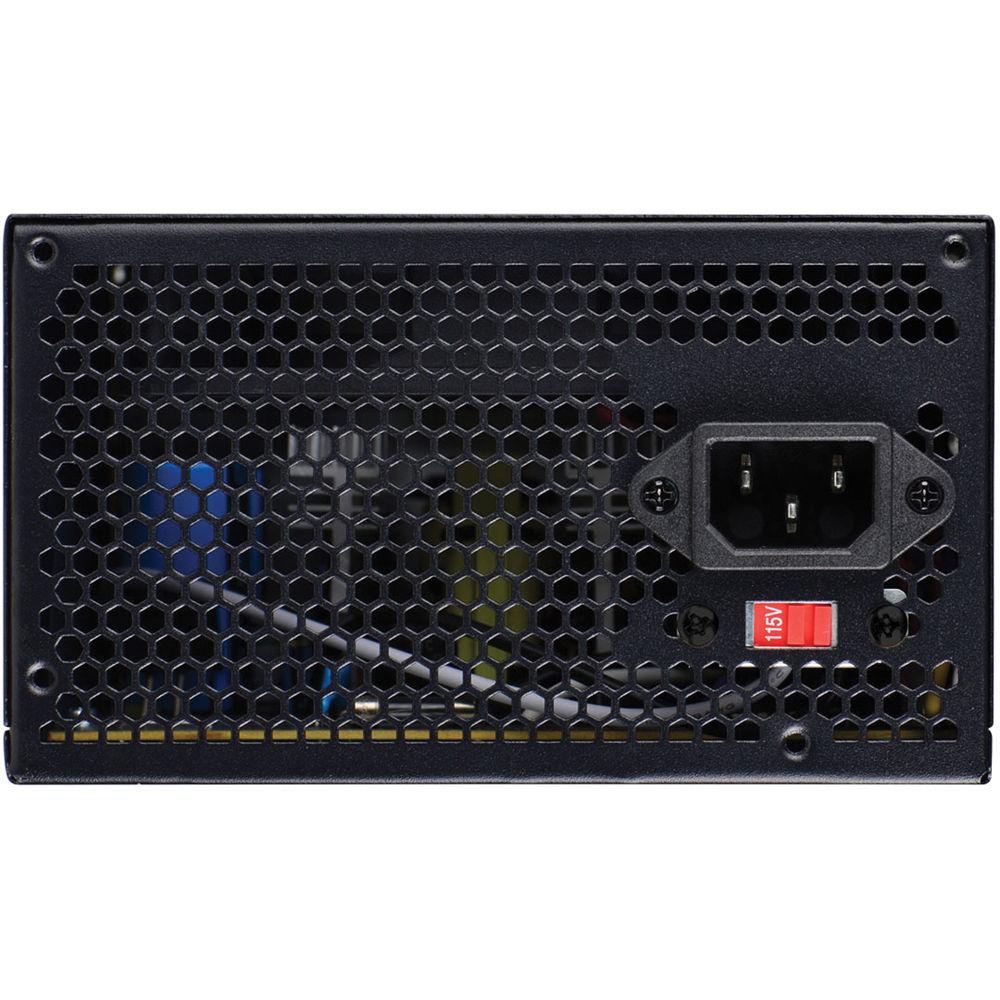

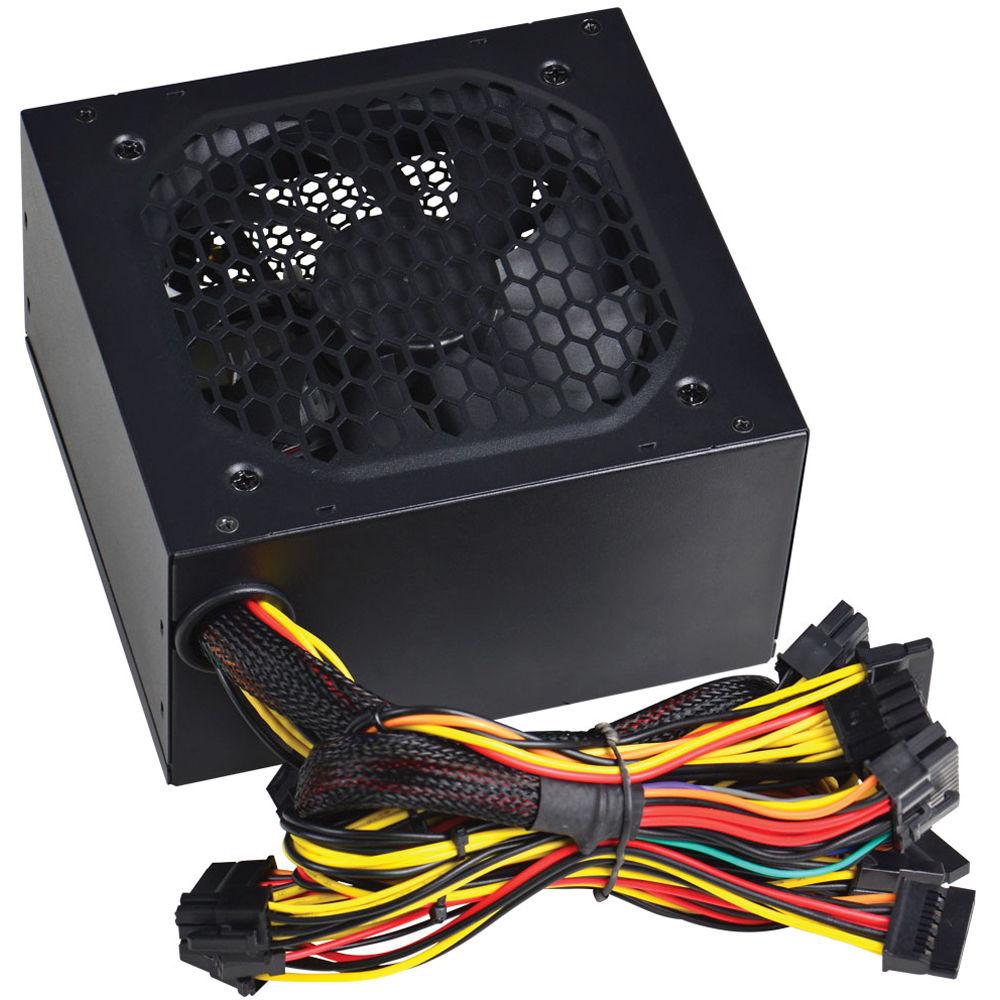

Product description The EVGA 400W Power Supply features a standard ATX form factor and a single +12 V rail supporting up to 30A. It has a 24-pin ATX, an 8-pin CPU, and 6- and 8-pin PCIe connectors, which are enough to support a build with a single high-end graphics card or two entry-level graphics cards. Four SATA connectors are for hard drives or solid-state drives, and three 4-pin Molex peripheral connectors are for optical drives, fan hubs, and more. For cooling, EVGA has outfitted this power supply with an intelligent and quiet 120mm fan for near-silent operations. In addition, this power supply safeguards your system with Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP) to keep your components in check. UPC: 843368031114 In the Box EVGA 400W Power Supply 3.9' (1.2 m) AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 400W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

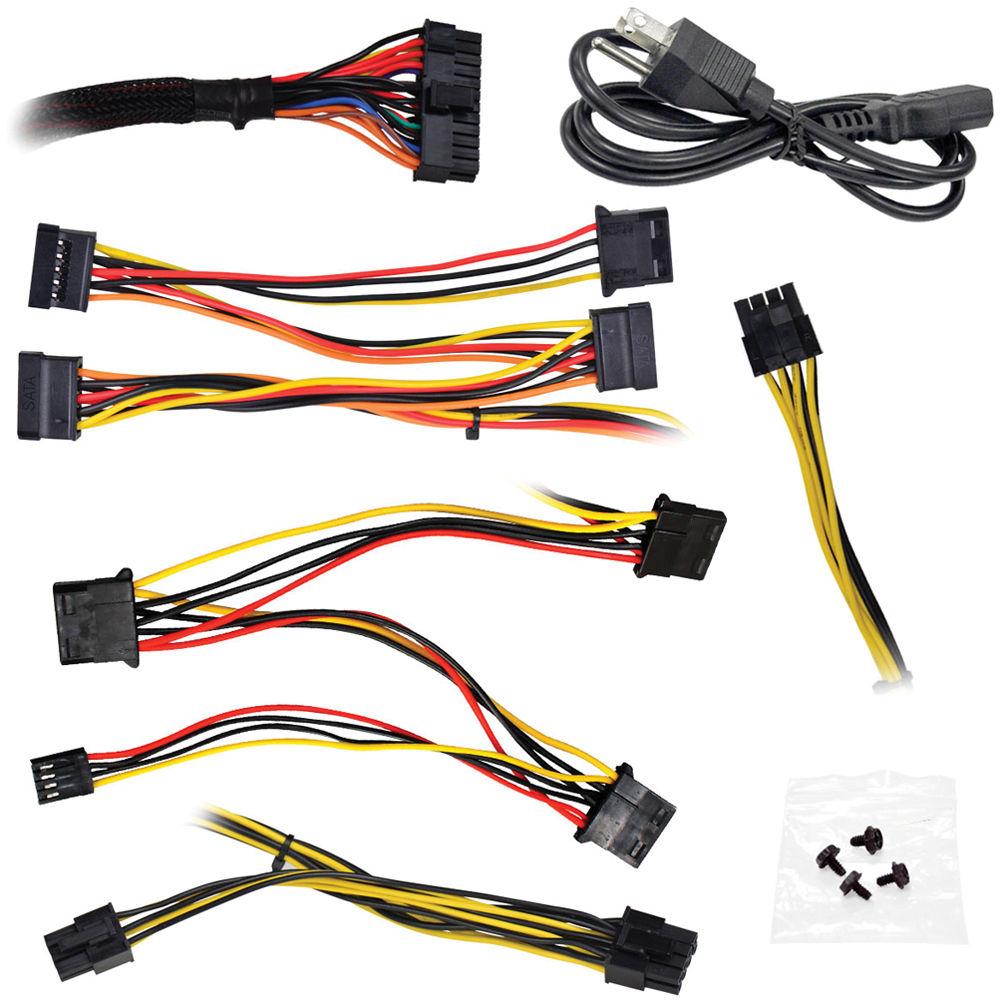

Technical parametersEVGA 100-N1-0400-L1 Specs | Cables | 1 x 24-pin ATX
1 x 8-pin (4+4) EPS/CPU
1 x 8-pin PCIe
1 x 6-pin PCIe
4 x SATA
3 x 4-pin peripheral
1 x Floppy | | Fan Size | 120 mm | | | | AC Input | 100 to 240 VAC, 50/60 Hz, 4 to 8 A | | Current Rails | +3.3 V: 18 A
+5 V: 17 A
Combined: 110 W
+12V: 30 A
Combined: 360 W
+5Vsb: 2 A
Combined: 15 W
-12V: 0.3 A
Combined: 3.6 W
Output: 400 W @ +25C | | | | Operating Temperature | -32 to 77°F (0 to 25°C) | | | | Certifications and Compliances | TUV, cUL, CE, FCC, WEEE, RoHS | | MTBF | 100,000 hours | | Dimensions (W x H x L) | 5.9 x 3.35 x 5.5" (150 x 85 x 140 mm) | | Weight | 3 lb (1.4 kg) | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 7.5 x 6.5 x 6.4" |
