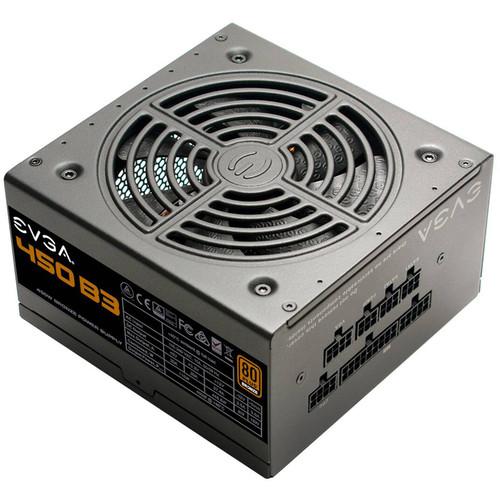

Product description The EVGA 450 B3 80-Plus Bronze Fully-Modular Power Supply delivers up to 450W of power to the desktop's components and provides two PCIe 8-pin and six SATA connectors to enable a system build with multiple graphics cards and storage/optical drives. The connectors come on fully modular cables, which help improve airflow within the case by reducing the number of unused cables. With 80-Plus Bronze certification, the power supply uses energy efficiently to help lower energy bills. To quietly cool the power supply, a 130mm fan and ECO mode are available. Aside from cooling, this ATX power supply features a length of 5.9" to help provide extra room within a computer case. - Compact Size
- The EVGA 450 B3 features a length of 5.9" to provide extra space within a computer chassis.
- Quiet Cooling

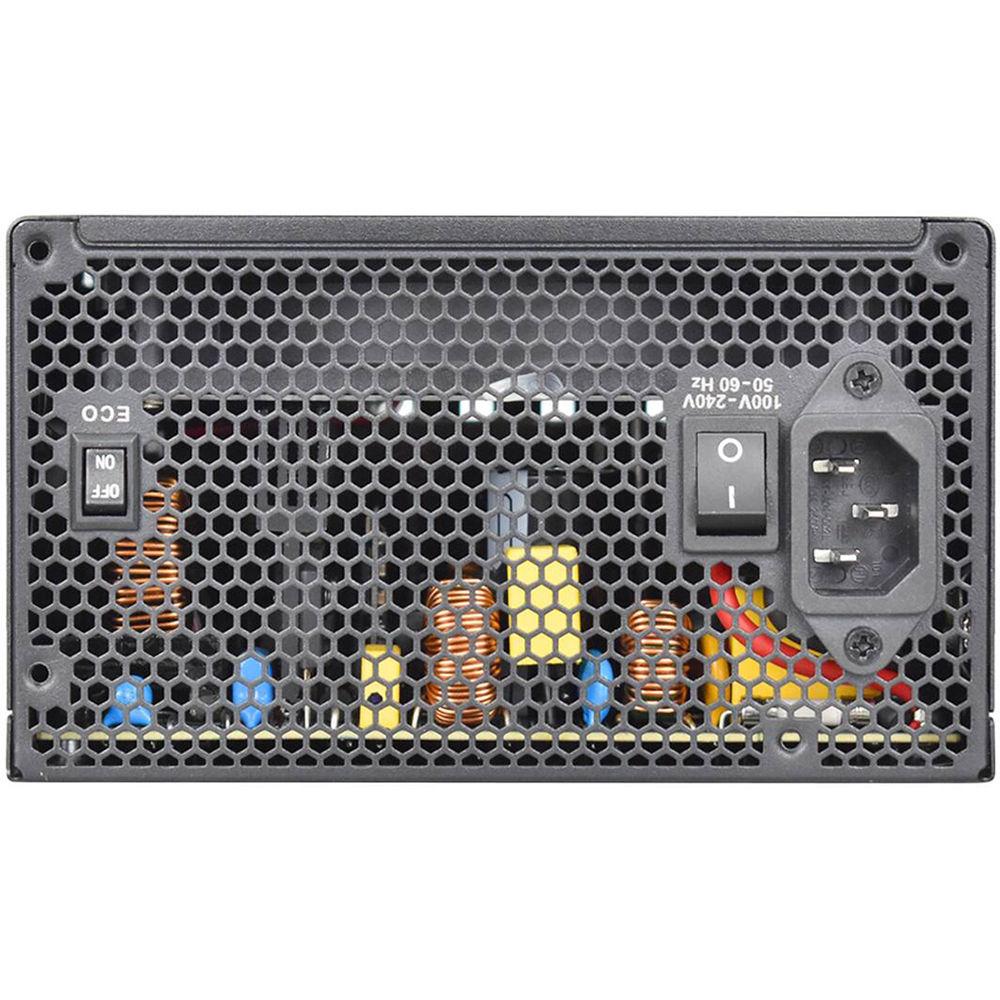

- The EVGA 450 B3 is built with a sleeve-bearing 130mm fan that is designed to be reliable and operates quietly. In addition, EVGA ECO mode is available to enable nearly-silent operations at low to medium loads.
- Efficiency
- With 80-Plus Bronze certification, the power supply utilizes energy efficiently up to 88%.
- Fully-Modular Design
- You can use only the cables you need, thereby, reducing cable clutter and improving case airflow.

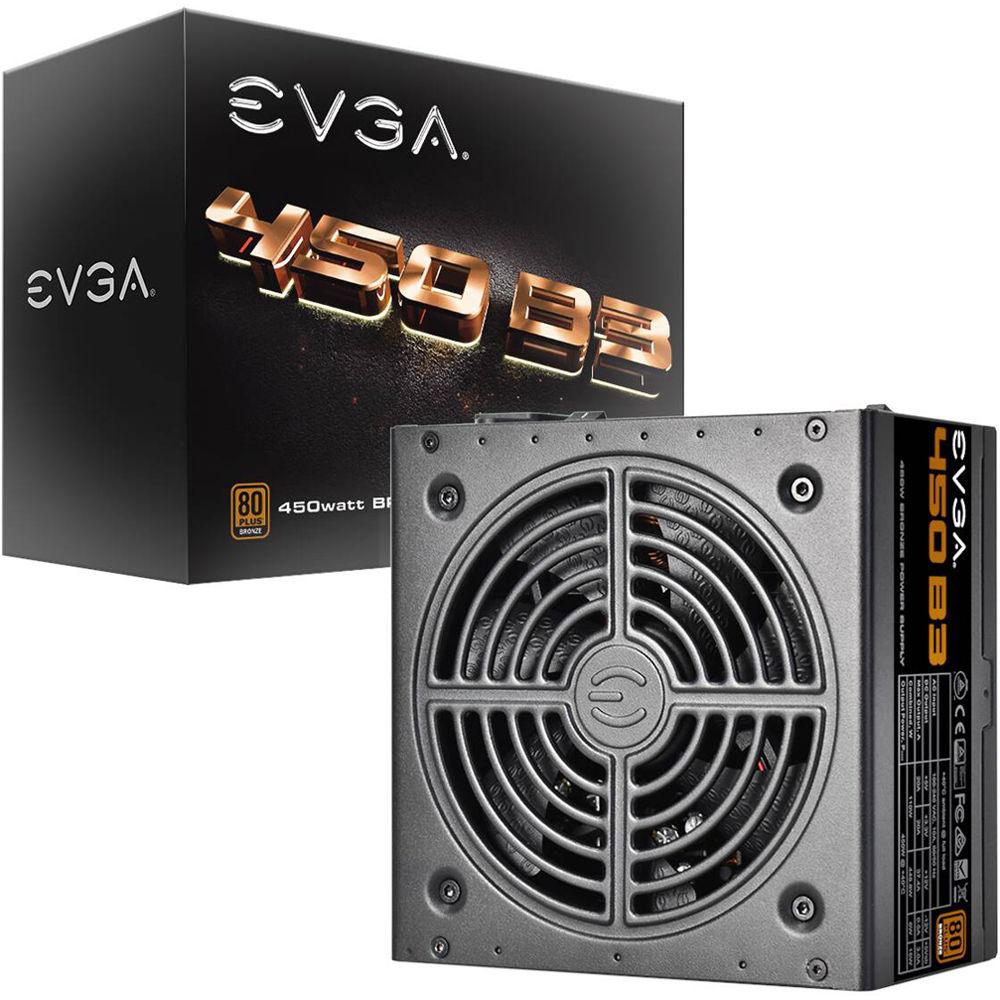

UPC: 843368045043 In the Box EVGA 450 B3 450W 80-Plus Bronze Fully-Modular Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 450 B3 450W 80-Plus Bronze Fully-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

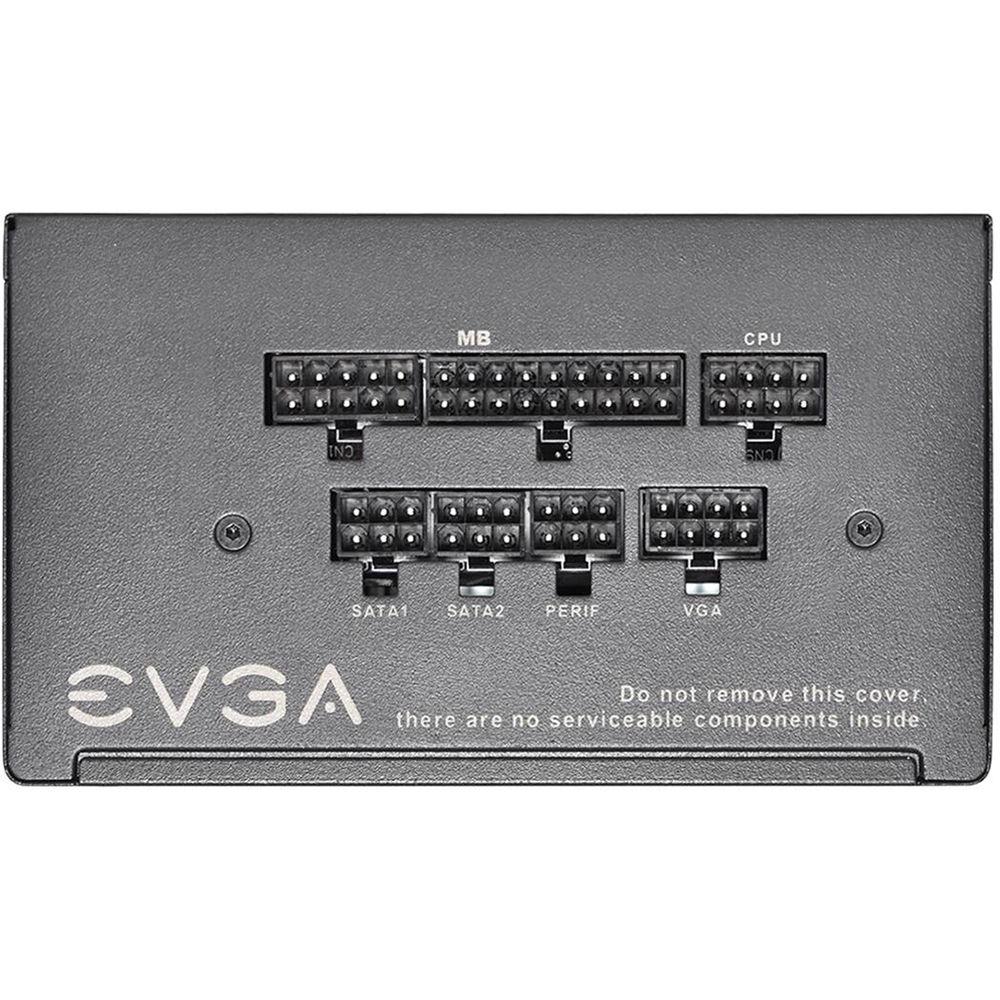

Technical parametersEVGA 220-B3-0450-V1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm | | Peripheral Connector Distances | 19.7" / 500 mm
23.6" / 600 mm

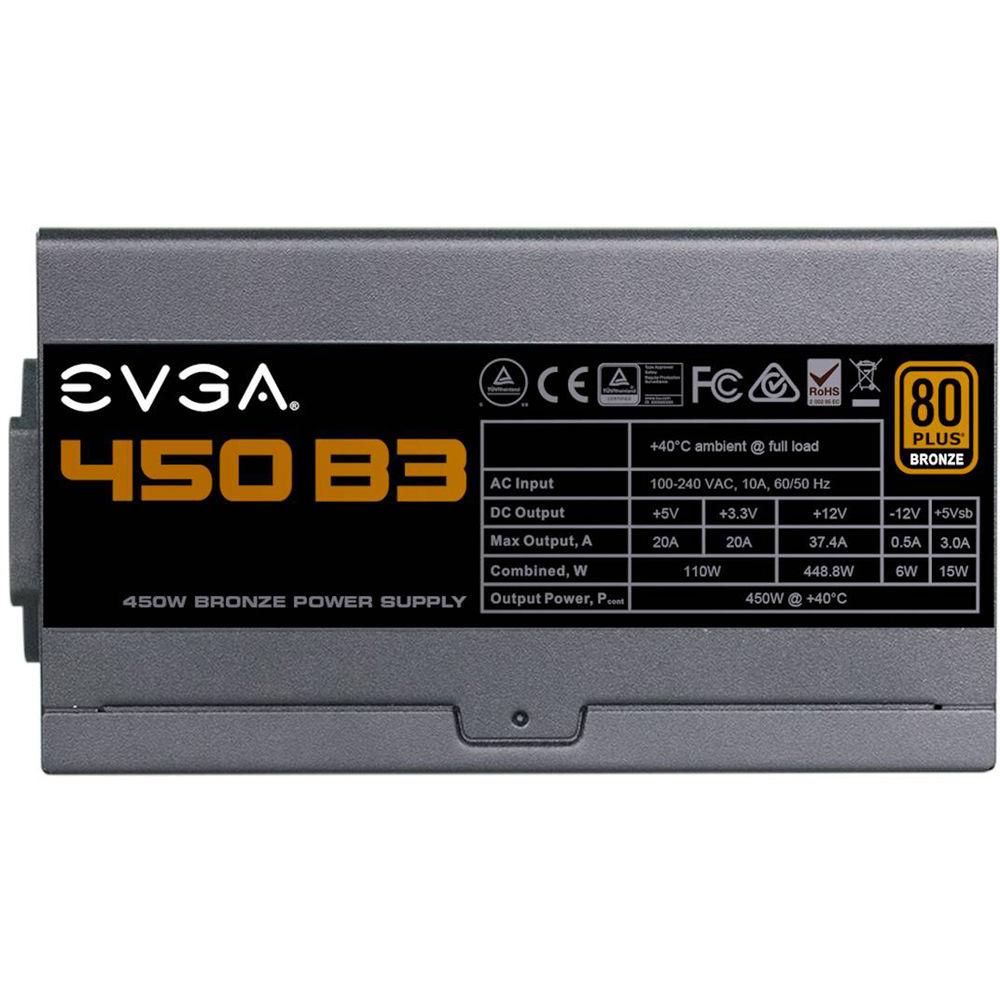

27.6" / 700 mm | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 450 W | | Combined Power for +12 V | 448.8 W | | Max Load for +12 V | 37.4 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | None | | Efficiency | 88% | | | | Fan Size | 130 mm | | Bearing Type | Sleeve | | Noise Level | 0 to 27 dBA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Certifications | RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 4.9' / 1.5 m | | Dimensions | 3.3 x 5.9 x 5.9" / 85.0 x 150.0 x 150.0 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 10.6 x 8.8 x 3.9" |
