User Manual for EVGA 450BT 450W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 450BT 450W 80 Plus Bronze
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 450BT 450W 80 Plus Bronze contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

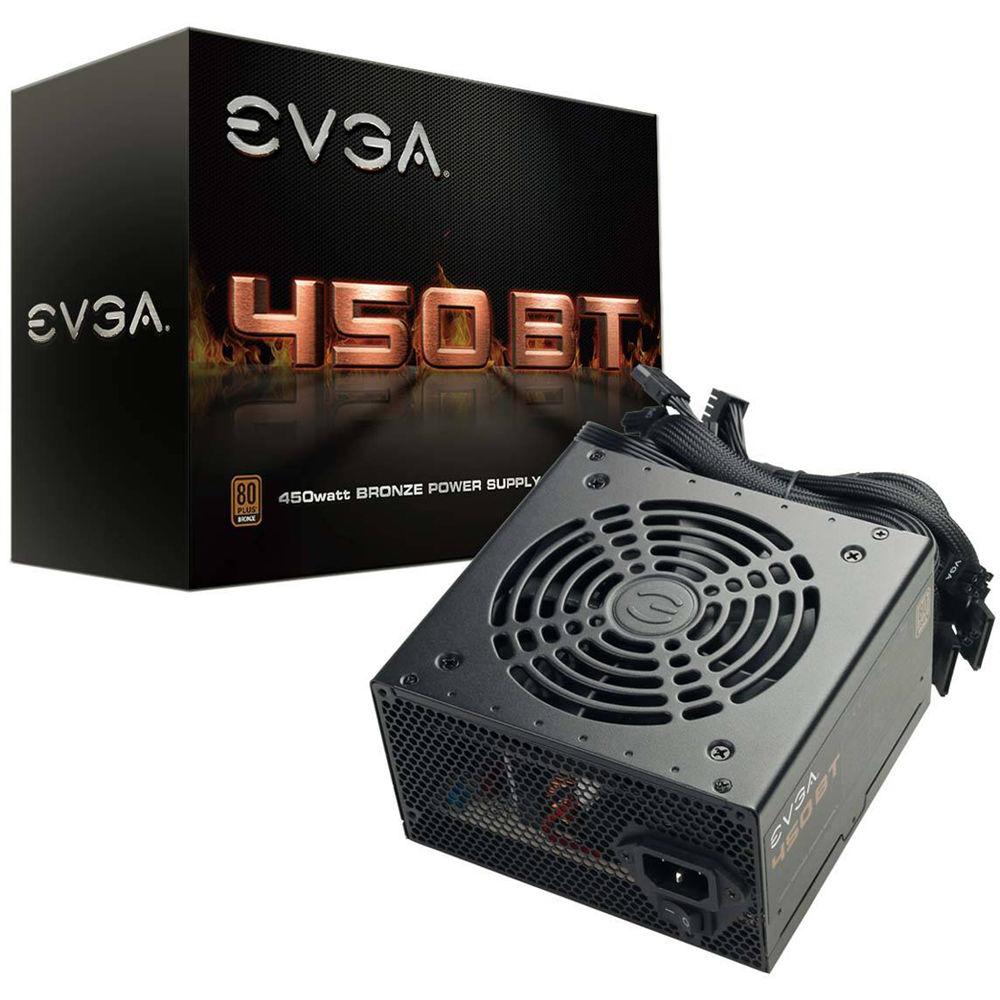

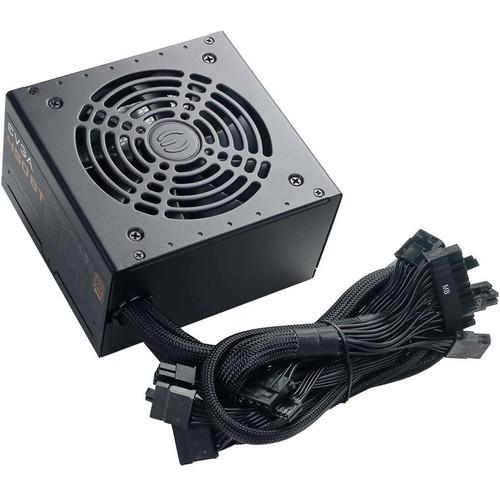

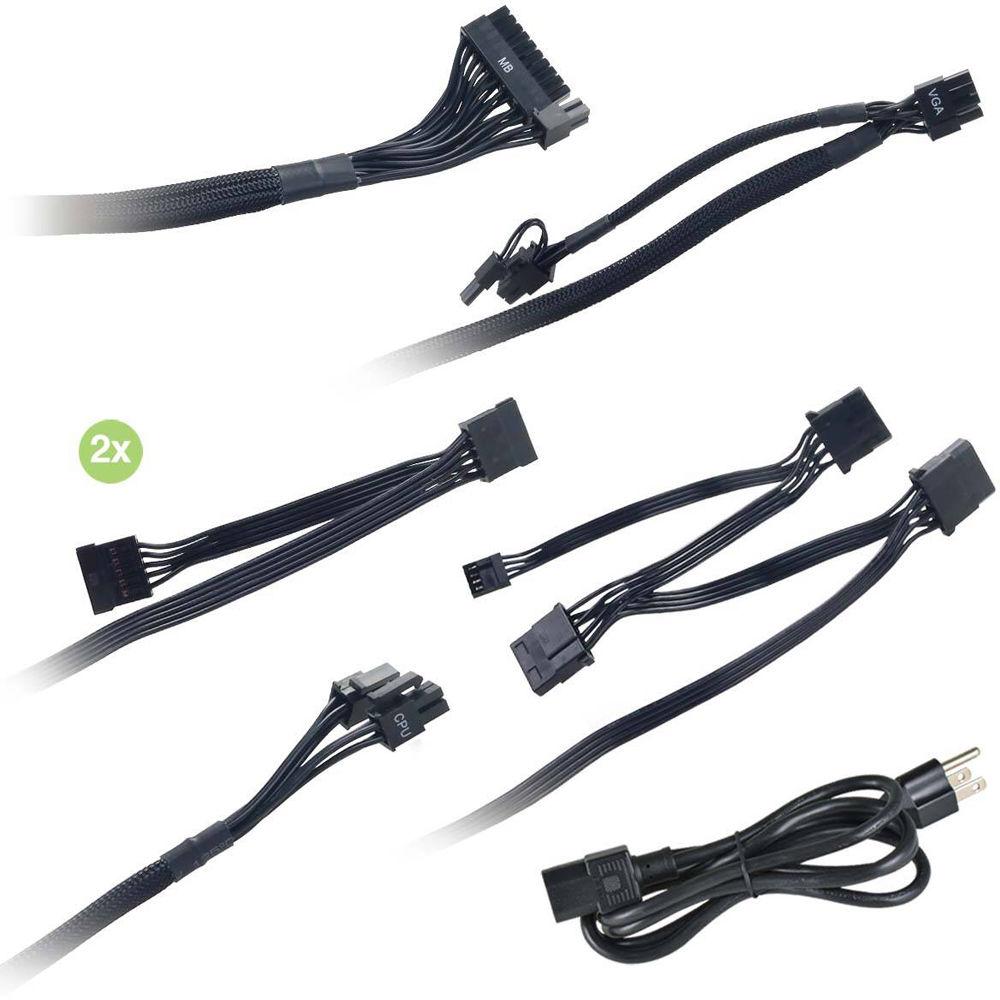

Product description The 450BT 450W 80 Plus Bronze Power Supply from EVGA is designed to provide your system with stable and consistent power. It supports up to 450W of power and has multiple connectors for your system including 24-pin ATX, 8-pin (4+4) CPU, 8-pin (6+2) PCIe, SATA, and 4-pin peripheral. For cooling, it has a 120mm fan that can operate silently when not under load. Additionally, it's 80 Plus Bronze rated for 85% efficiency and built with multiple heavy-duty safety features such as active power factor correction, over-voltage, under-voltage, over-current, over-power, and short-circuit protection. UPC: 843368046071 In the Box EVGA 450BT 450W 80 Plus Bronze Power Supply Power Cable ATX Cable 8-Pin (4+4) CPU Cable 8-Pin (6+2) PCIe Cable 2 x SATA Cable 4-Pin (Molex) Peripheral Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 450BT 450W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

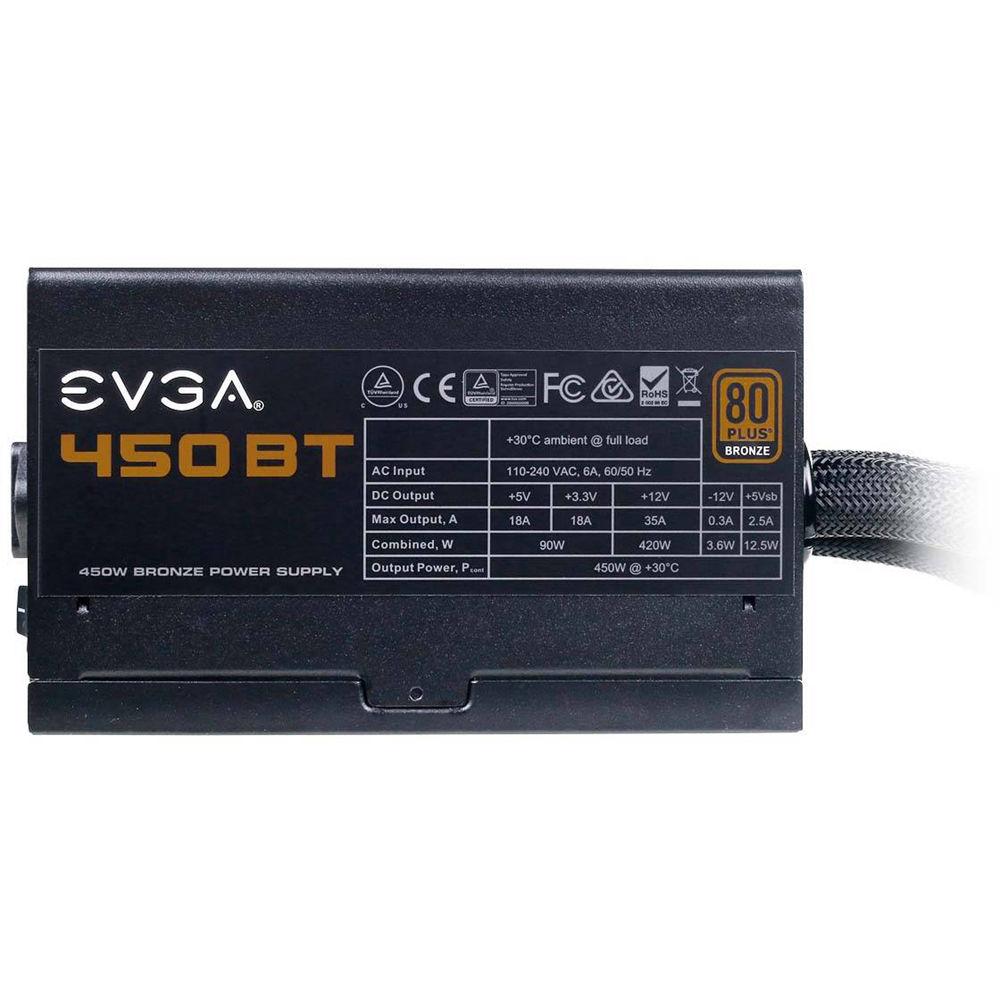

Technical parametersEVGA 100-BT-0450-K1 Specs | | | Total Connectors | 1 x 20+4-Pin ATX
1 x 4+4-Pin CPU
2 x 6+2-Pin PCIe
4 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Sleeved | | PCIe Connector Distances | 21.7" / 550 mm
5.9" / 150 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm | | Peripheral Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Floppy Connector Distances | 4.7" / 120 mm (Adapter) | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 450 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 420 W | | Max Load for +12 V | 35 A | | Combined Power for +3.3/+5 V | 90 W | | Max Load for +3.3 V | 18 A | | Max Load for +5 V | 18 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 6 A | | | | Efficiency Rating | 80 PLUS Bronze | | Efficiency | 85% | | | | Fan Size | 120 mm | | Bearing Type | Sleeve | | | | Operating Temperature | 32 to 86°F / 0 to 30°C | | | | Form Factor | ATX | | Protection | Over-Current Protection, Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | CB, CE, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 47.24" / 120 cm | | Dimensions | 5.9 x 3.3 x 5.6" / 150.0 x 85.0 x 142.0 mm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 10.6 x 7.7 x 4.0" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
