User Manual for EVGA 500 BQ 500W 80 Plus Bronze Semi-Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 500 BQ 500W 80 Plus
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 500 BQ 500W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

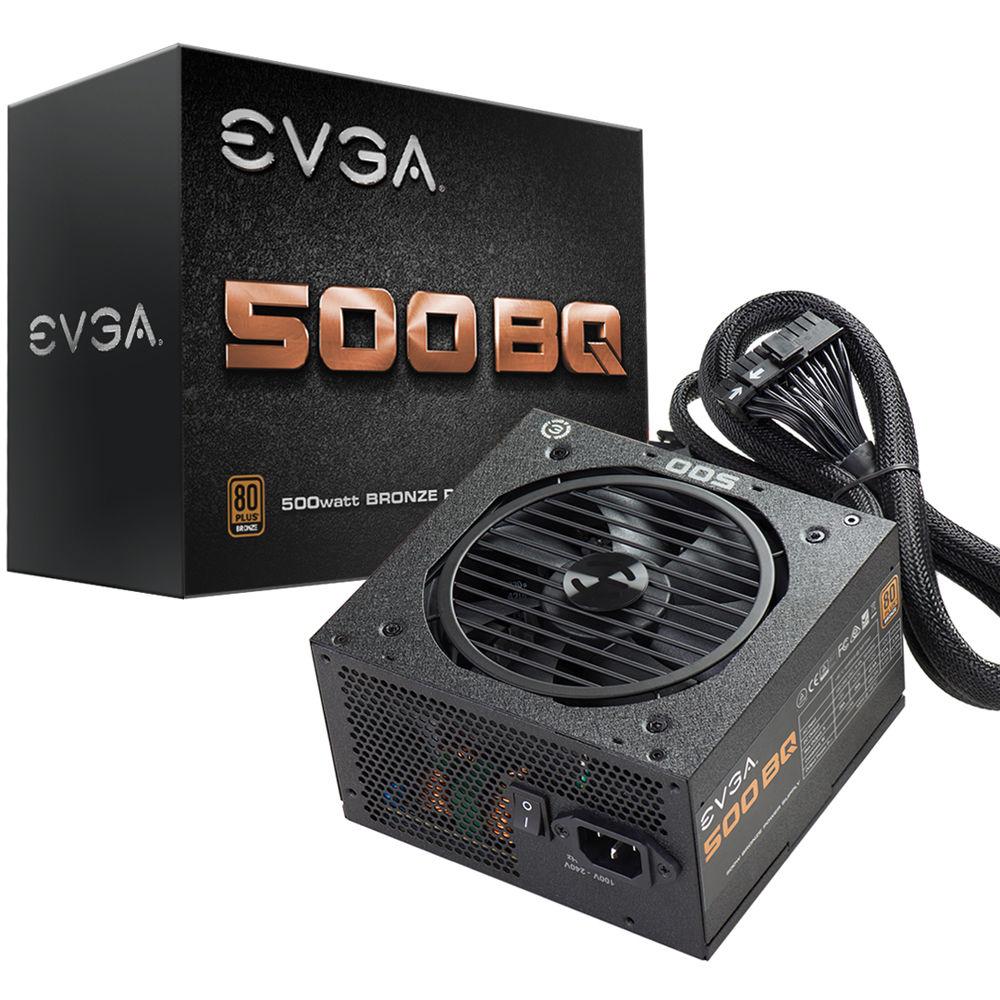

Product description The 500 BQ 500W 80 Plus Bronze Semi-Modular Power Supply from EVGA powers a desktop's components utilizing a single +12V rail. This power supply features a semi-modular design that enables you to use just the necessary cables, which can improve the system's airflow. With 80 Plus Bronze certification, it wastes less energy than other non 80 Plus power supplies. Cooling the power supply is done with an integrated 120mm fan, which sports a fluid dynamic bearing for quiet cooling. In addition, it is compatible with NVIDIA SLI builds by sporting two PCI-E 8-pin cables. - Teflon nano-steel bearing fan provides near silent cooling, even under high loads
- 85% efficiency under typical loads
- Single +12V rail offers stability and compatibility

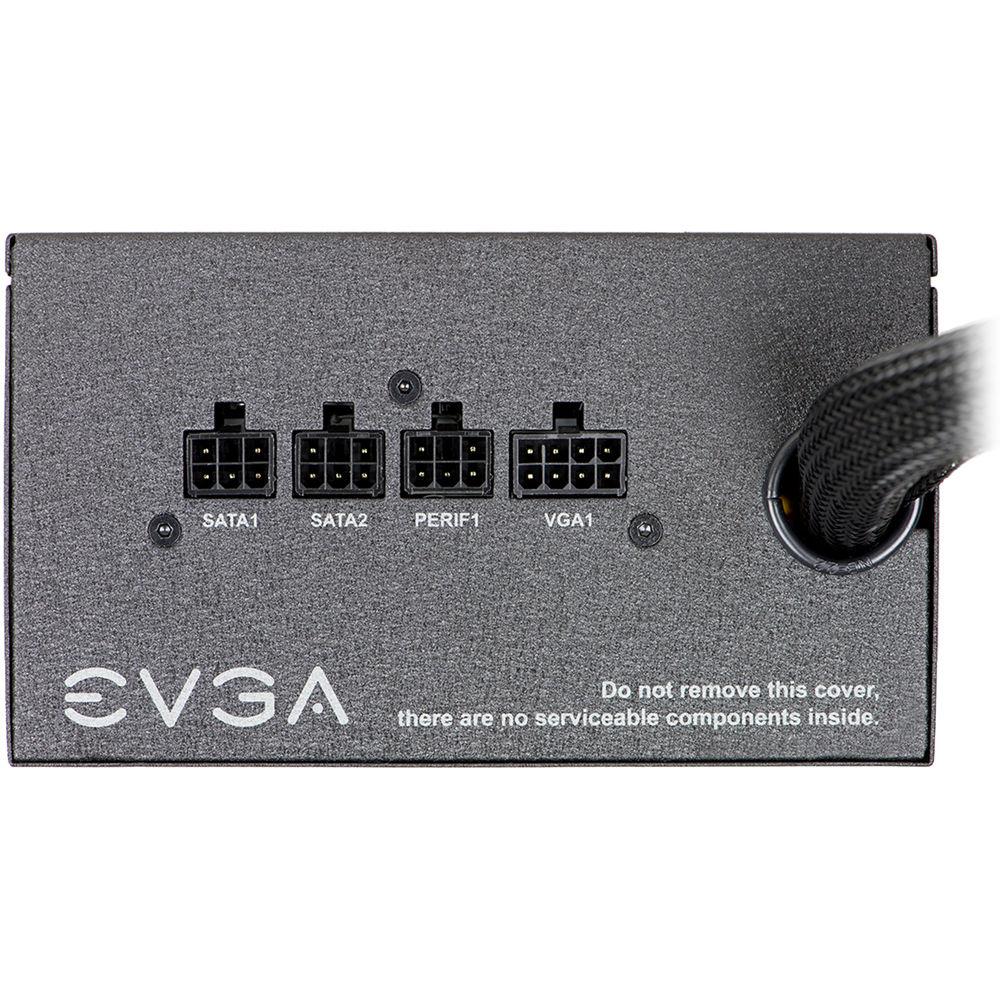

- Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow
- NVIDIA SLI compatibility enables you to power multiple dedicated graphics cards
- 80 Plus Bronze-rated efficiency ensures your power supply isn't wasting power by creating excess heat. Under typical loads, these power supplies are 85% efficient or better
UPC: 843368043346 In the Box EVGA 500 BQ 500W 80 Plus Bronze Semi-Modular Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 500 BQ 500W 80 Plus Bronze Semi-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

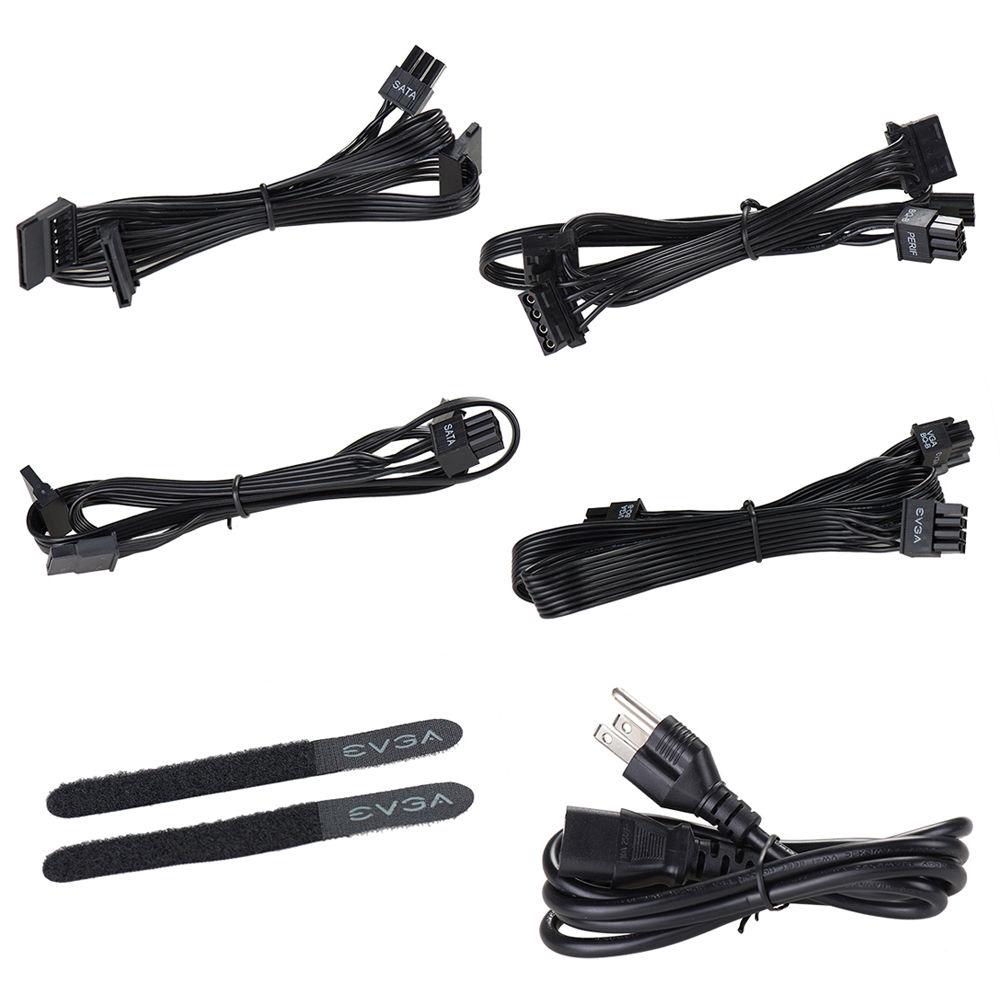

Technical parametersEVGA 110-BQ-0500-K1 Specs | Cables | 1 x 24-pin ATX
1 x 8-pin (4+4)
2 x 8-pin (6+2)
6 x SATA
3 x 4-pin

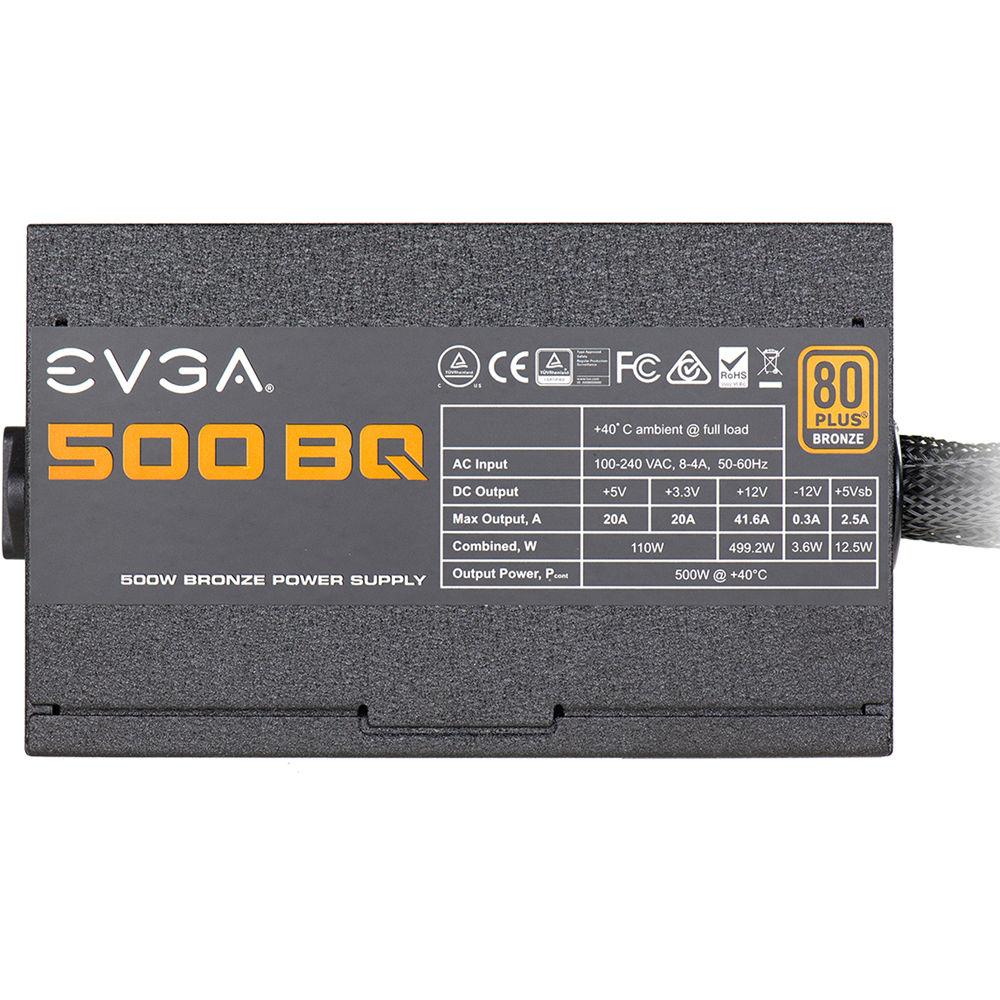

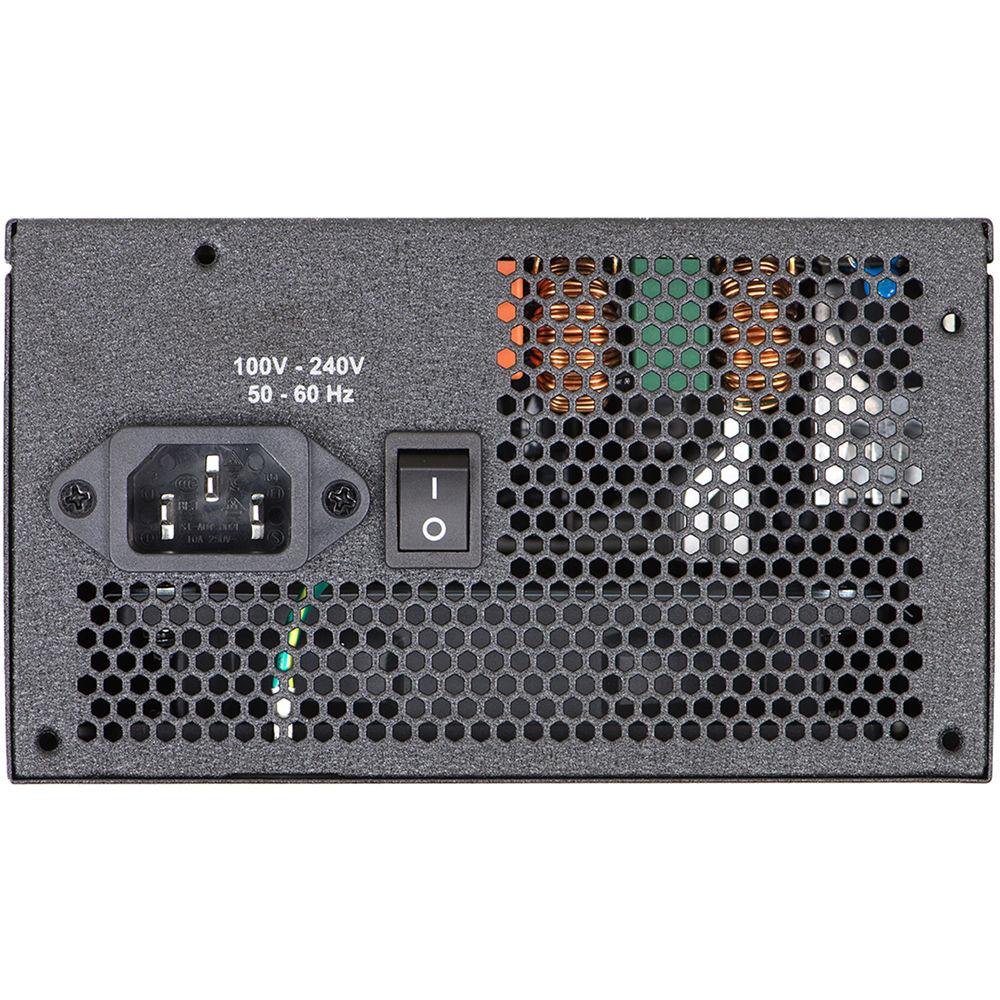

1 x floppy | | AC Input | 100 to 240 VAC, 4 to 8 A, 50/60 Hz | | DC Output | +3.3 V
+5 V
+12 V
+5 Vsb
-12 V | | Max Output | +3.3 V: 20 A
+5 V: 20 A
+12 V: 41.6 A
+5 Vsb: 2.5 A
-12 V: 0.3 A | | Watts | +3.3 V: 120 W
+5 V: 120 W
+12 V: 500 W
+5 Vsb: 12.5 W
-12 V: 3.6 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | MTBF | 100,000 hours | | Cooling | 1 x 120 mm fluid dynamic bearing fan | | Protection | Over Voltage, Under Voltage, Over Current, Over Power, Short Circuit | | Approvals | TUV, CE, FCC, cTUVus, WEEE, RoHS | | Dimensions (H x W x L) | 3.3 x 5.9 x 5.5" / 85 x 150 x 140 mm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 3.8" |
