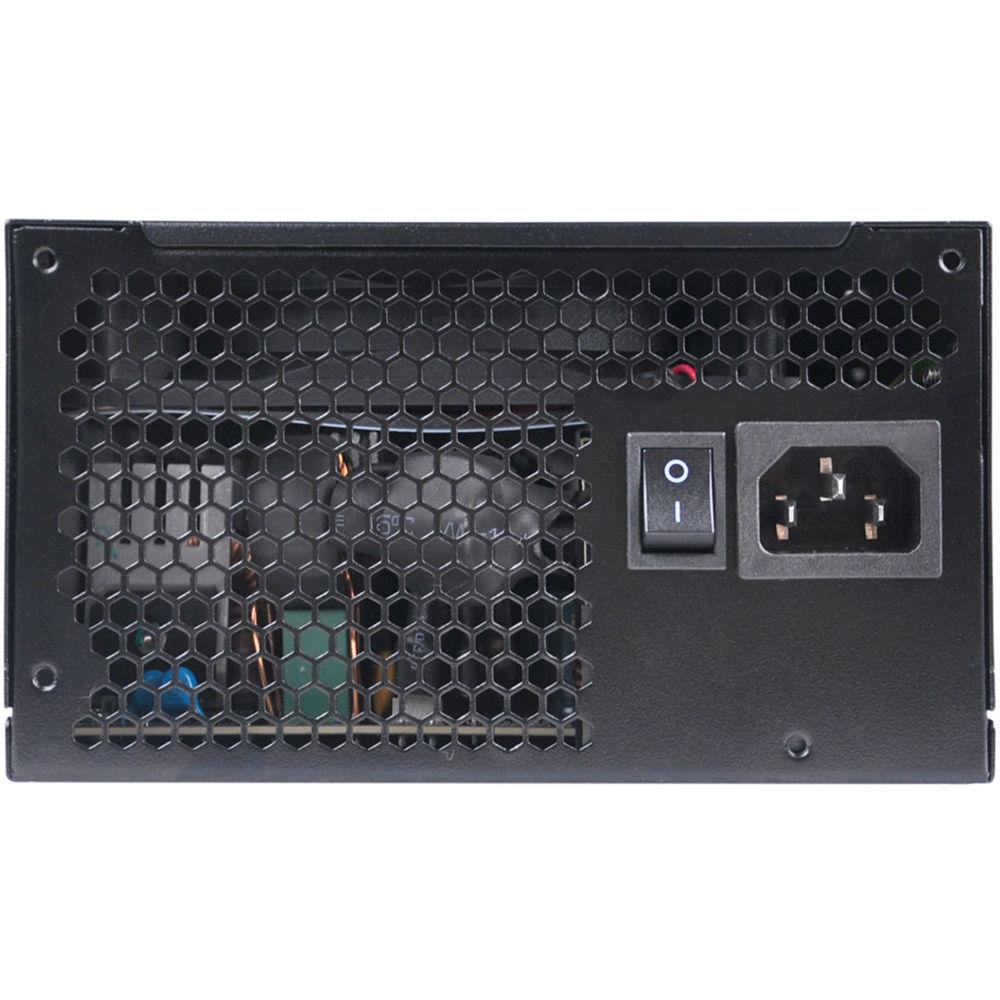

Product description The 500B 500W 80 Plus Bronze Power Supply from EVGA is built with a high-amperage single +12 V rail, a 120 mm cooling fan, and heavy-duty protection. It's 80 Plus Bronze certified, ensuring 85% efficiency under typical loads to conserve power and reduce excess heat. The cables are non-modular so unused cables cannot be removed. Instead, organize and keep them out of the way for better airflow within the chassis. Its ATX form factor makes it compatible with almost every standard ATX case. - Bronze Rated Efficiency
- The 80 Plus Bronze efficiency certification ensures that this power supply doesn't waste power, which leads to excess heat. Under typical load, this power supply is 85% efficient or higher.
- Continuous Power
- This unit is rated by its continuous power rather than its peak for stable operation over its lifetime.
- Single +12V Rail
- A high-amperage single +12V provides you with stable power output for maximum power and efficiency.
- Cooling Fan
- The 120 mm cooling fan runs quietly and dissipates excess heat from the unit and its surroundings.
- Heavy-Duty Protection
- OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)

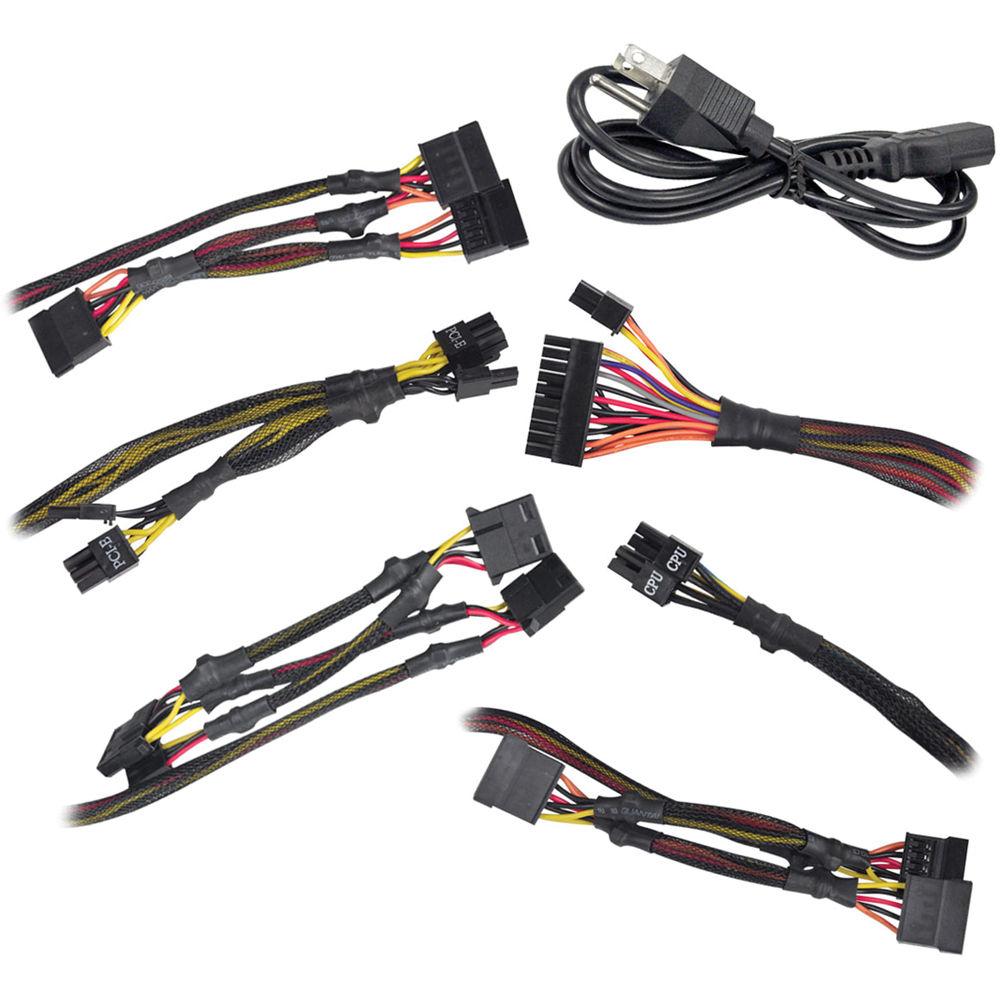

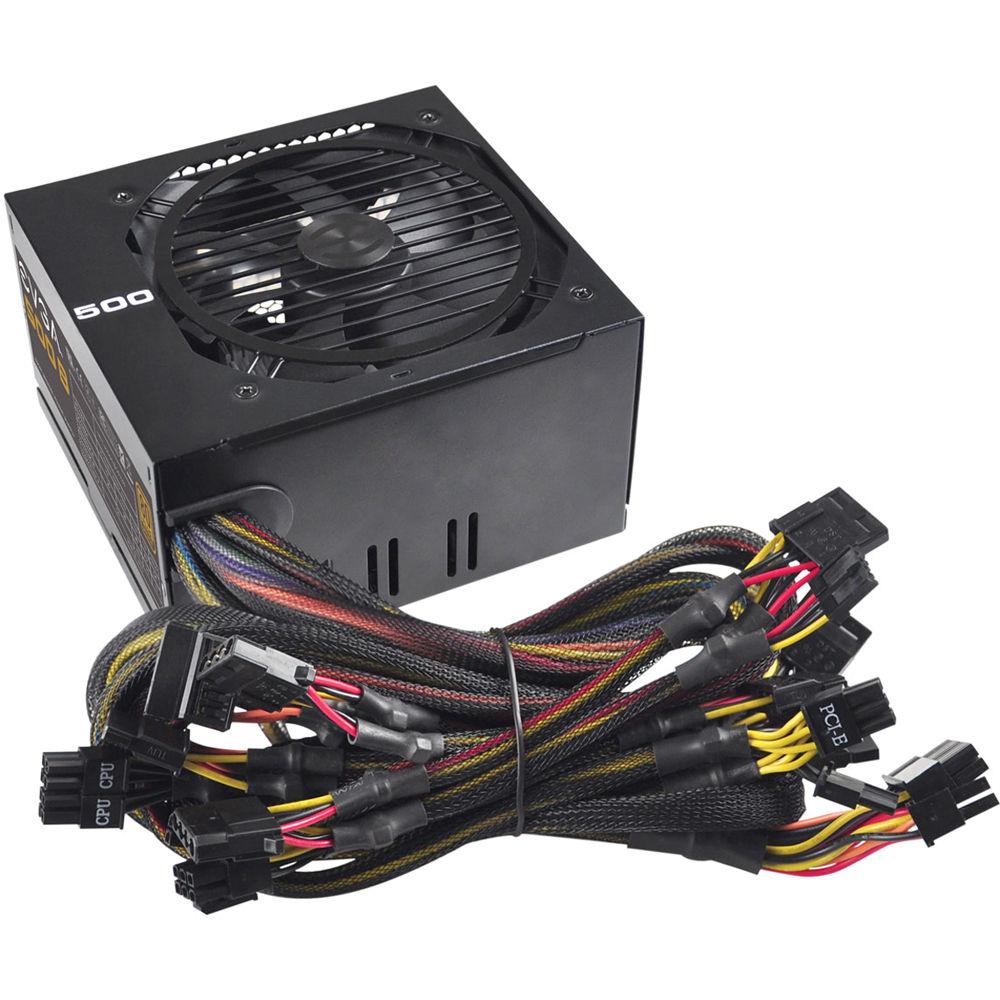

OTP (Over Temperature Protection) UPC: 843368023904 In the Box EVGA 500B 500W 80 Plus Bronze Power Supply 24-Pin ATX Cable EPS (CPU) 8-Pin (4+4) Cable 2 x PCIe 8-Pin (6+2) Cables 6 x SATA Cables 3 x 4-Pin Peripheral Cables Floppy Cable AC Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 500B 500W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 100-B1-0500-KR Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Sleeved | | PCIe Connector Distances | 21.7" / 550 mm
31.9" / 670 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Peripheral Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Floppy Connector Distances | 4.7" / 120 mm | | ATX Connector Distance | 19.7" / 500.1 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 500 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 40 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Efficiency Rating | 80 PLUS Bronze | | Efficiency | 85% | | | | Fan Size | 120 mm | | Bearing Type | Sleeve | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 3.9' / 1.2 m | | Dimensions | 3.3 x 5.9 x 5.5" / 85.0 x 150.0 x 140.0 mm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 10.7 x 7.7 x 4.0" |
