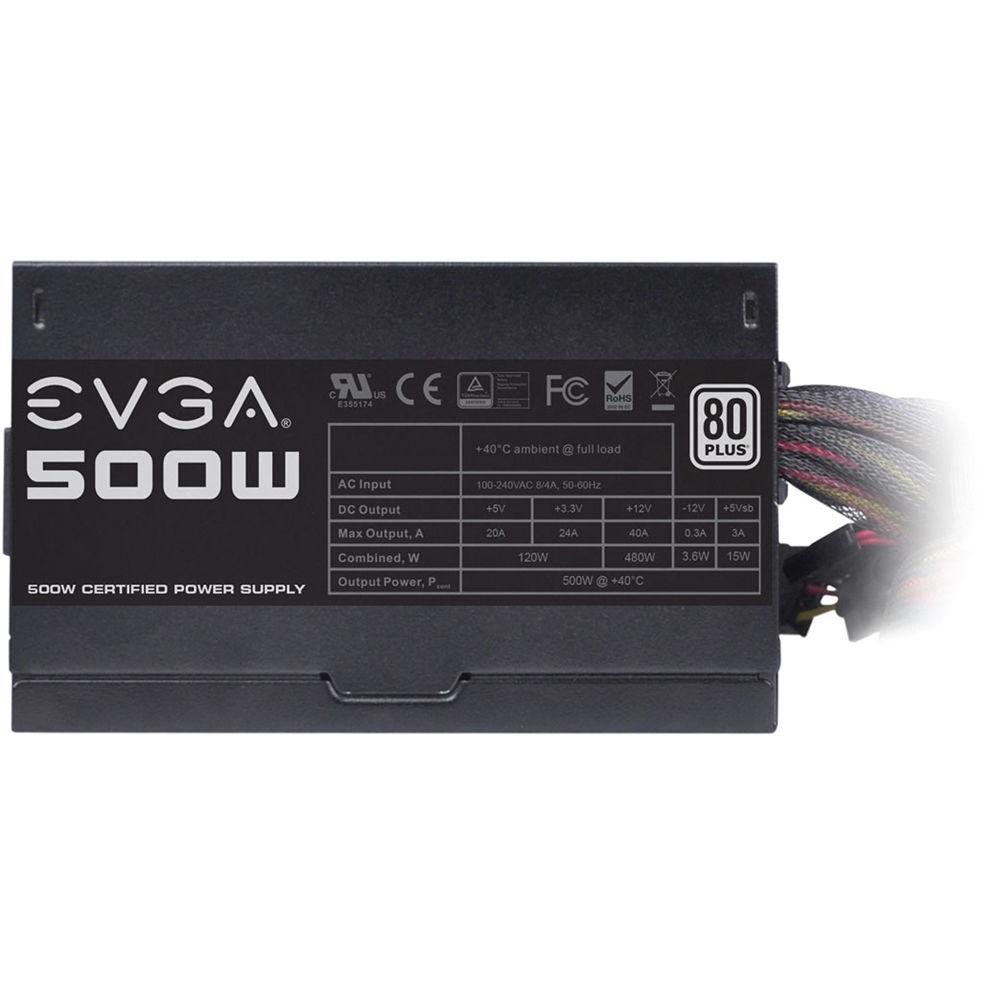

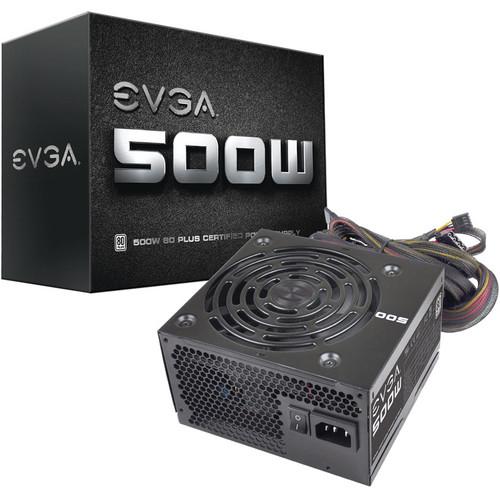

Product description The 500W Computer Power Supply from EVGA is able to supply 480W, 40A continuous power from a single +12V rail. With an 80% efficiency rating, it is designed to be a cost-effective solution for energy-conscious builds with modest power requirements. It can connect to 100 to 240V AC power and accepts 50 or 60 Hz. A power I/O switch is incorporated into the back of the unit. - Features
-
- Low-noise, 120mm fan
- Up to 40A / 480W on single +12V rail
- Active Power Factor Protection (PFC)
- Provides up to 500W at 104°F
- Intel Haswell Compatible
- Protections Include:
-
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
UPC: 843368026318 In the Box EVGA 500W Computer Power Supply Limited 3-Year Warranty - Requires Online Registration with EVGA Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 500W Computer Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 100-W1-0500-KR Specs | Total Connectors | 1 x 24-Pin Motherboard 1 x 4+4-Pin EPS 2 x 6+2-Pin PCIe 6 x 15-Pin SATA 3 x 4-Pin Peripheral / Molex 1 x 4-Pin Floppy | | Total Wattage | 500 W | Combined Power for +12 V | 480 W | Max Load for +12 V | 40 A | Combined Power for +3.3/+5 V | 120 W | Max Load for +3.3 V | 24 A | Max Load for +5 V | 20 A | Max Power for +5 Vsb | 15 W | Max Load for +5 Vsb | 3 A | Max Power for -12 V | 3.6 W | Max Load for -12 V | 0.3 A | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Efficiency Rating | None | Efficiency | 80% | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | RoHS, as per Manufacturer | Dimensions | 3.3 x 5.9 x 5.5" / 85.0 x 150.0 x 140.0 mm | Weight | 4.4 lb / 2.0 kg | | Package Weight | 4.55 lb | Box Dimensions (LxWxH) | 10.6 x 7.8 x 3.9" |
