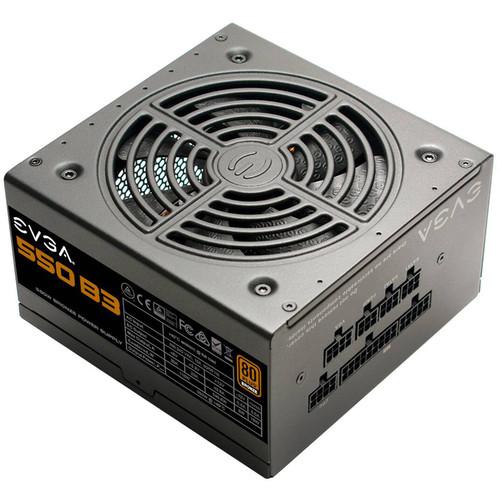

Product description The EVGA 550 B3 80-Plus Bronze Fully-Modular Power Supply delivers up to 550W of power to the desktop's components and provides two PCIe 8-pin and six SATA connectors to enable a system build with multiple graphics cards and storage/optical drives. The connectors come on fully modular cables, which help improve airflow within the case by reducing the number of unused cables. With 80-Plus Bronze certification, the power supply uses energy efficiently to help lower energy bills. To quietly cool the power supply, a 130mm fan and ECO mode are available. Aside from cooling, this ATX power supply features a length of 5.9" to help provide extra room within a computer case. - Compact Size
- The EVGA 550 B3 features a length of 5.9" to provide extra space within a computer chassis.
- Quiet Cooling

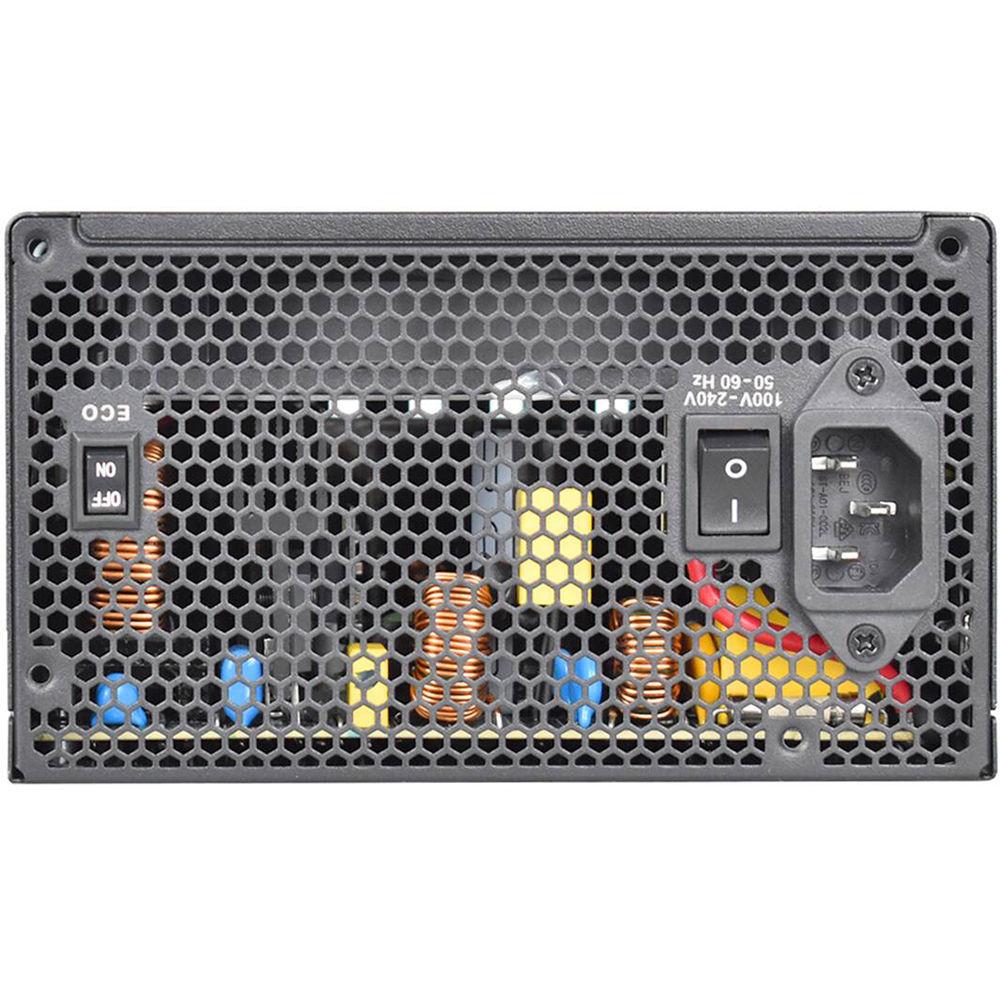

- The EVGA 550 B3 is built with a sleeve-bearing 130mm fan that is designed to be reliable and operates quietly. In addition, EVGA ECO mode is available to enable nearly-silent operations at low to medium loads.
- Efficiency
- With 80-Plus Bronze certification, the power supply utilizes energy efficiently up to 85%.
- Fully-Modular Design
- You can use only the cables you need, thereby, reducing cable clutter and improving case airflow.
UPC: 843368045098 In the Box EVGA 550 B3 550W 80-Plus Bronze Fully-Modular Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 550 B3 550W 80-Plus Bronze Fully-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

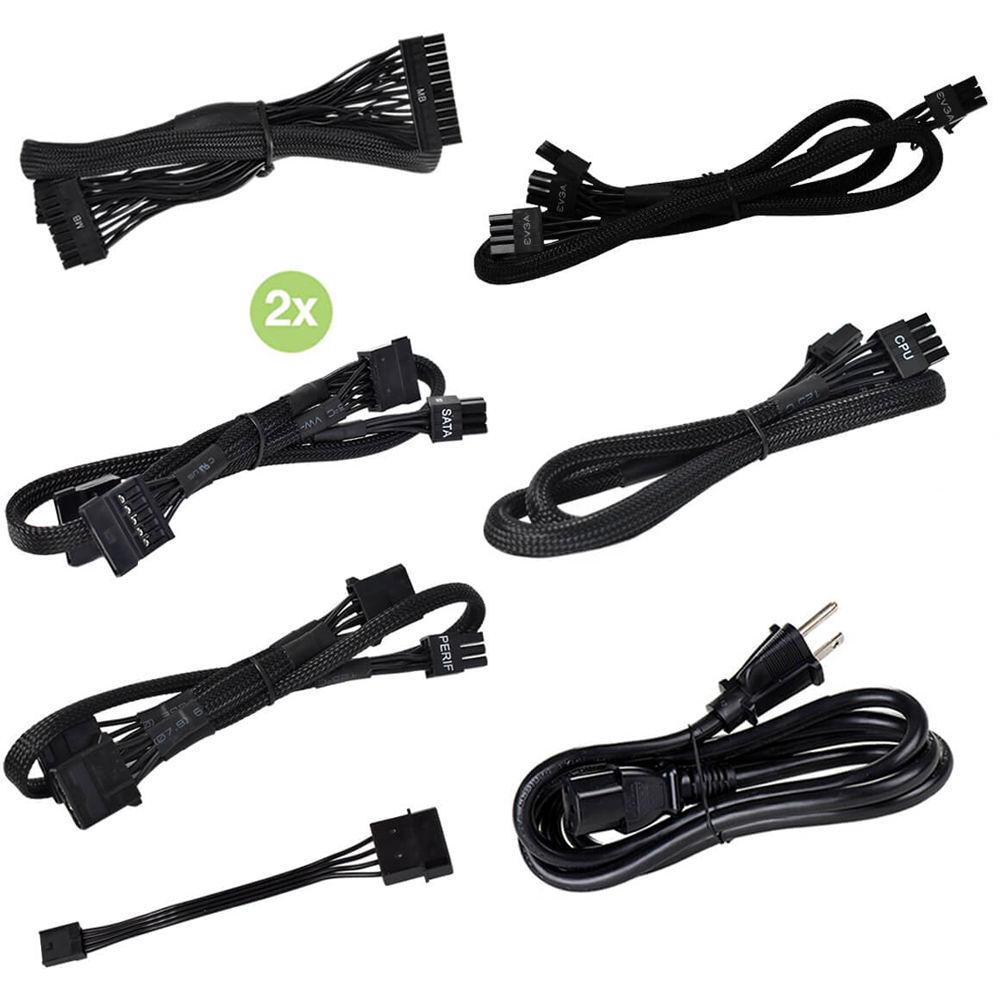

Technical parametersEVGA 550 B3 Specs | Form Factor | ATX | | Cables | ATX: 1 x 23.6" (600 mm)
EPS: 1 x 23.6" (600 mm)
PCIe: 1 x 21.7" (550 mm), 27.6" (700 mm)
SATA: 2 x 19.7" (500 mm), 23.6" (600 mm), 27.6" (700 mm)
4-Pin Peripheral: 1 x 19.7" (500 mm), 23.6" (600 mm), 27.6" (700 mm)

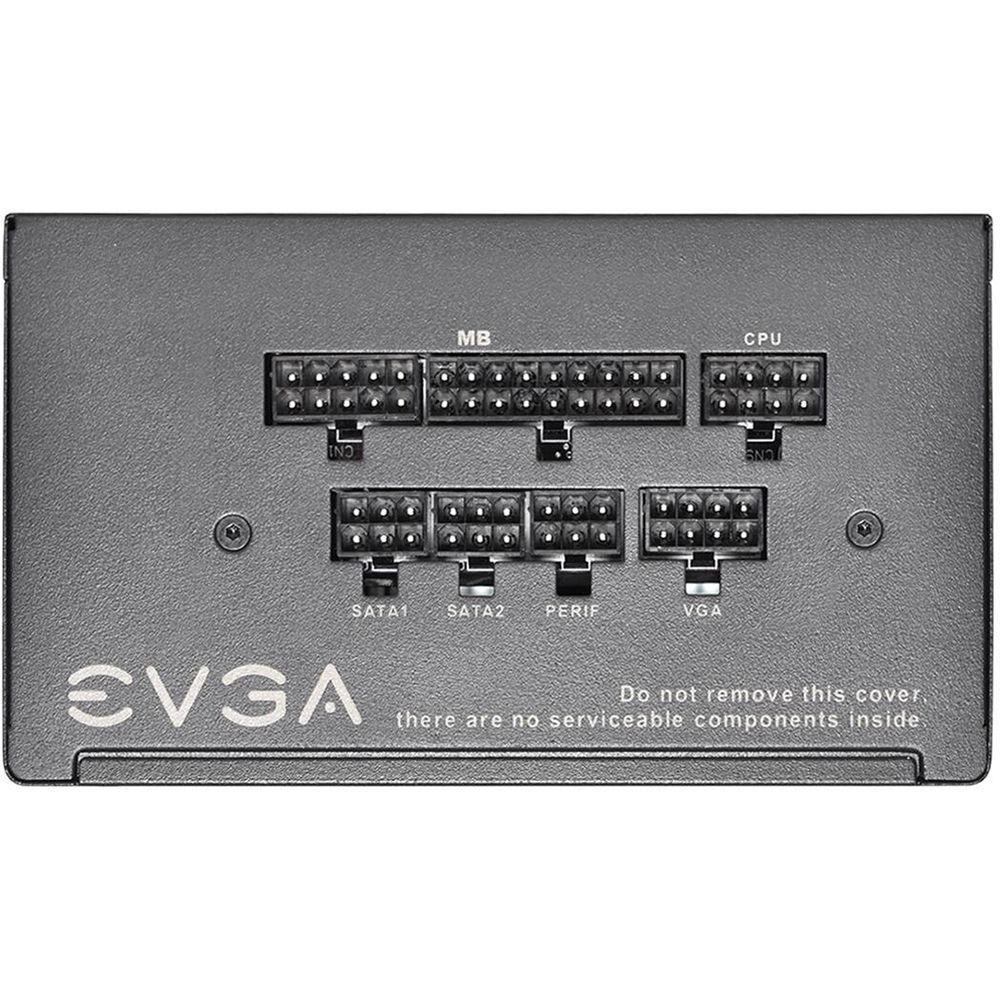

Floppy Adapter: 1 x Molex to FDD | | Connectors | 1 x 24-pin ATX
1 x 8-pin (4+4) EPS
2 x 8-pin (6+2) PCIe
6 x SATA
3 x 4-pin peripheral

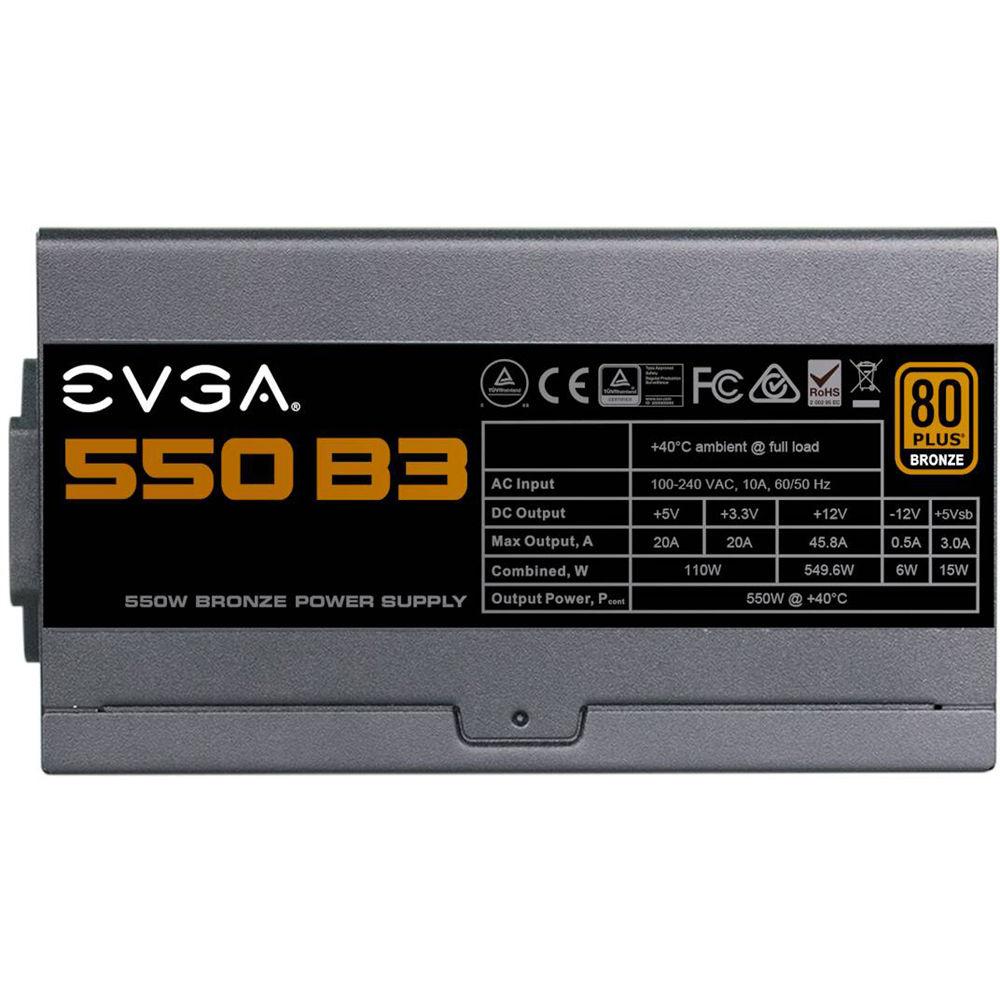

1 x floppy | | Power Cable Length | 4.9' / 1.5 m | | | | AC Input | 100 to 240 VAC, 10 A, 50/60 Hz | | Output Voltage | +3.3 V, 20 A (110 W)
+5 V, 20 A (110 W)
+12 V, 45.8 A (549.6 W)
+5 Vsb, 3 A (15 W)
-12 V, 0.5 A (6 W) | | Total Wattage | 550 W @ 104°F (40°C) | | Efficiency | 85% or higher typical | | | | Fan Type | Sleeve bearing | | Fan Size | 130 mm | | Noise Levels | N/A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | MTBF (Approx.) | 100,000 Hours | | Dimensions | 3.3 x 5.9 x 5.9" / 85 x 150 x 150 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 10.7 x 8.8 x 3.9" |
