User Manual for EVGA 550W Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 550W Power Supply
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 550W Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

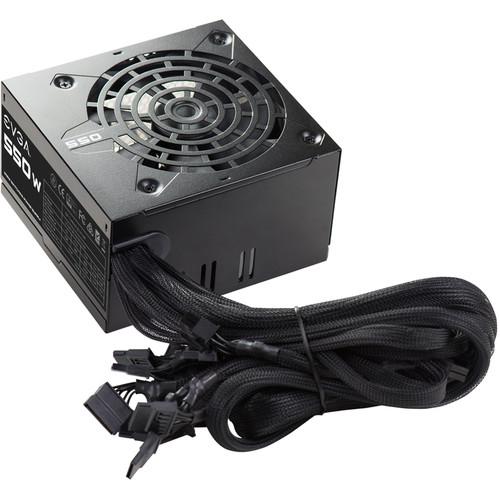

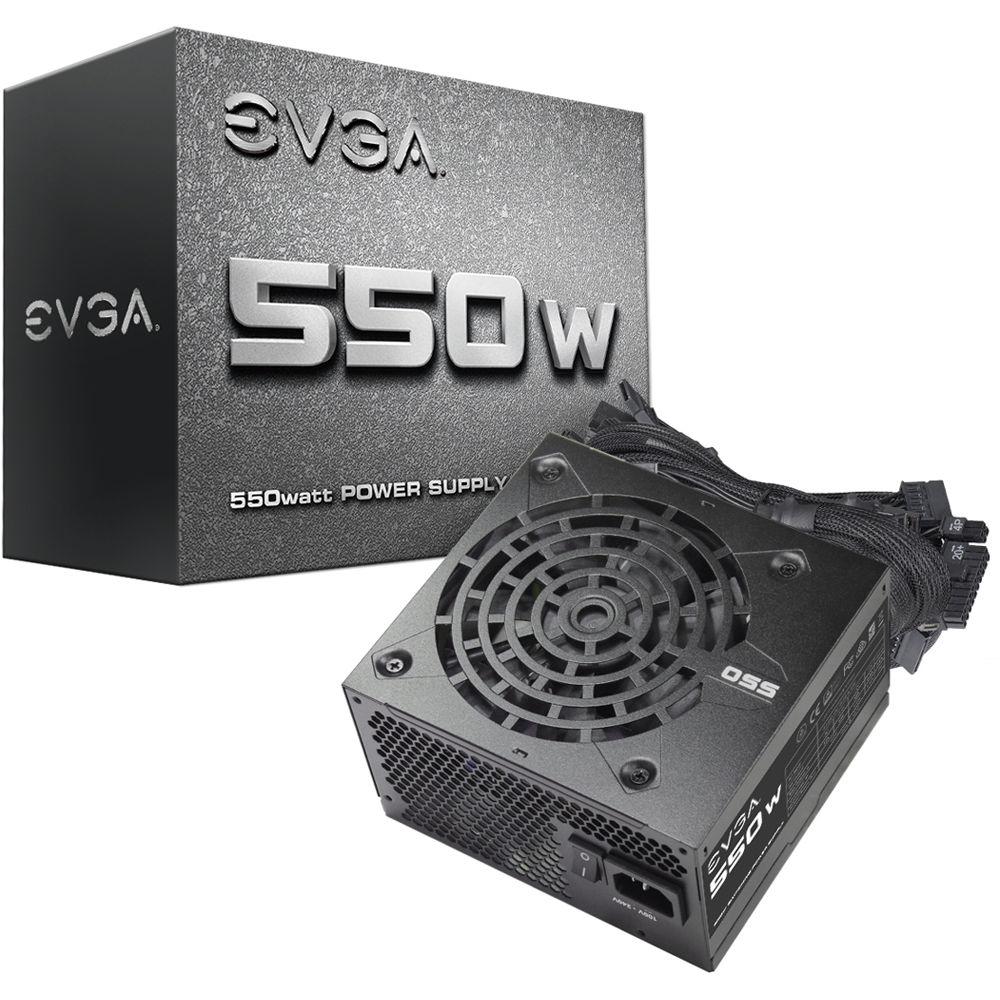

Product description The EVGA 550W Power Supply features a standard ATX form factor and a single +12 V rail supporting up to 43A. It has a 24-pin ATX, an 8-pin CPU, and two PCIe 8-pin PCI connectors, which are enough to support a build with two graphics cards. Six SATA connectors are for hard drives or solid-state drives, and three 4-pin Molex peripheral connectors are for optical drives, fan hubs, and more. For cooling, EVGA has outfitted this power supply with an intelligent and quiet 120mm fan for near-silent operations. In addition, this power supply safeguards your system with Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP) to keep your components in check. UPC: 843368040246 In the Box EVGA 550W Power Supply 3.9' (1.2 m) AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 550W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

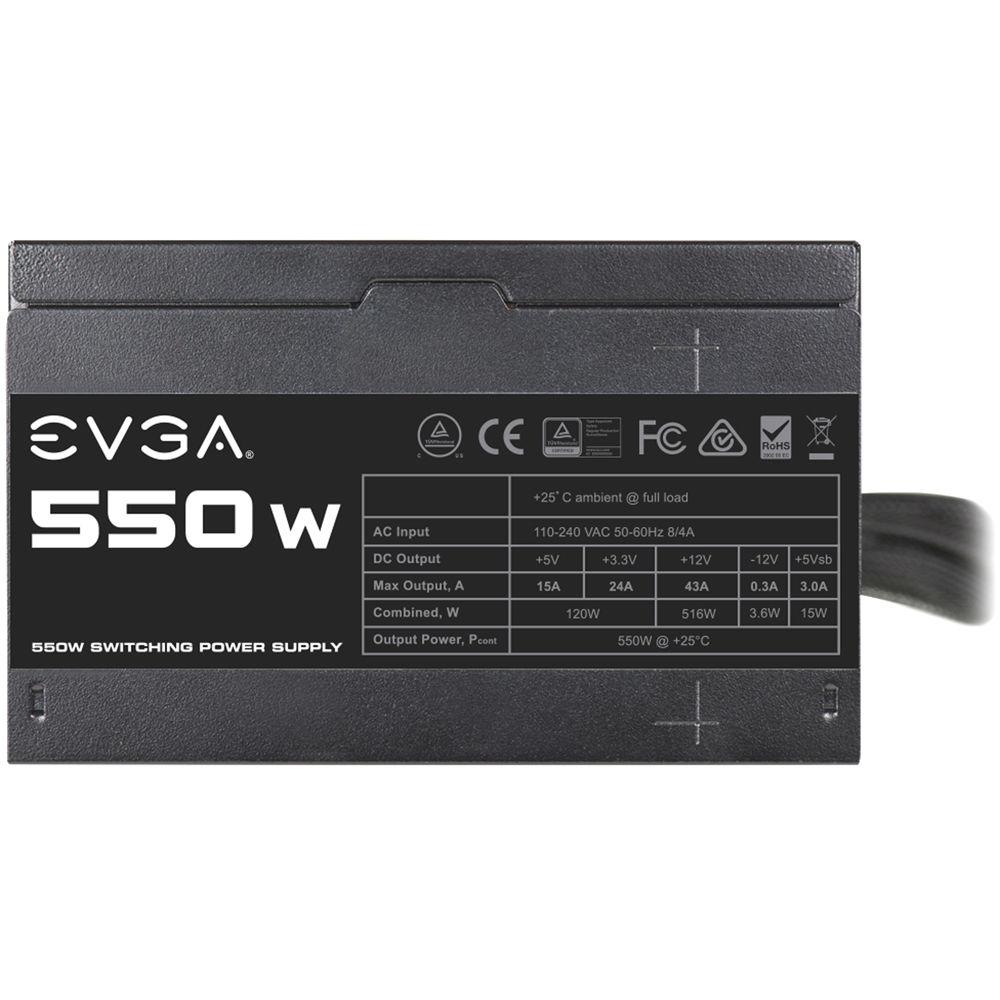

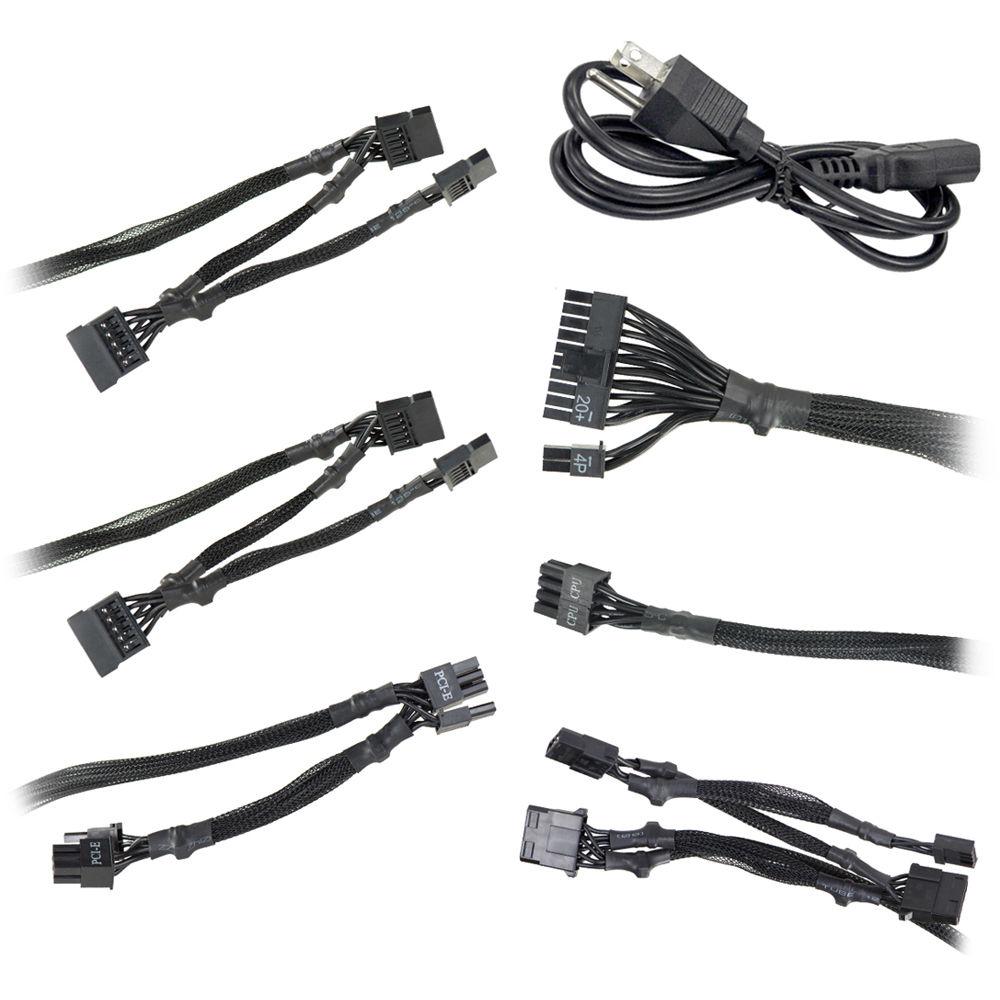

Technical parametersEVGA 100-N1-0550-L1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex

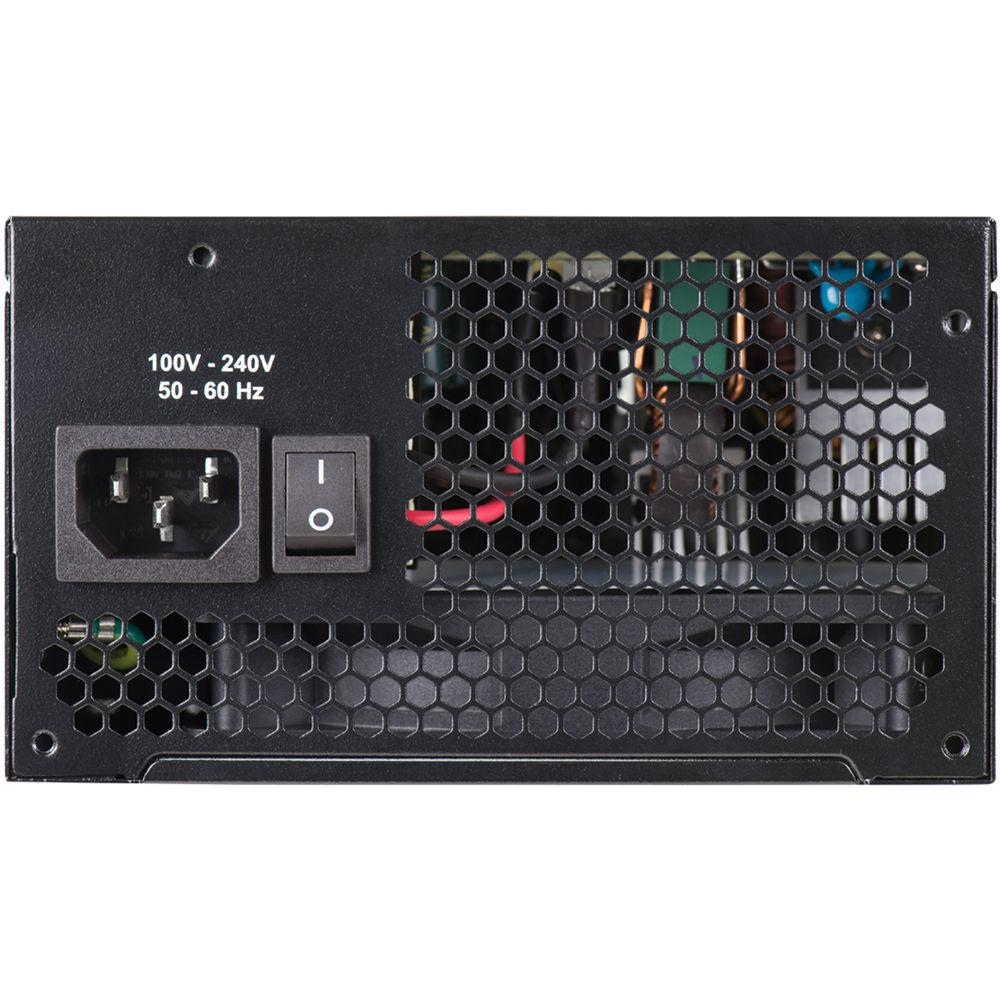

1 x 4-Pin Floppy | | | | Total Wattage | 550 W | | Combined Power for +12 V | 516 W | | Max Load for +12 V | 43 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 15 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Operating Temperature | -32 to 77°F / 0 to 25°C | | | | Certifications | RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 3.4 x 5.5" / 150.0 x 85.0 x 140.0 mm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 3.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
