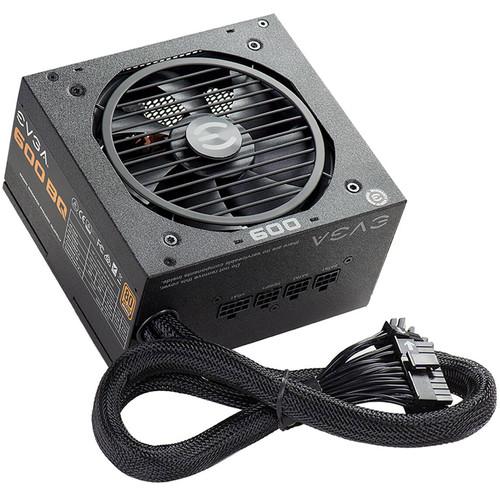

Product description The 600 BQ 80-Plus Bronze Semi-Modular Power Supply from EVGA is built with a single +12 V (50A) rail that delivers up to 600W of power for a desktop's components. It's 80-Plus Bronze certified, ensuring 85% efficiency under typical loads to conserve power and reduce excess heat. The 600 BQ power supply grants two PCIe 8-pin and six SATA connectors to enable a system build with two graphics cards and multiple storage/optical drives. Additionally, it features a semi-modular design that has essential cables integrated, such as ATX and EPS cables for powering the motherboard, and provides the ability to not use unneeded cables. - Bronze Rated Efficiency
- The 80 Plus Bronze efficiency certification ensures that this power supply doesn't waste power, which leads to excess heat. Under typical load, this power supply is 85% efficient or higher.
- Single +12V Rail
- A single +12V, 50A rail provides you with stable power output for maximum power and efficiency.

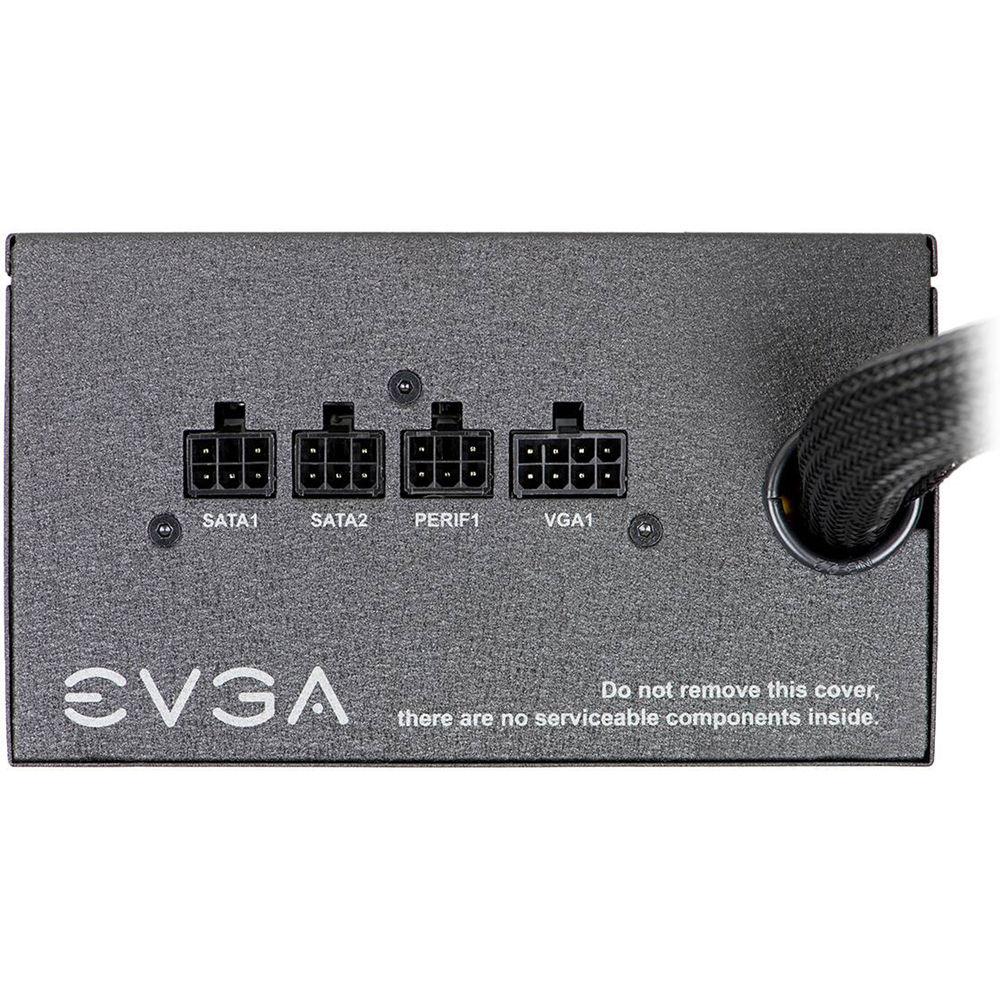

- Modular
- Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.

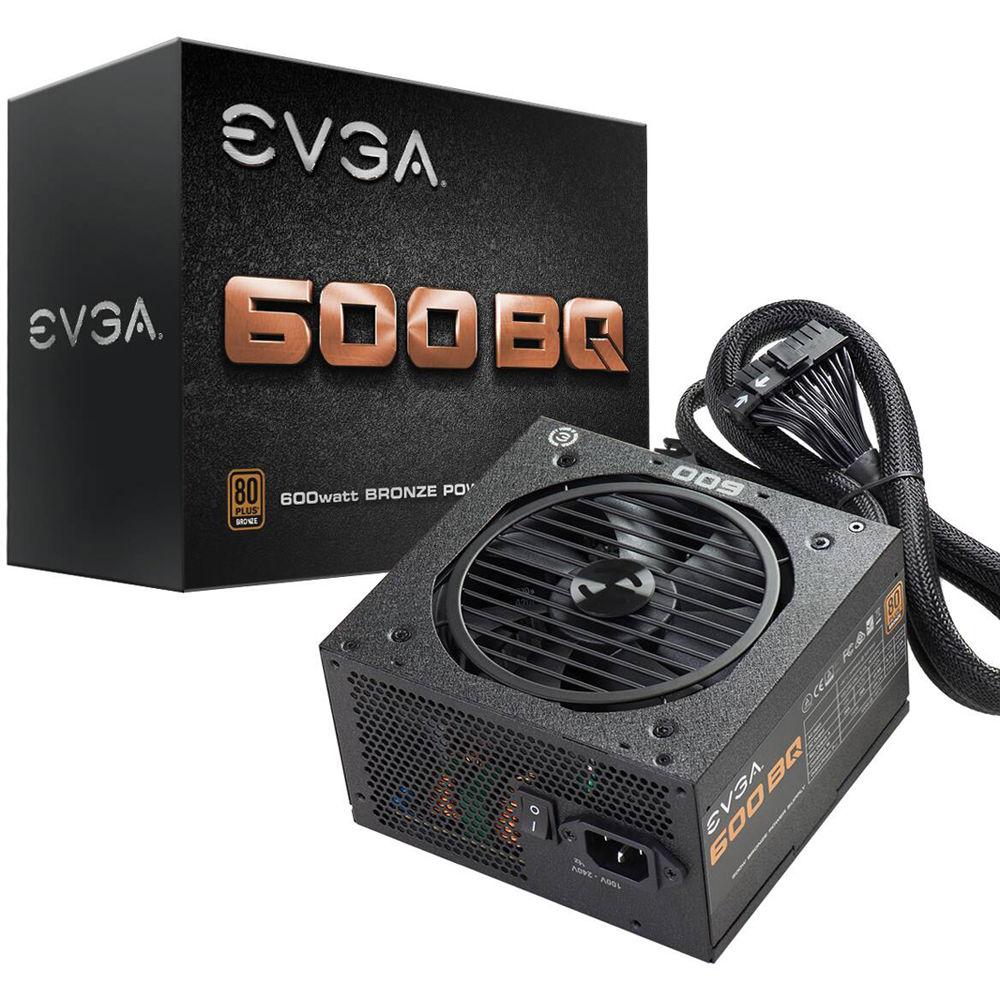

UPC: 843368043292 In the Box EVGA 600 BQ 600W 80-Plus Bronze Semi-Modular Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 600 BQ 600W 80-Plus Bronze Semi-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

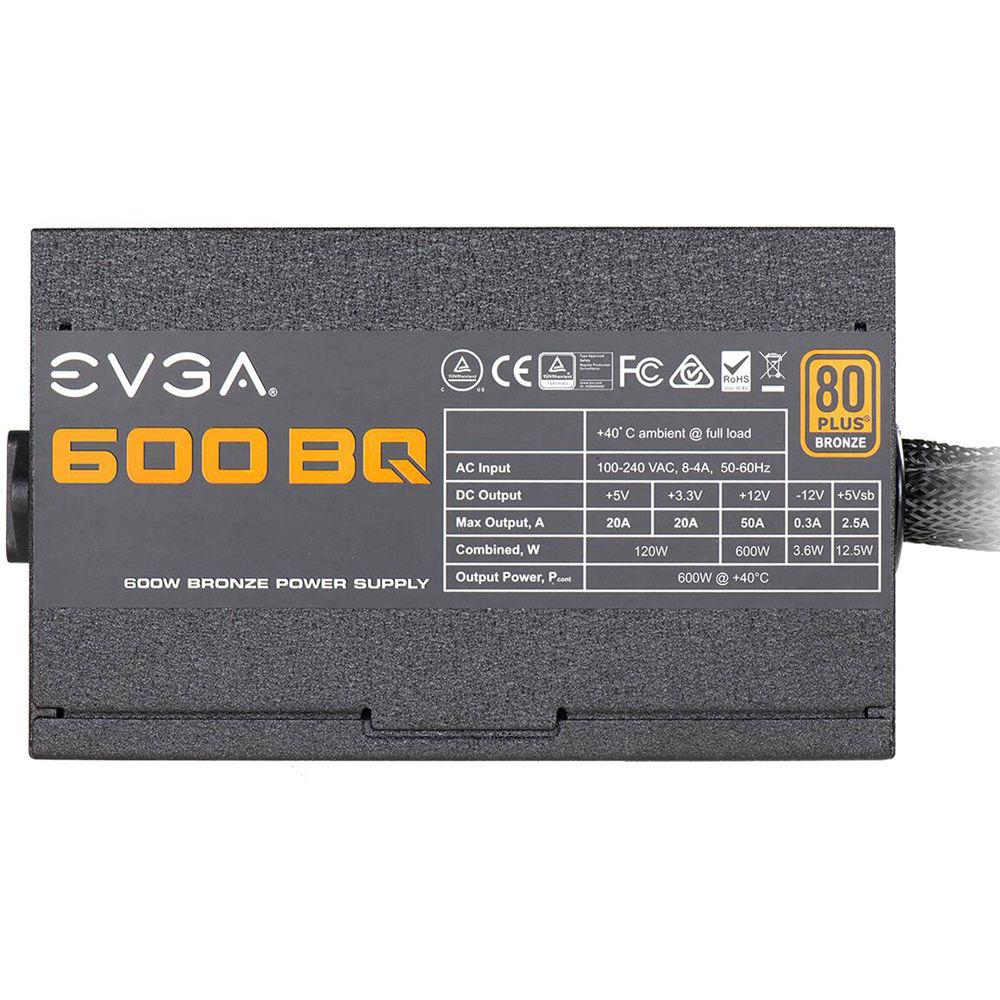

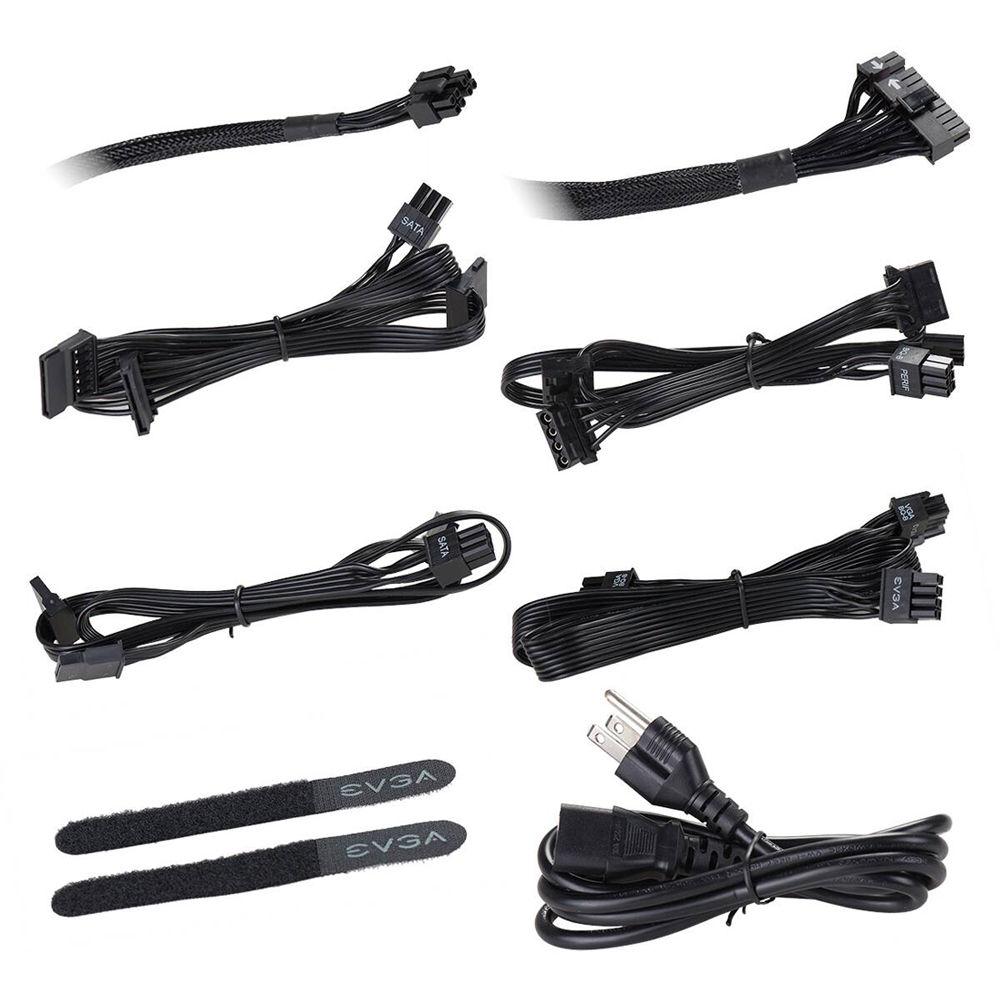

Technical parametersEVGA 110-BQ-0600-K1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 23.6" / 600 mm
27.6" / 700 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Peripheral Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm

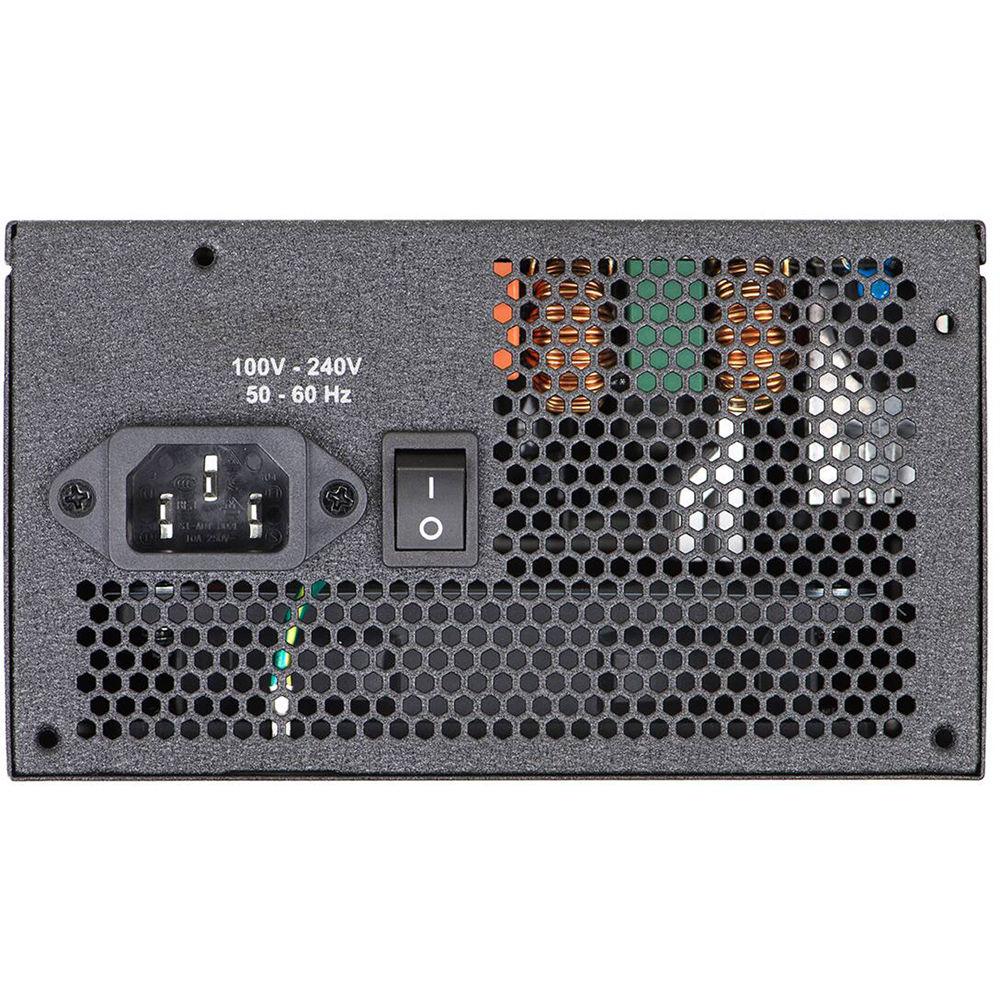

31.9" / 810 mm | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 600 W | | Combined Power for +12 V | 600 W | | Max Load for +12 V | 50 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 10 A | | | | Efficiency Rating | None | | Efficiency | 85% | | | | Fan Size | 120 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Certifications | RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 4.9' / 1.5 m | | Dimensions | 3.3 x 5.9 x 5.5" / 85.0 x 150.0 x 140.0 mm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 3.8" |
