User Manual for EVGA 650 B3 650W 80-Plus Bronze Fully-Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 650 B3 650W 80-Plus Bronze
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 650 B3 650W 80-Plus Bronze contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

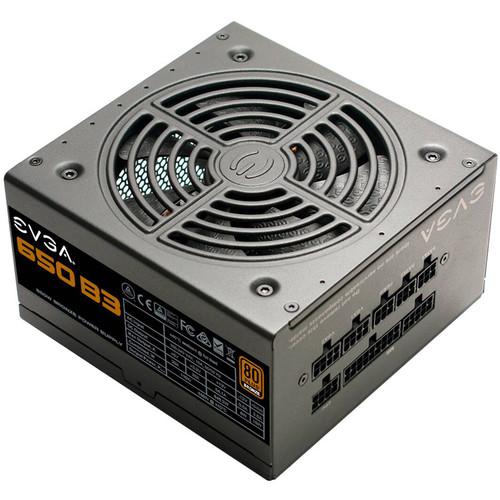

Product description The EVGA 650 B3 80-Plus Bronze Fully-Modular Power Supply delivers up to 650W of power to the desktop's components and provides three PCIe 8-pin and six SATA connectors to enable a system build with multiple graphics cards and storage/optical drives. The connectors come on fully-modular cables, which help improve airflow within the case by reducing the number of unused cables. With 80-Plus Bronze certification, the power supply uses energy efficiently to help lower energy bills. To quietly cool the power supply, a 130mm fan and ECO mode are available. Aside from cooling, this ATX power supply features a length of 5.9" to help provide extra room within a computer case. - Compact Size
- The EVGA 650 B3 features a length of 5.9" to provide extra space within a computer chassis.
- Quiet Cooling

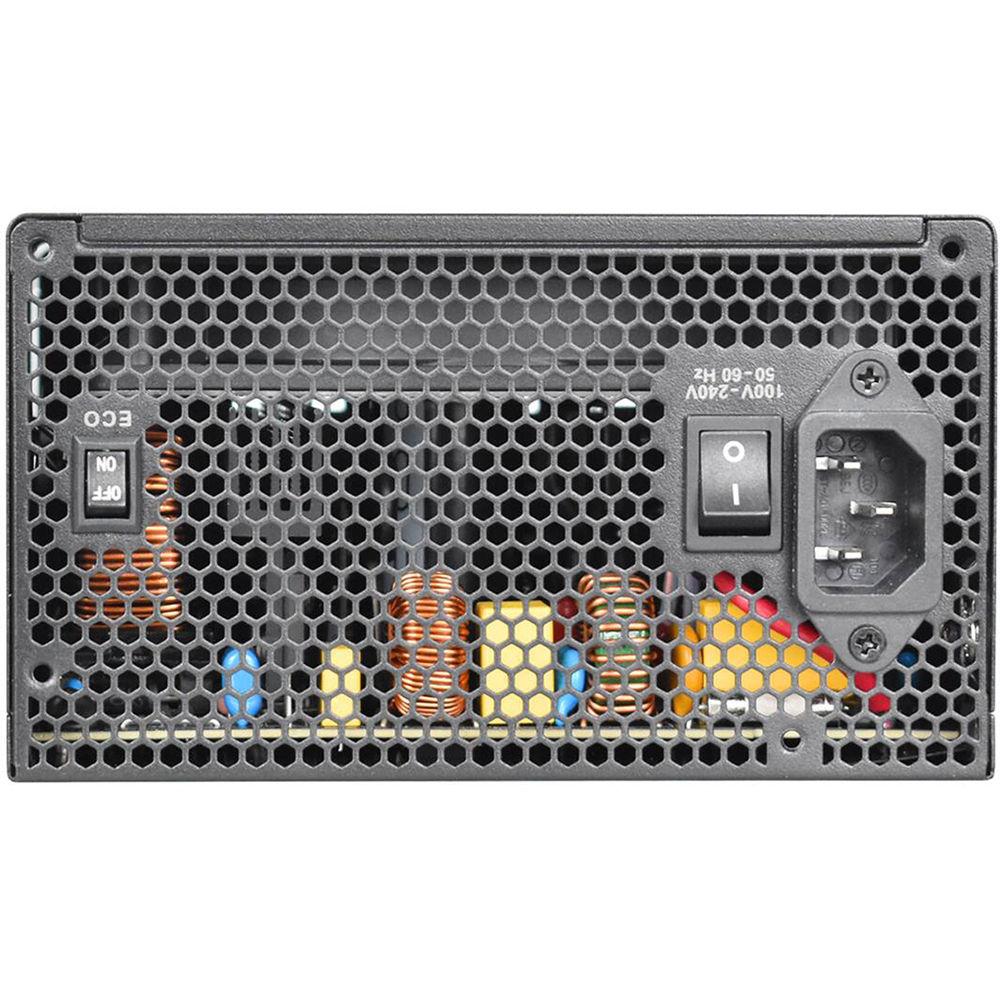

- The EVGA 650 B3 is built with a sleeve-bearing 130mm fan that is designed to be reliable and operates quietly. In addition, EVGA ECO mode is available to enable nearly-silent operations at low to medium loads.
- Efficiency
- With 80-Plus Bronze certification, the power supply utilizes energy efficiently up to 88%.

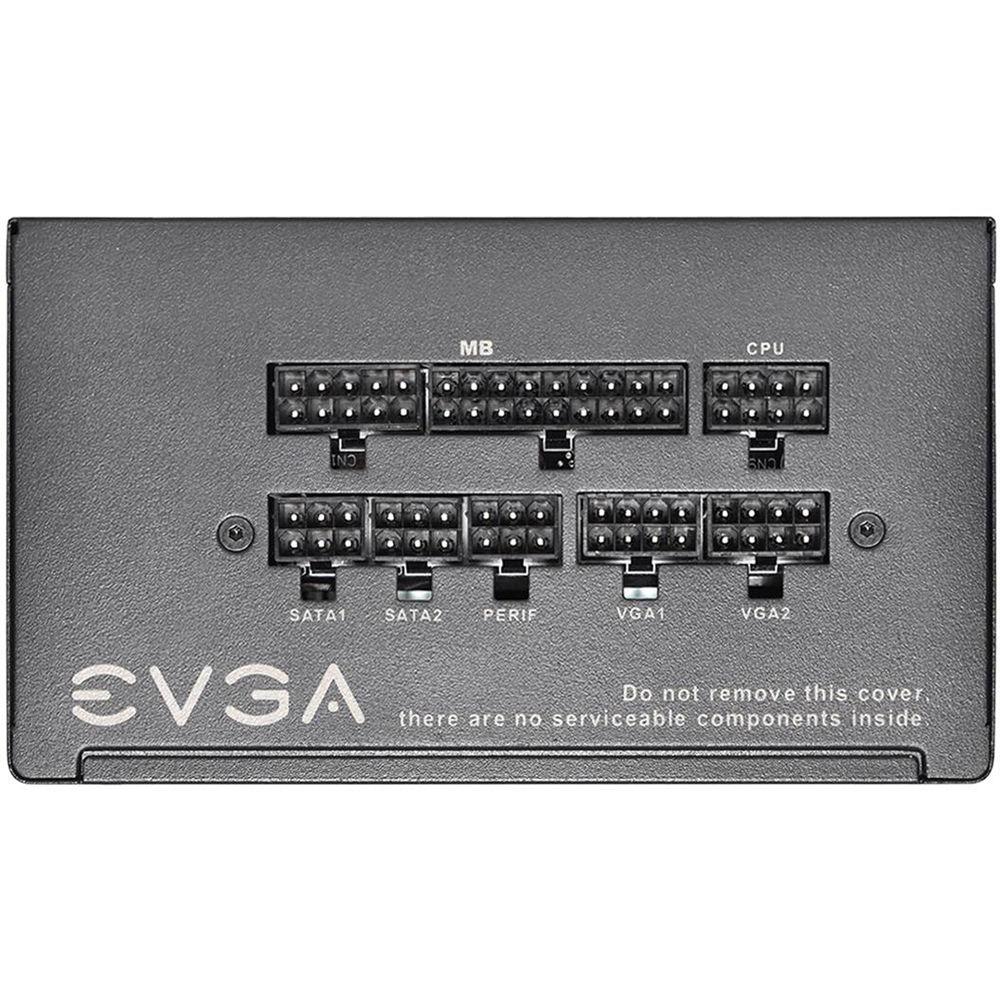

- Fully-Modular Design
- You can use only the cables you need, thereby, reducing cable clutter and improving case airflow.

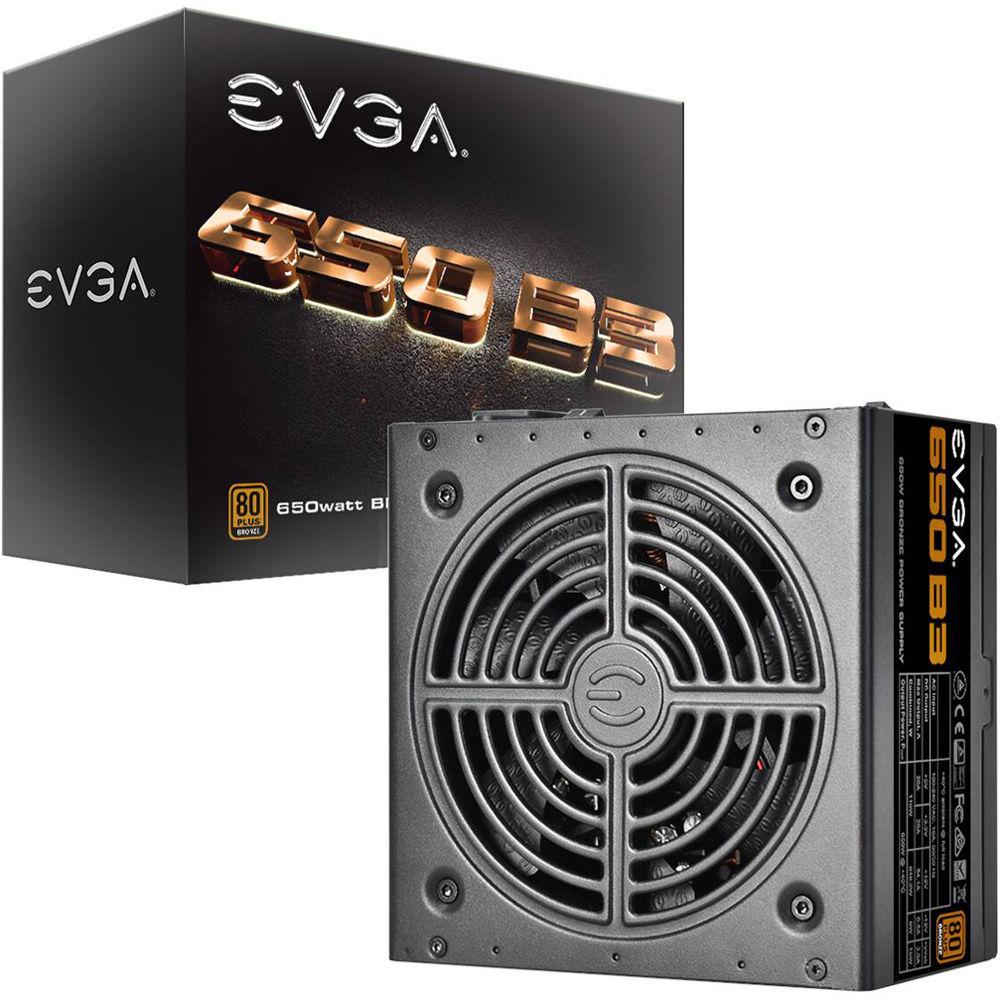

UPC: 843368045142 In the Box EVGA 650 B3 650W 80-Plus Bronze Fully-Modular Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 650 B3 650W 80-Plus Bronze Fully-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

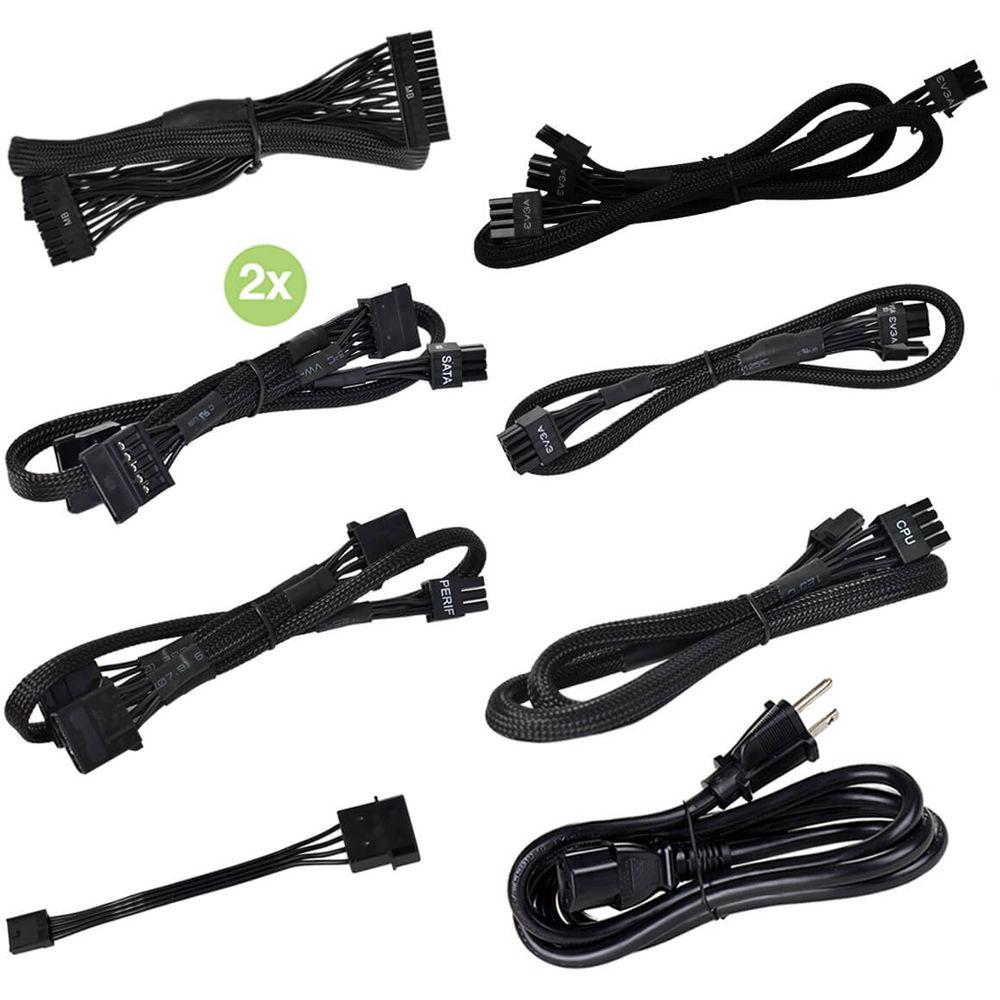

Technical parametersEVGA 220-B3-0650-V1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
3 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm | | Peripheral Connector Distances | 19.7" / 500 mm
23.6" / 600 mm

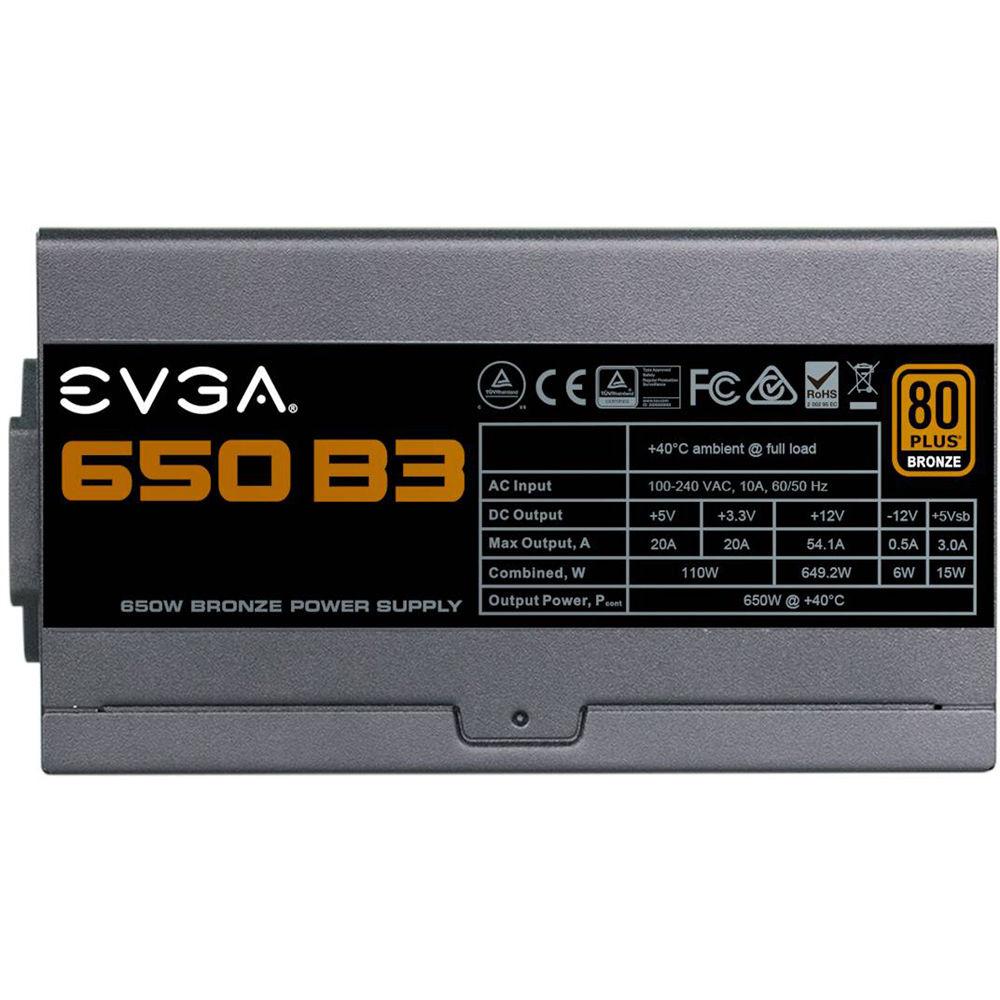

27.6" / 700 mm | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 650 W | | Combined Power for +12 V | 649.2 W | | Max Load for +12 V | 54.1 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | None | | Efficiency | 88% | | | | Fan Size | 130 mm | | Bearing Type | Sleeve | | Noise Level | 0 to 33 dBA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Certifications | RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 4.9' / 1.5 m | | Dimensions | 3.3 x 5.9 x 5.9" / 85.0 x 150.0 x 150.0 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 10.6 x 8.8 x 3.9" |
