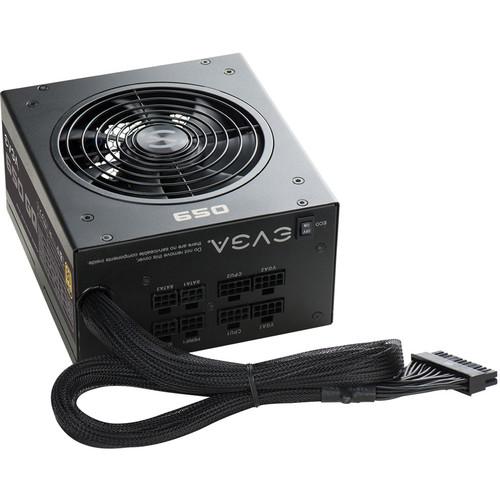

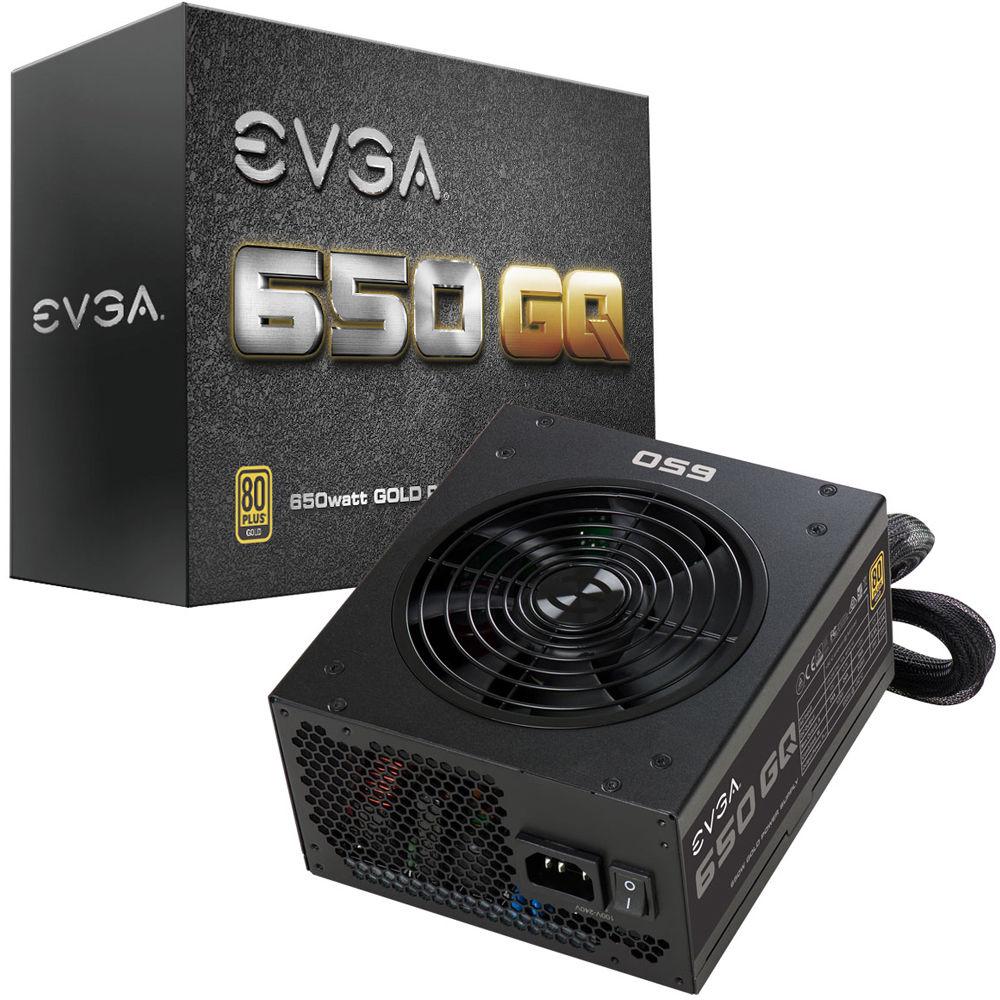

Product description The 650 GQ 650W 80 Plus Gold Semi-Modular Power Supply from EVGA is built for performance, durability, and efficiency. Its semi-modular design lets you connect the cables you need and store the rest. With less cables, there will be less clutter resulting in improved airflow and lower temperatures. The GQ is built with a single +12 V rail, Japanese grade capacitors, and a quiet 135mm fan that delivers efficient cooling at low noise levels. It comes with a full set of cables, enough for even a multi-GPU setup, and features Active Power Factor Correction (PFC) to protect your system from damage. - 80 Plus Gold certified, with 90% (115 VAC) / 92% (220 - 240 VAC) efficiency or higher under typical loads
- Modular design lets you install the cables you need and store the others, eliminating cable clutter and improving air flow
- Japanese brand capacitors that ensure long-term reliability
- NVIDIA SLI & AMD Crossfire ready
- Active Clamp +DC to DC design for efficient operation
- ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
- Active Power Factor Correction (PFC)

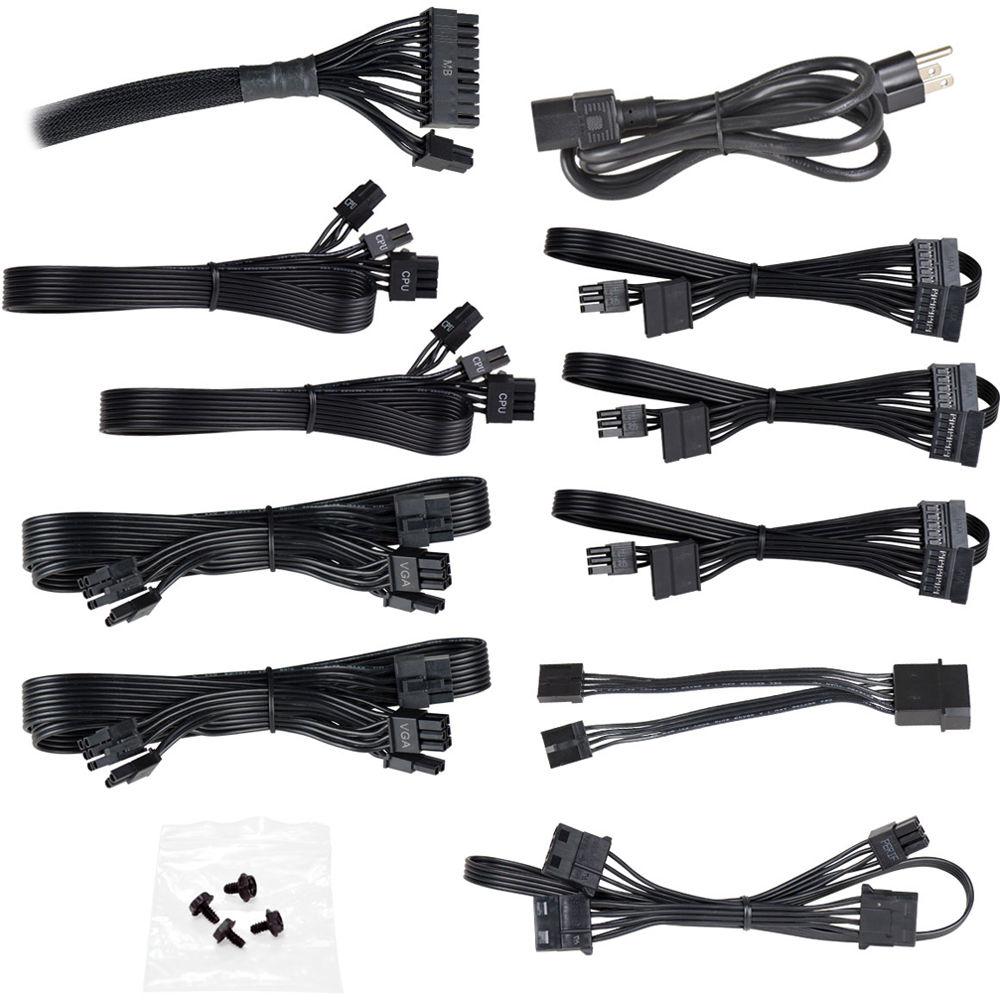

UPC: 843368035709 In the Box EVGA 650 GQ 650W 80 Plus Gold Semi-Modular Power Supply 24-Pin ATX Cable 2 x EPI (CPU) 8-Pin (4+4) Cables 4 x PCIe 8-Pin (6+2) Cables 9 x SATA Cables 3 x 4-Pin Peripheral Cables 2 x Floppy Cables Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 650 GQ 650W 80 Plus Gold Semi-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

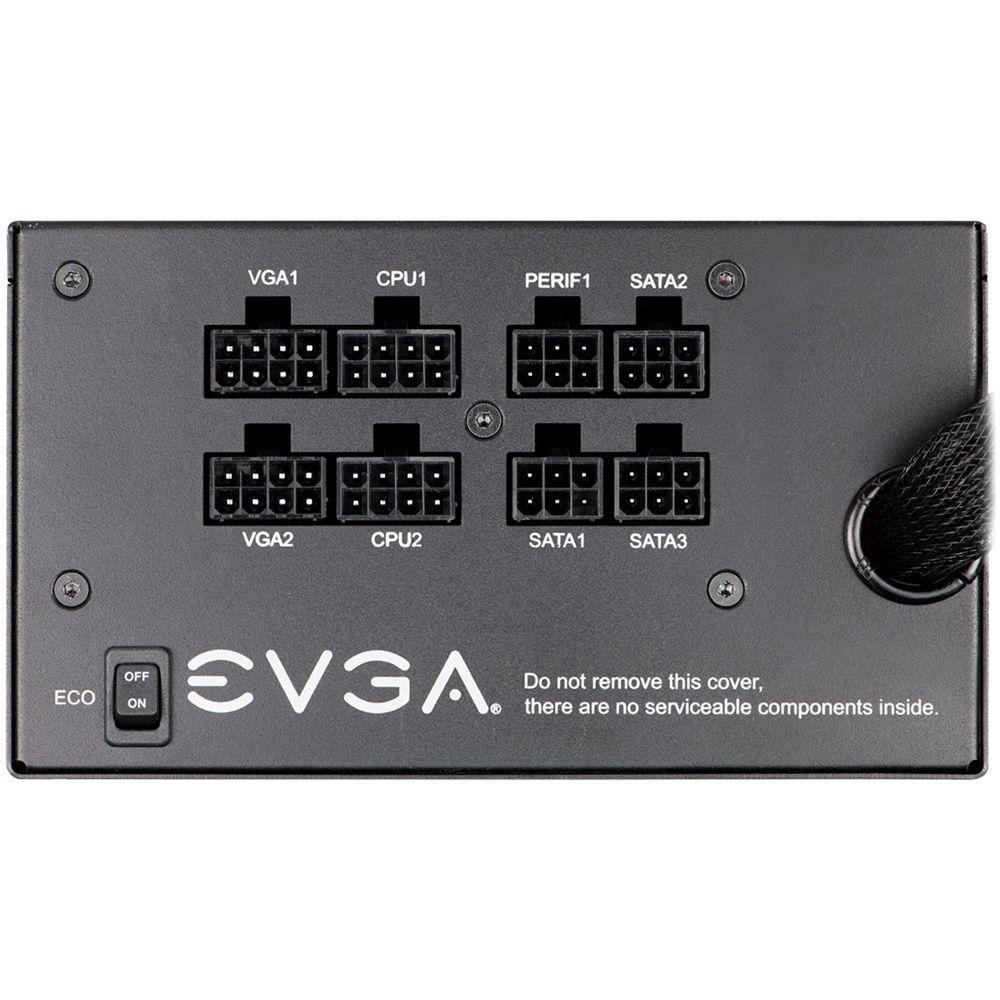

Technical parametersEVGA 210-GQ-0650-V1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
2 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
9 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
2 x 4-Pin Floppy | | Cable Design | Semi-Modular | | PCIe Connector Distances | 25.6" / 650 mm
29.5" / 750 mm | | SATA Connector Distances | 21.7" / 550 mm
25.6" / 650 mm
29.5" / 750 mm | | Peripheral Connector Distances | 21.7" / 550 mm
25.6" / 650 mm

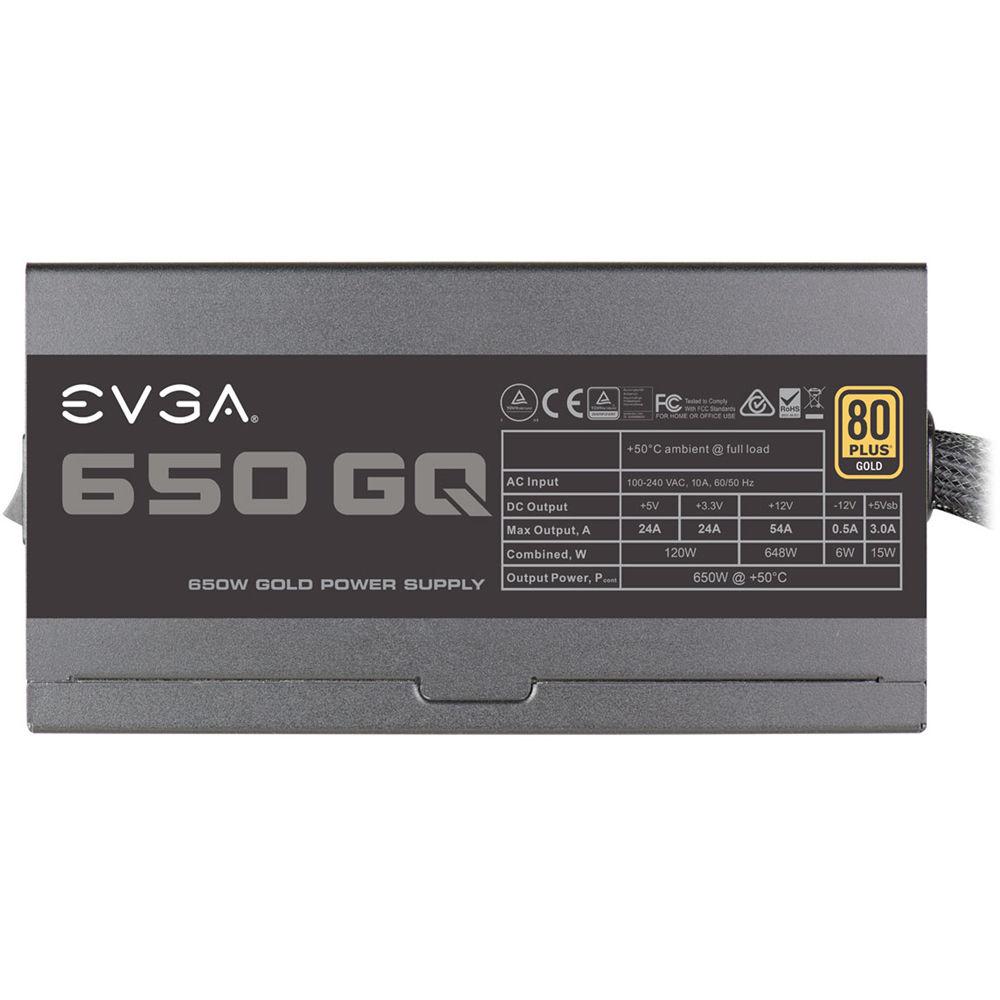

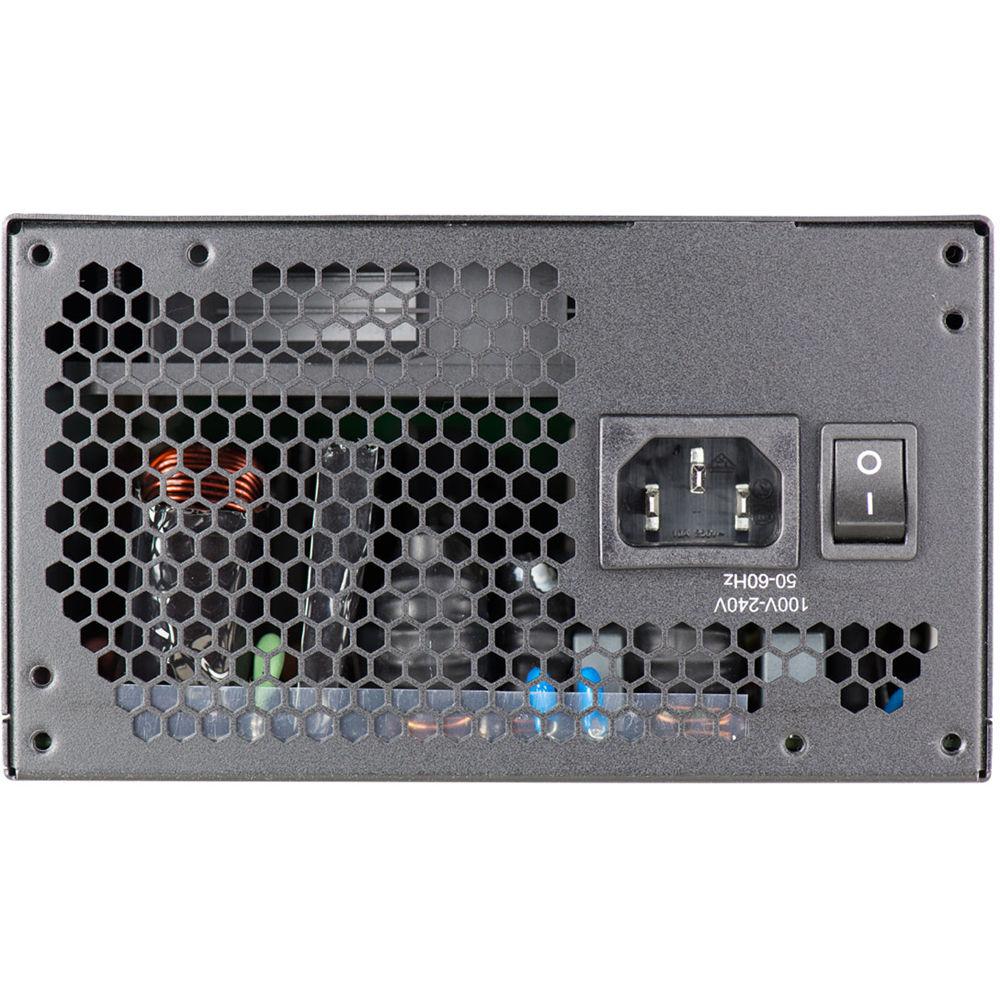

29.5" / 750 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 650 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 648 W | | Max Load for +12 V | 54 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 90% | | | | Fan Size | 135 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX PS/2 | | Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 5.02' / 153 cm | | Dimensions | 5.9 x 3.4 x 6.5" / 150.0 x 85.0 x 165.0 mm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 12.9 x 8.5 x 4.8" |
