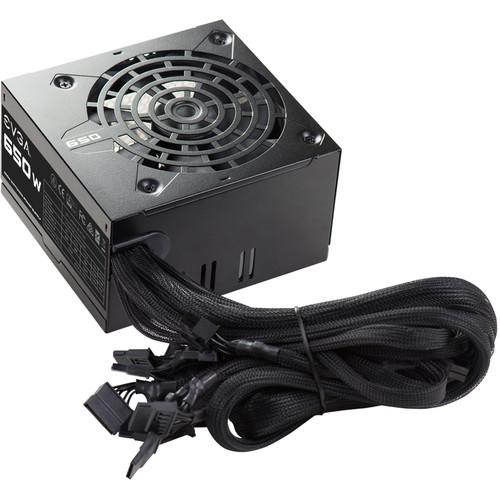

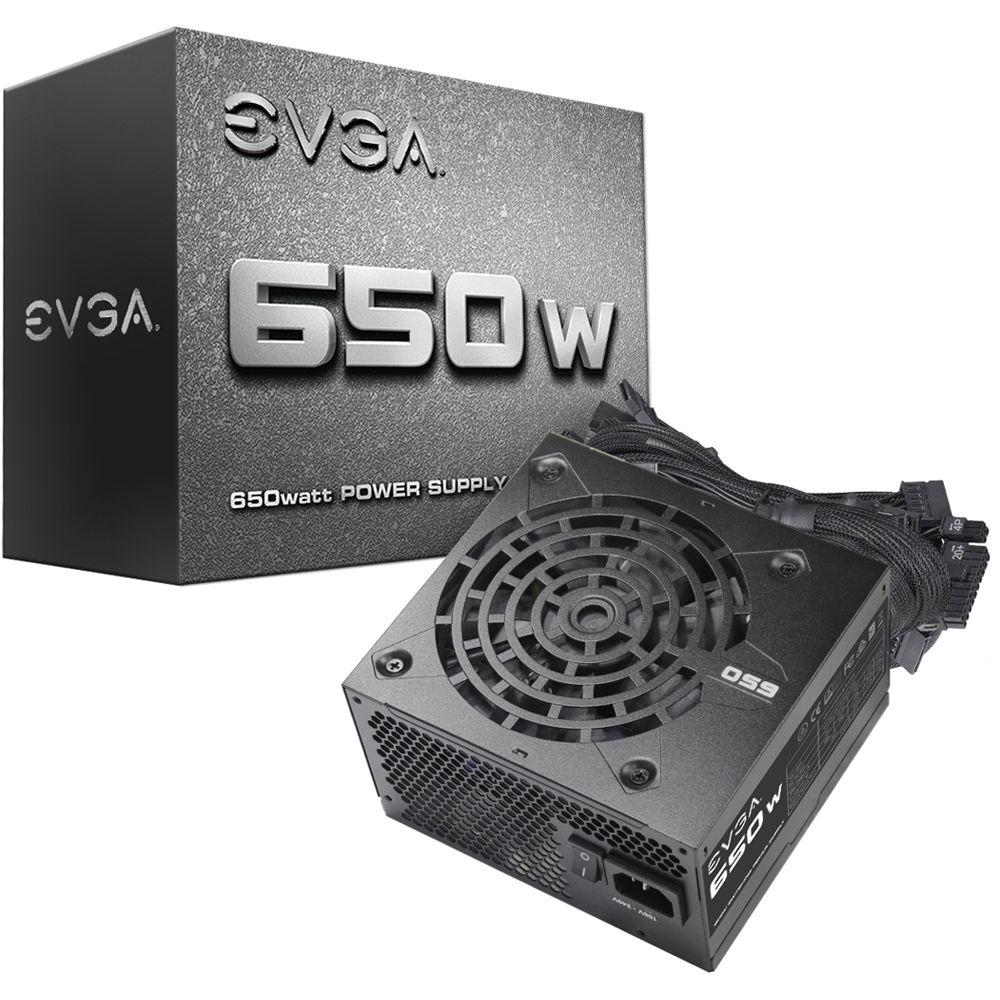

Product description The EVGA 650W Power Supply features a standard ATX form factor and a single +12 V rail supporting up to 52A. It has a 24-pin ATX, an 8-pin CPU, and two PCIe 8-pin PCI connectors, which are enough to support a build with two graphics cards. Six SATA connectors are for hard drives or solid-state drives, and three 4-pin Molex peripheral connectors are for optical drives, fan hubs, and more. For cooling, EVGA has outfitted this power supply with an intelligent and quiet 120mm fan for near-silent operations. In addition, this power supply safeguards your system with Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP) to keep your components in check. UPC: 843368040277 In the Box EVGA 650W Power Supply 3.9' (1.2 m) AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 650W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

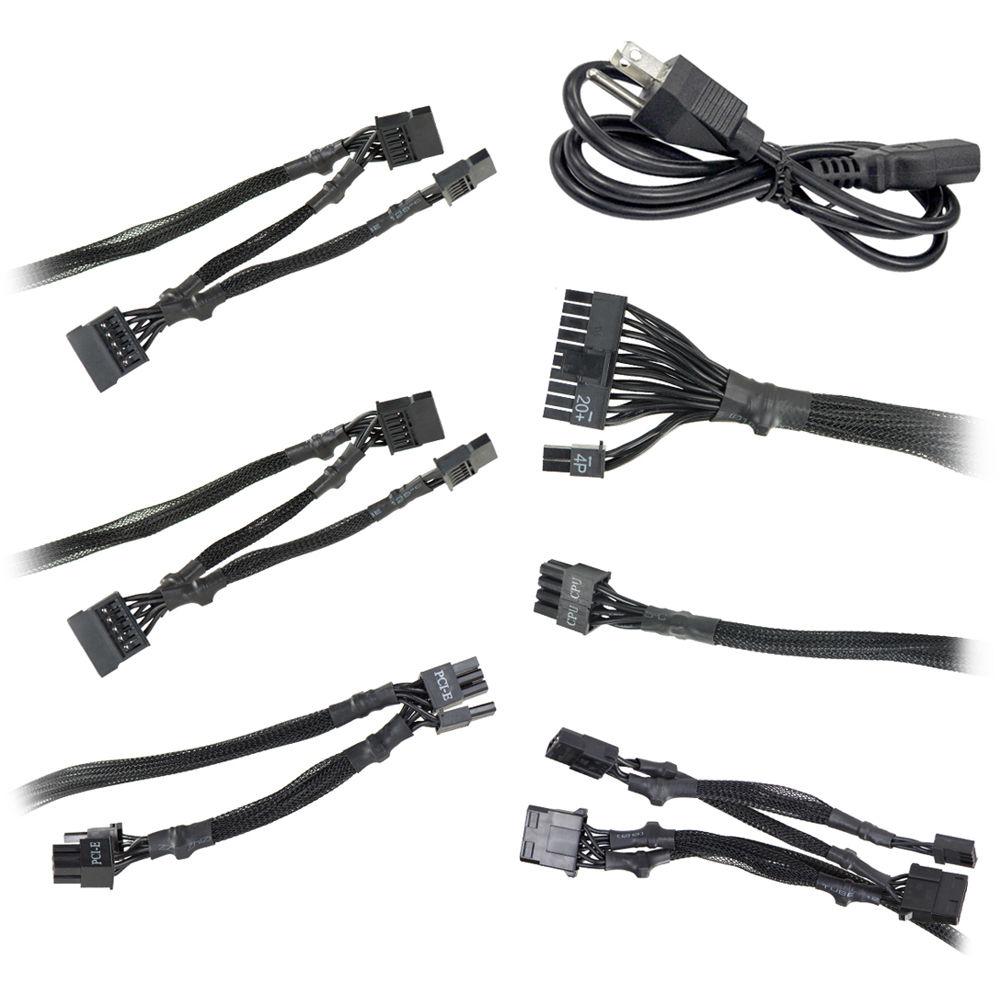

Technical parametersEVGA 100-N1-0650-L1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex

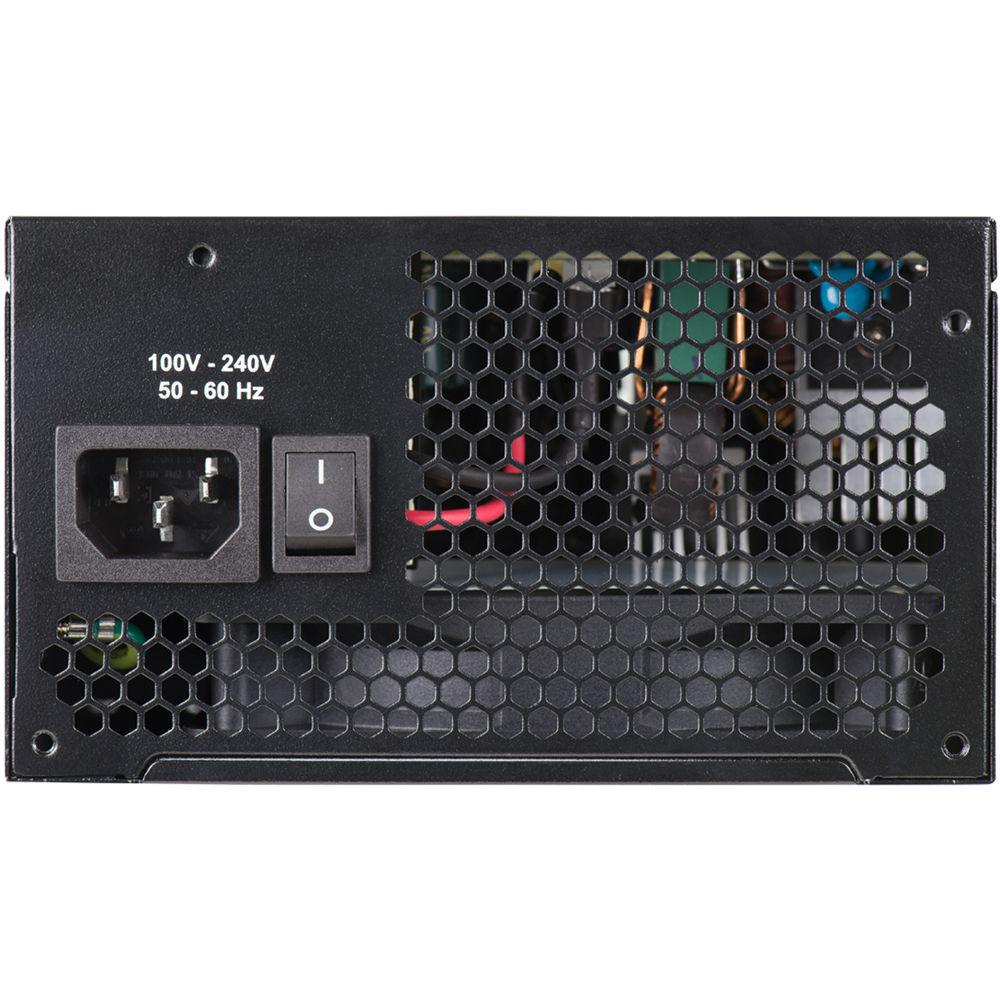

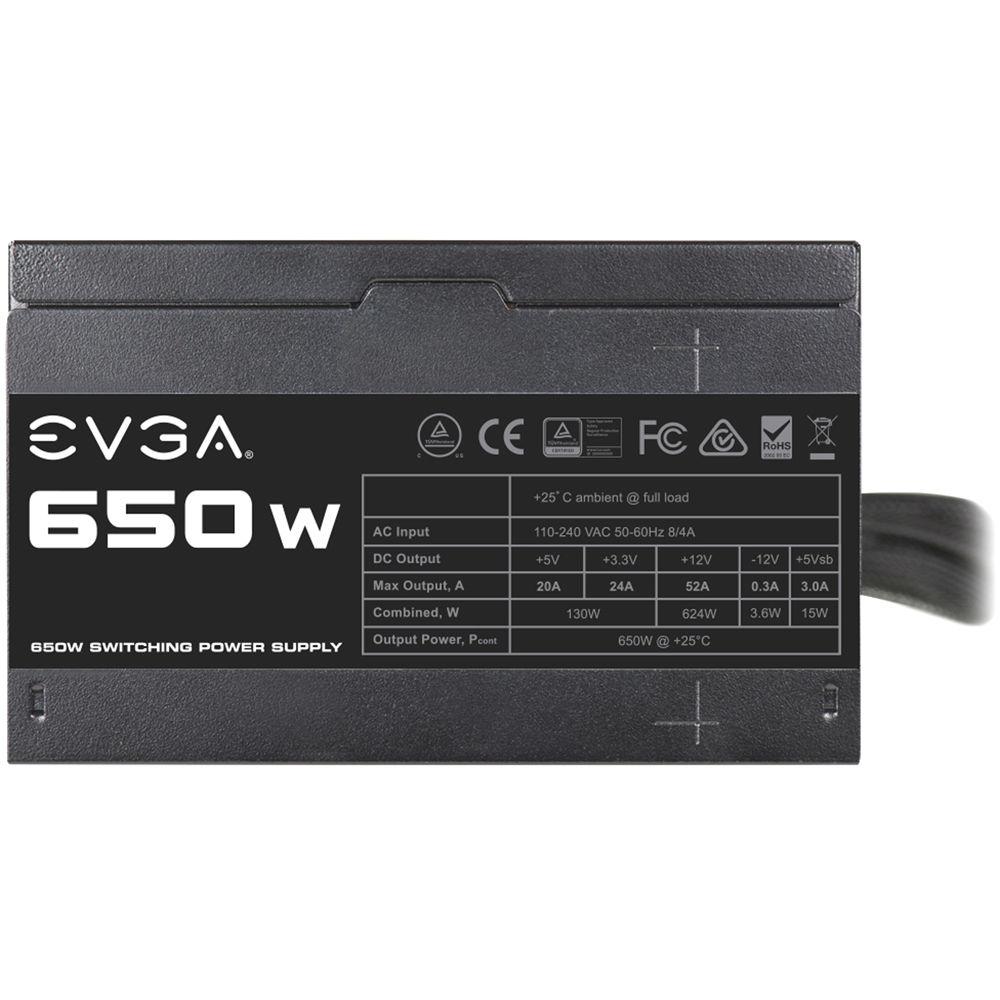

1 x 4-Pin Floppy | | | | Total Wattage | 650 W | | Combined Power for +12 V | 624 W | | Max Load for +12 V | 52 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Operating Temperature | -32 to 77°F / 0 to 25°C | | | | Certifications | RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 3.4 x 5.5" / 150.0 x 85.0 x 140.0 mm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 3.9" |
