User Manual for EVGA 700 BR 700W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 700 BR 700W 80 Plus
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 700 BR 700W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

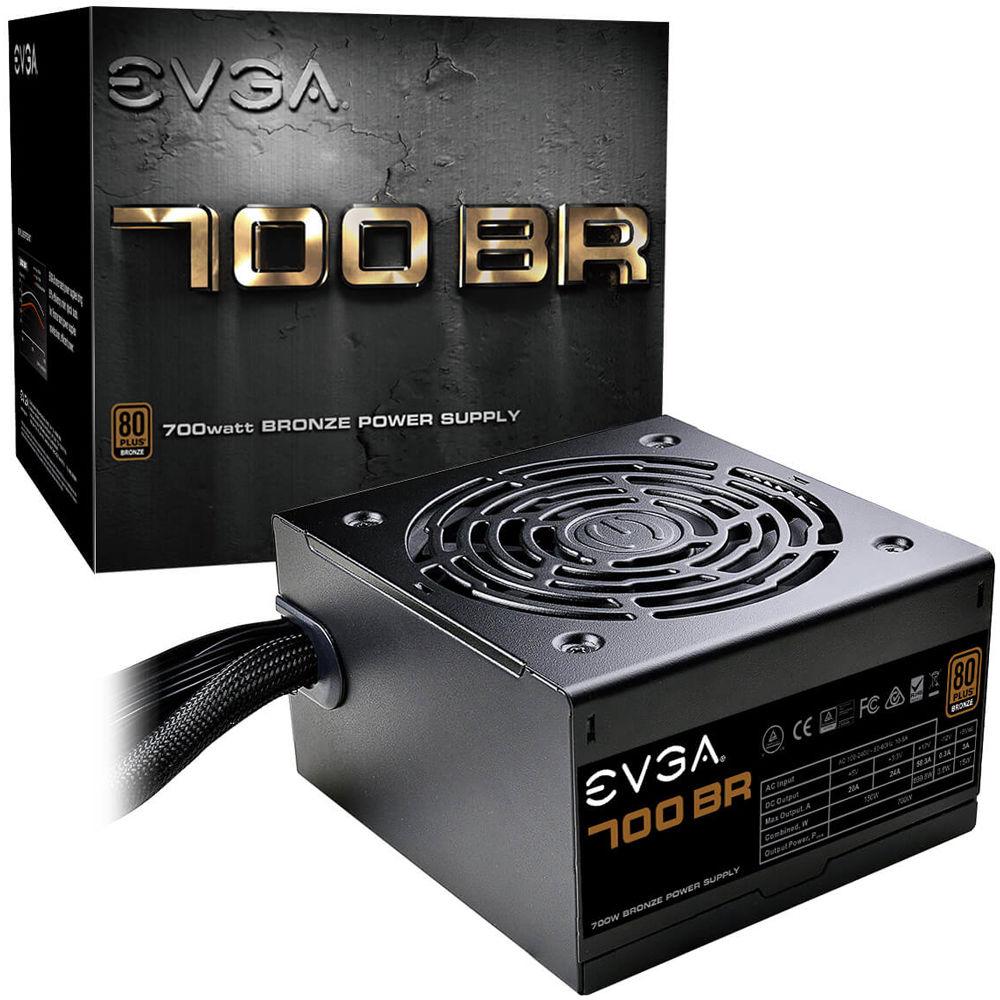

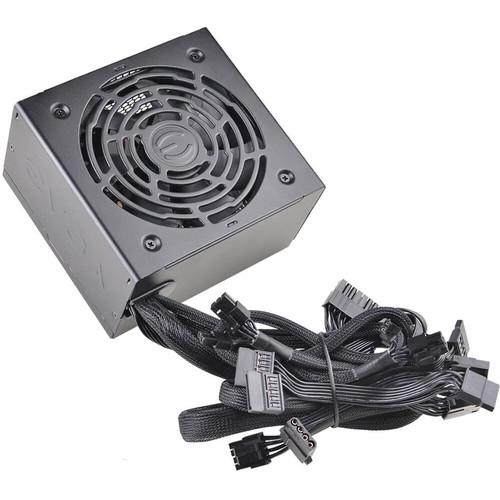

Product description The 700 BR 700W 80 Plus Bronze Power Supply from EVGA is an 80 Plus Bronze rated power supply for up to 85% efficiency or higher under typical loads. It can deliver up to 700W of power and is built with sleeved, hard-lined cables, a 120 mm fan for cooling, and a comprehensive list of safety features. Moreover, it has all the power cables you would need for a standard build including ATX, CPU, PCIe, SATA, and 4-pin peripherals. UPC: 843368051983 In the Box EVGA 700 BR 700W 80 Plus Bronze Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 700 BR 700W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

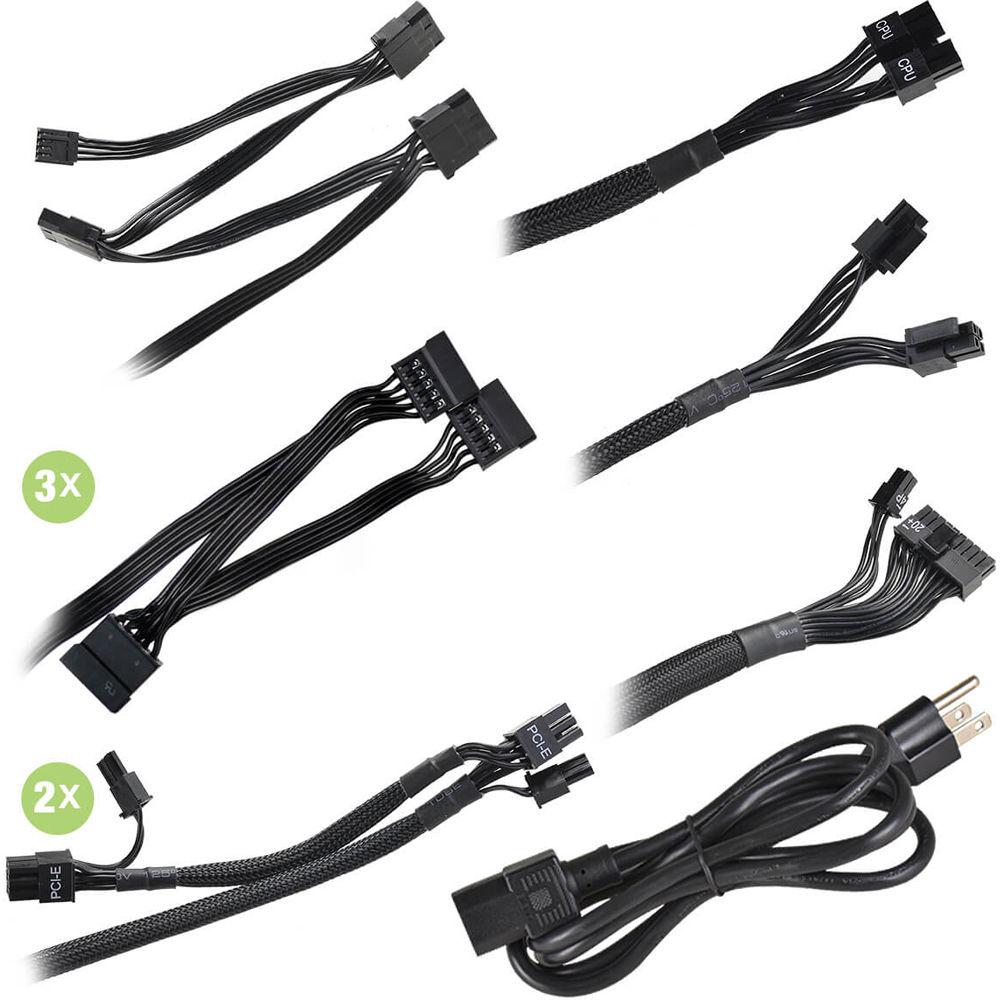

Technical parametersEVGA 700 BR Specs | | | Total Connectors | 1 x 24-Pin ATX
1 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
9 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Sleeved | | PCIe Connector Distances | 21.7" / 550 mm
26.4" / 670 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Peripheral Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm

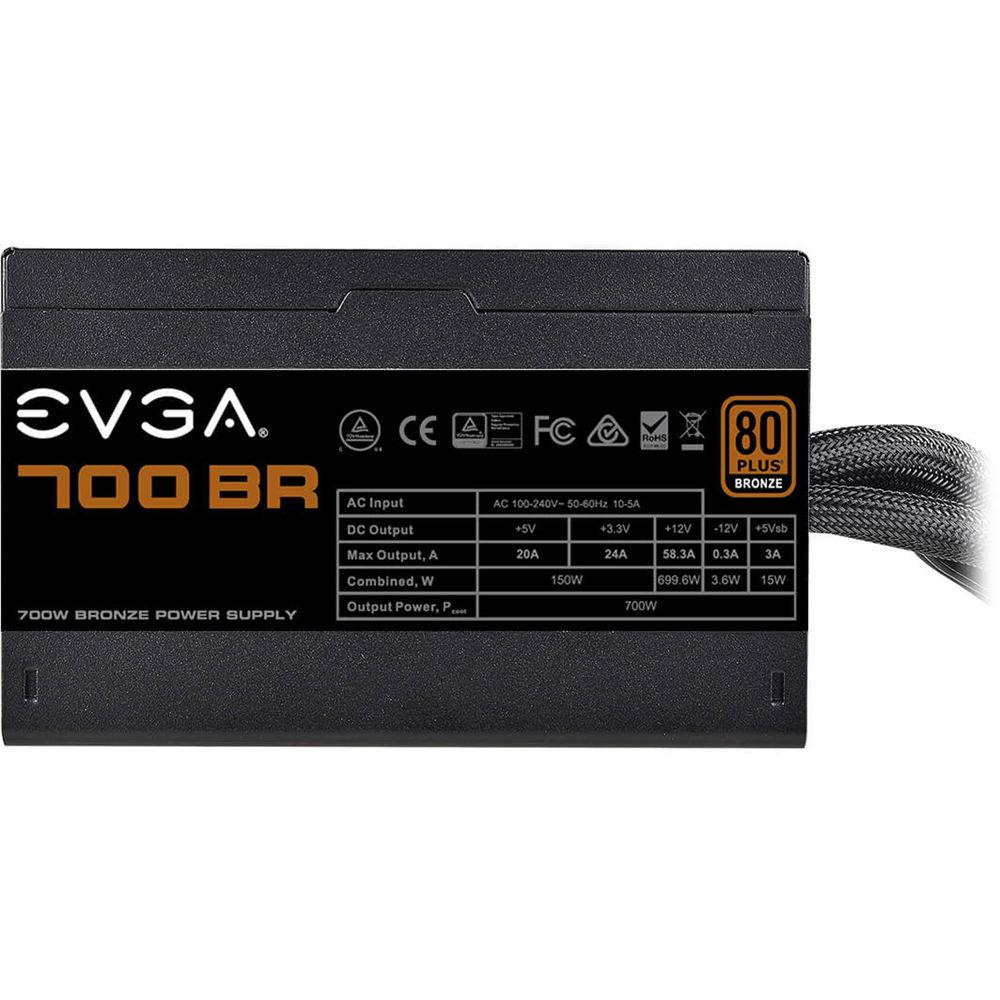

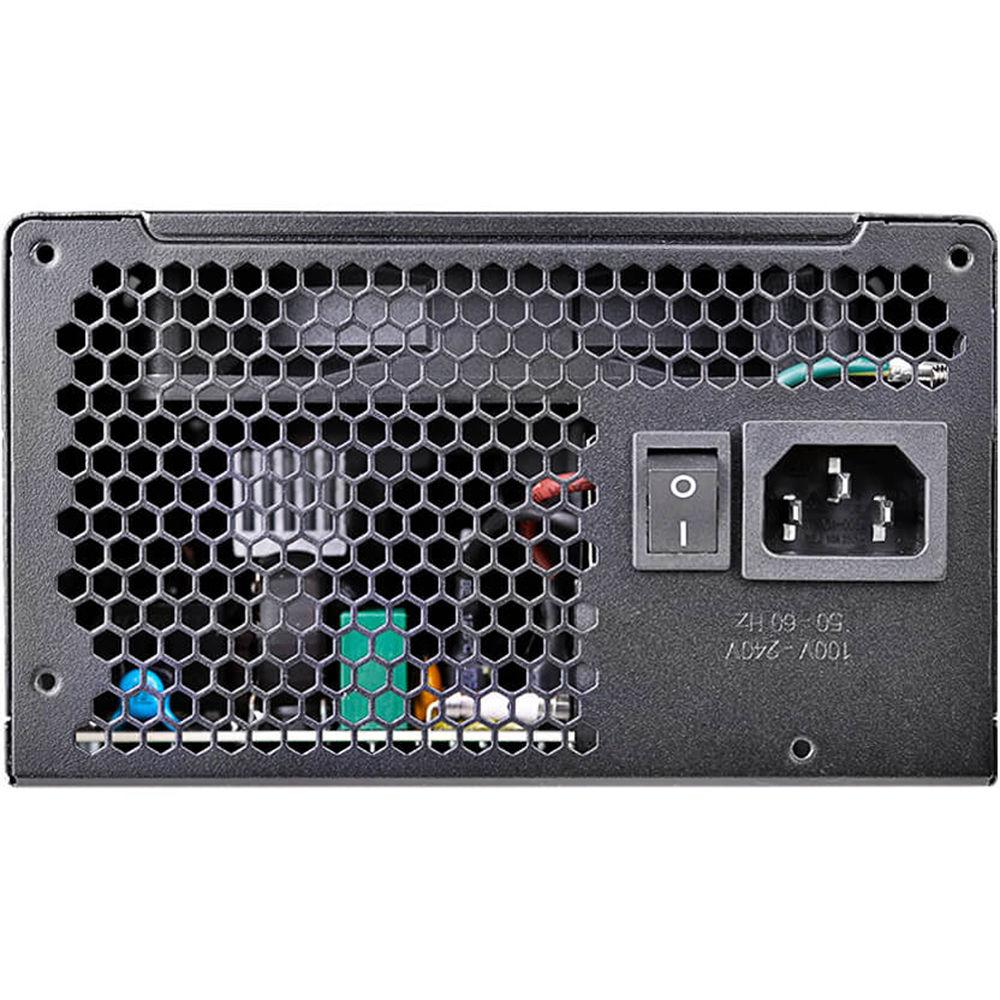

31.9" / 810 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 700 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 699.6 W | | Max Load for +12 V | 58.3 A | | Combined Power for +3.3/+5 V | 150 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 10 A | | | | Efficiency Rating | 80 PLUS Bronze | | Efficiency | 85% | | | | Fan Size | 120 mm | | Bearing Type | Sleeve | | | | Operating Temperature | 32 to 86°F / 0 to 30°C | | | | Form Factor | ATX | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | CE, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 47.24" / 1.2 m | | Dimensions | 5.9 x 3.3 x 5.5" / 150.0 x 85.0 x 140.0 mm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 6.0" |
