User Manual for EVGA 750 GQ 750W 80 Plus Gold Semi-Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 750 GQ 750W 80 Plus
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 750 GQ 750W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

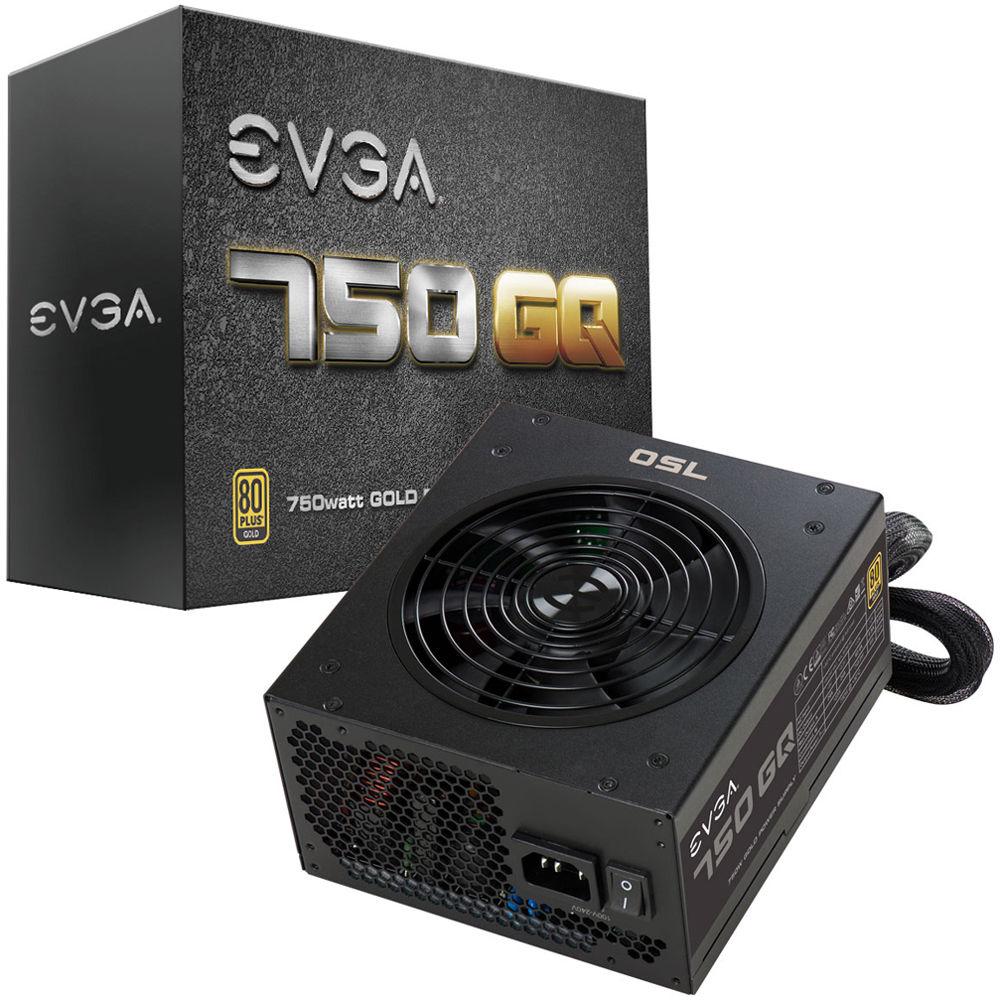

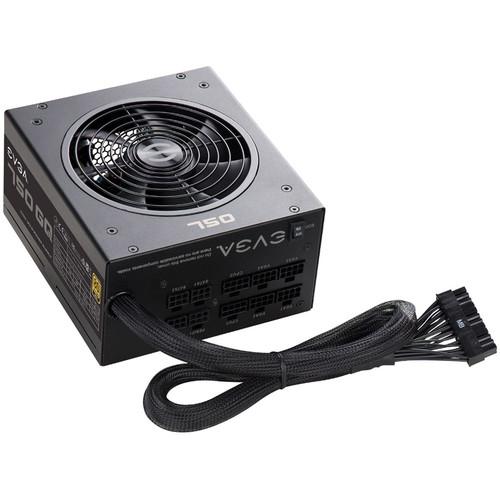

Product description The 750 GQ 750W 80 Plus Gold Semi-Modular Power Supply from EVGA is built for performance, durability, and efficiency. Its semi-modular design lets you connect the cables you need and store the rest. With less cables, there will be less clutter resulting in improved airflow and lower temperatures. The GQ is built with a single +12 V rail, Japanese grade capacitors, and a quiet 135mm fan that delivers efficient cooling at low noise levels. It comes with a full set of cables, enough for even a multi-GPU setup, and features Active Power Factor Correction (PFC) to protect your system from damage. - 80 Plus Gold certified, with 90% (115 VAC) / 92% (220 - 240 VAC) efficiency or higher under typical loads
- Modular design lets you install the cables you need and store the others, eliminating cable clutter and improving air flow
- Japanese brand capacitors that ensure long-term reliability
- NVIDIA SLI & AMD Crossfire ready
- Active Clamp +DC to DC design for efficient operation
- ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
- Active Power Factor Correction (PFC)

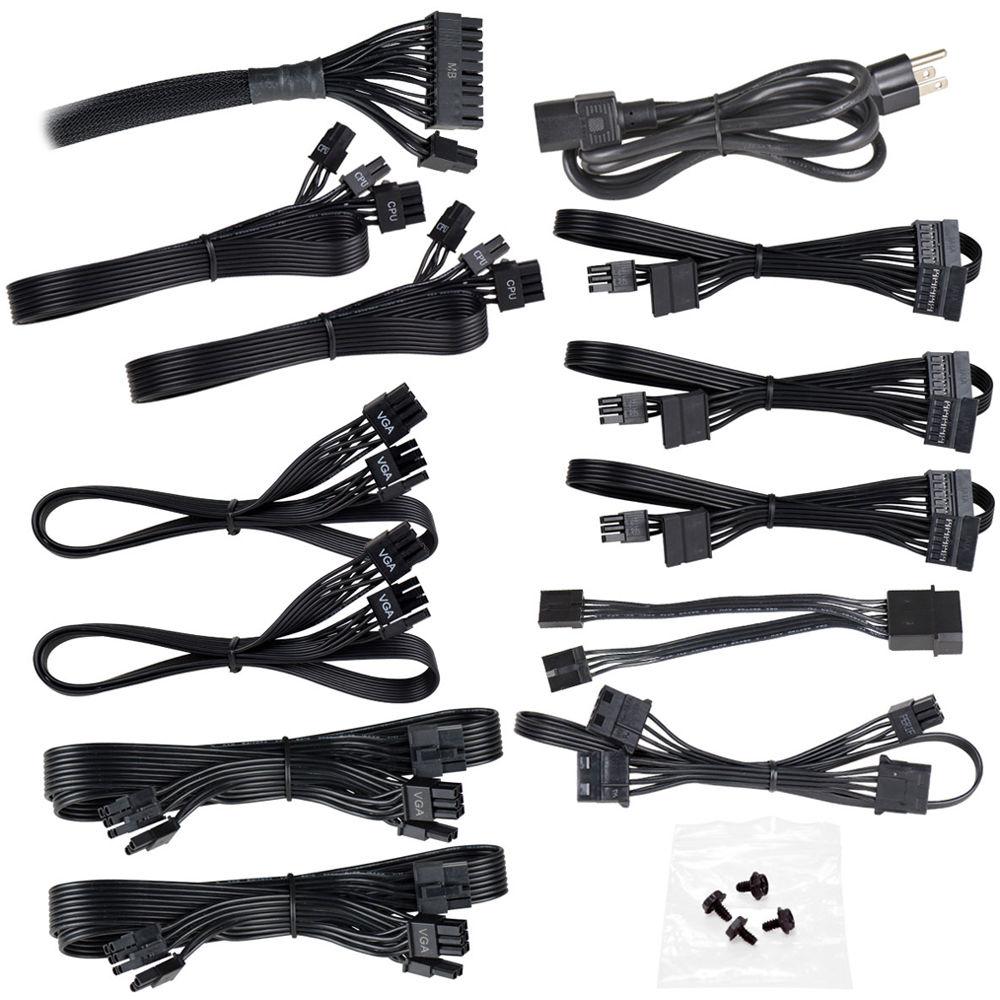

UPC: 843368035754 In the Box EVGA 750 GQ 750W 80 Plus Gold Semi-Modular Power Supply 24-Pin ATX Cable 2 x EPI (CPU) 8-Pin (4+4) Cables 6 x PCIe 8-Pin (6+2) Cables 9 x SATA Cables 3 x 4-Pin Peripheral Cables 2 x Floppy Cables Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 750 GQ 750W 80 Plus Gold Semi-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

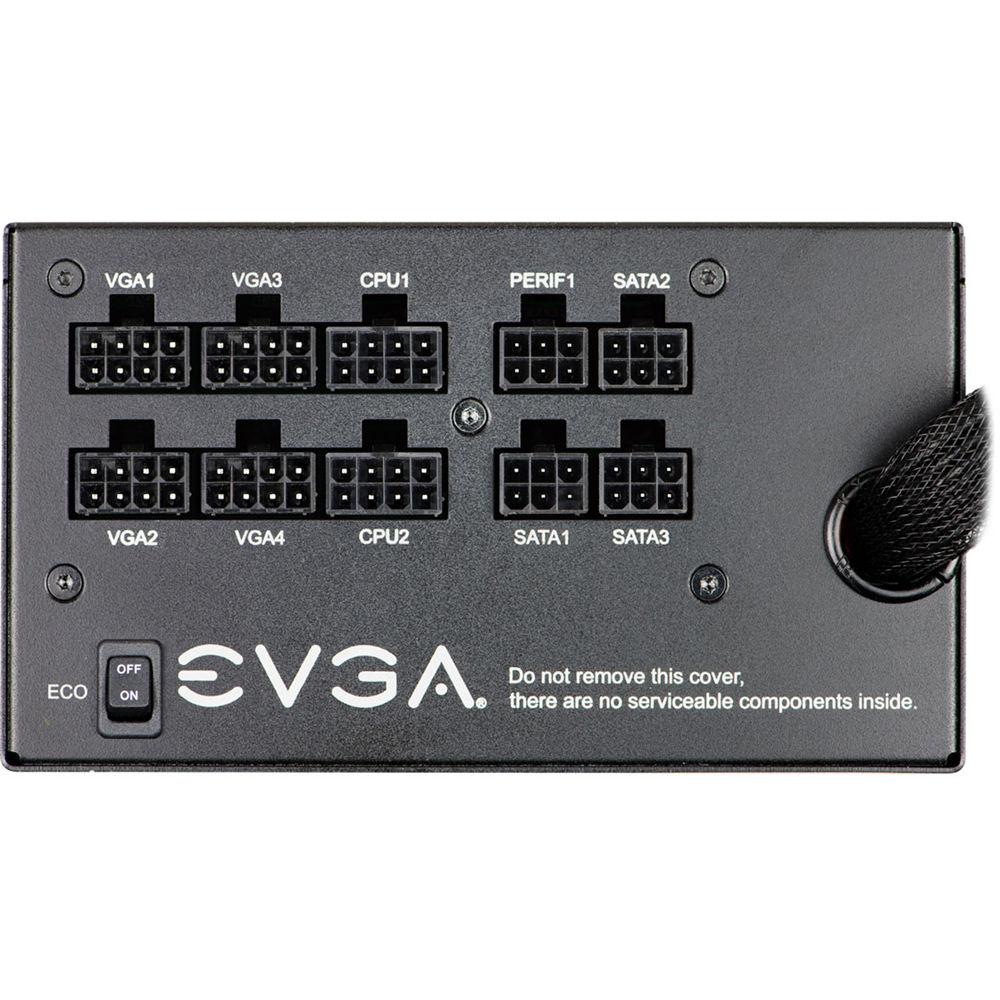

Technical parametersEVGA 210-GQ-0750-V1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
2 x 4+4-Pin EPS
6 x 6+2-Pin PCIe
9 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
2 x 4-Pin Floppy | | Cable Design | Semi-Modular | | PCIe Connector Distances | 25.6" / 650 mm
29.5" / 750 mm | | SATA Connector Distances | 21.7" / 550 mm
25.6" / 650 mm
29.5" / 750 mm | | Peripheral Connector Distances | 21.7" / 550 mm
25.6" / 650 mm

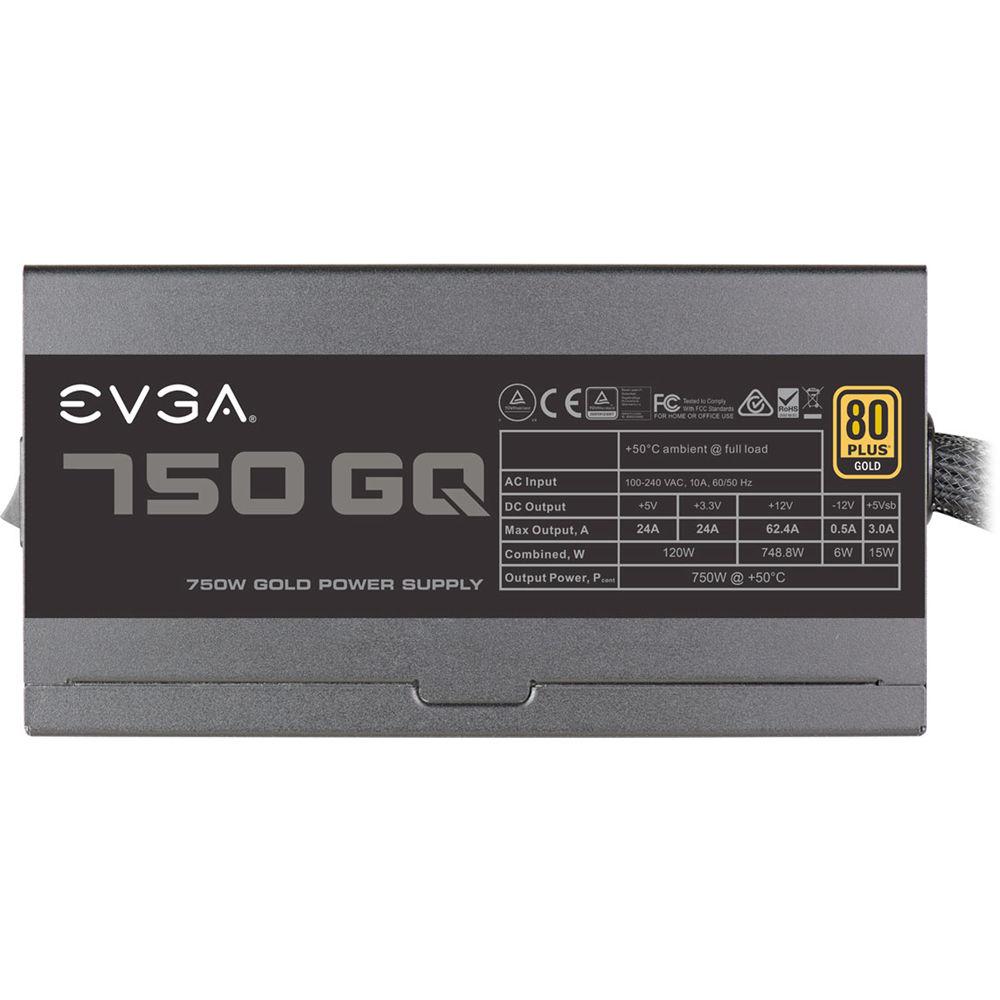

29.5" / 750 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 750 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 748.8 W | | Max Load for +12 V | 62.4 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 90% | | | | Fan Size | 135 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX PS/2 | | Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 4.92' / 150 cm | | Dimensions | 5.9 x 3.4 x 6.5" / 150.0 x 85.0 x 165.0 mm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 7.15 lb | | Box Dimensions (LxWxH) | 13.0 x 8.4 x 4.8" |
