User Manual for EVGA 750BQ 750W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA 750BQ 750W 80 Plus Bronze
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA 750BQ 750W 80 Plus Bronze contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

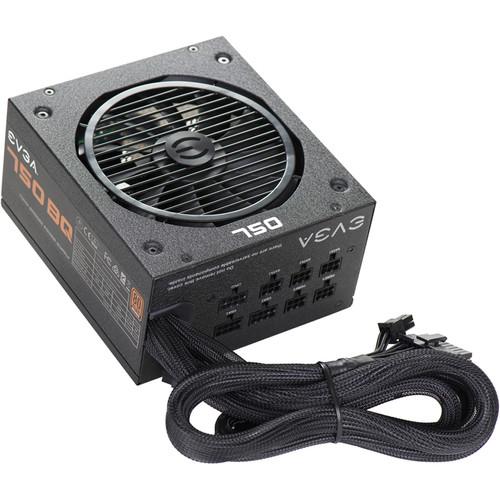

Product description The 750BQ 750W 80 Plus Bronze Power Supply from EVGA is built with a high-amperage single +12 V rail, a 140 mm teflon nano-bearing cooling fan, and heavy-duty protection. It's 80 Plus Bronze certified, ensuring 85% efficiency under typical loads to conserve power and reduce excess heat. The cables are non-modular so unused cables cannot be removed. Instead, organize and keep them out of the way for better airflow within the chassis. Its ATX form factor makes it compatible with almost every standard ATX case. - Bronze Rated Efficiency
- The 80 Plus Bronze efficiency certification ensures that this power supply doesn't waste power, which leads to excess heat. Under typical load, this power supply is 85% efficient or higher.
- Continuous Power
- This unit is rated by its continuous power rather than its peak for stable operation over its lifetime.
- Single +12V Rail
- A high-amperage single +12V provides you with stable power output for maximum power and efficiency.
- Cooling Fan
- The 140 mm cooling fan runs quietly and dissipates excess heat from the unit and its surroundings.
- Heavy-Duty Protection
- OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)

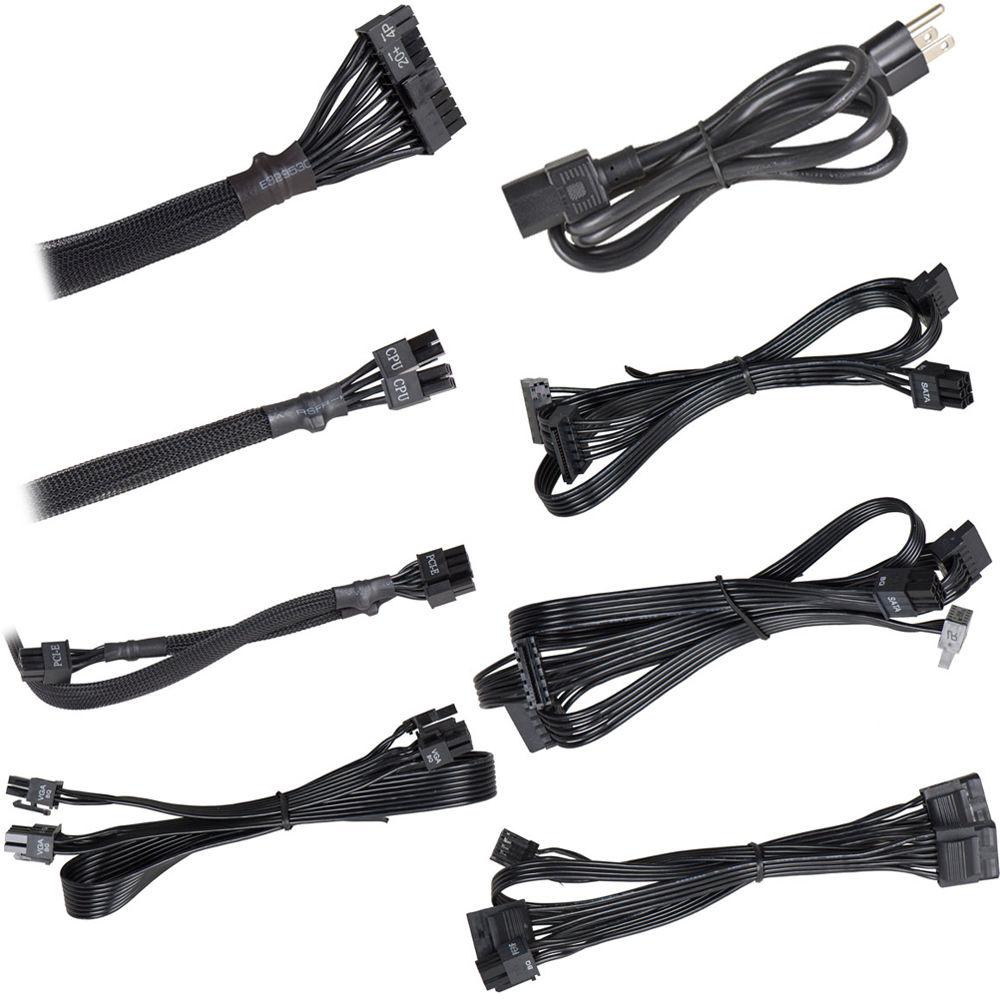

OTP (Over Temperature Protection) UPC: 843368036676 In the Box EVGA 750BQ 750W 80 Plus Bronze Power Supply 24-Pin ATX Cable 2 x EPS (CPU) 8-Pin (4+4) Cables 3 x PCIe 8-Pin (6+2) Cables PCIe 6-Pin Cable 9 x SATA Cables 5 x 4-Pin Peripheral Cables Floppy Cable Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA 750BQ 750W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

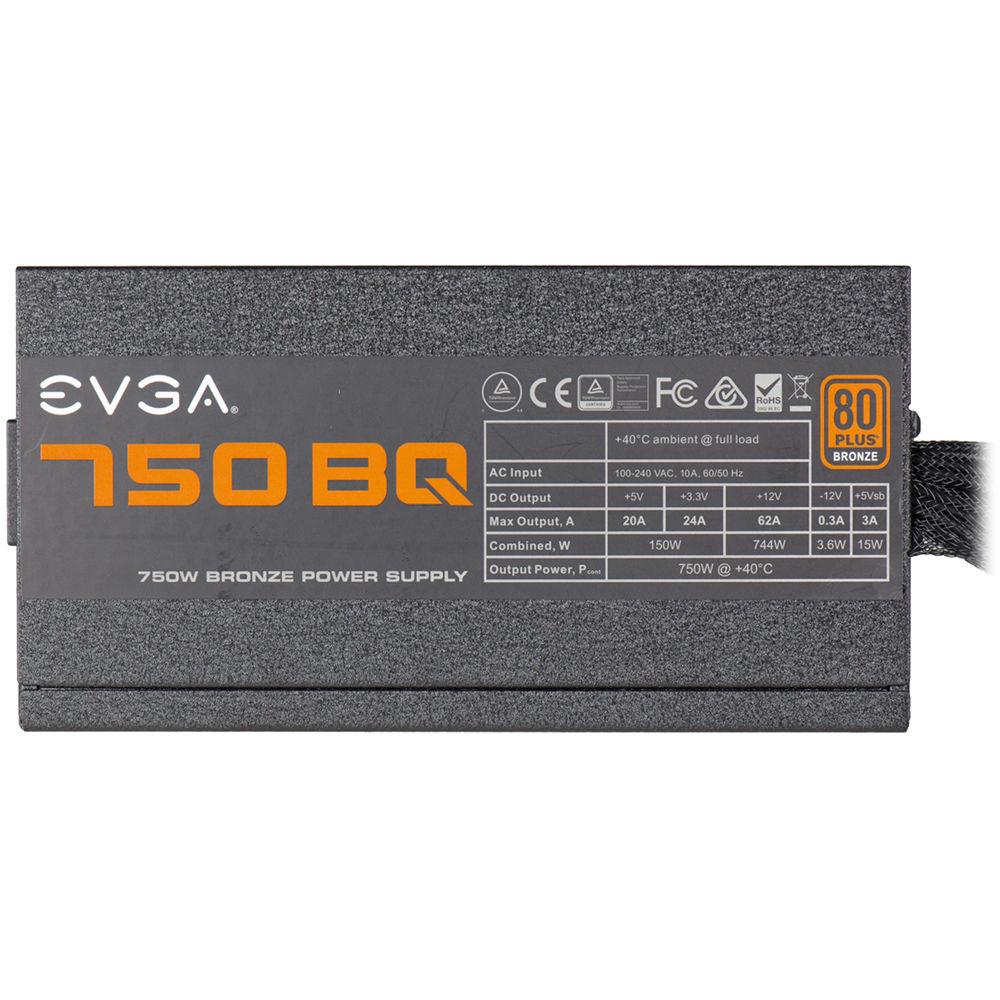

Technical parametersEVGA 110-BQ-0750-V1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
2 x 4+4-Pin EPS
3 x 6+2-Pin PCIe
3 x 6-Pin PCIe
9 x 15-Pin SATA
5 x 4-Pin Peripheral / Molex

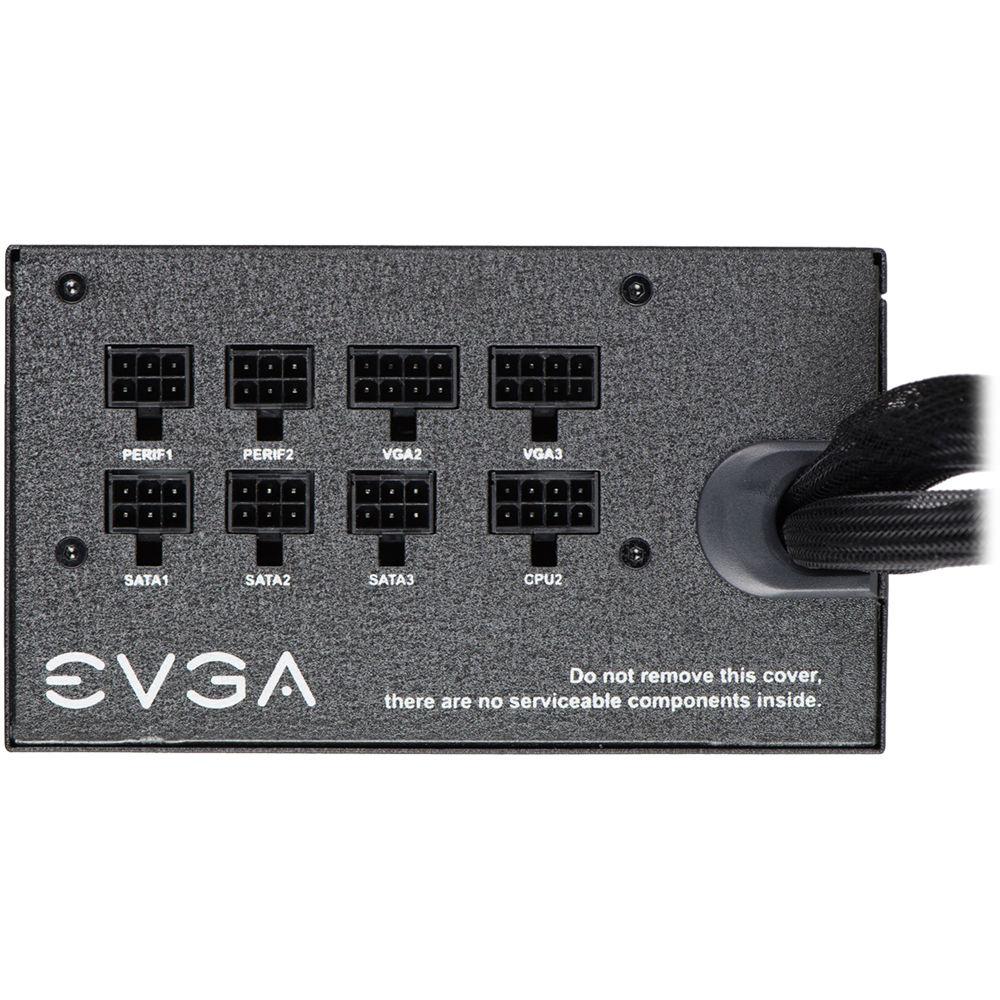

1 x 4-Pin Floppy | | Cable Design | Semi-Modular | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Peripheral Connector Distances | 21.7" / 550 mm
27.6" / 700 mm

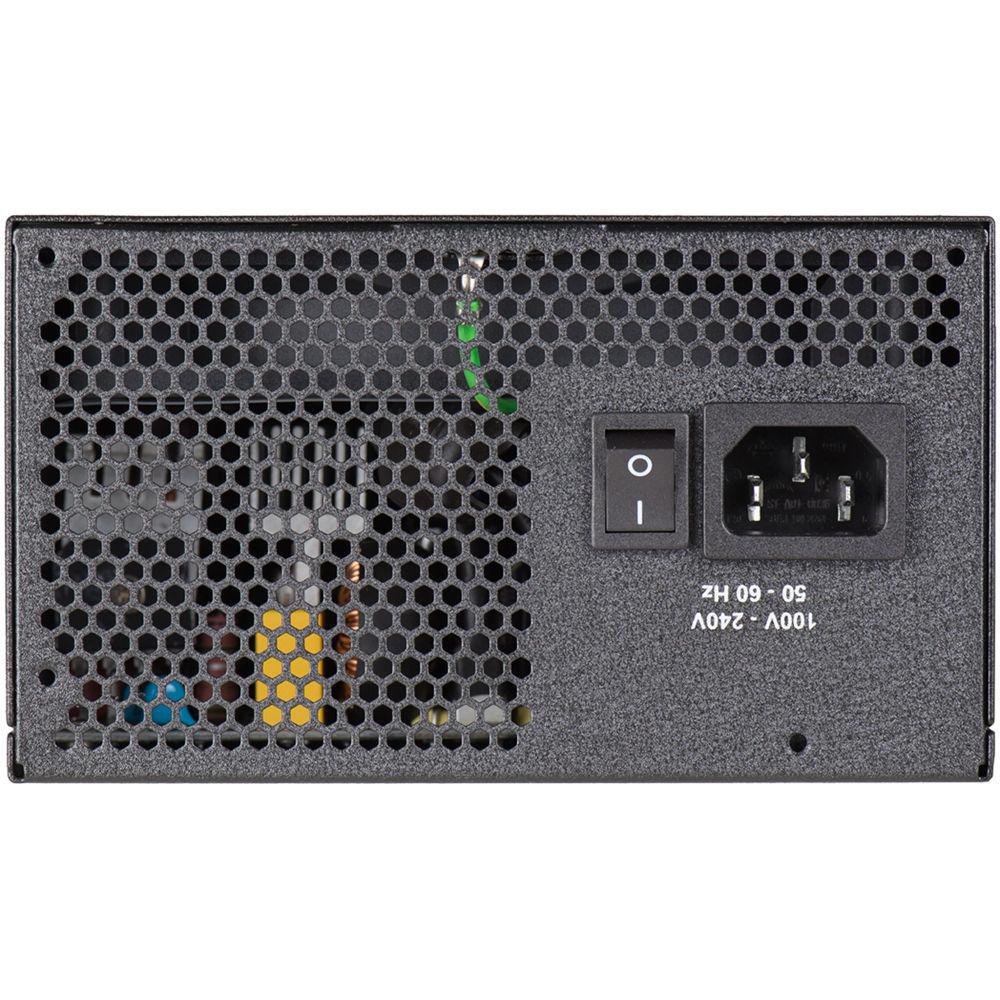

33.5" / 850 mm | | Floppy Connector Distances | 5.9" / 150 mm (Adapter) | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 750 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 150 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | 80 PLUS Bronze | | | | Fan Size | 140 mm | | Bearing Type | Teflon Nano Bearing | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Protection | Over-Current Protection, Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 5.9' / 1.8 m | | Dimensions | 5.9 x 3.4 x 6.5" / 150.0 x 85.0 x 165.0 mm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 11.1 x 8.9 x 4.0" |
Rating56% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
