User Manual for EVGA B360 LGA 1151 Micro-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the EVGA B360 LGA 1151 Micro-ATX Motherboard
- Product category: Motherboards EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Motherboards
 |
User manual for the EVGA B360 LGA 1151 Micro-ATX Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

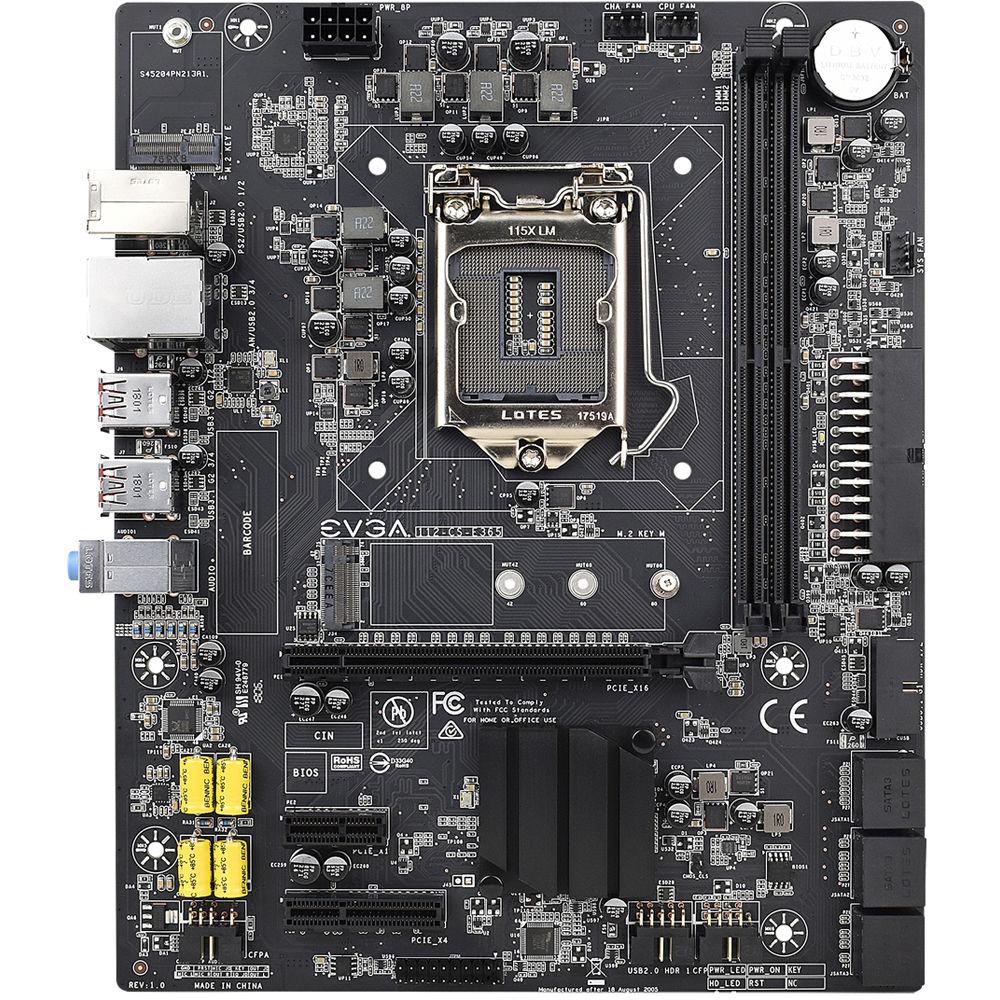

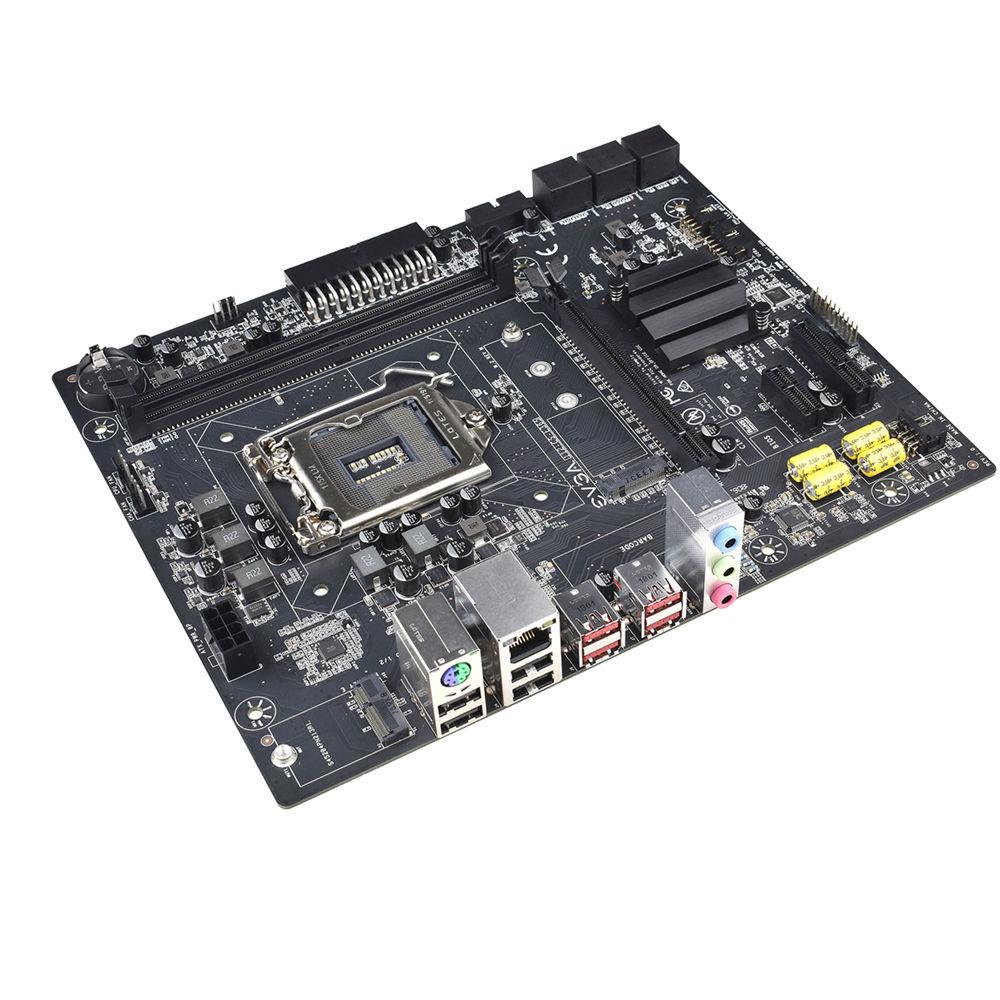

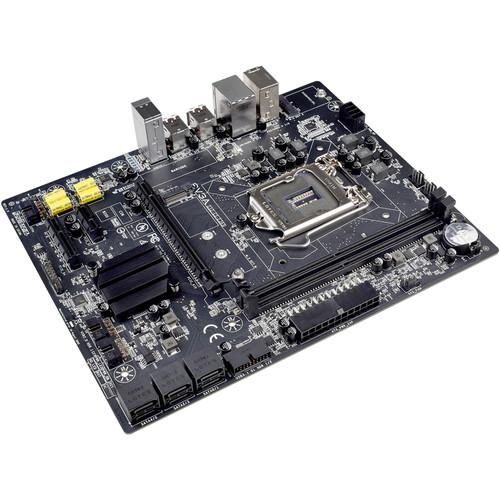

Product description The B360 LGA 1151 Micro-ATX Motherboard from EVGA is built on the Intel B360 chipset supporting Intel Core Coffee Lake-S processors with an LGA 1151 socket. It has two memory slots that support up to 32GB of 2667 MHz DDR4 RAM, one PCIe 3.0 x16 slot, one PCIe x4 slot, one PCIe x1 slot, six SATA III ports, and a single M.2 slot. The M.2 slot supports NVMe SSDs for faster performance compared to standard SATA drives. Other features include Intel i219V Gigabit Ethernet LAN, Realtek ALC888 5.1-channel HD audio, EVGA Nu Audio Design with an SV3H615 3D headphone amp, and an E-key M.2 slot for an optional Intel CNVi Wi-Fi and Bluetooth module. -
- 8-phase VRM
- Optional EVGA E-LEET X tuning utility software
- SATA ports support hot plug
- M.2 NVMe SSD support
- 3 x 4-pin PWM controlled headers
- EVGA Nu Audio with SV3H615 3D headphone amp
- Trusted Platform Module support

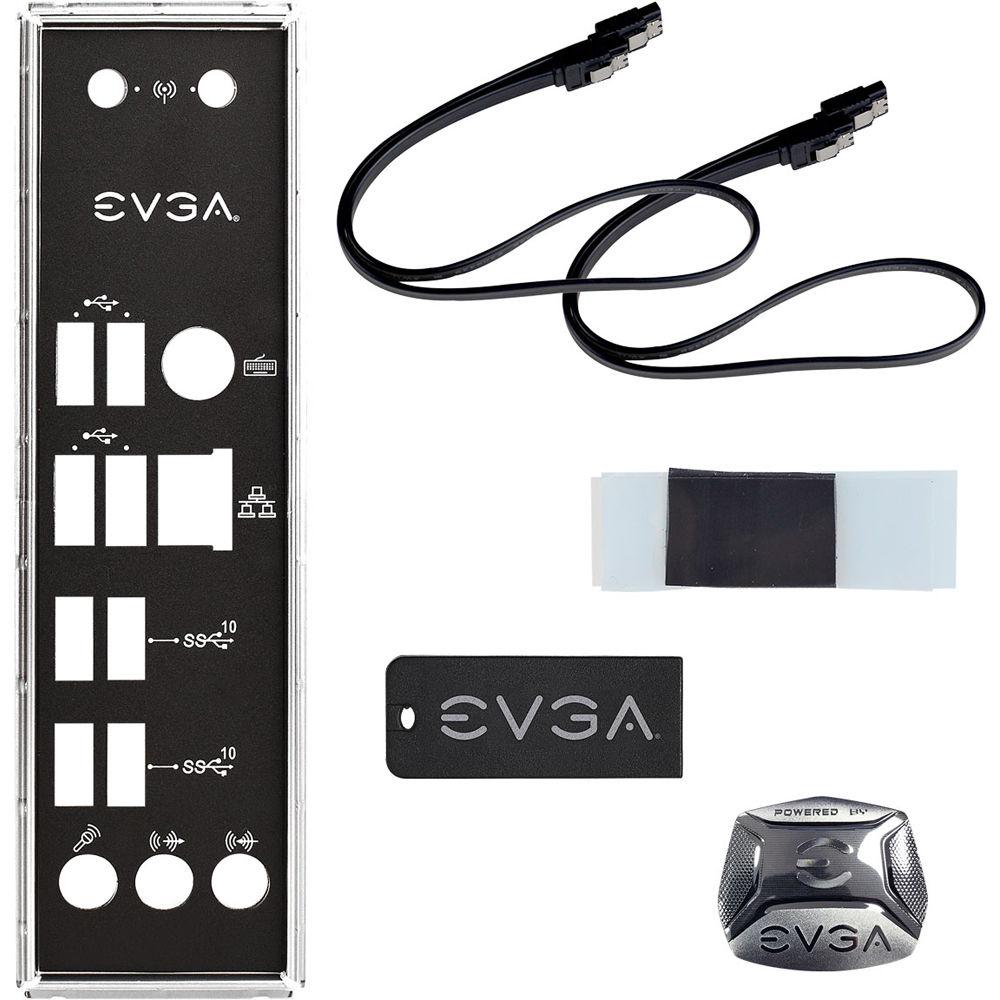

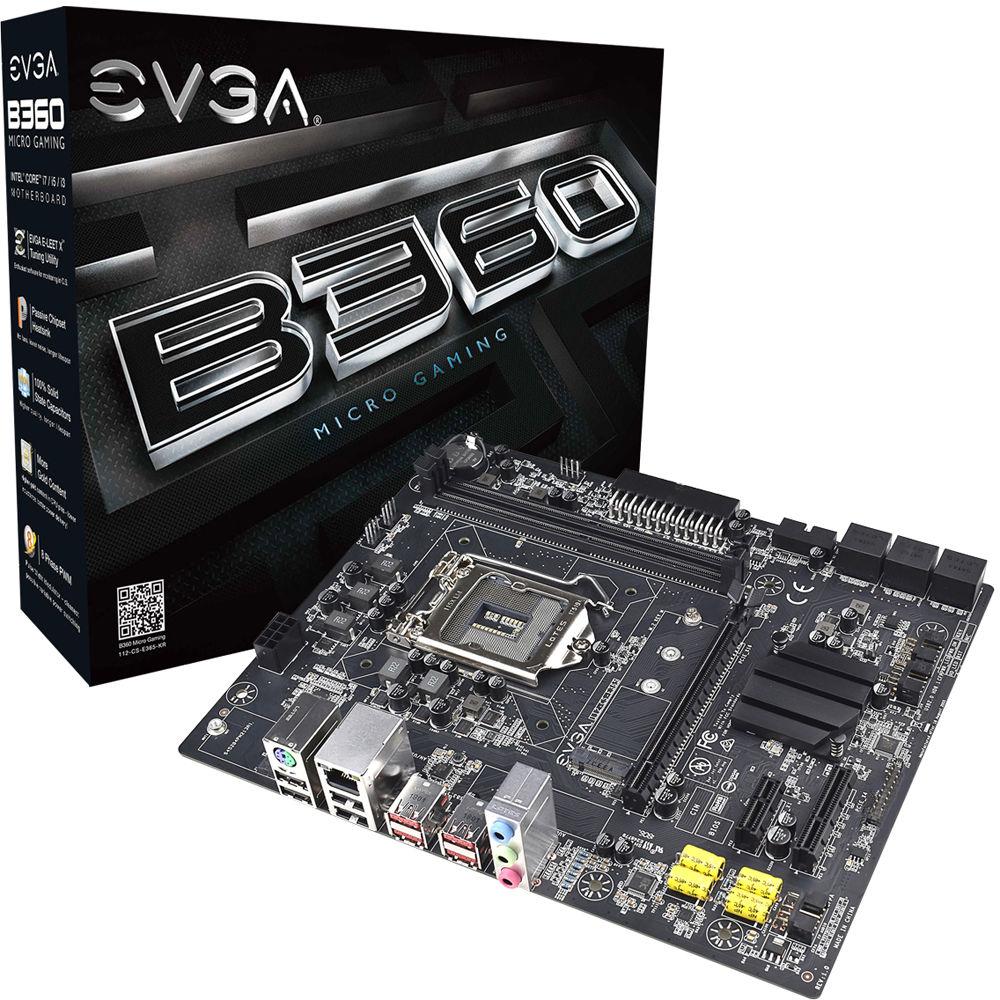

UPC: 843368054564 In the Box EVGA B360 LGA 1151 Micro-ATX Motherboard Limited 3-Year Warranty Spec sheet PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA B360 LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA B360 Micro Gaming Specs | | | Chipset | Intel B360 | | CPU Socket | LGA 1151 | | | | USB | 4 x USB 2.0 Type-A
4 x USB 3.1 Gen 2 Type-A | | Thunderbolt | None | | Display | None | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel i219V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2667 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2280 (PCIe (Unspecified)) | | U.2 | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe x4
1 x PCIe x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 1 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | TPM Module | | Audio | None | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC888 (5.1-Channel) | | | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 8 x 9.6" / 203.20 x 243.84 mm | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 13.3 x 10.5 x 3.2" |
