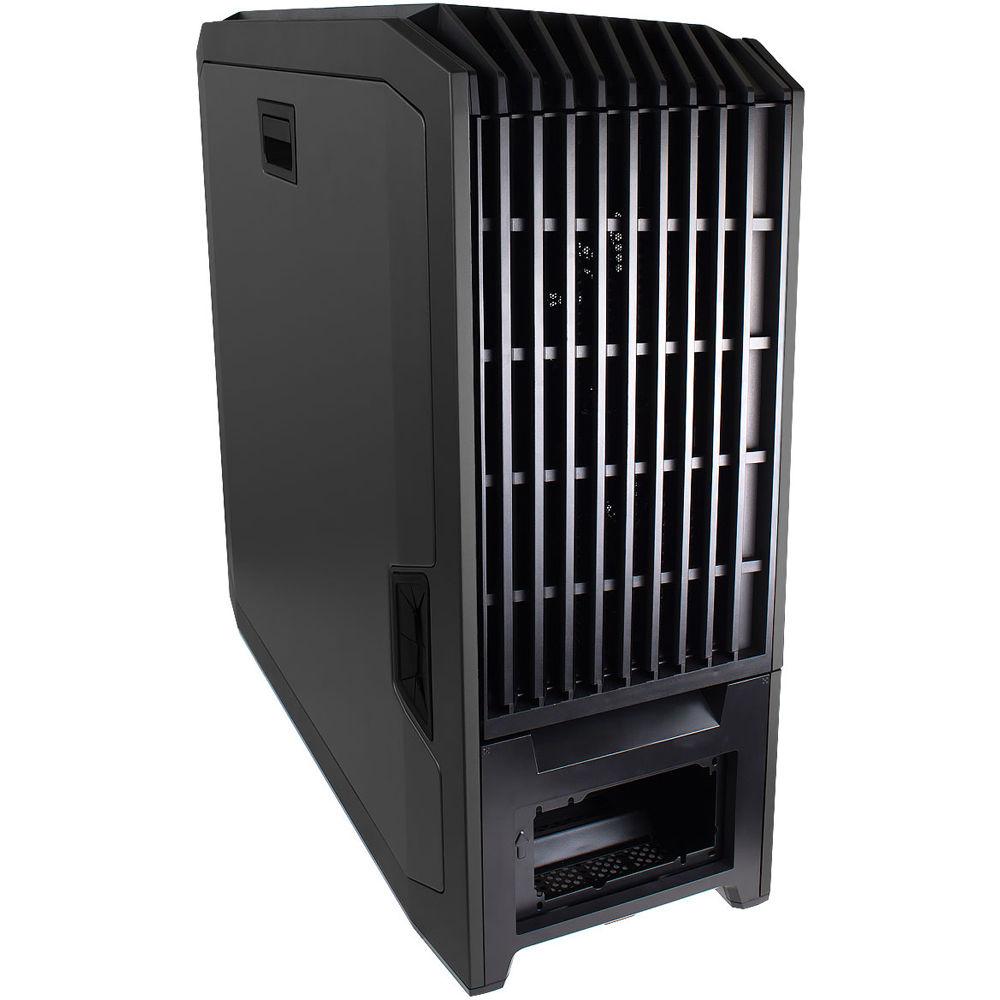

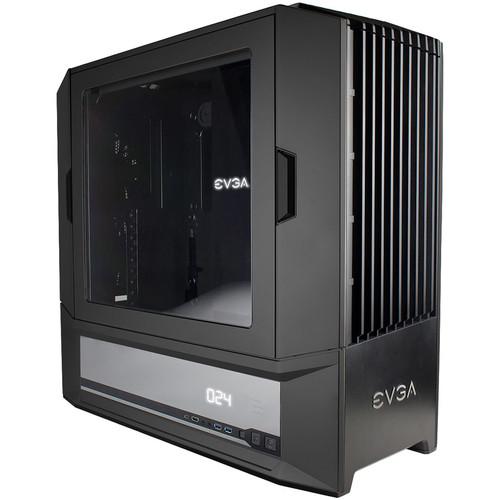

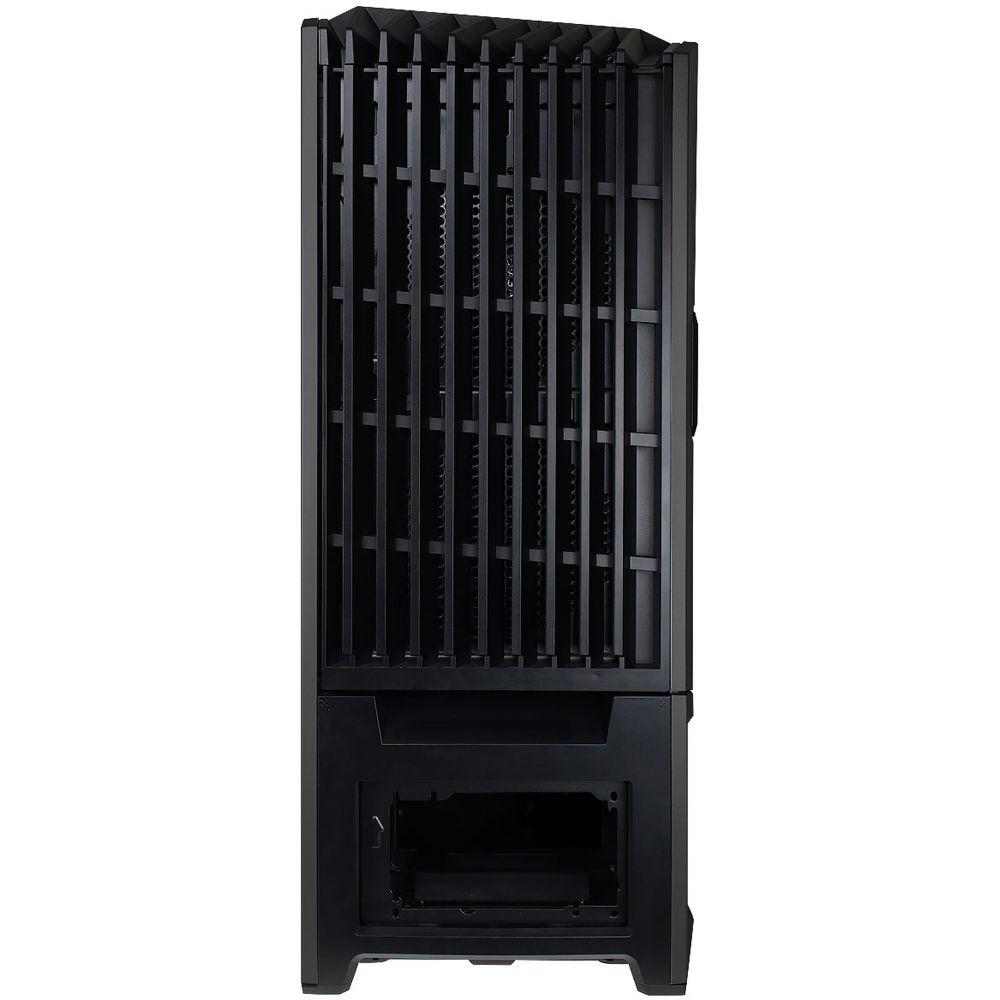

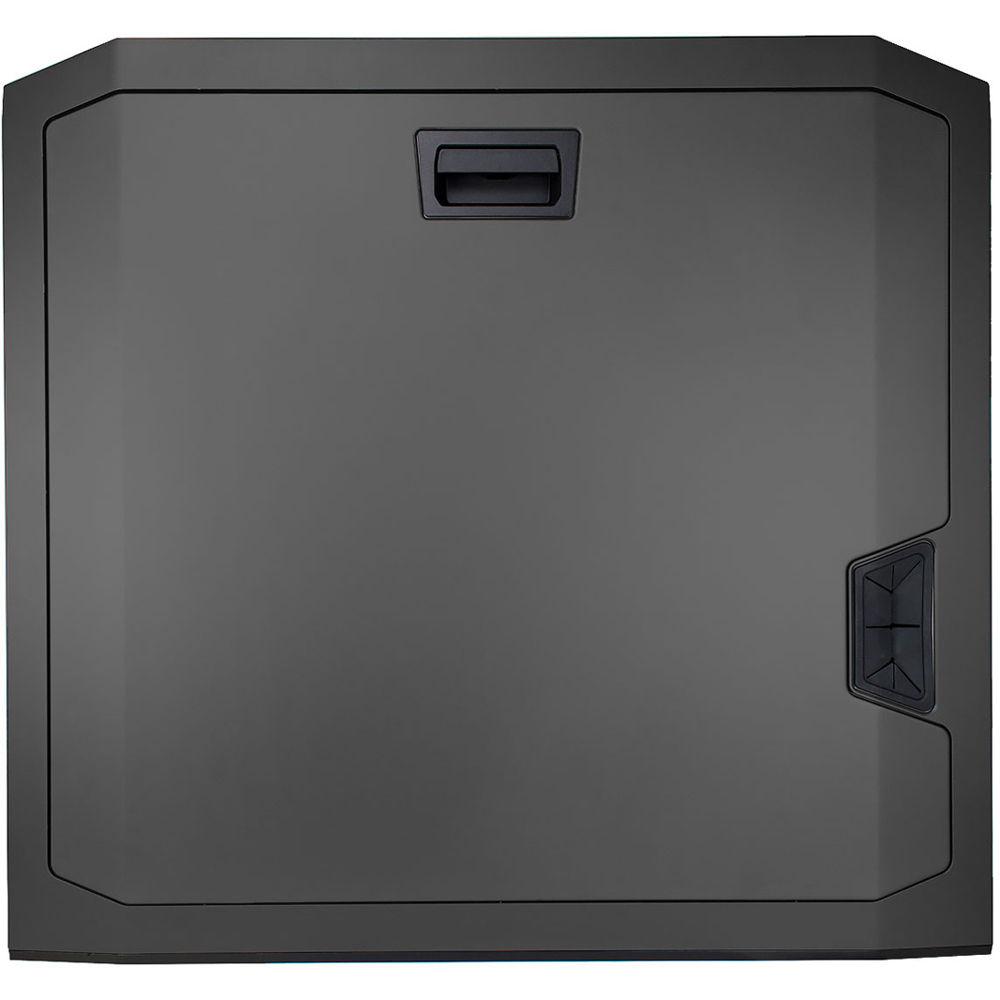

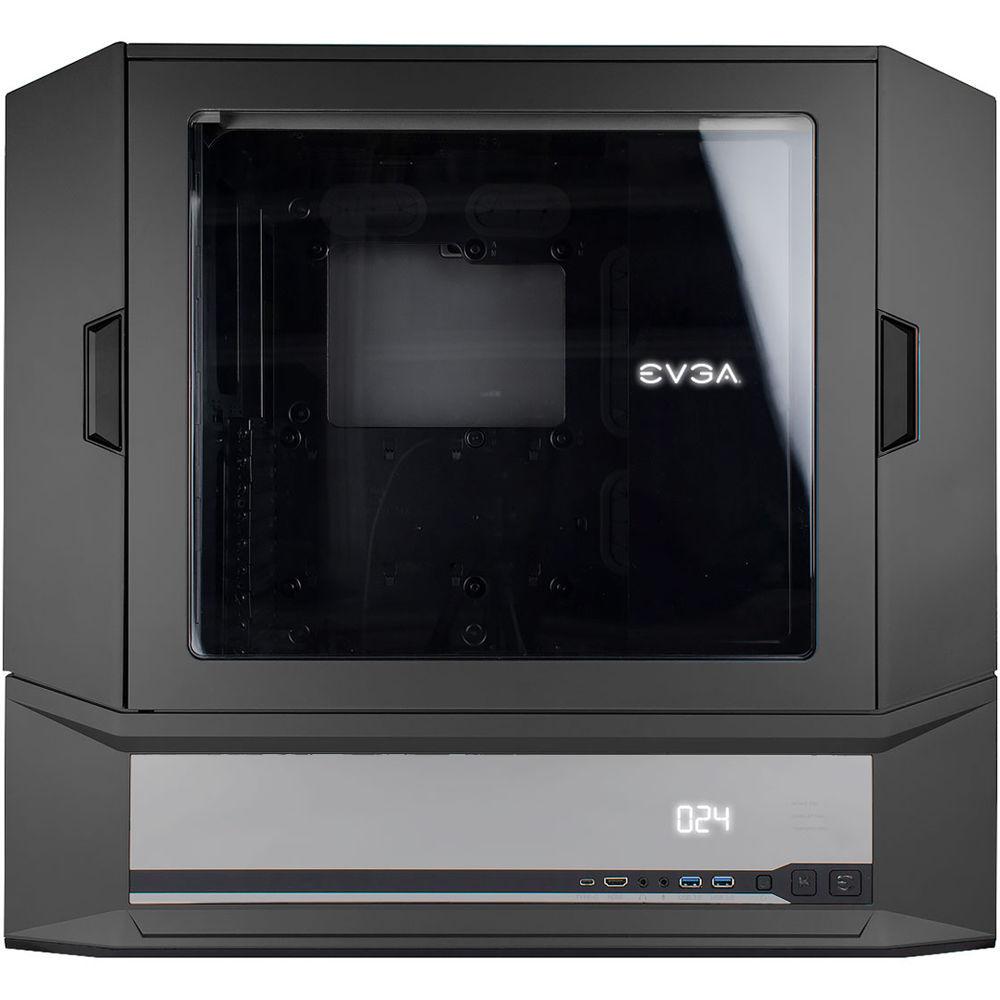

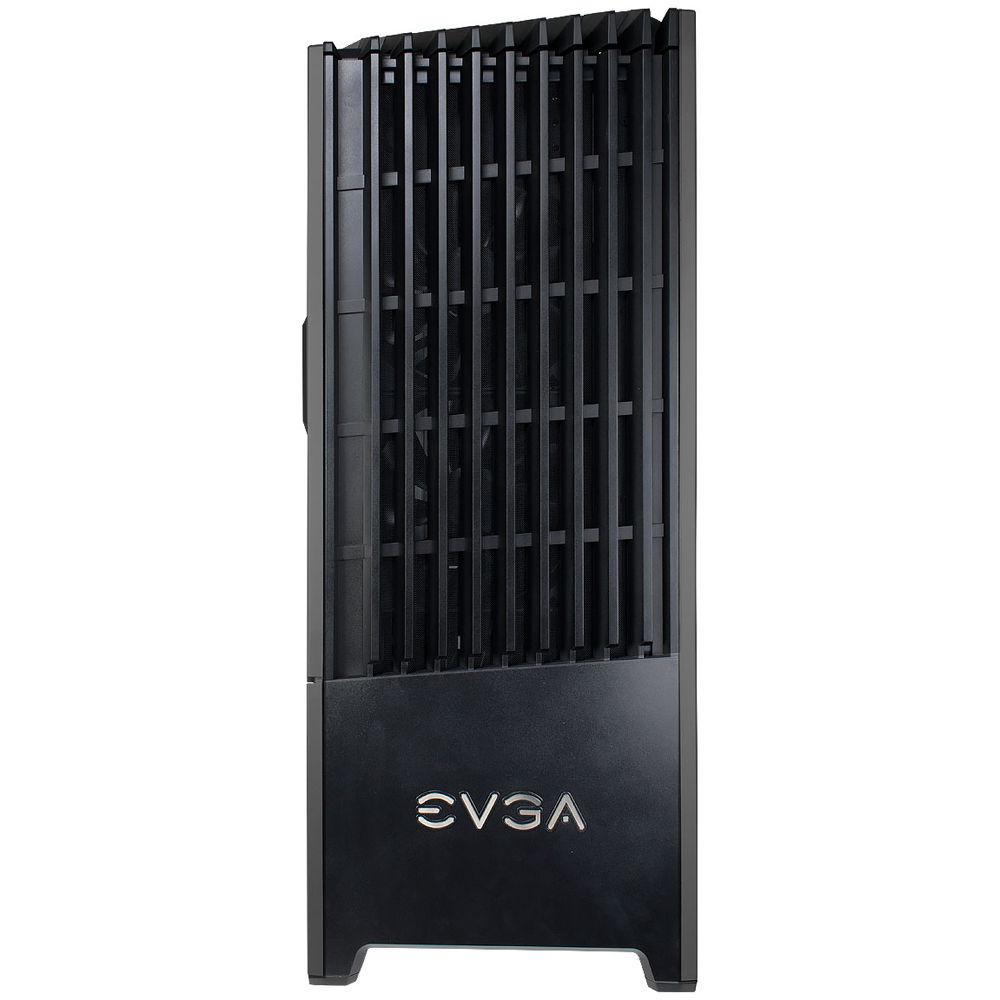

Product description The DG-86 Gaming Windowed Full-Tower Case from EVGA comes with ample space to house numerous storage drives, up to four graphics cards, as well as mini-ITX, micro-ATX, ATX, and extended-ATX motherboards. The gunmetal gray case sports a windowed side panel, letting you view your computer components and supports up to twelve hard drives or SSDs.
For convenience, HDMI, USB 3.0, USB 3.1 Type-C, headphone, and microphone ports along with power, reset, and K-Boost buttons are located under the side panel of the case. A duplicate set of buttons and two USB 2.0 ports have been installed on the front of the case, providing easy access to system controls.
Cooling your computer components is done with four included 140mm fans. You can monitor the internal temperature from an LED display and control the fans with an included fan controller via software. To help keep out dust, removable dust filters are on board. For improving cool performance, the case supports up to eight 120mm or 140mm fans as well as liquid-cooling solutions. In addition, a water cooling bracket is included for mounting a reservoir. Features - Dedicated cooling path for graphics cards
- Support for dual 420mm or 360mm radiators provide liquid cooling performance, with a dedicated section for mounting reservoir
- Cable management cutout points allow you to keep your system layout clean, improving appearance and airflow
- Built in fan controller lets you select cooling performance and monitor the internal temperature
- K-Boost button boosts GPU and CPU clocks instantly
- Removable fan filters help keep your system dust free
- Front-facing HDMI and USB ports for VR gear
- Removable door for easy access inside
- Dedicated mounting locations on back of motherboard and drive bays keep cables out of the way
- Adjustable GPU airflow channel to maximize cooling efficiency
- Supports up to eight 140mm or 120mm fans
- Cables exit on the back of the case, keeping cable management clean, and I/O ports are easily accessed by left door hinge
- Remove PCIe brackets to increase airflow or easily pass water cooling tubes
UPC: 843368041632 In the Box EVGA DG-86 Gaming Windowed Full-Tower Case (Gunmetal Gray) Water Cooling Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA DG-86 Gaming Windowed Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 100-E1-1014-K0 Specs | | | Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 8 x 2.5"
4 x 2.5" | | Expansion Slots | 9 x Full Height | | | | Fan Mounting (Side) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
3 x 140 mm
| | Fans Included (Side) | 4 x 140 mm | | Fan Controller Included | Yes | | | | Connections | 1 x USB Type-C (USB 3.1)
2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | 1 x HDMI | | | | Windowed Panel | Yes | | Cable Management Space | None | | Dimensions (W x H x D) | 27.0 x 10.6 x 25.3" / 686.0 x 270.0 x 642.5 mm | | Weight | 43.2 lb / 19.6 kg | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 31.5 x 29.0 x 15.0" |
