User Manual for EVGA GeForce 210 Graphics Card Click to enlarge the picture
Contents of the user manual for the EVGA GeForce 210 Graphics Card
- Product category: Graphic Display Cards EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Graphic Display Cards
 |
User manual for the EVGA GeForce 210 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

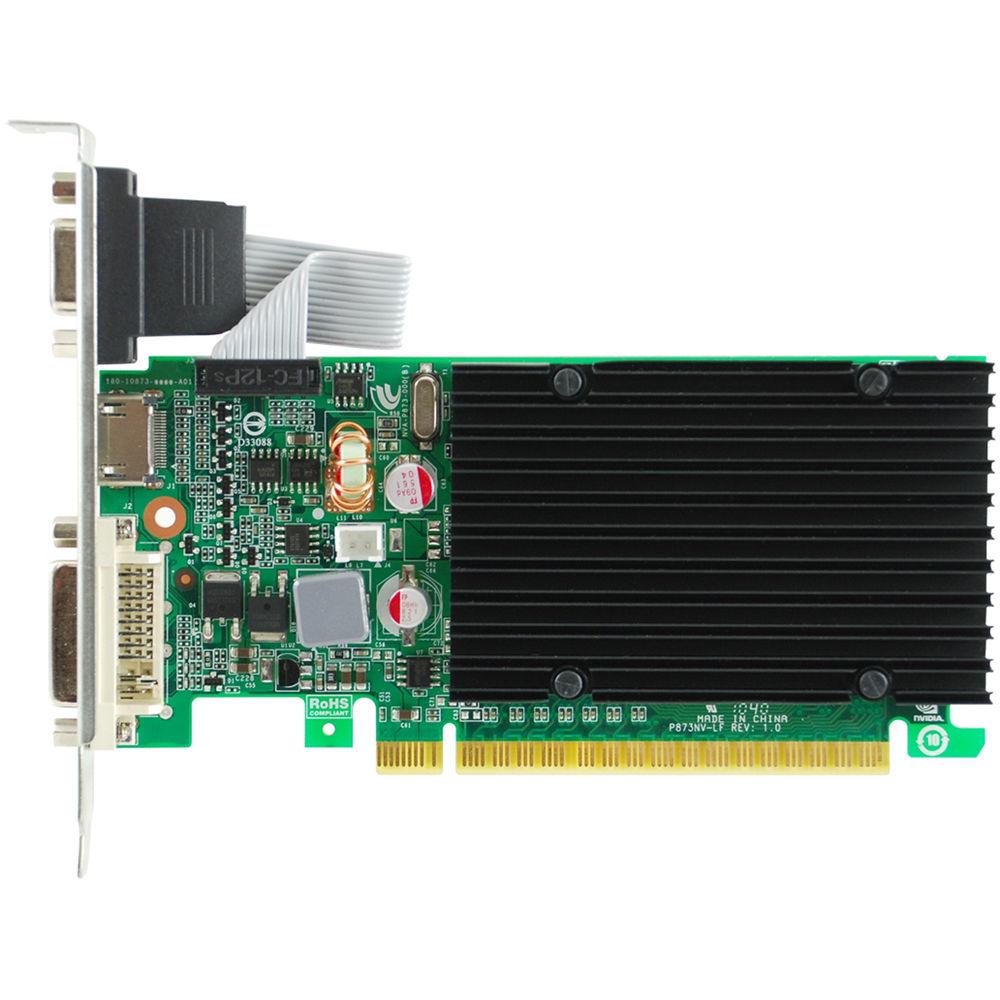

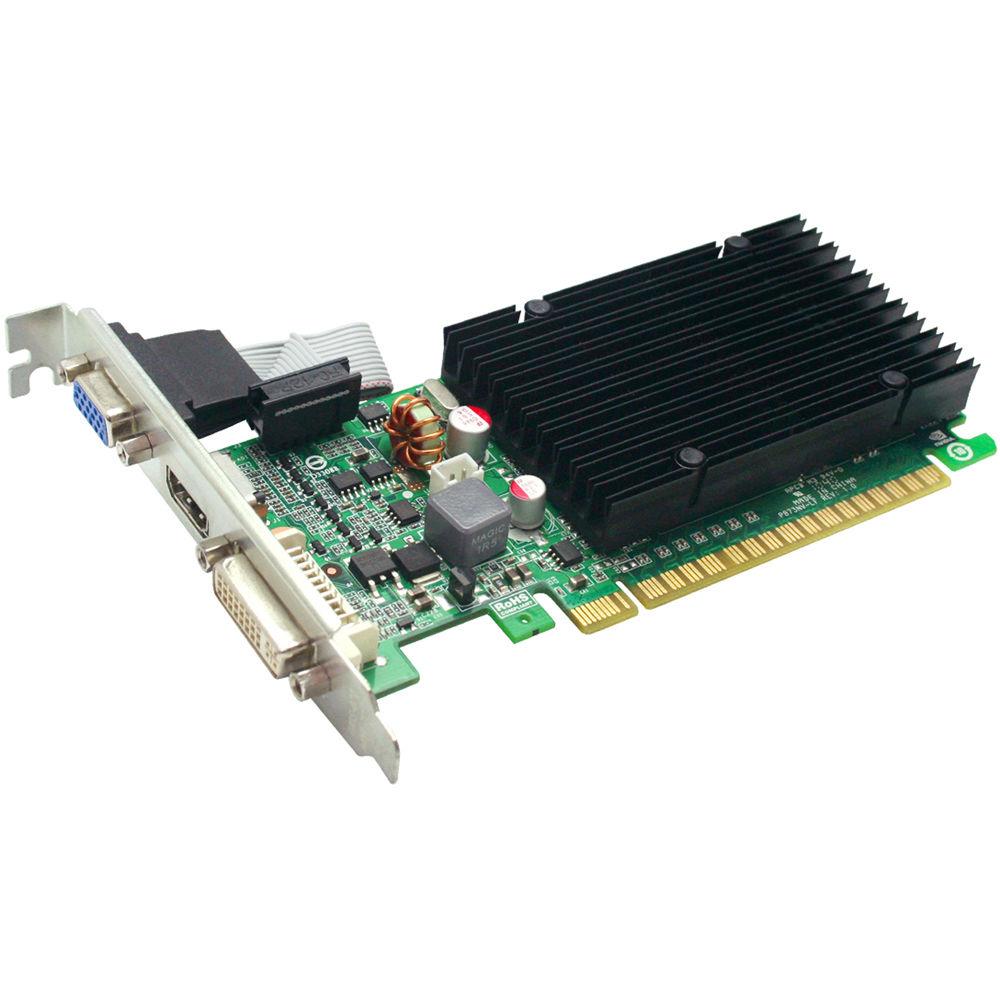

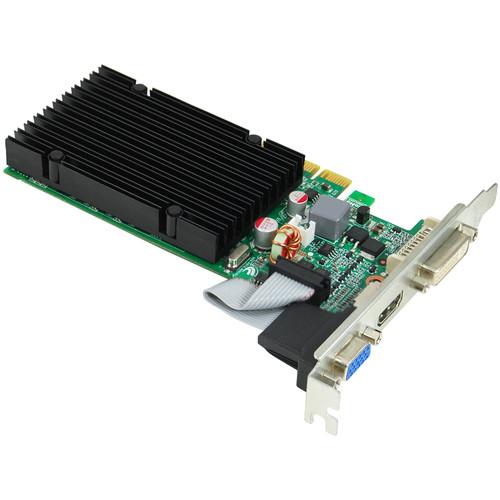

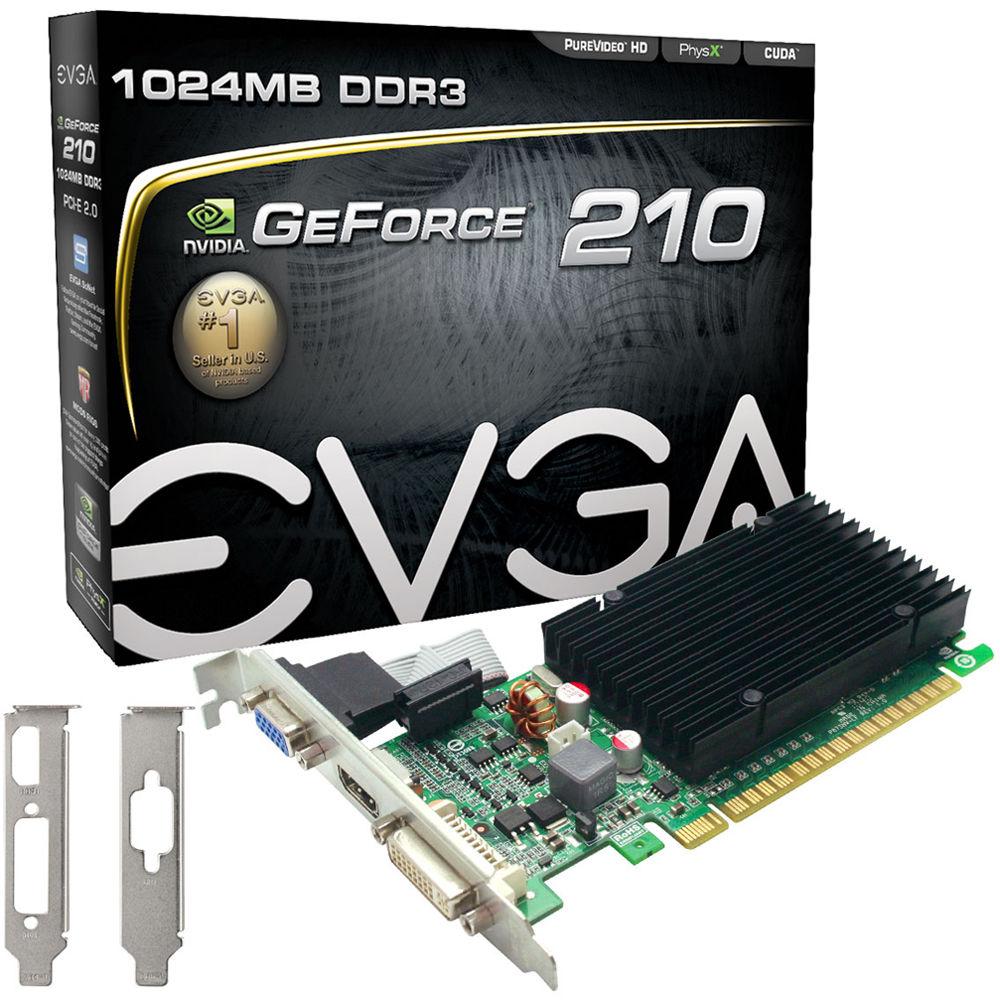

Product description Take advantage of discrete graphics in your PC with the EVGA GeForce 210 Graphics Card. Discrete graphics cards take the graphics processing load from the CPU and RAM, increasing computer speed and graphics performance. This GeForce GT 210 card features 1GB of DDR3 vRAM and a 520 MHz GPU core for graphics processing, allowing you to drive displays with a resolution of up to 2560 x 1600. Output options on the card include VGA, HDMI, and DVI-I DL to connect with both analog and digital monitors. For cooling, this card uses a passive heatsink. - CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- NVIDIA PureVideo HD Technology
- Smooth video, accurate colors, precise image scaling, video decode acceleration, and post processing are all provided by the GeForce 210 for an immersive HD experience. This feature also offloads from the CPU to help reduce power consumption.
- PhysX
- NVIDIA's hardware accelerated physics engine computes how objects move in space in real time. Having a physics engine precludes the need for programs to pre-animate rendered objects which can give an unrealistic "canned animation" feel. The PhysX engine also allows for designers to create more detailed objects, relying on the GPU's processing power rather than a bloated programming back end.
UPC: 843368015367 In the Box EVGA GeForce 210 Graphics Card Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA GeForce 210 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 210 Specs | GPU | NVIDIA GeForce GT 210:
CUDA Cores: 16
Base Clock: 520 MHz | | Memory | Clock Speed: 1200 MHz Effective
Configuration: 1 GB
Interface: DDR3
Interface Width: 64-bit

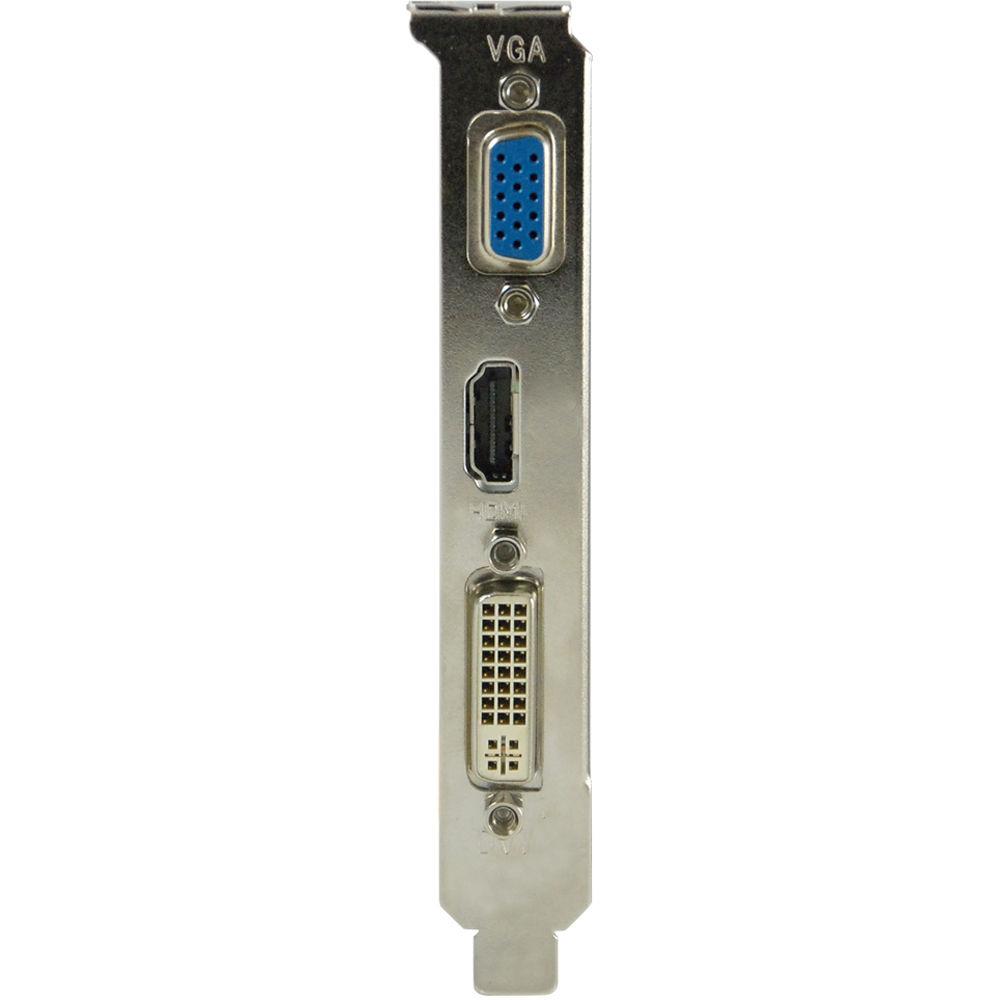

Bandwidth: 9.6 GB/s | | Technologies | OpenGL 3.2 | | Interface | PCI Express 2.0 x16 | | Display Support | Display Connectors:
1 x HDMI
1 x DVI-I DL
1 x VGA
Maximum Digital Resolution: 2560 x 1600 (Dual Link DVI-I only)
Maximum Analog Resolution: 2048 x 1536 | | Power Requirements | Power Consumption: Not specified by manufacturer
Minimum System Power Requirement: 300 W (recommended)
PCI Power Connectors: Not specified by manufacturer | | Dimensions | Height: 4.4" / 111.2 mm
Length 6.2" / 157.2 mm
Width: Single-Slot | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 11.1 x 7.6 x 1.6" |
