User manual
EVGA GeForce GTX 1050 Ti GAMING

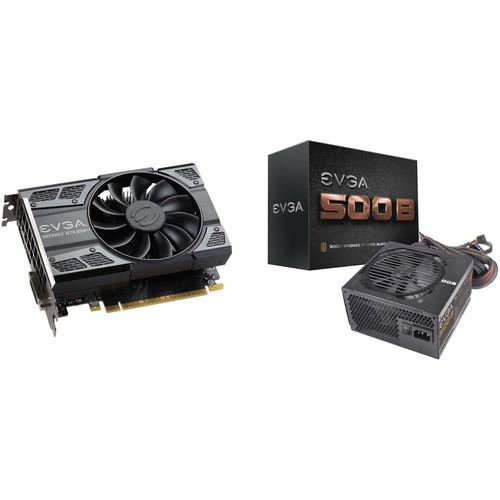

User Manual for EVGA GeForce GTX 1050 Ti GAMING Graphics Card & 500B 500W 80 Plus Bronze Power Supply Kit

• Product category: Graphic Display Cards EVGA
• Brand: EVGA
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for EVGA Graphic Display Cards

Product description

• EVGA 500B 500W 80 Plus Bronze Power Supply The 500B 500W 80 Plus Bronze Power Supply from EVGA is built with a high-amperage single +12 V rail, a 120 mm cooling fan, and heavy-duty protection. It's 80 Plus Bronze certified, ensuring 85% efficiency under typical loads to conserve power and reduce excess heat. The cables are non-modular so unused cables cannot be removed. Instead, organize and keep them out of the way for better airflow within the chassis. Its ATX form factor makes it compatible with almost every standard ATX case.
  Bronze Rated Efficiency
  • The 80 Plus Bronze efficiency certification ensures that this power supply doesn't waste power, which leads to excess heat. Under typical load, this power supply is 85% efficient or higher.
  Continuous Power
  • This unit is rated by its continuous power rather than its peak for stable operation over its lifetime.
  Single +12V Rail
  • A high-amperage single +12V provides you with stable power output for maximum power and efficiency.
  Cooling Fan
  • The 120 mm cooling fan runs quietly and dissipates excess heat from the unit and its surroundings.
  Heavy-Duty Protection
  • OVP (Over Voltage Protection)
    UVP (Under Voltage Protection)
    OCP (Over Current Protection)
    OPP (Over Power Protection)
    SCP (Short Circuit Protection)
    OTP (Over Temperature Protection)
  UPC: 843368023904

• 500B 500W 80 Plus Bronze Power Supply
• 24-Pin ATX Cable
• EPS (CPU) 8-Pin (4+4) Cable
• 2 x PCIe 8-Pin (6+2) Cables
• 6 x SATA Cables
• 3 x 4-Pin Peripheral Cables
• Floppy Cable
• AC Power Cable
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EVGA 500B 500W 80 Plus Bronze Power Supply

  Total Connectors	1 x 24-Pin Motherboard 1 x 4+4-Pin EPS 2 x 6+2-Pin PCIe 6 x 15-Pin SATA 3 x 4-Pin Peripheral / Molex 1 x 4-Pin Floppy
  Cable Design	Sleeved
  PCIe Connector Distances	21.7" / 550 mm 31.9" / 670 mm
  SATA Connector Distances	17.7" / 450 mm 22.4" / 570 mm 27.2" / 690 mm
  Peripheral Connector Distances	17.7" / 450 mm 22.4" / 570 mm 27.2" / 690 mm
  Floppy Connector Distances	4.7" / 120 mm
  ATX Connector Distance	19.7" / 500.1 mm
  EPS Connector Distances	23.6" / 600 mm

  Total Wattage	500 W
  Number of +12 V Rails	1
  Combined Power for +12 V	480 W
  Max Load for +12 V	40 A
  Combined Power for +3.3/+5 V	120 W
  Max Load for +3.3 V	24 A
  Max Load for +5 V	20 A
  Max Power for +5 Vsb	15 W
  Max Load for +5 Vsb	3 A
  Max Power for -12 V	3.6 W
  Max Load for -12 V	0.3 A
  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 4 to 8 A

  Efficiency Rating	80 PLUS Bronze
  Efficiency	85%

  Fan Size	120 mm
  Bearing Type	Sleeve

  Operating Temperature	32 to 104°F / 0 to 40°C

  Form Factor	ATX
  Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
  Certifications	BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer
  Mean Time Between Failures (MTBF)	100,000 Hours
  Power Cable Length	3.9' / 1.2 m
  Dimensions	3.3 x 5.9 x 5.5" / 85.0 x 150.0 x 140.0 mm
  Weight	4 lb / 1.8 kg

  Box Dimensions (LxWxH)	10.7 x 7.7 x 4.0"
