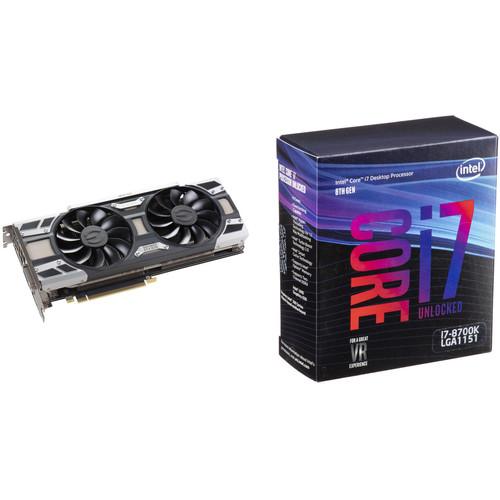

User Manual for EVGA GeForce GTX 1070 SC GAMING Graphics Card & Intel Core i7-8700K 6-Core Processor Kit Click to enlarge the picture
Contents of the user manual for the EVGA GeForce GTX 1070 SC GAMING
- Product category: Graphic Display Cards EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Graphic Display Cards
|
User manual for the EVGA GeForce GTX 1070 SC GAMING contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|
Product description This Kit includes the EVGA GeForce GTX 1070 SC GAMING Graphics Card and the Intel Core i7-8700K 3.7 GHz 6-Core LGA 1151 Processor. The EVGA GPU supports 4K UHD resolutions and is GeForce GTX VR ready, while the 8th Gen Coffee Lake Intel CPU is unlocked and can be overclocked past its maximum turbo frequency. - Intel Core i7-8700K 3.7 GHz 6-Core LGA 1151 Processor The Intel Core i7-8700K 3.7 GHz 6-Core LGA 1151 Processor provides six cores with each one operating between 3.7 and 4.7 GHz for editing digital content, streaming live gameplay, and running other types of intensive tasks. If you need more performance, you can overclock the cores to function above its maximum frequency. This 8th-generation Intel Core i7-8700K processor is built on Coffee Lake architecture and armed with 12MB of cache memory. The processor is compatible with motherboards that sport an LGA 1151 socket and an Intel Z370 chipset, so the CPU can provide up to sixteen PCIe 3.0 lanes for NVMe storage drives, graphics cards, and other high-performance parts. Moreover, it comes with Intel Hyper-Threading technology, which lets each core handle two instruction threads for running multi-threaded applications.
Intel has equipped the Intel Core i7-8700K processor with an integrated Intel UHD Graphics 630 chipset that outputs up to 4K visuals through your motherboard's DisplayPort and HDMI ports. When connected to a DisplayPort-enabled monitor, the Intel UHD Graphics 630 can produce 4096 x 2304 resolution at 60 Hz. Running under a 4K resolution lets you enjoy ultra high-definition videos as well as view more information onscreen when compared to working in a lower resolution workspace.
Aside from graphics, the Intel Core i7-8700K processor has an average power requirement of 95W and supports DDR4 2666 MHz memory modules, running in a dual- or single-channel configuration. For enterprise and any other data-sensitive environments, it supports Intel vPro, Intel Trusted Execution, and other Intel-based technologies. UPC: 735858350181 In the Box - Intel - Core i7-8700K 3.7 GHz 6-Core LGA 1151 Processor
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA GeForce GTX 1070 SC GAMING Graphics Card & Intel Core i7-8700K 6-Core Processor Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Intel Core i7-8700K 3.7 GHz 6-Core LGA 1151 Processor
| | | CPU Model | Intel Core i7-8700K | | CPU Socket | LGA 1151 | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 16 (Revision 3.0) | | Unlocked | Yes | | | | Number of Cores | 6 | | Number of Threads | 12 | | Base Clock Speed | 3.7 GHz | | Maximum Boost Speed | 4.7 GHz | | L3 Cache | 12 MB | | | | Maximum Capacity | 64 GB | | Memory Support | DDR4 2666 MHz | | ECC Memory | No | | Channel Architecture | Dual Channel | | | | Thermal Design Power (TDP) | 95 W | | Thermal Solution | None | | Maximum Temperature | 212°F / 100°C | | Thermal Monitoring Technologies | Yes | | | | AES Support | Yes | | Extension | AVX 2.0, SSE 4.1/4.2 | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x with Extended Page Tables (EPT) | | | | Graphics Chipset | Intel UHD Graphics 630 | | Maximum Resolution Support | 4096 x 2304 at 60 Hz | | Supported APIs | OpenGL: 4.4
DirectX: 12 | | Number of Displays | 3 | | Maximum Shared Video Memory | 64 GB | | Output Support | eDP, DisplayPort, HDMI | | Base Clock Speed | 350 MHz | | Maximum Boost Speed | 1.2 GHz | | | | DMI | DMI3 (8 GT/s) | | Optane Memory Support | Yes | | vPro Support | Yes | | Performance Technologies | Hyper-Threading, SpeedStep, Stable Image Platform Program, TSX-NI, Turbo Boost 2.0 | | Security Technologies | Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions, Trusted Execution Technology | | Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video | | | | Box Dimensions (LxWxH) | 4.6 x 4.3 x 1.8" |
