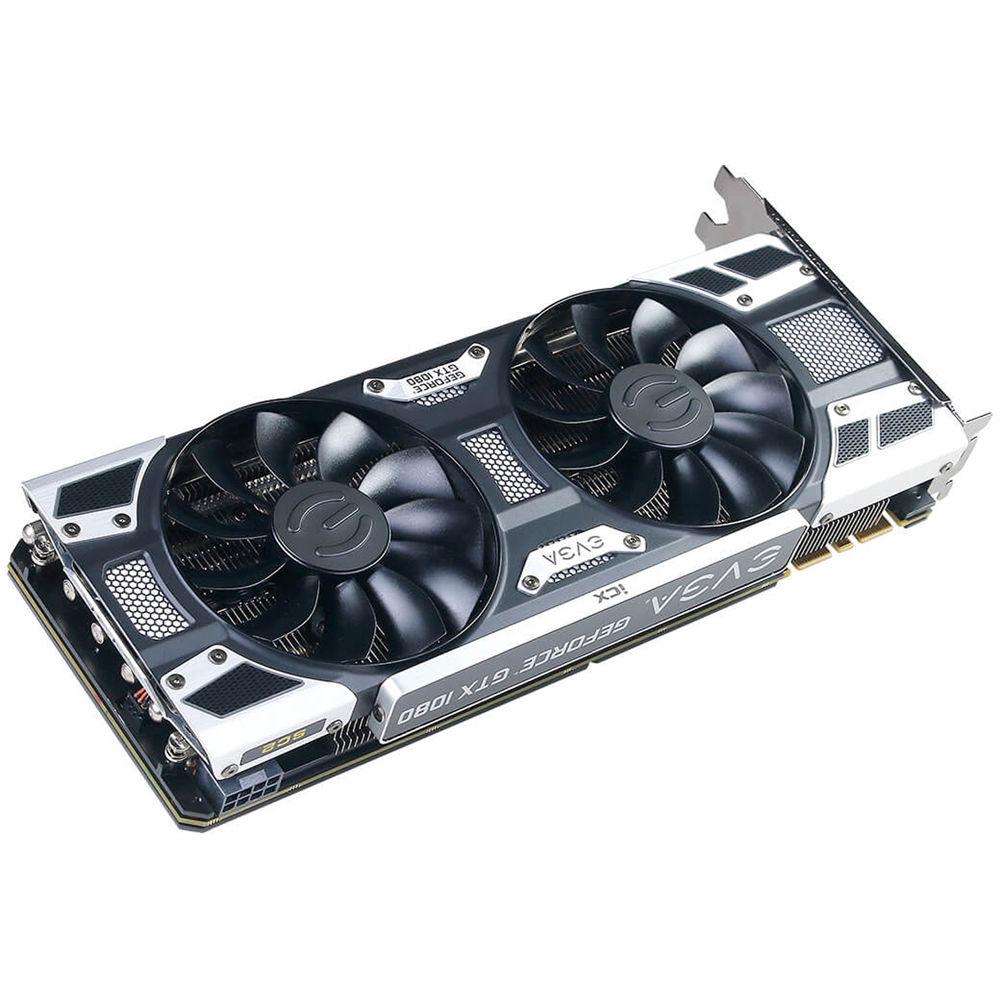

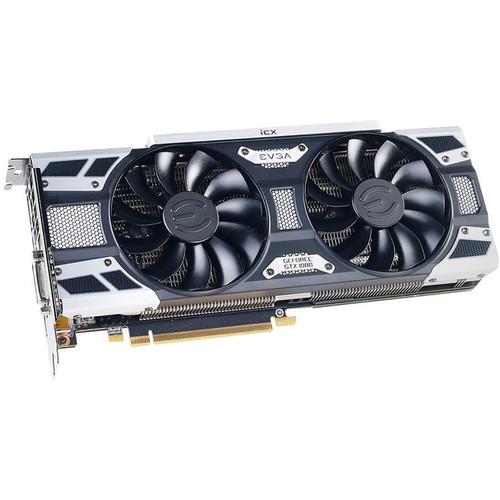

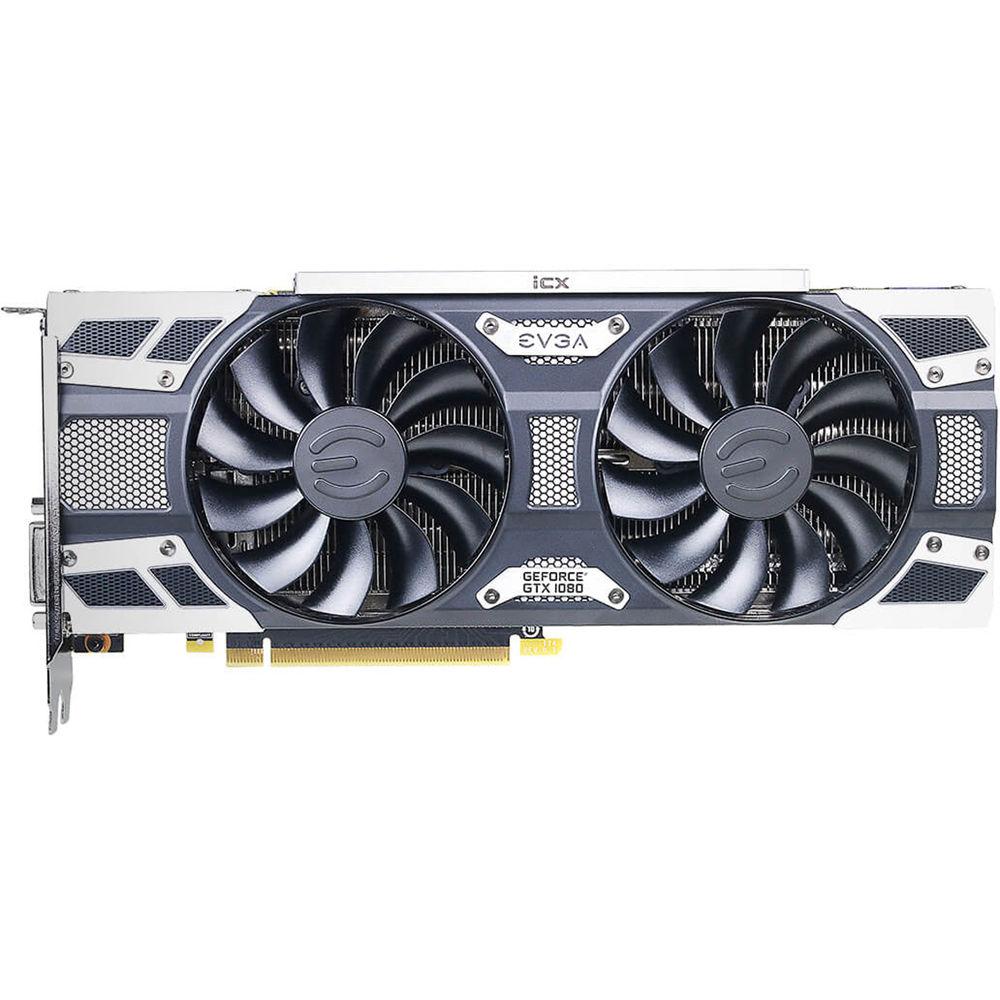

User Manual for EVGA GeForce GTX 1080 SC2 GAMING Graphics Card Click to enlarge the picture
Contents of the user manual for the EVGA GeForce GTX 1080 SC2 GAMING
- Product category: Graphic Display Cards EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Graphic Display Cards
|
User manual for the EVGA GeForce GTX 1080 SC2 GAMING contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

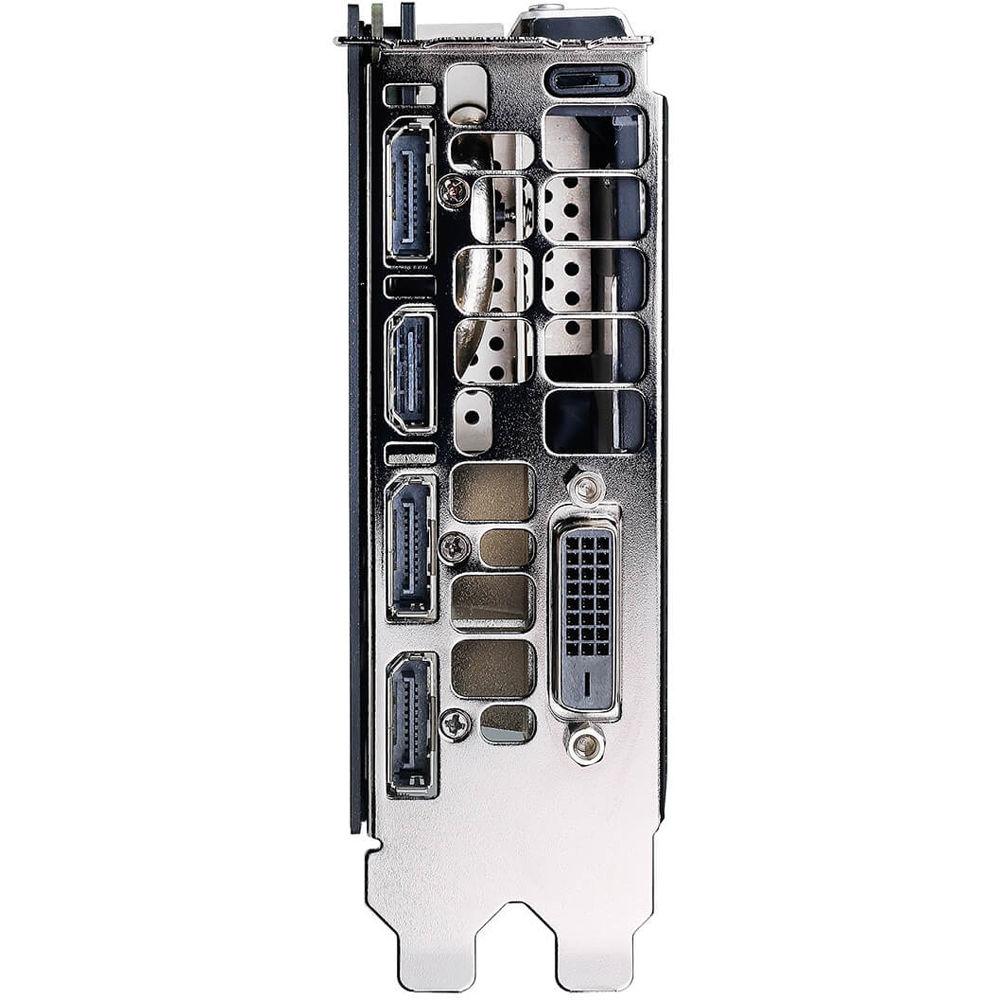

Product description Based on NVIDIA's Pascal architecture and featuring a factory overclocked core, the EVGA GeForce GTX 1080 SC2 GAMING Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the high-performance Maxwell architecture. It also introduces innovative graphics features and technologies that redefine the computer as the platform for playing AAA games and taking full advantage of virtual reality via NVIDIA VRWorks. The front panel of the card features a variety of outputs. There are three DisplayPort 1.4 outputs in addition to an HDMI 2.0b output and a DVI-D Dual-Link output. The GTX 1080 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 2560 cores to accelerate tasks using CUDA or other APIs. EVGA implemented iCX technology, which is more than just a cooler. It features 9 thermal sensors and multiple MCUs. It also allows for asynchronous fan control. The left fan can be determined by the GPU temperature while the right fan can be determined by power/memory temperature. You also have full control in EVGA Precision XOC. EVGA also installed a fuse that adds another layer of protection to your card and system. The dual double ball-bearing fans and the optimized airflow fin design provide the airflow your GPU needs in order to stay cool. - VRWorks
- VRWorks Graphics includes a simultaneous multi-projection capability that renders natively to the unique dimensions of VR displays instead of traditional 2D monitors. It also renders geometry for the left and right eyes simultaneously in a single pass.
VRWorks Audio uses the NVIDIA OptiX ray-tracing engine to trace the path of sounds across an environment in real-time, fully reflecting the size, shape, and material of the virtual world. NVIDIA PhysX for VR detects when a hand controller interacts with a virtual object, and enables the game engine to provide a physically accurate visual and haptic response. It also models the physical behavior of the virtual world around the user so that all interactions -- whether an explosion or a hand splashing through water -- behave as if in the real world. - NVIDIA Ansel
- With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
- SLI Ready
- With a compatible motherboard and a connecting bracket, two or more NVIDIA GPUs of the same model can combine processing power using NVIDIA's Scalable Link Interface (SLI). How the cards work together can be customized to suit your preferences. Alternate frame rendering has each alternating card prepare the next frame, essentially multiplying the capabilities of a single card's maximum capable frame rate output. Each card in the configuration can also be used to improve anti-aliasing by being able to process an image in parallel with the other cards before filtering out jagged edges.
NVIDIA's SLI HB bridge doubles the available transfer bandwidth compared to the NVIDIA Maxwell architecture. Delivering smooth gameplay, it's an effective way to enjoy surround gaming and it's only compatible with the GeForce GTX 1080 graphics cards. Note: The benefits of SLI will vary based on component configuration. - CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- G-SYNC Ready
- When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
- NVIDIA GPU Boost 3.0
- Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 3.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.

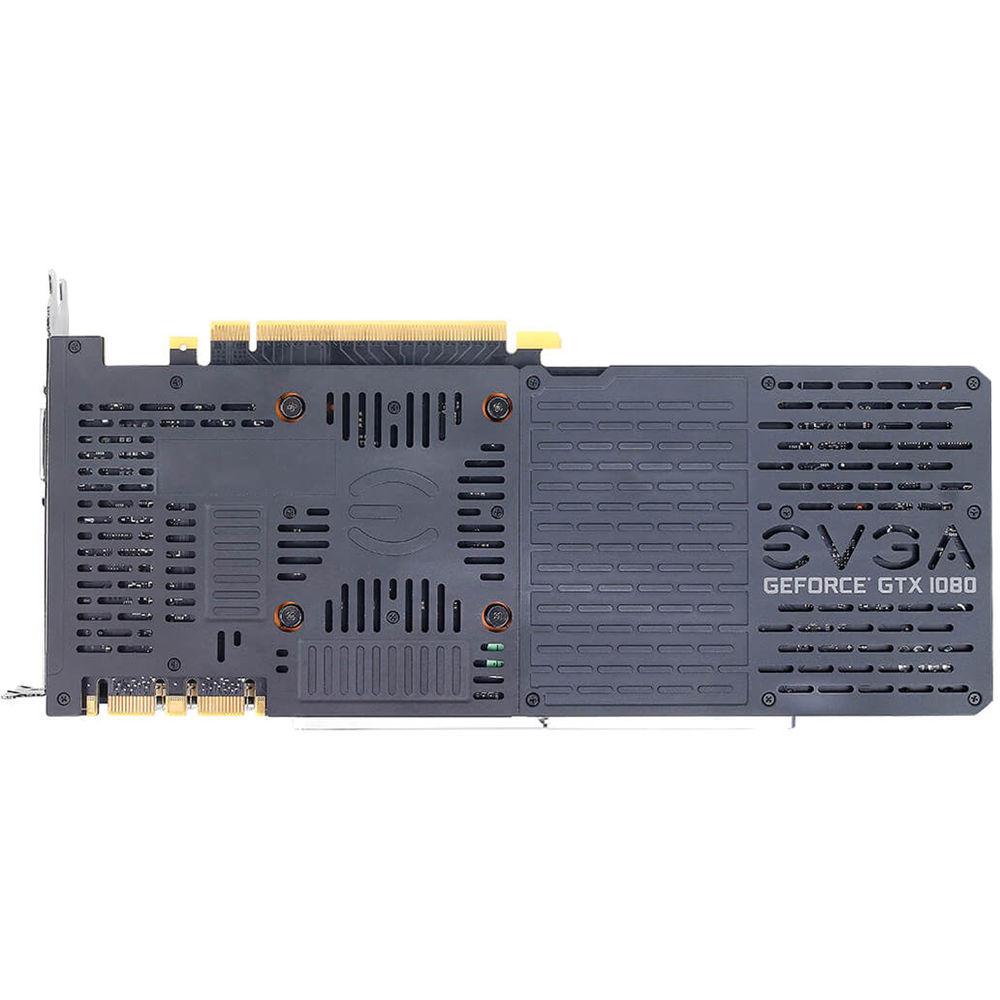

In the Box EVGA GeForce GTX 1080 SC2 GAMING Graphics Card Backplate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA GeForce GTX 1080 SC2 GAMING Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA GeForce GTX 1080 SC2 Specs | GPU Model | NVIDIA GeForce GTX 1080 | Stream Processors | 2560 CUDA Cores | Boost Clock Speed | 1847 MHz | Base Clock Speed | 1708 MHz | Interface | PCI Express 3.0 x16 | Supported APIs | DirectX: 12 OpenGL: 4.6 | | Memory Speed | 11 Gb/s | Memory Configuration | 8 GB | Memory Interface | GDDR5X | Memory Interface Width | 256-Bit | Memory Bandwidth | 353 GB/s | | Display Connectors | 3 x DisplayPort 1.4 1 x HDMI 2.0b 1 x DVI-D DL | Maximum Digital Resolution | 7680 x 4320 @ 60 Hz | | Max Power Consumption | 180 W | PCI Power Connectors | 1 x 8-Pin | Recommended System Power Requirement | 500 W | | Height | 4.4" / 111.76 mm | Length | 10.6" / 269.24 mm | Width | Dual-Slot | | Cooler Type | Open Fansink | Lighting | White LED | | Package Weight | 3.4 lb | Box Dimensions (LxWxH) | 13.0 x 9.5 x 3.0" |
