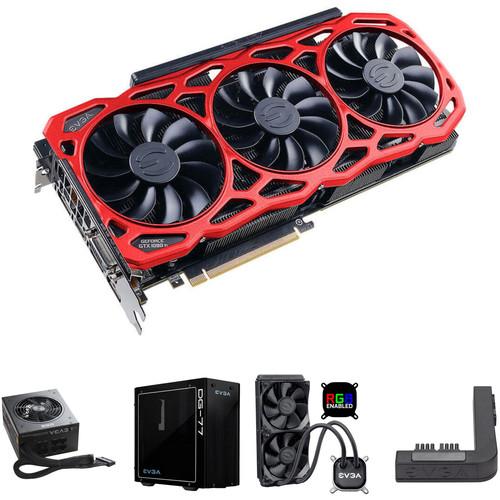

Product description With this Kit, you can install the EVGA GeForce GTX 1080 Ti FTW3 ELITE GAMING RED graphics card in the included EVGA DG-77 mid-tower case. Also included is the EVGA 650 GQ 650W 80 Plus Gold modular power supply, the EVGA CLC 240 RGB liquid CPU cooler, and the EVGA PowerLink cable management adapter. - EVGA 650 GQ 650W 80 Plus Gold Semi-Modular Power Supply The 650 GQ 650W 80 Plus Gold Semi-Modular Power Supply from EVGA is built for performance, durability, and efficiency. Its semi-modular design lets you connect the cables you need and store the rest. With less cables, there will be less clutter resulting in improved airflow and lower temperatures. The GQ is built with a single +12 V rail, Japanese grade capacitors, and a quiet 135mm fan that delivers efficient cooling at low noise levels. It comes with a full set of cables, enough for even a multi-GPU setup, and features Active Power Factor Correction (PFC) to protect your system from damage.
- 80 Plus Gold certified, with 90% (115 VAC) / 92% (220 - 240 VAC) efficiency or higher under typical loads
- Modular design lets you install the cables you need and store the others, eliminating cable clutter and improving air flow
- Japanese brand capacitors that ensure long-term reliability
- NVIDIA SLI & AMD Crossfire ready
- Active Clamp +DC to DC design for efficient operation
- ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
- Active Power Factor Correction (PFC)
UPC: 843368035709 - EVGA DG-77 Mid-Tower Case (Matte Black) The DG-77 Mid-Tower Case from EVGA is a sleek and stylish case with three tempered glass side panels that let you show off your build. Inside, it can accommodate up to an ATX motherboard, either two 3.5" and 2.5" drives or four 2.5" drives, and seven PCIe expansion cards or three dual-slot graphics cards. Aesthetics-wise, it features built-in cable management cutouts, a covered PSU shroud, and hidden hard drive trays. Moreover, it supports vertical GPU mounting with the included riser cable so you can show off your graphics card. For cooling, this case can fit up to a total of seven 120mm fans, including a 360mm radiator for water cooling.
- K-Boost
- The K-Boost button on the top I/O port section lets you overclock your CPU and GPU at the touch of a button for quick and easy performance gains.
- RGB LED Controller & DG-Tuner Support
- A RGB LED controller is included with this case, which lets you connect and sync up all your RGB fans and lighting strips in the system. Once connected, you can use the DG-Tuner software to customize the colors and lighting effects.
-
- Supports up to a 360mm radiator for water cooling
- Supports vertical GPU positioning with riser cable
- Side window panel
- Fits up to seven 120mm fans
- Accommodates either two 2.5" and 3.5" drives or four 2.5" drives
UPC: 843368051082 - EVGA CLC 240 RGB Closed Loop Liquid CPU Cooler The CLC 240 RGB Closed Loop Liquid CPU Cooler from EVGA is a self-contained all-in-one liquid cooling solution for your CPU. It's compatible with a wide range of current and future Intel and AMD sockets, and installs easily. Due to its 240mm radiator, you'll have to install it in a spot made for two 120mm fans. For additional cooling, you can attach two more fans for a push/pull config that can lower temperatures even further. To ensure optimal heat transfer, it has a copper base and aluminum fins. Download the optional EVGA Flow Control software to get full control over settings such as fan speed, RGB lighting, pump control, profiles, and more.
-
- Self-contained all-in-one cooling solution
- Copper base for maximum heat transfer
- Compatible with current and future Intel and AMD sockets
- Dynamic fan speed based on CPU temperature
- Sleeved tubing and wires
- Low-noise Teflon nano bearing fans with curved housing for improved airflow
UPC: 843368048716 - EVGA PowerLink Cable Management Adapter Reroute the power inputs for your graphics card to achieve improved case airflow, a lower profile height, and a cleaner wiring setup using the PowerLink Cable Management Adapter from EVGA. This adapter also supports a configuration system that allows you to mix and match power input types to match your EVGA graphics card and is compatible with all EVGA GeForce GTX 1080 Ti, 1080, and 1070 cards; all NVIDIA Founders Edition GeForce GTX 1080 Ti, 1080, and 1080 cards; most EVGA GeForce GTX 1060 cards; and most EVGA GeForce 980 Ti, 980, 960, and 950 cards. It will also support one of the following PCIe configurations: 6-pin, 8-pin, 6+8-pin, 8+6-pin, or 8+8-pin.
General Features - Compatibility
- - All EVGA GeForce GTX 1080 Ti/1080/1070 cards
- All NVIDIA Founders Edition GeForce GTX 1080 Ti/1080/1070 cards
- Most EVGA GeForce GTX 1060 cards
- Most EVGA GeForce GTX 980 Ti, 980, 960, and 950 cards - Improved Cable Management
- Gives your rig a clean and professional look
- Supports Several PCIe Connectivity Options
- Supports 6-pin, 8-pin, 6+8-pin, 8+6-pin, and 8+8-pin
- Integrated Solid State Capacitors
- Helps provide increased stability
- User-Friendly Installation
- Adjusts easily for broad compatibility with your EVGA graphics card
UPC: 843368044091 In the Box - 650 GQ 650W 80 Plus Gold Semi-Modular Power Supply
- 24-Pin ATX Cable
- 2 x EPI (CPU) 8-Pin (4+4) Cables
- 4 x PCIe 8-Pin (6+2) Cables
- 9 x SATA Cables
- 3 x 4-Pin Peripheral Cables
- 2 x Floppy Cables
- Power Cable
- Limited 5-Year Warranty
- DG-77 Mid-Tower Case (Matte Black)
- CLC 240 RGB Closed Loop Liquid CPU Cooler
- PowerLink Cable Management Adapter
