User Manual for EVGA H370 Stinger LGA 1151 Mini-ITX Motherboard Click to enlarge the picture
Contents of the user manual for the EVGA H370 Stinger LGA 1151 Mini-ITX
- Product category: Motherboards EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Motherboards
 |
User manual for the EVGA H370 Stinger LGA 1151 Mini-ITX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

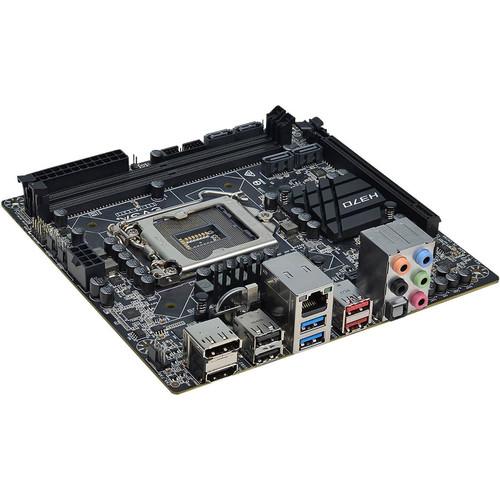

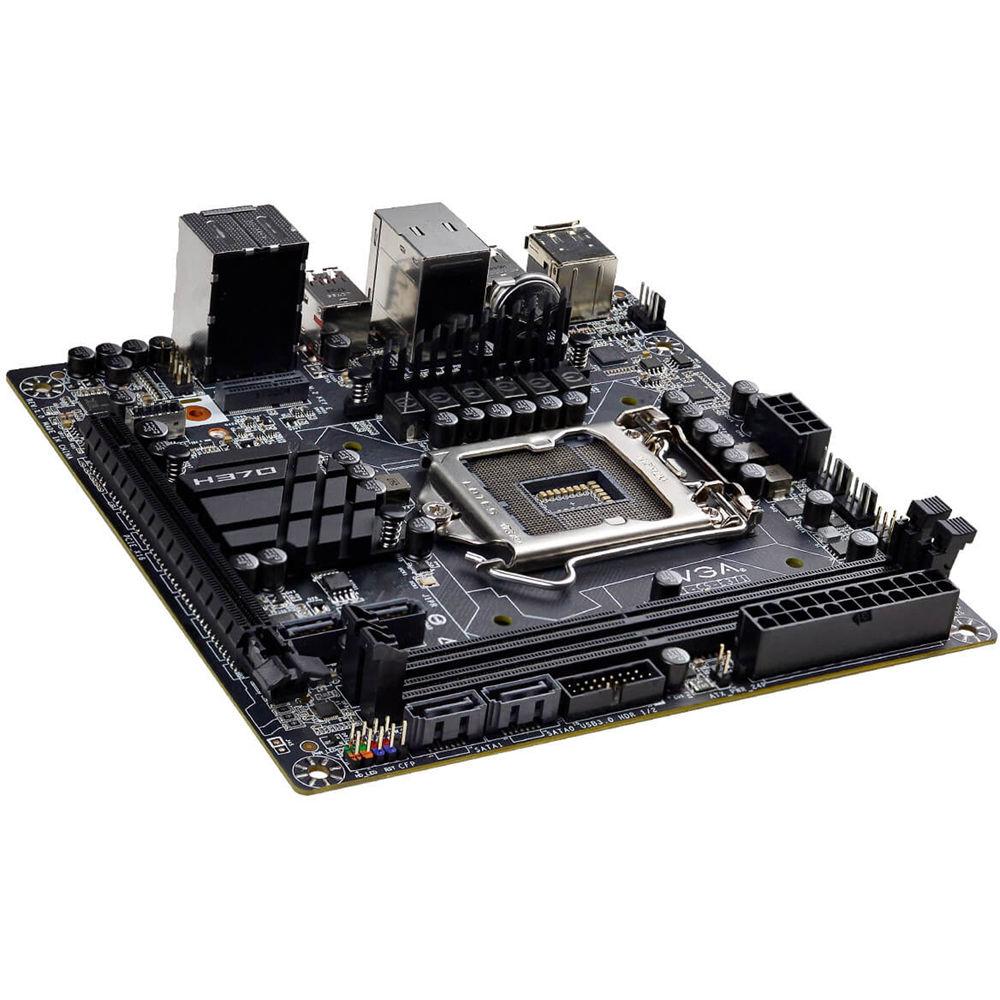

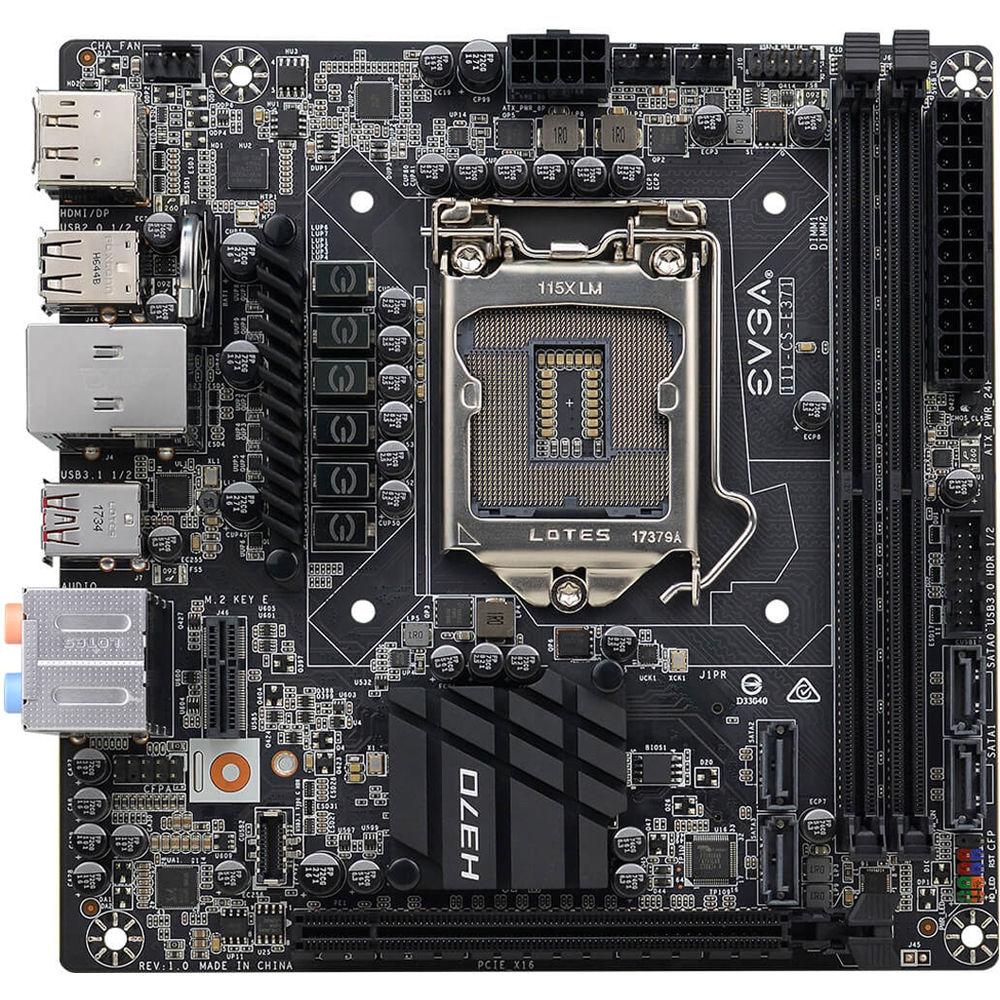

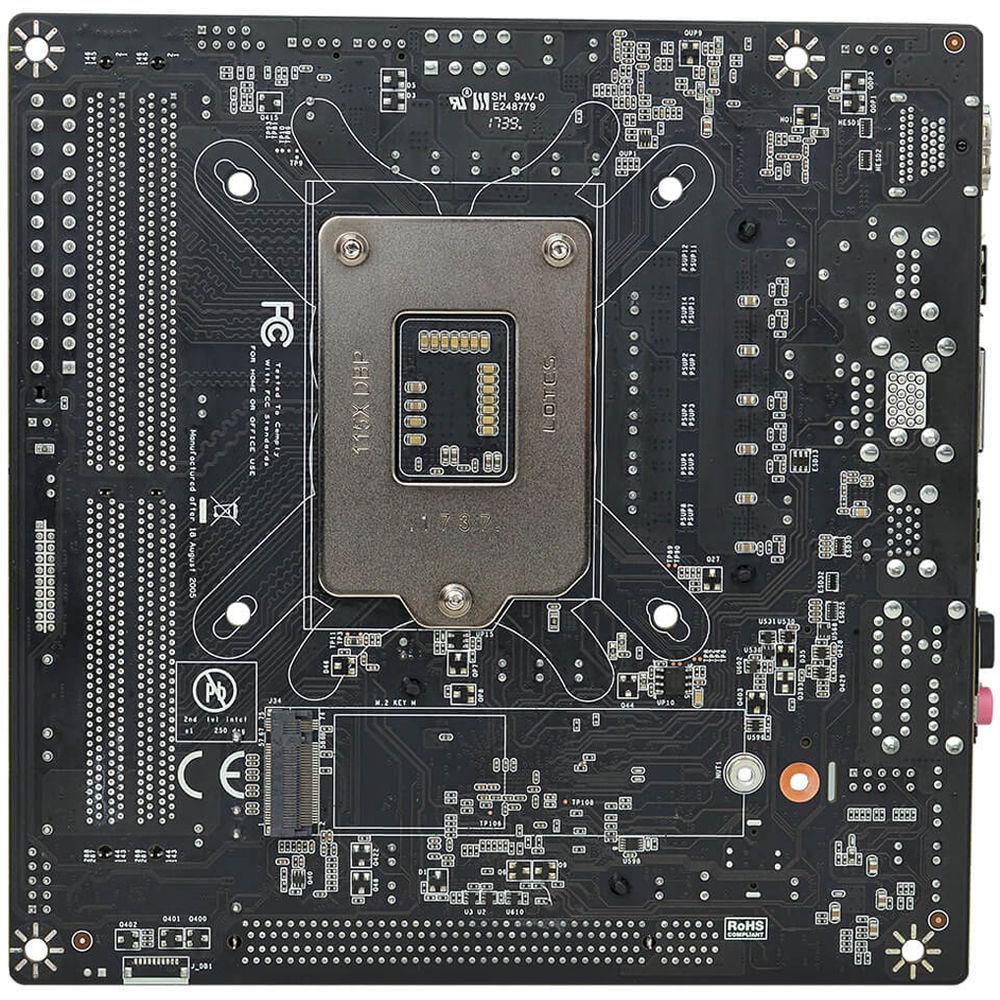

Product description The H370 Stinger LGA 1151 Mini-ITX Motherboard from EVGA is built on the Intel H370 chipset, supporting Core i3, i5, and i7 Coffee-Lake processors with an LGA1151 socket. It has two dual-channel memory slots that support up to 32GB of 2667 MHz DDR4 RAM, and a single PCIe 3.0 x 16 slot designed for a graphics card. If you're planning on using onboard graphics, this motherboard has DisplayPort and HDMI outputs. For storage, the H370 stinger has four SATA III ports as well as two M.2 slots, one of which is to be used with the included Wi-Fi and Bluetooth module. The other M.2 slot supports NVMe drives, allowing for speeds of up to 32 Gb/s, as well as Intel Optane memory for a boost in system performance. - Broad connectivity options including USB 2.0, USB 3.1 Gen 1, and USB 3.0 Gen 2
- Built-in video outputs including DisplayPort and HDMI
- Realtek ALC1220 7.1-channel high-definition audio controller
- Included Intel AC9560 802.1ac Wi-Fi and Bluetooth 5.0 M.2 module
- Intel Optane-ready M.2 slot for increased system responsiveness

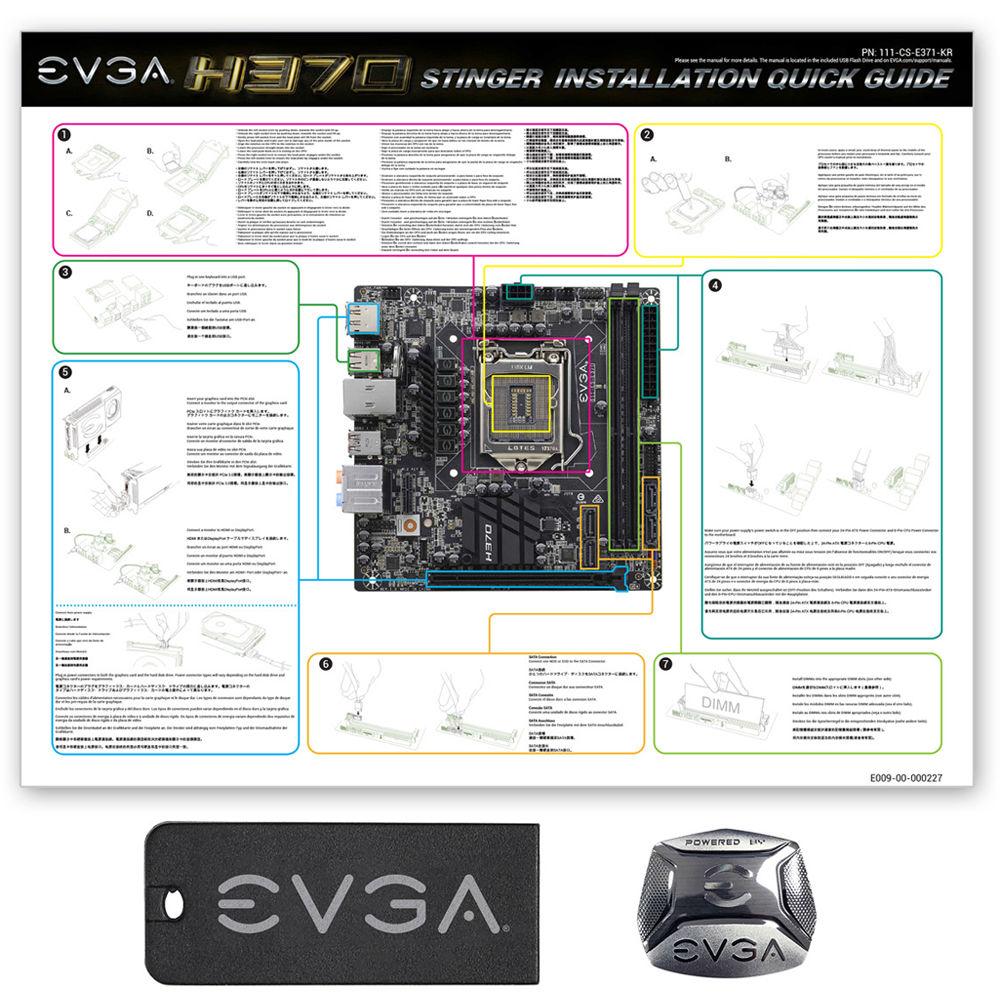

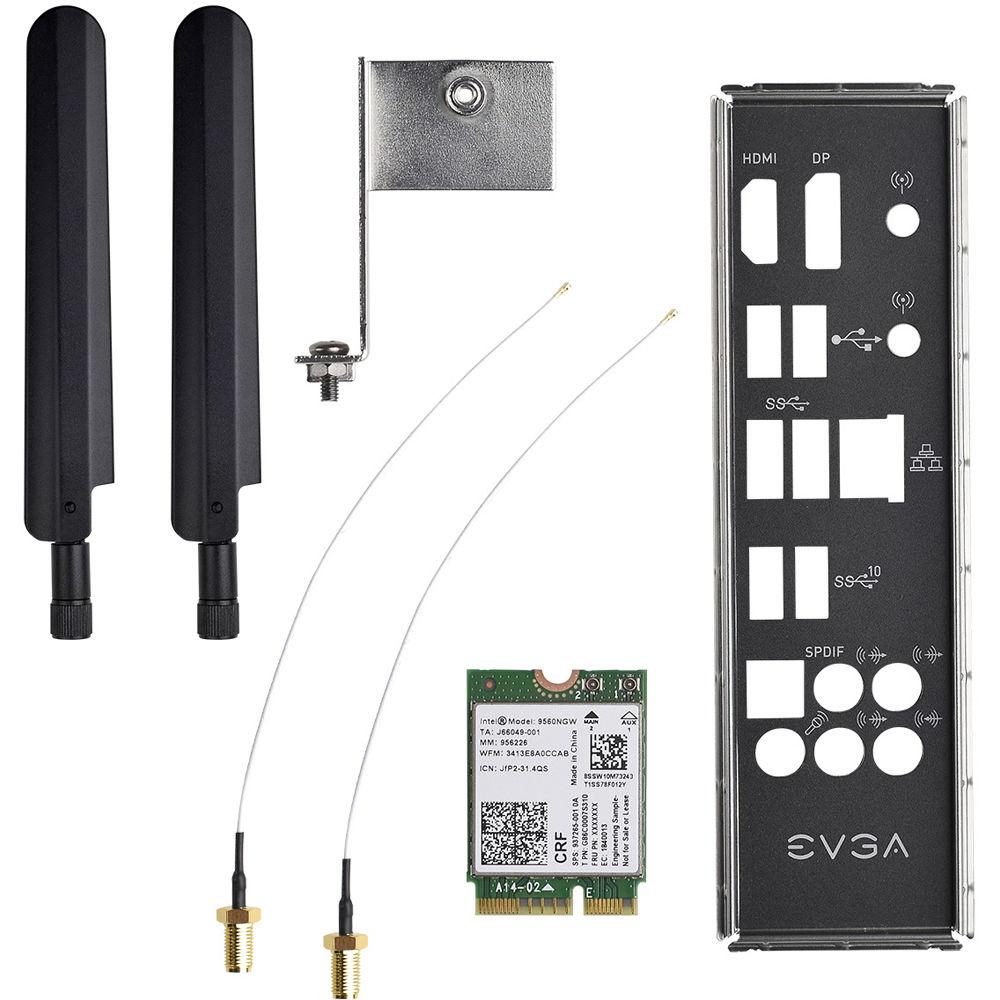

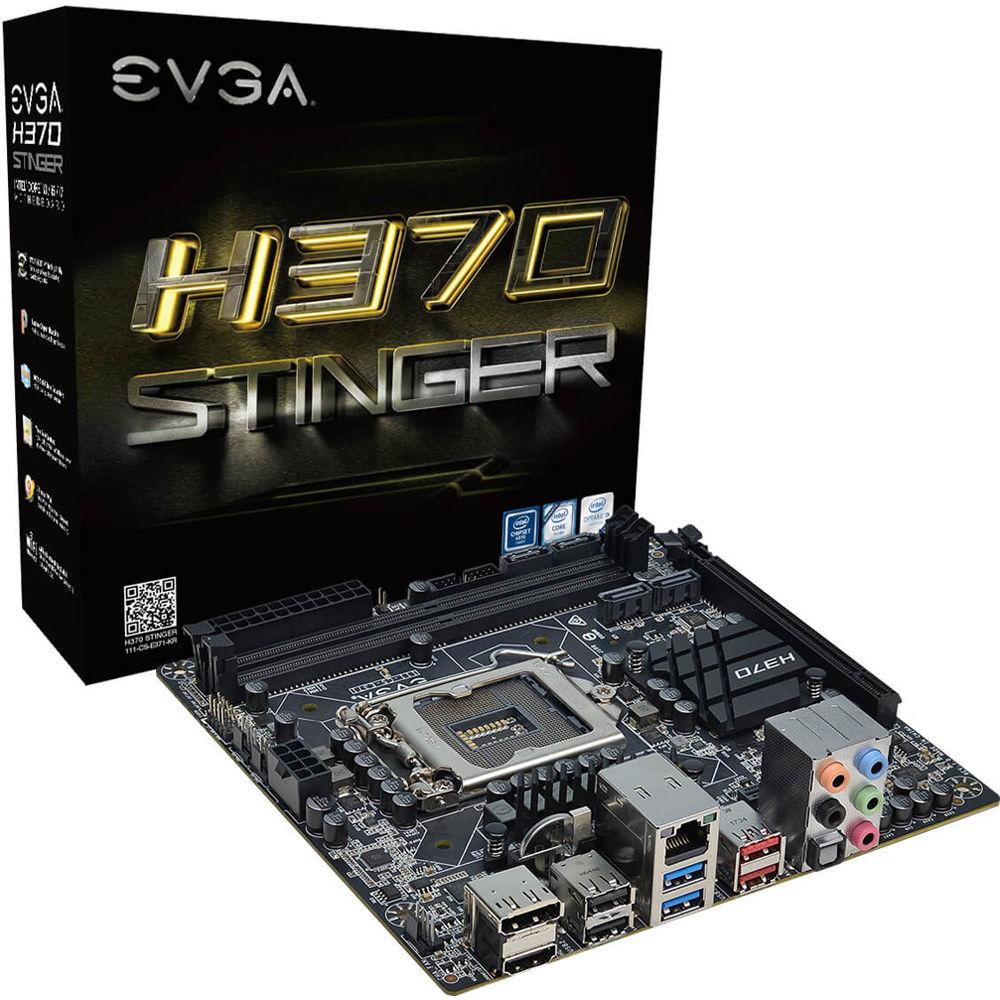

UPC: 843368052096 In the Box EVGA H370 Stinger LGA 1151 Mini-ITX Motherboard 2 x SATA Cable Wi-Fi/Bluetooth Card with Bracket and External Antenna M.2 Thermal Pad Case Badge USB Flash Drive Limited 3-Year Warranty Spec sheet PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA H370 Stinger LGA 1151 Mini-ITX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 111-CS-E371-KR Specs | | | Chipset | Intel H370 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 2.0 Type-A
2 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 2 Type-A | | Display | 1 x HDMI 2.0
1 x DisplayPort 1.2 | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel i219V Gigabit | | Wi-Fi Antenna | 2 x Connector | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2667 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key
1 x E Key | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Audio | None | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC1220 (7.1-Channel) | | | | Bluetooth | 5.0 | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Module Support | 1 E Key M.2 | | | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 170.18 x 170.18 mm | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.1 x 8.3 x 2.7" |
