User Manual for EVGA Hadron Air Mini ITX Chassis Click to enlarge the picture
Contents of the user manual for the EVGA Hadron Air Mini ITX Chassis
- Product category: Desktop Computer Cases EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Desktop Computer Cases
 |
User manual for the EVGA Hadron Air Mini ITX Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

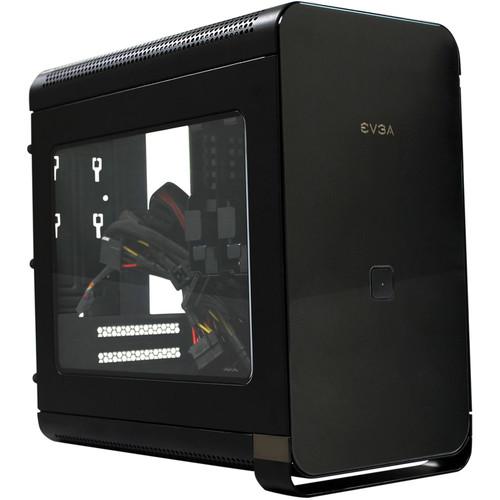

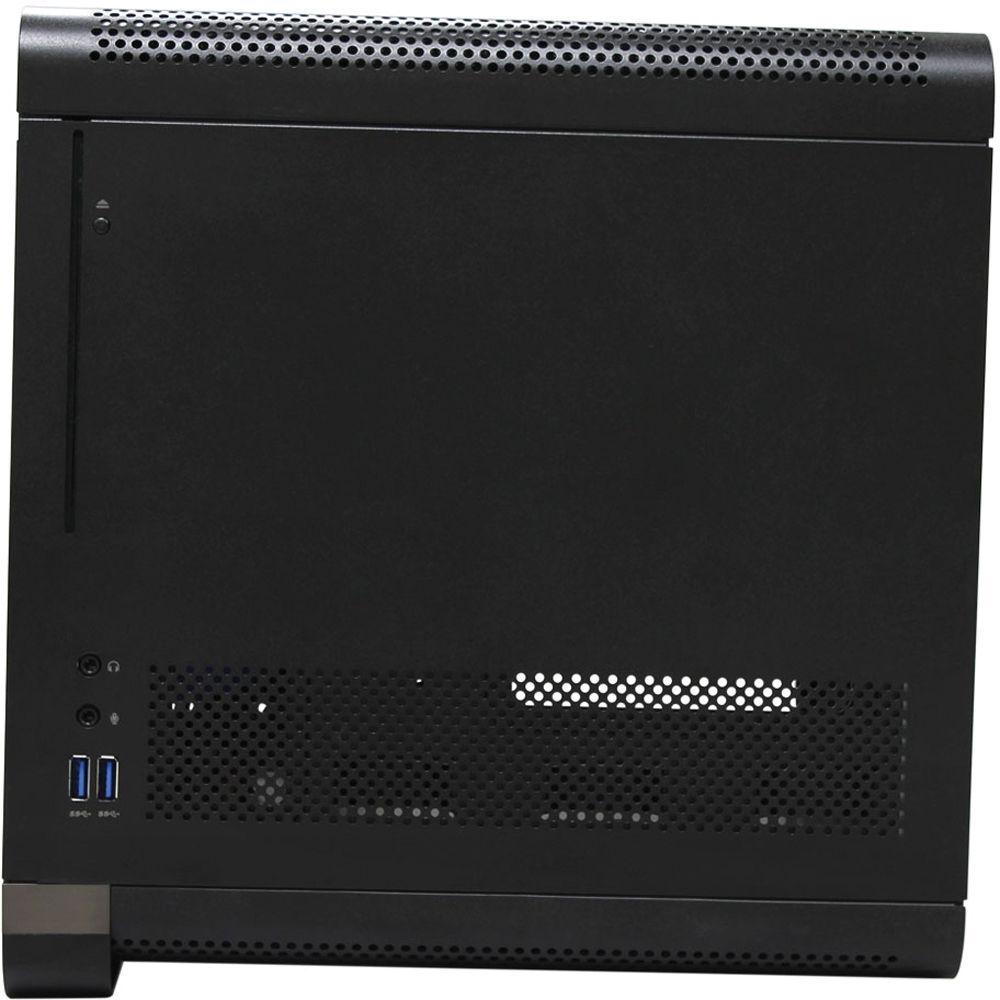

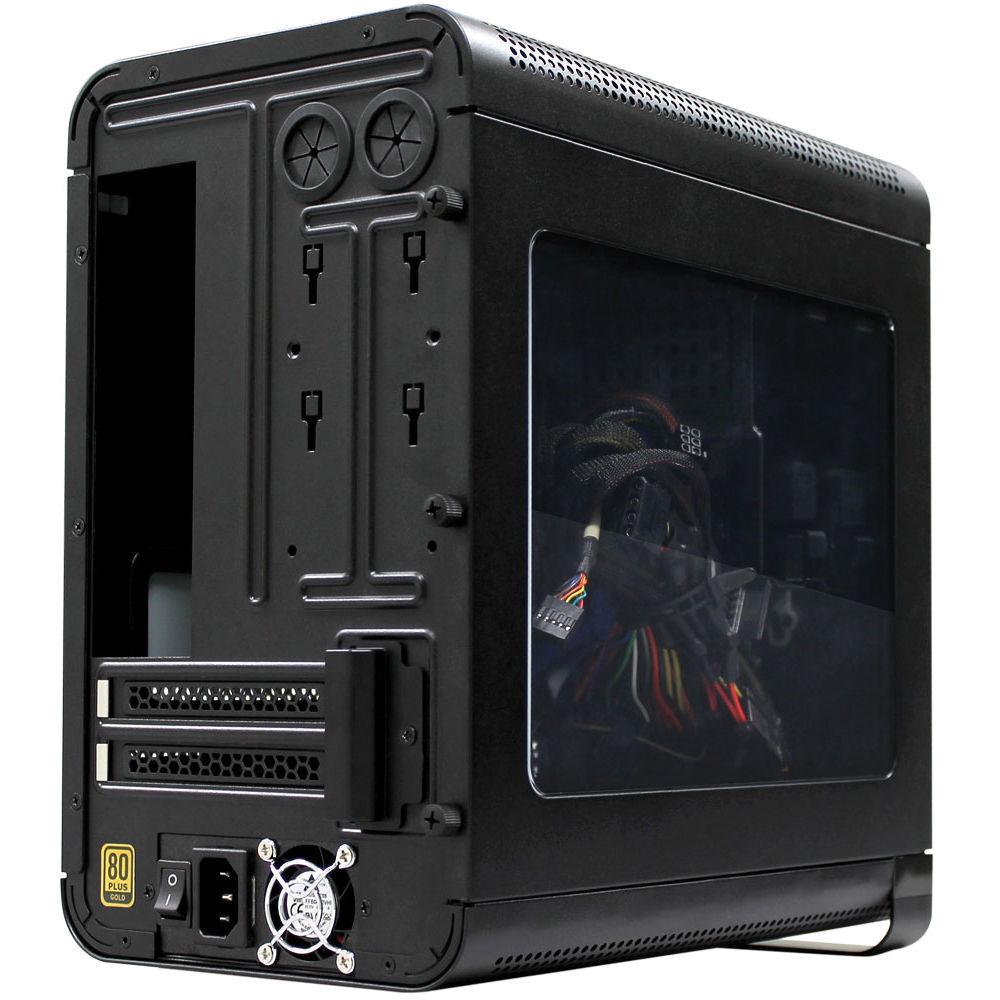

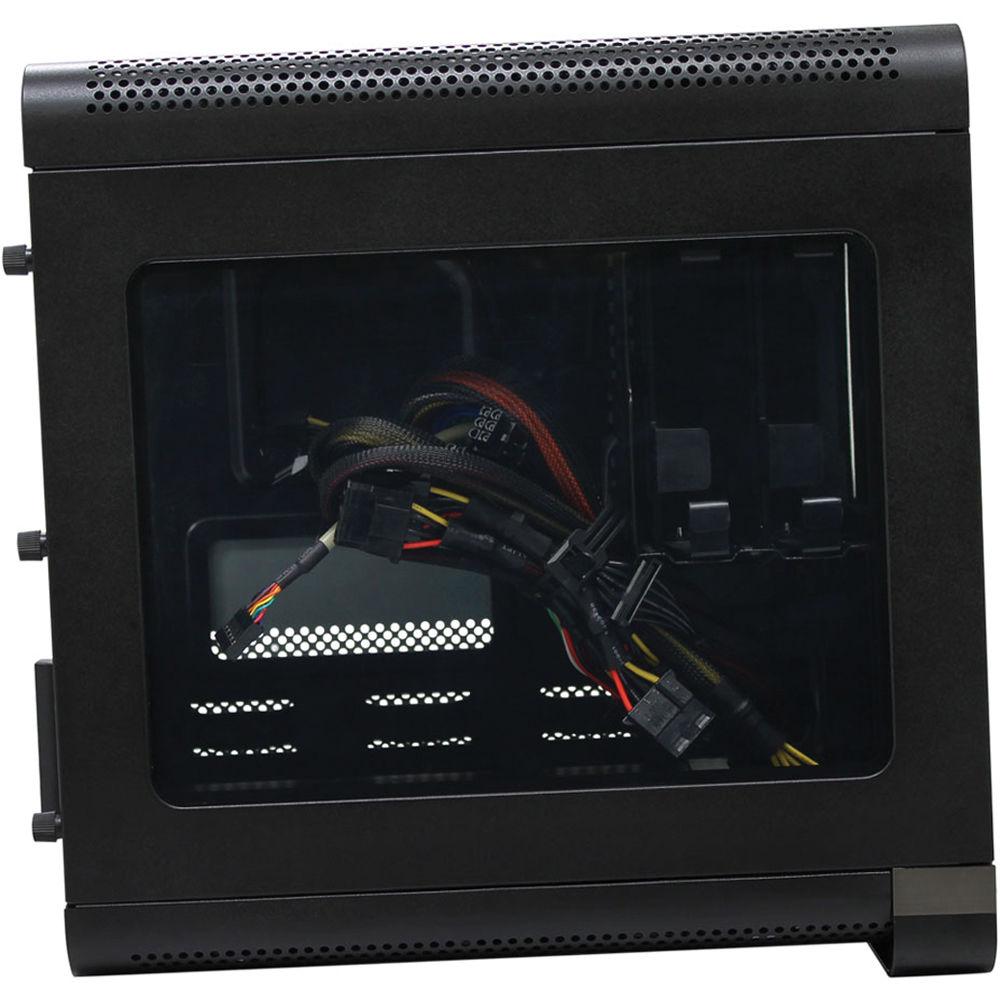

Product description The EVGA Hadron Air Mini ITX Chassis is a compact chassis designed for the enthusiast user. It supports all Mini ITX form factor motherboards and it features a double slot for most full-sized 10.5" graphics cards. It also features two drive bays that support either 3.5" or 2.5" hard drives that you can use for traditional storage or a RAID 0 setup. There's a slim load optical drive slot as well. Plus, two large 4.7" exhaust fans keep operate silently and keep things cool. For connectivity, the chassis is equipped with dual USB 3.0 ports, an HD audio input, and an HD audio output. Other features include a 500W gold rated power supply and durable SECC construction. - At only 12" tall and 6.7" wide, the EVGA Hadron Air is a compact chassis designed for the enthusiast
- Supports all Mini ITX form factor motherboards
- Integrated 500W gold rated power supply with 40A on +12V rail
- Features a double slot that supports most full size enthusiast graphics cards up to 10.5"
- Supports two 3.5" or 2.5" hard drives that you can use for storage or a RAID 0 setup
- Integrated slot built into chassis supports a slim slot load optical drive
- Dual USB 3.0 ports support up to two devices that feature the USB 3.0 SuperSpeed protocol
- Integrated HD audio output / headphone jack and audio input / microphone jack
- Chassis features two large 4.7" exhaust fans that operate silently

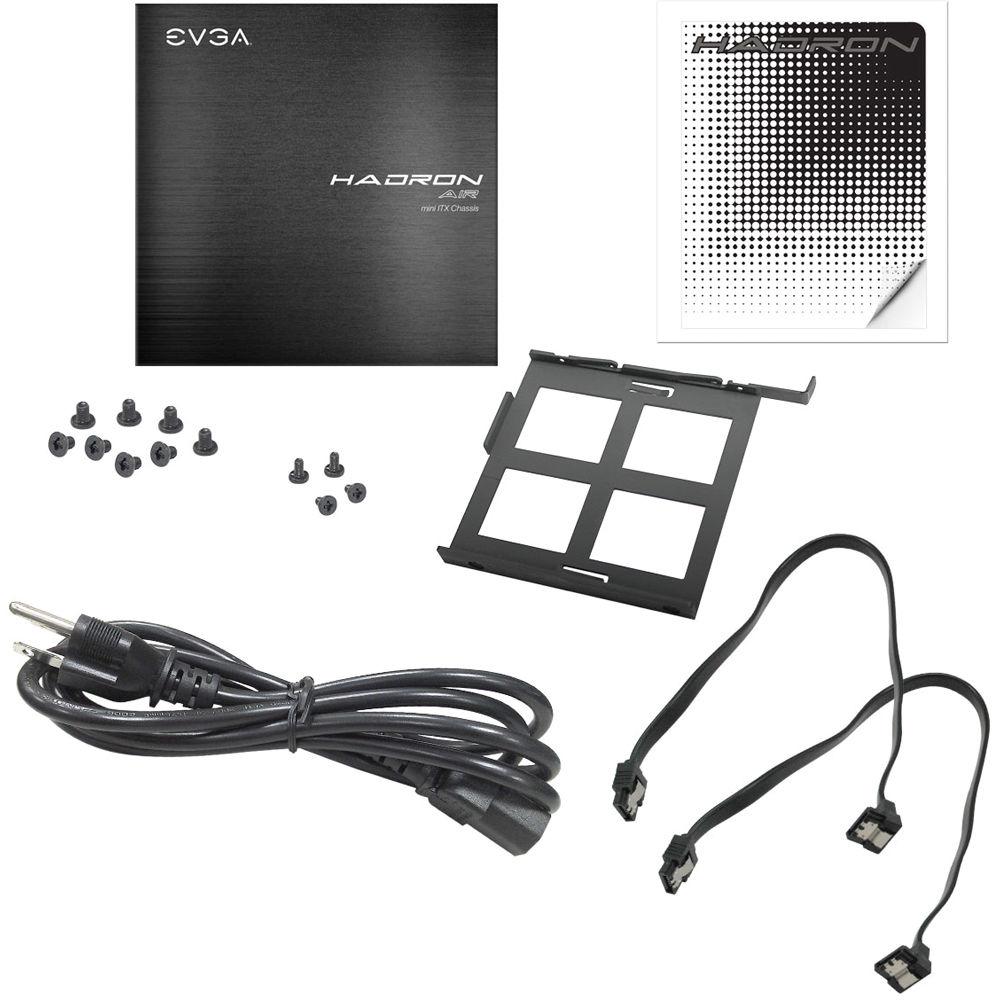

UPC: 843368026110 In the Box EVGA Hadron Air Mini ITX Chassis Power Cable 2 x SATA Cables Optical Disc Drive Tray 4 x Screws (M2 x 2.5mm) 8 x Screws (M3 x 5mm) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA Hadron Air Mini ITX Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 110-MA-1001-K1 Specs | Material | SECC material | | Drive Bays | 2.5" (63.5 mm) / 3.5" (88.9 mm) drive bays x 2 | | Optical Drive Support | Slim slot load optical drive x 1 | | Expansion Slots | 2 | | Fans | 4.7" (120 mm) exhaust fans x 2 | | Form Factor | mITX (supports Mini ITX motherboards) | | Graphics Card Requirements | Double slot for most 10.5" (267 mm) graphics cards | | Connectivity | USB 3.0 ports x 2
HD audio input x 1
HD audio output x 1 | | Power Supply | 500 W gold rated power supply
40 A on +12 V rail | | Dimensions (WxHxD) | 6.7 x 12.0 x 12.1 (169 x 305 x 308 mm) | | Weight | 13.22 lb (6.0 kg) | | | | Package Weight | 15.35 lb | | Box Dimensions (LxWxH) | 16.5 x 15.0 x 10.1" |
