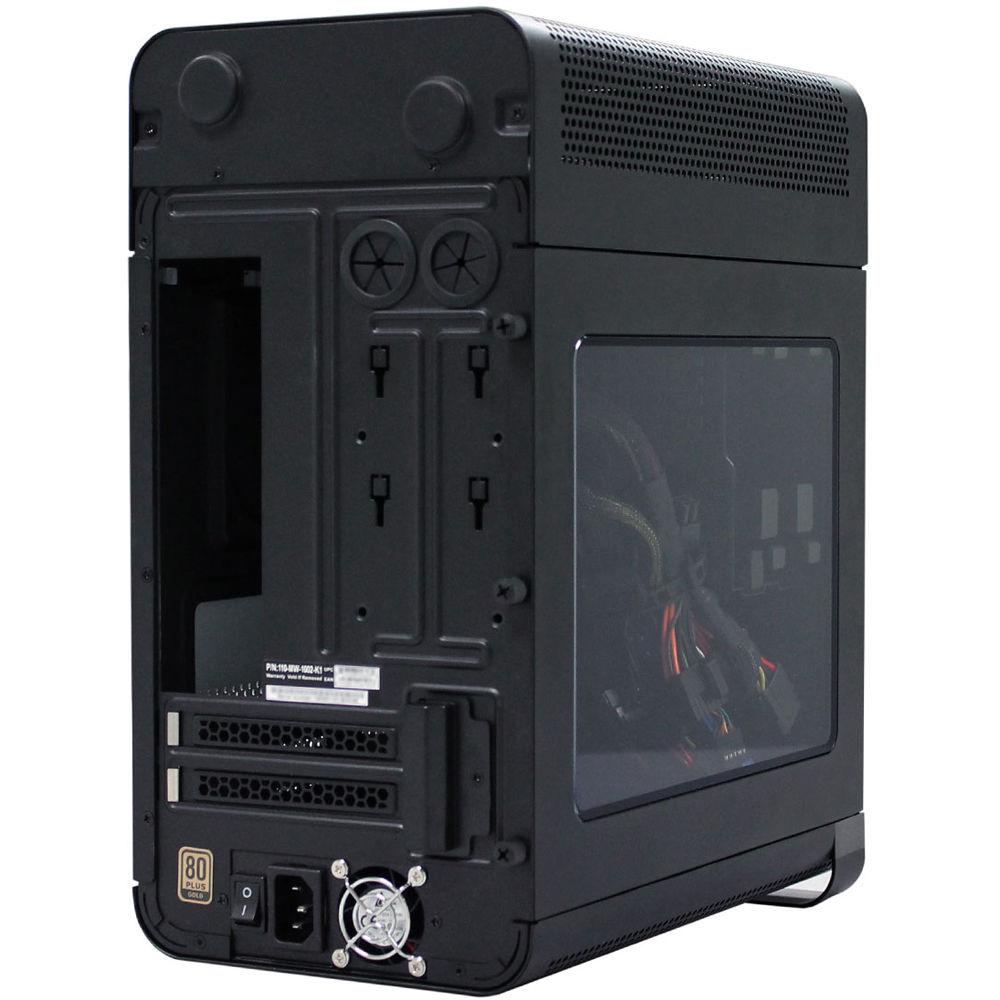

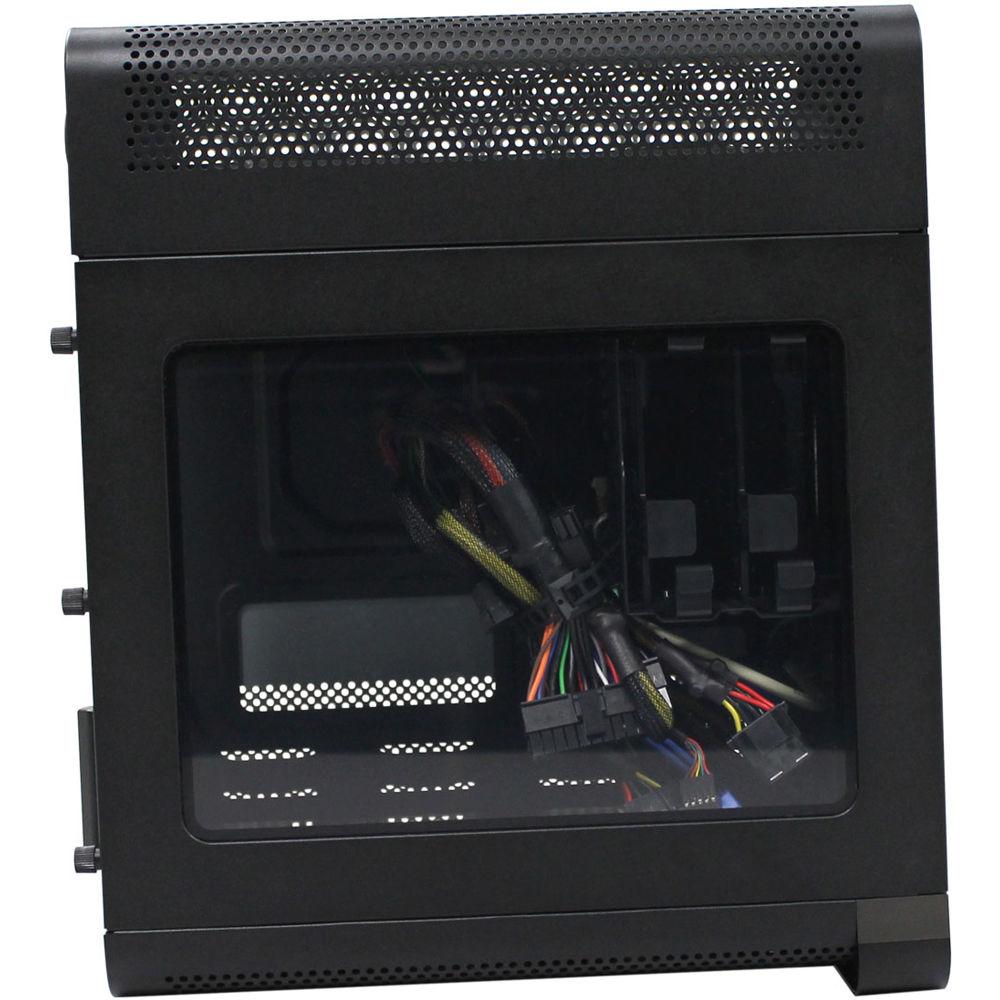

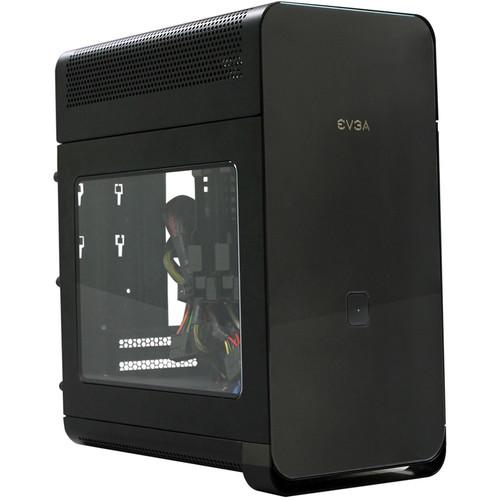

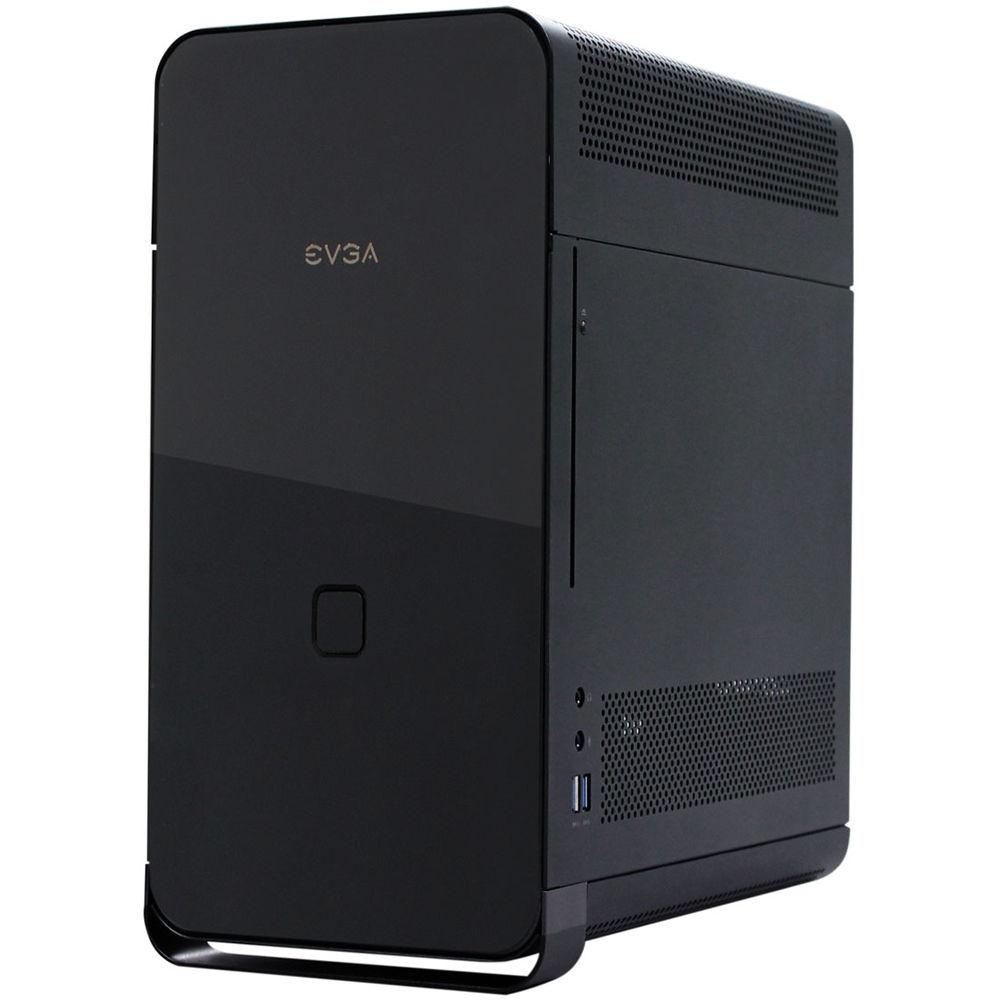

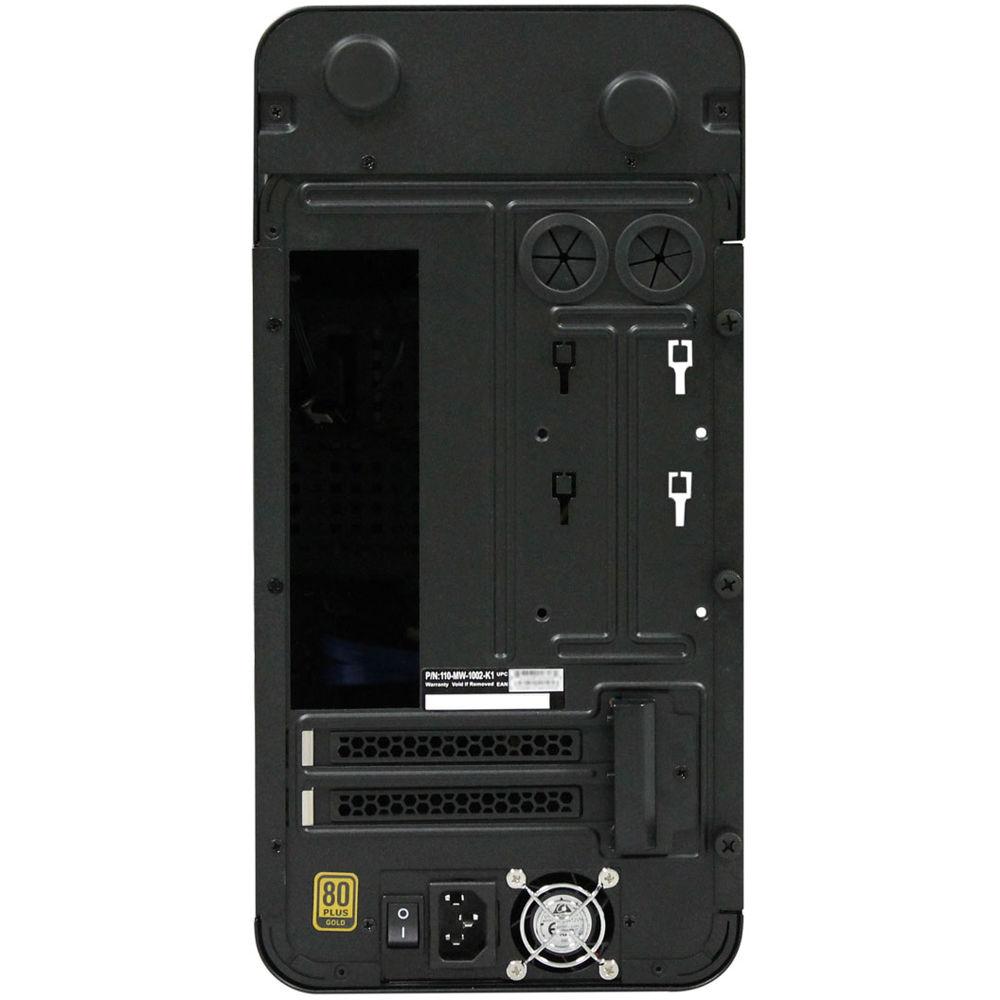

User Manual for EVGA Hadron Hydro Mini-Tower Case with 500W PSU Click to enlarge the picture
Contents of the user manual for the EVGA Hadron Hydro Mini-Tower Case with
- Product category: Desktop Computer Cases EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Desktop Computer Cases
 |
User manual for the EVGA Hadron Hydro Mini-Tower Case with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|
Product description The Hadron Hydro Case from EVGA lets you build a compact gaming system or workstation by featuring a mini-tower design. The Hadron Hydro case is compatible with mini-ITX motherboards and graphics cards up to 10.5". Within the case, you can install one slim optical drive as well as up to two 2.5"/3.5" storage drives. Aside from drive support, there's a pair of 120mm fans mounted on the top of the case to help dissipate the heat, coming from high-performance components.
EVGA has included a 500W power supply that delivers power for all of your internal components, such as storage drives, graphics card, and other gear. The power supply is rated 80-Plus Gold for minimizing wasted energy and sports a single +12V rail, which outputs 40A of current.

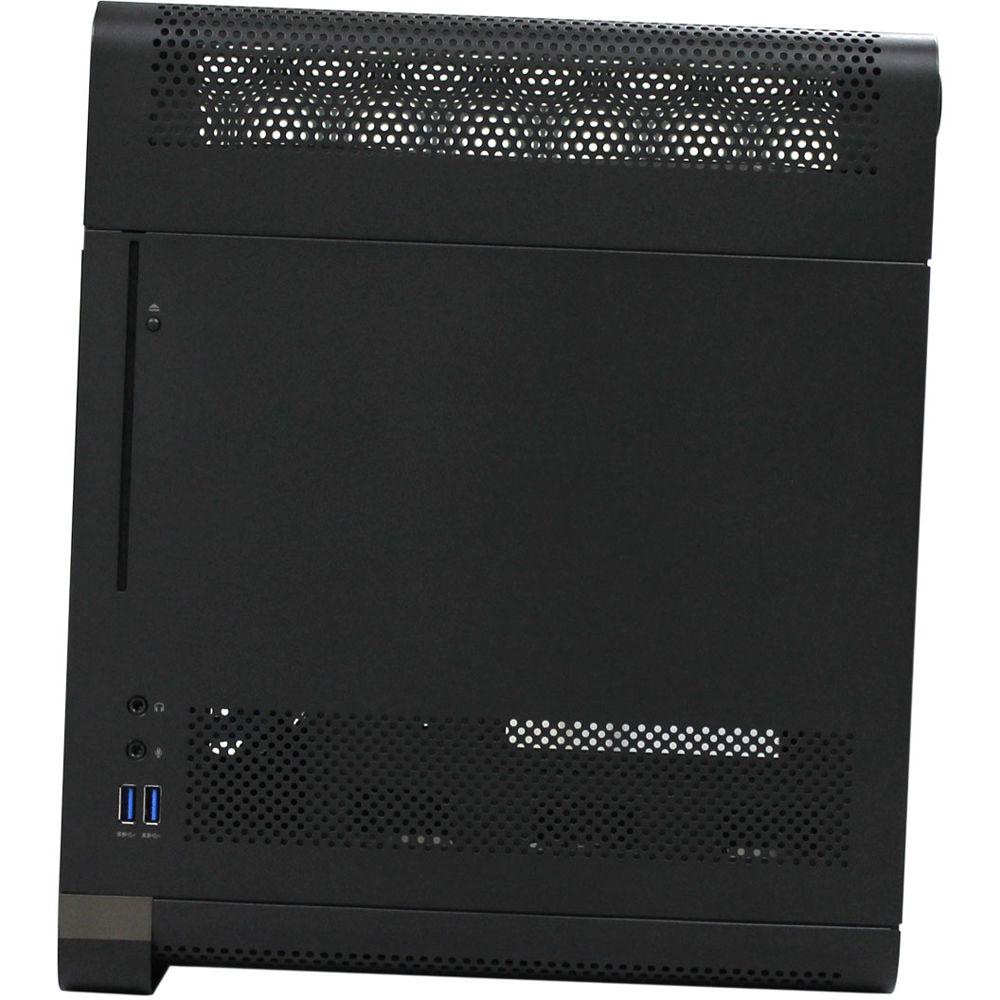

Moving to the exterior of the case, two USB 3.0 ports and two audio jacks are on board. Moreover, it provides two expansion slots for expanding the system's connections or accommodating double-width graphics cards. - Compact design for small computer builds
- 500W 80-Plus Gold rated power supply with single +12V rail outputting 40A
- Supports up to two 2.5"/3.5" storage drives
- Two built-in USB 3.0 ports transfer data at rates of up to 5 Gb/s

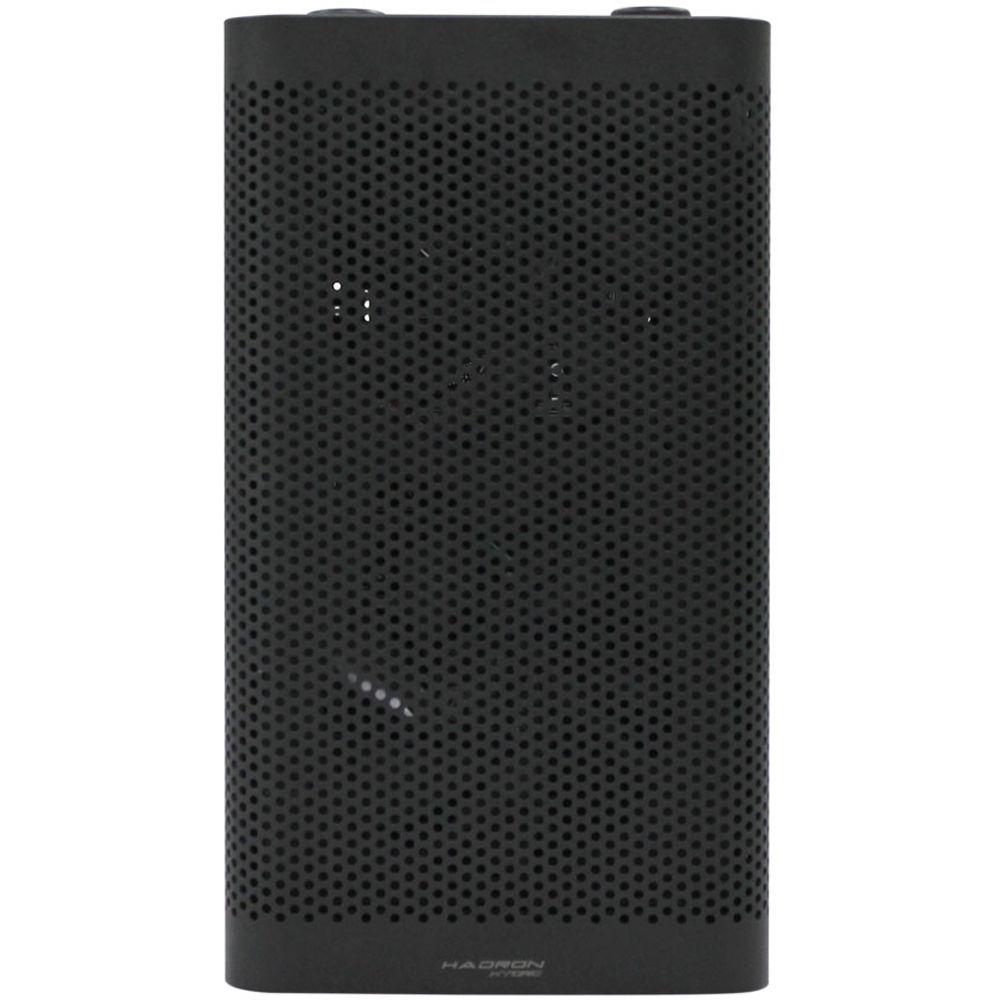

- Two 120mm fans exhaust hot air from within the chassis
- Supports mini-ITX motherboards
- Compatible with graphics cards up to 10.5" long
- Slim slot-loading optical drive bay
- Headphone and microphone jacks

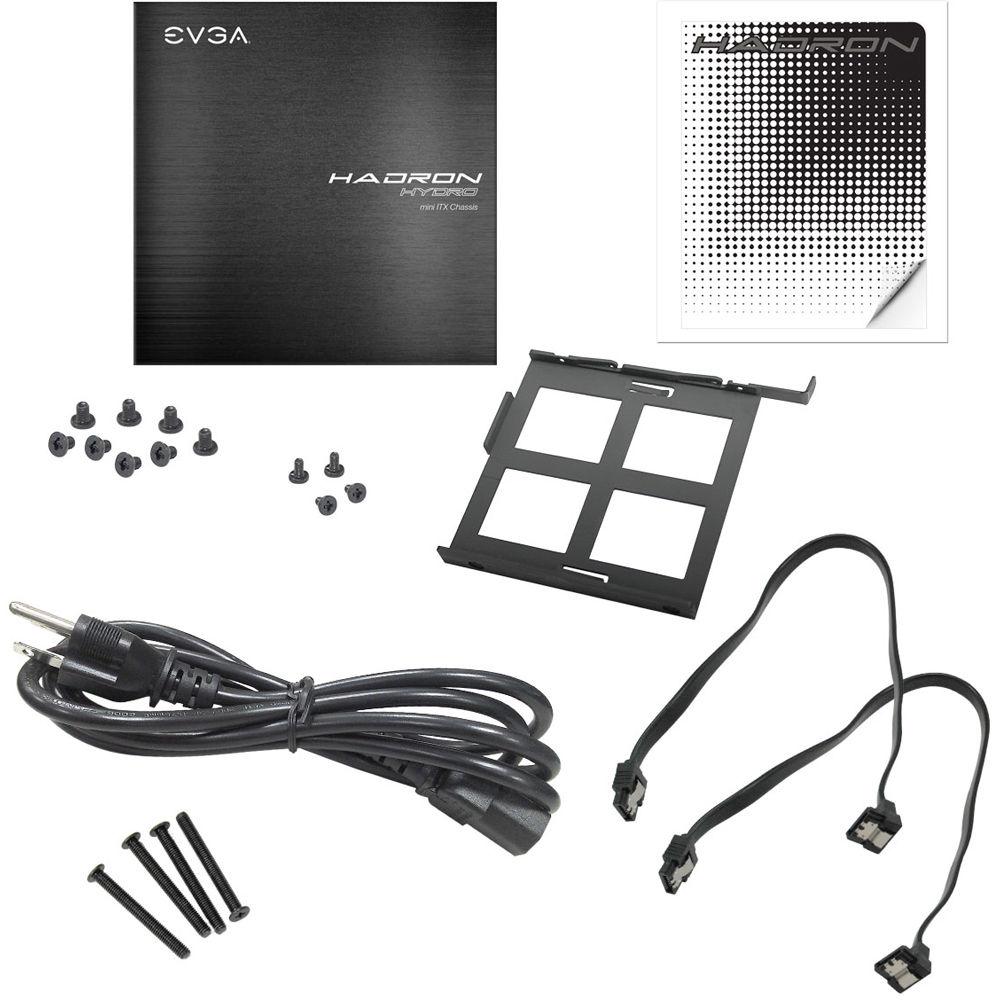

UPC: 843368026264 In the Box EVGA Hadron Hydro Mini-Tower Case with 500W PSU Package of Screws 2 x SATA Cables Power Cable Limited 1-Year Warranty Brochure PDF 676.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA Hadron Hydro Mini-Tower Case with 500W PSU in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 110-MW-1002-K1 Specs | | | Motherboard Support | Mini-ITX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 2 x 2.5/3.5" | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 10.5" / 26.67 cm | | | | Fan Mounting (Front) | None | | Fan Mounting (Rear) | None | | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Top) | 2 x 120 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | Filter Locations | None | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel | | Built-In Lighting | No | | Security | None | | Dimensions (W x H x D) | 6.6 x 13.8 x 12.1" / 167.6 x 350.5 x 307.3 mm | | | | Package Weight | 16.85 lb | | Box Dimensions (LxWxH) | 18.3 x 15.1 x 10.1" |
