User Manual for EVGA SuperNOVA 1000 P2 1000W Power Supply

Click to enlarge the picture
EVGA SuperNOVA 1000 P2 1000W Power Supply Contents of the user manual for the EVGA SuperNOVA 1000 P2 1000W Power
  • Product category: Power Supplies EVGA
  • Brand: EVGA
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for EVGA Power Supplies

EVGA SuperNOVA 1000 P2 1000W Power Supply EVGA SuperNOVA 1000 P2 1000W Power Supply EVGA SuperNOVA 1000 P2 1000W Power Supply EVGA SuperNOVA 1000 P2 1000W Power Supply
User manual for the EVGA SuperNOVA 1000 P2 1000W Power contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any EVGA product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!



Product description

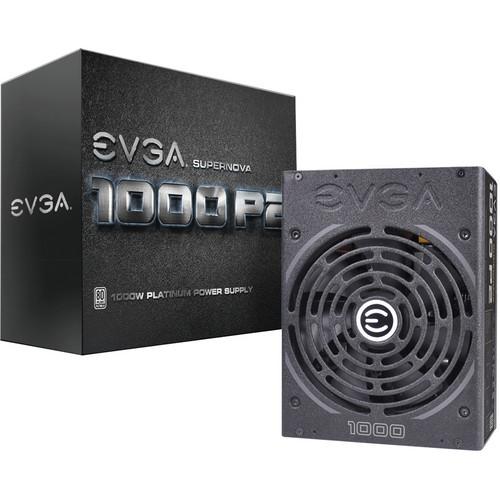

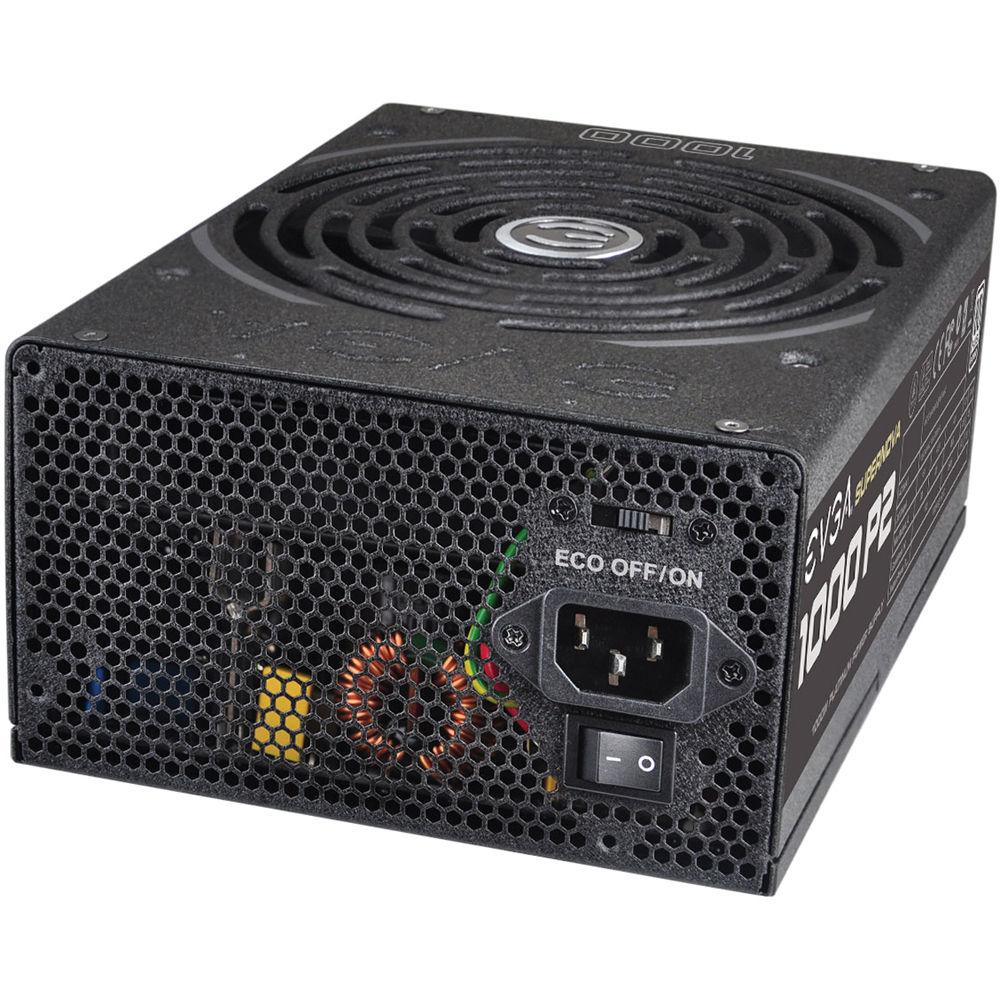

The SuperNOVA 1000 P2 1000W Power Supply from EVGA is a platinum series power supply intended to meet the needs of the most demanding PC enthusiast systems. The power supply is 80 PLUS Platinum rated with an efficiency of 92% under typical loads. The ECO Thermal Control Fan System offers fan rpm modes and is capable of providing zero fan noise during low load operations. The power supply provides improved efficiency for longer operation, less power consumption, reduced energy costs, and minimal heat dissipation.
    Continuous Power Supply
  • The SuperNOVA Power Supply provides continuous and steady power rather than short-lived peak power.
    Fully Modular Design
  • It features high-quality sleeved cables and a fully modular design for optimal cable management. The fully modular design also reduces case clutter and maximizes chassis airflow.
    Single +12V Rail
  • A Single +12V rail offers superior power output, rail stability, and compatibility with the hardware. The power supply provides up to 83.3A on a single rail for maximum power and efficiency.
    ECO Thermal Control Fan System
  • The ECO Thermal Control Fan System provides silent operation at low loads, improved efficiency, and longer life span of the fan. It features rpm modes to provide zero fan noise during low load operations. The quiet 2-ball-bearing fan offers near-silent operation.
    Energy Efficient
  • The power supply is 80 PLUS certified, making it very power efficient.
    Additional Features
  • nVIDIA SLI Certified
    AMD Crossfire Technology
    Japanese Nippon Chemi-Con solid state capacitors
    Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) and OTP (Over Temperature Protection) ensure your system is always intact

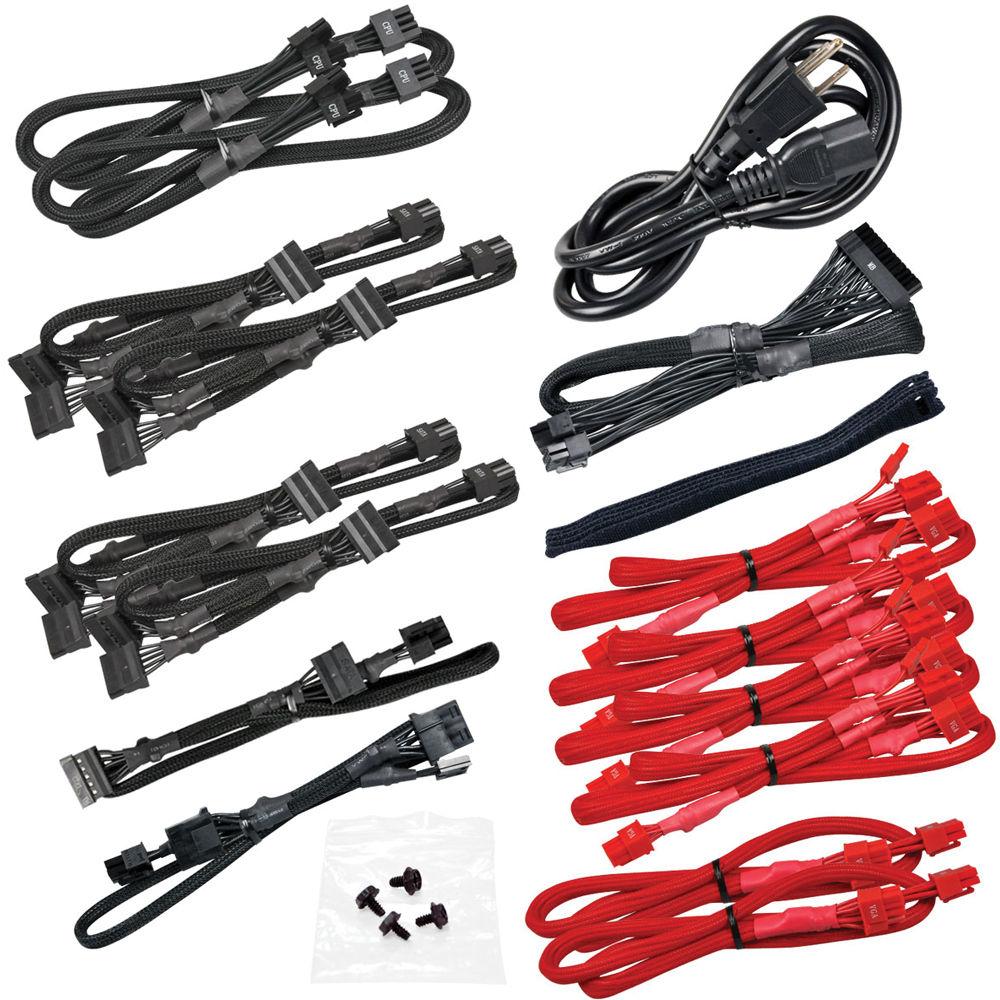

UPC: 843368023881 In the Box EVGA SuperNOVA 1000 P2 1000W Power Supply
  • 1 x 24-Pin ATX Cable
  • 2 x 4+4-Pin EPS Cables
  • 6 x 6+2-Pin PCIe Cables
  • 2 x 6-Pin PCIe Cables
  • 10 x SATA Cables
  • 5 x Molex
  • 1 x Floppy Cable
  • 10-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the EVGA SuperNOVA 1000 P2 1000W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for EVGA SuperNOVA 1000 P2 1000W Power Supply can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for EVGA SuperNOVA 1000 P2 1000W Power Supply can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the EVGA SuperNOVA 1000 P2 1000W Power Supply can be downloaded in PDF format at the link stated below.
    Download PDF user manual - EVGA SuperNOVA 1000 P2 1000W Power SupplyDownload PDF User Manual - https://www.search-manual.com/ upload/ evga-supernova-1000-p2-1000w-power-supply-145437-user-manual.pdf
    (PDF file, 6.2 MB)


    Technical parameters

    EVGA 220-P2-1000-XR Specs

    Max Load for +12 V 83.3 A
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 15 A
    Efficiency Rating None
    Efficiency 92%
    Fan Size 140 mm
    Operating Temperature 32 to 122°F / 0 to 50°C
    Operating Humidity 10 to 90%
    Certifications RoHS, as per Manufacturer
    Mean Time Between Failures (MTBF) 100,000 Hours
    Dimensions 7.9 x 5.9 x 3.4" / 200.6 x 149.8 x 86.3 mm
    Weight 5.3 lb / 2.4 kg
    Package Weight 10.1 lb
    Box Dimensions (LxWxH) 12.9 x 10.5 x 4.8"
