Product description

The SuperNOVA 1600 G2 1600W 80 Plus Gold Modular Power Supply from EVGA is a powerful and efficient modular ATX power supply designed with a single +12 V rail for stability and compatibility among current generation hardware. It's built with multiple heavy-duty protection features and the modular design allows you to connect only the cables you need. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 140mm fan operates silently and provides additional heat dissipation. The SuperNOVA G2 comes with enough cables for multi-GPU setups and plenty of peripherals.
  • 80 Plus Gold certified, with 90% (115 VAC) / 92% (220 - 240 VAC) efficiency or higher under typical loads
  • Japanese brand capacitors for long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Double Ball Bearing fan is reliable and operates quietly
  • NVIDIA SLI & AMD Crossfire Ready
    Heavy Duty Protection
  • OVP (Over Voltage Protection)
    UVP (Under Voltage Protection)
    OCP (Over Current Protection)
    OPP (Over Power Protection)
    SCP (Short Circuit Protection)
UPC: 843368030414 In the Box EVGA SuperNOVA 1600 G2 1600W 80 Plus Gold Modular Power Supply

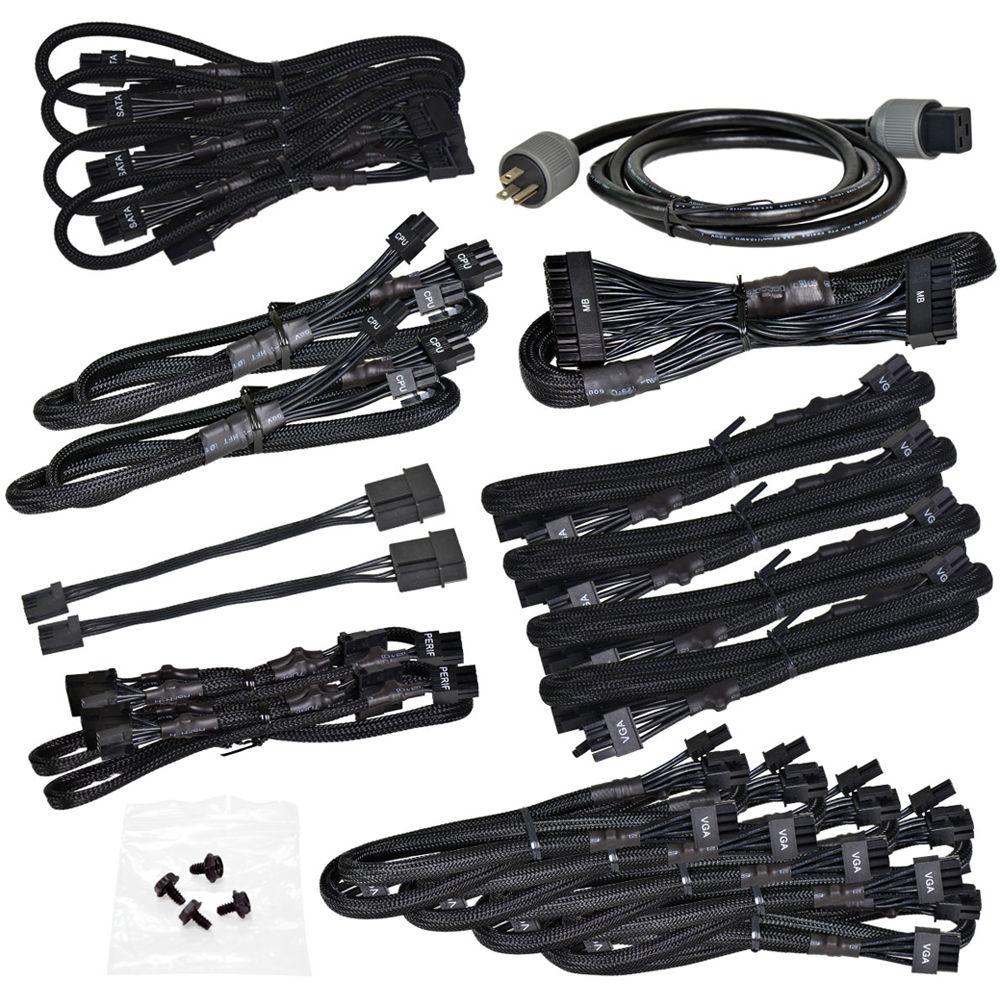

  • 24-Pin ATX Cable
  • 2 x EPS (CPU) 8-Pin (4+4) Cable
  • 9 x PCIe 8-Pin (6+2) Cable
  • 5 x PCIe 6-Pin Cable
  • 16 x SATA Cable
  • 6 x 4-Pin Peripheral Cable
  • 2 x Floppy Cable
  • Power Cable
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the EVGA SuperNOVA 1600 G2 1600W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    EVGA SuperNOVA 1600 G2 Specs

    Total Connectors 1 x 24-Pin Motherboard
    2 x 4+4-Pin EPS
    9 x 6+2-Pin PCIe
    5 x 6-Pin PCIe
    14 x 15-Pin SATA
    5 x 4-Pin Peripheral / Molex
    2 x 4-Pin Floppy
    Cable Design Modular
    PCIe Connector Distances 29.5" / 750 mm
    35.4" / 900 mm
    SATA Connector Distances 21.7" / 550 mm
    25.6" / 650 mm
    27.6" / 700 mm
    29.5" / 750 mm
    33.5" / 850 mm
    39.4" / 1000 mm
    Peripheral Connector Distances 21.7" / 550 mm
    25.6" / 650 mm
    29.5" / 750 mm
    Floppy Connector Distances 3.9" / 100 mm (Adapter)
    ATX Connector Distance 23.6" / 600 mm
    EPS Connector Distances 29.5" / 750 mm
    Total Wattage 1600 W
    Number of +12 V Rails 1
    Combined Power for +12 V 1599.6 W
    Max Load for +12 V 133.3 A
    Combined Power for +3.3/+5 V 120 W
    Max Load for +3.3 V 24 A
    Max Load for +5 V 24 A
    Max Power for +5 Vsb 15 W
    Max Load for +5 Vsb 3 A
    Max Power for -12 V 6 W
    Max Load for -12 V 0.5 A
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 10 to 17 A
    Efficiency Rating 80 PLUS Gold
    Efficiency 90%
    Fan Size 140 mm
    Bearing Type Ball
    Operating Temperature 32 to 122°F / 0 to 50°C
    Form Factor ATX
    Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
    Certifications BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer
    Mean Time Between Failures (MTBF) 100,000 Hours
    Power Cable Length 5.9' / 1.8 m
    Dimensions 3.4 x 5.9 x 8.7" / 85.0 x 150.0 x 220.0 mm
    Weight 12 lb / 5.4 kg
    Package Weight 13.45 lb
    Box Dimensions (LxWxH) 11.4 x 10.5 x 7.1"
