User Manual for EVGA SuperNOVA 1600 T2 1600W 80 Plus Titanium Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA SuperNOVA 1600 T2 1600W 80
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA SuperNOVA 1600 T2 1600W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

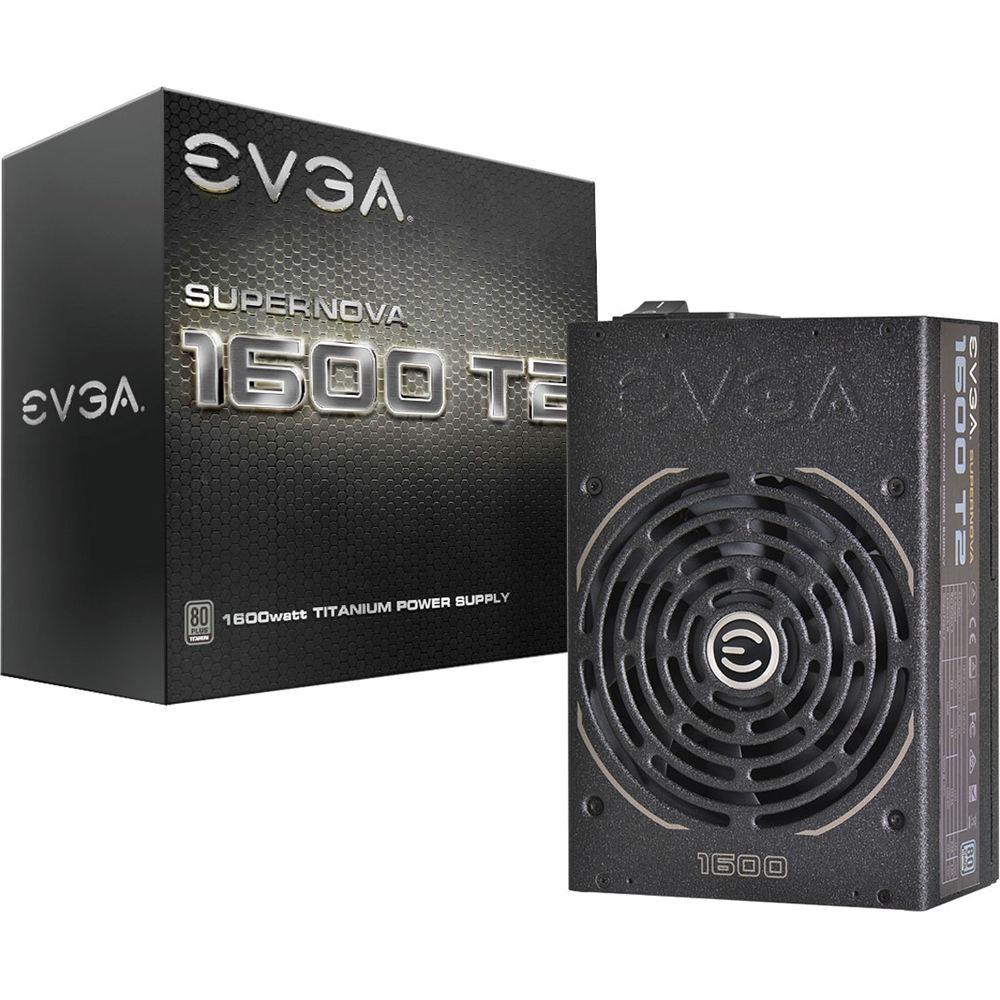

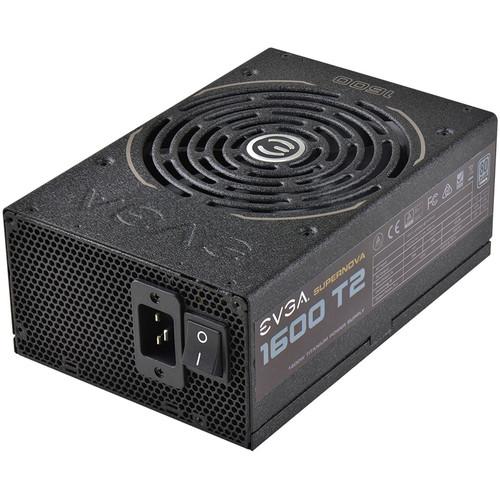

Product description The SuperNOVA 1600 T2 1600W 80 Plus Titanium Modular Power Supply from EVGA is built for performance, durability, and efficiency. Its fully modular design lets you connect the cables you need and store the rest. With less cables, there will be less clutter resulting in improved airflow and lower temperatures. The SuperNOVA T2 is built with a single +12 V rail, Japanese grade capacitors, and a quiet 140 mm fan that delivers efficient cooling at low noise levels. It comes with a full set of cables, enough for even a multi-GPU setup, and features heavy-duty protection to protect your system from damage. - 80 Plus Titanum certified, with 94% (115 VAC) / 96% (220 - 240 VAC) efficiency or higher under typical loads

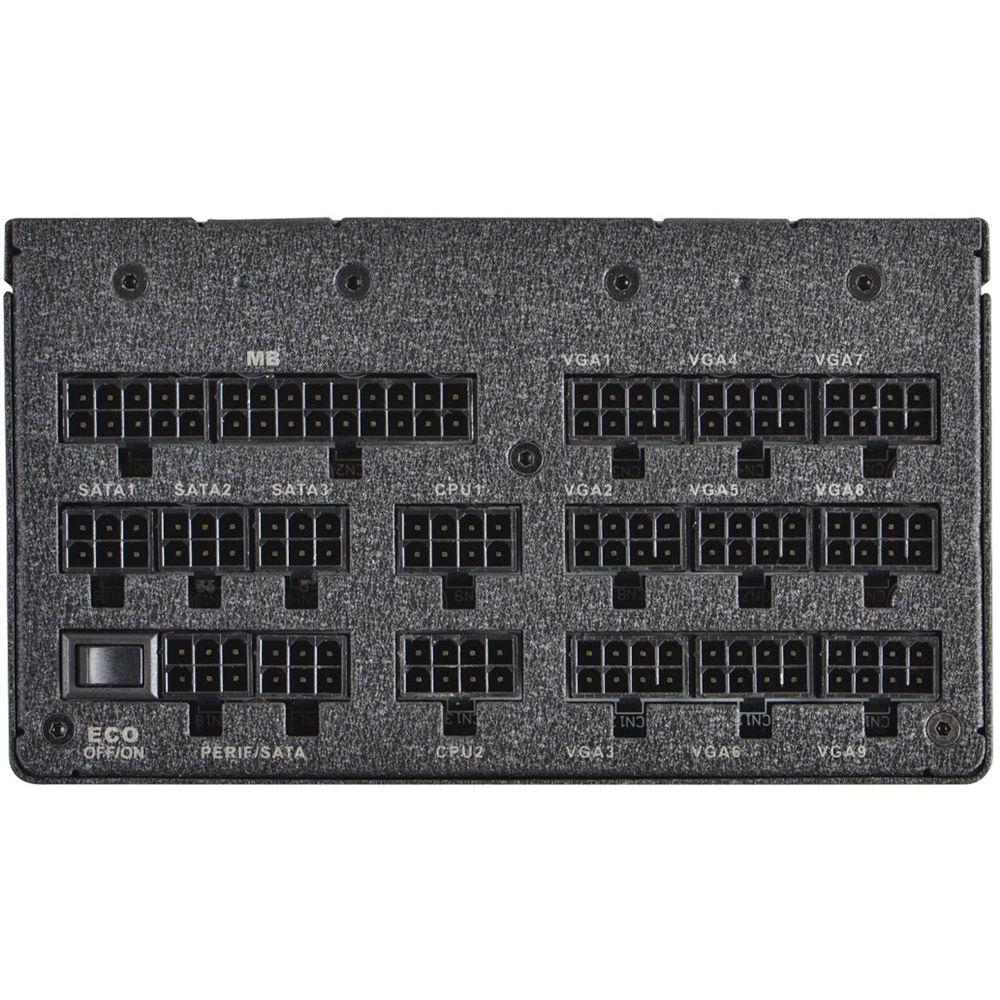

- Fully modular design lets you install the cables you need and store the others, eliminating cable clutter and improving air flow
- Japanese brand capacitors that ensure long-term reliability
- NVIDIA SLI & AMD Crossfire ready
- ECO switch prevents the fan from spinning until necessary for silent operation during low to medium loads.
- Heavy-duty protection including:
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)

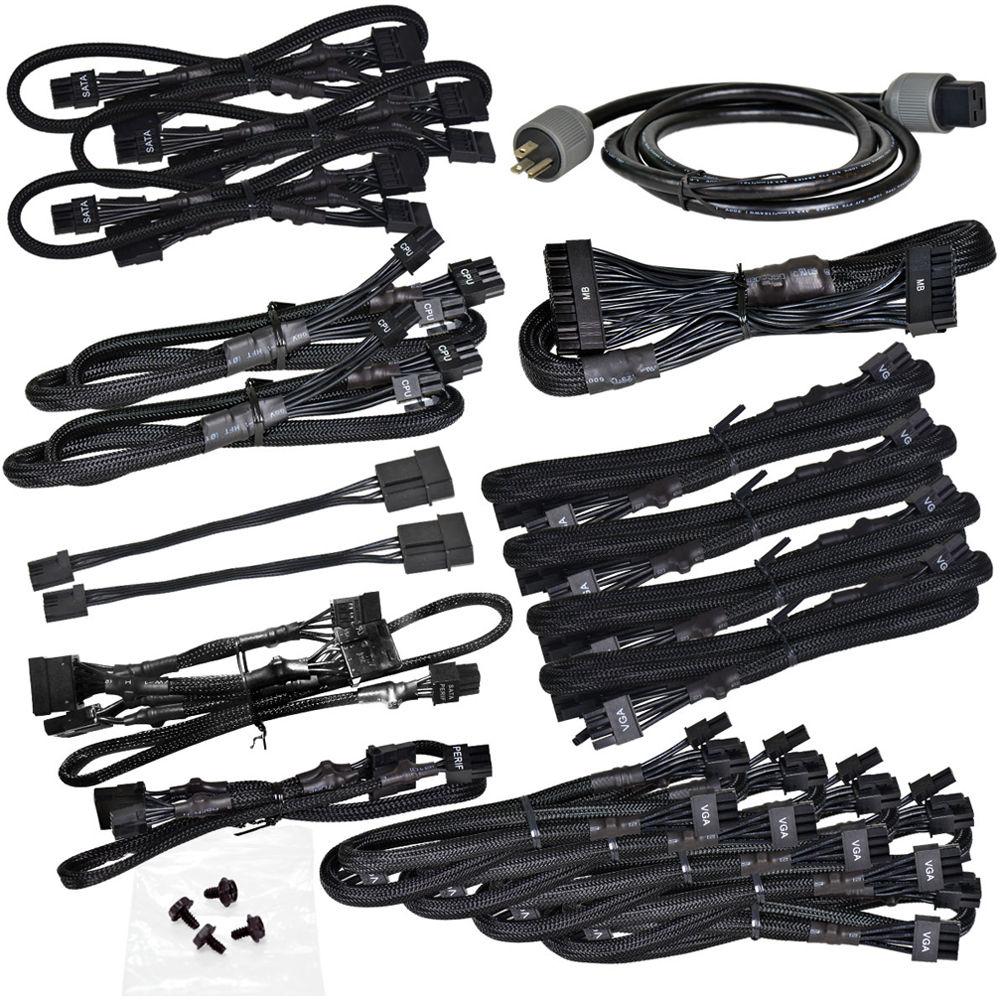

OTP (Over Temperature Protection) UPC: 843368032722 In the Box EVGA SuperNOVA 1600 T2 1600W 80 Plus Titanium Modular Power Supply 24-Pin ATX Cable 2 x EPI (CPU) 8-Pin (4+4) Cables 9 x PCIe 8-Pin (6+2) Cables 5 x PCIe 6-Pin Cables 16 x SATA Cables 6 x 4-Pin Peripheral Cables 2 x Floppy Cables Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 1600 T2 1600W 80 Plus Titanium Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 220-T2-1600-X1 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
2 x 4+4-Pin EPS
14 x 6+2-Pin PCIe
12 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
2 x 4-Pin Floppy | | PCIe Connector Distances | 29.5" / 750 mm
35.4" / 900 mm | | SATA Connector Distances | 21.7" / 550 mm
25.6" / 650 mm
29.5" / 750 mm
31.5" / 800 mm | | Peripheral Connector Distances | 21.7" / 550 mm
25.6" / 650 mm

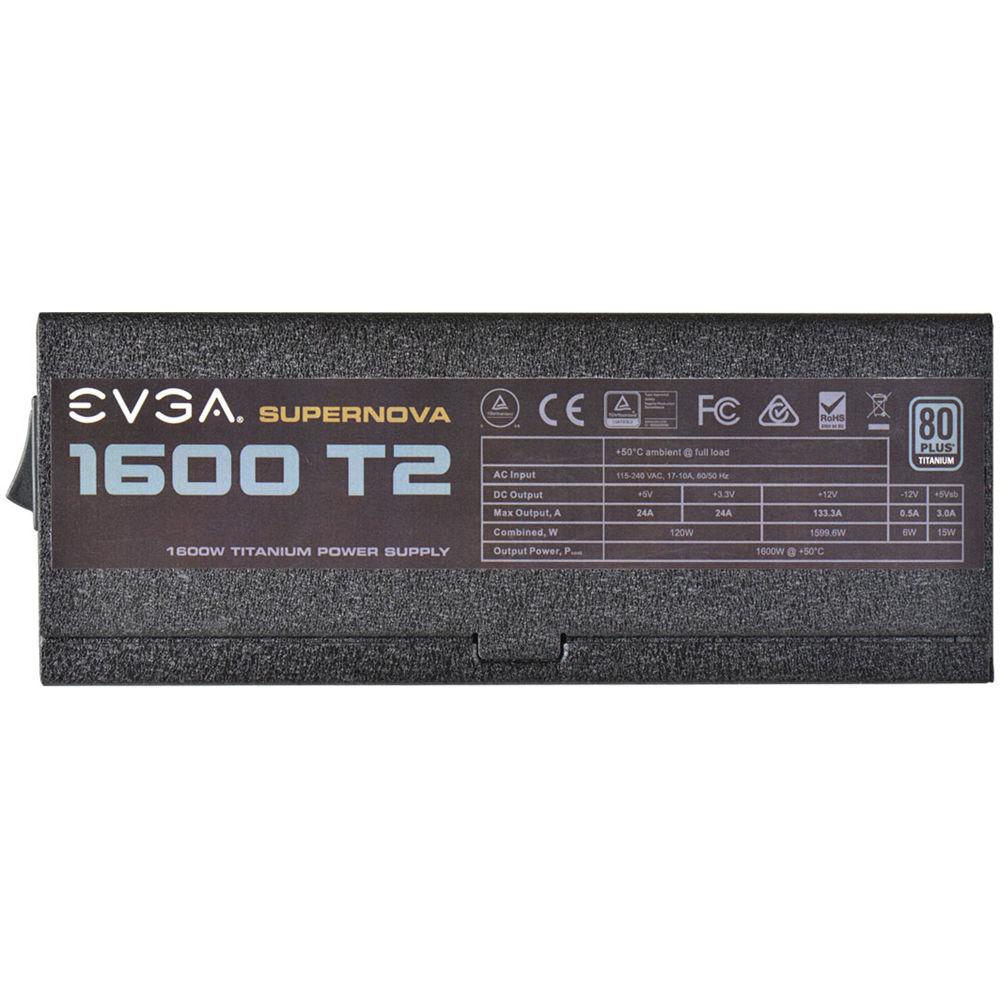

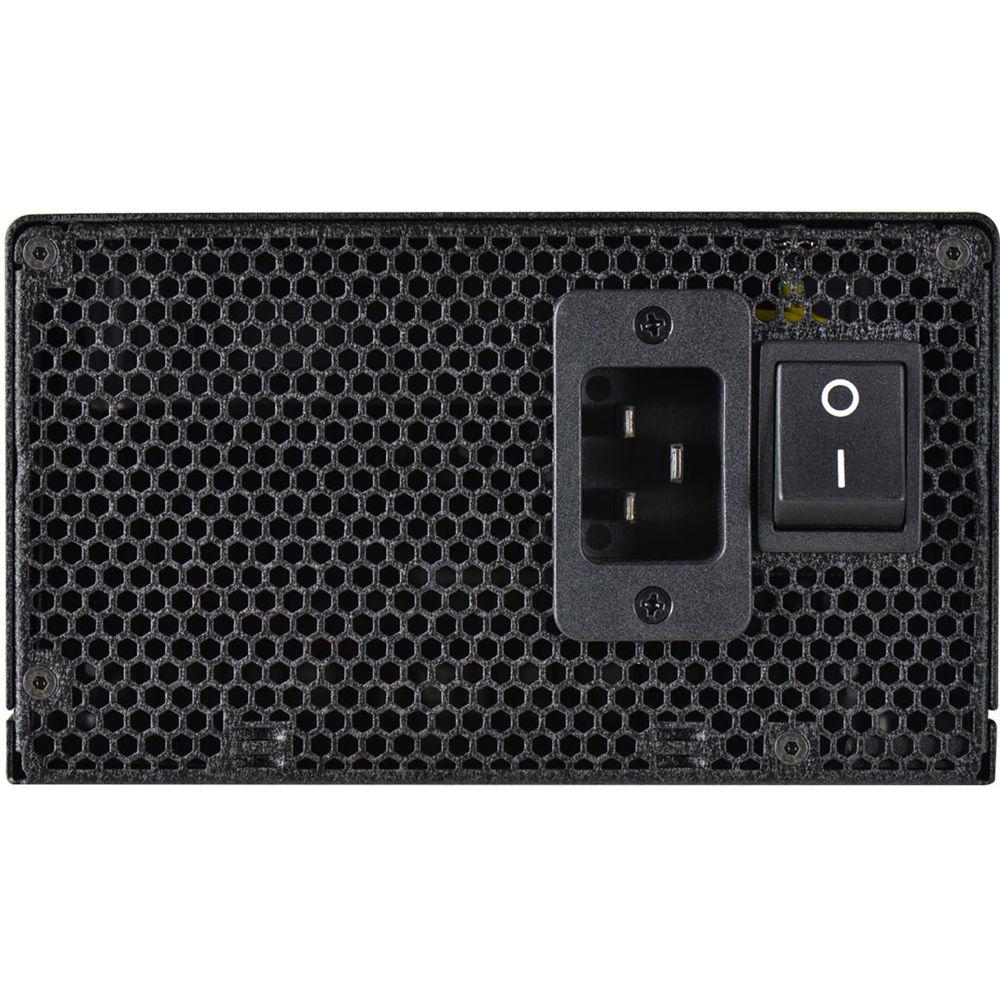

29.5" / 750 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 29.5" / 750 mm | | | | Max Load for +12 V | 133.3 A | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.5 A | | AC Input Power | 115 to 240 VAC, 50 / 60 Hz at 10 to 17 A | | | | Fan Size | 140 mm | | Bearing Type | Ball | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX | | Certifications | RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 5.9' / 1.8 m | | Dimensions | 3.4 x 5.9 x 8.9" / 85.0 x 150.0 x 225.0 mm | | Weight | 12.0 lb / 5.4 kg | | | | Package Weight | 15.1 lb | | Box Dimensions (LxWxH) | 11.4 x 10.5 x 7.1" |
