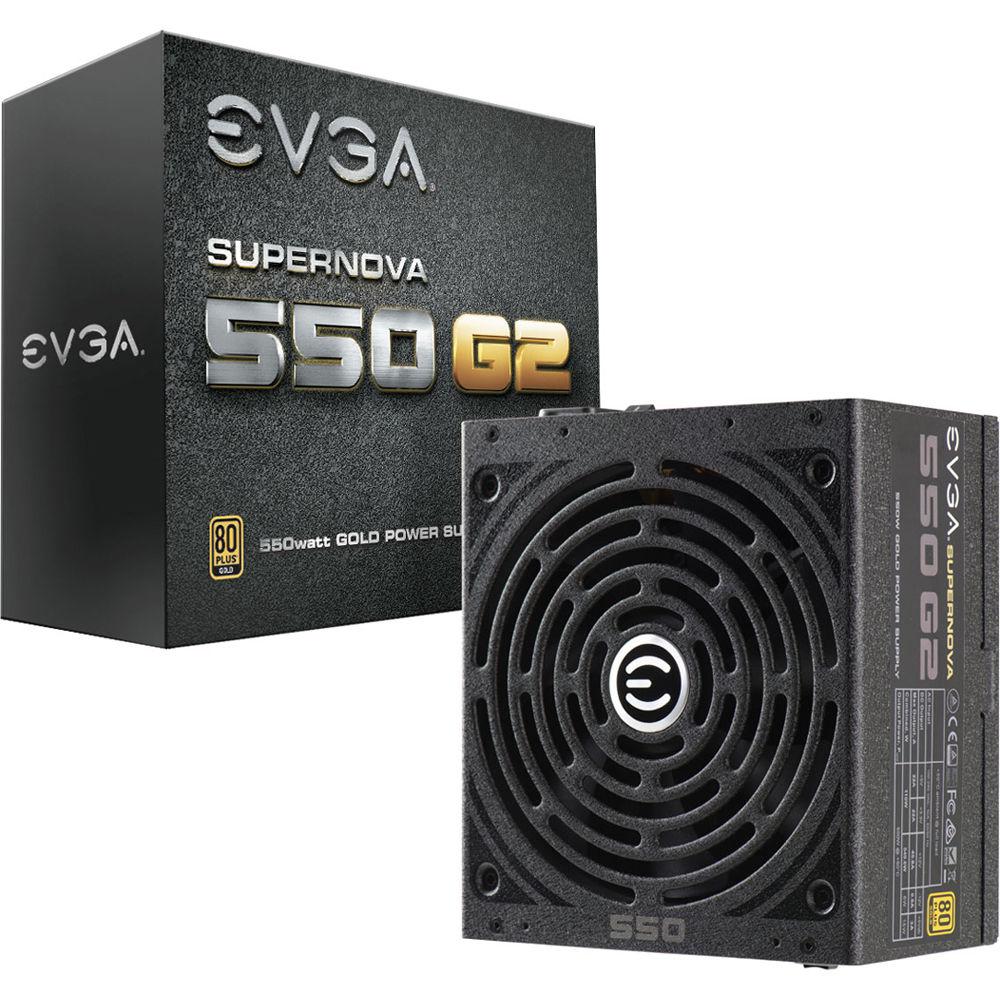

Product description The SuperNOVA 550 G2 550W 80 Plus Gold Modular Power Supply from EVGA is a powerful and efficient modular ATX power supply designed with a single +12 V rail for stability and compatibility among current generation hardware. It's built with multiple heavy-duty protection features and the modular design allows you to connect only the cables you need. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 140mm fan operates silently and provides additional heat dissipation. The SuperNOVA G2 comes with enough cables for multi-GPU setups and plenty of peripherals. - 80 Plus Gold certified, with 90% (115 VAC) / 92% (220 - 240 VAC) efficiency or higher under typical loads
- Japanese brand capacitors for long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Double Ball Bearing fan is reliable and operates quietly
- NVIDIA SLI & AMD Crossfire Ready
- Heavy Duty Protection
- OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)

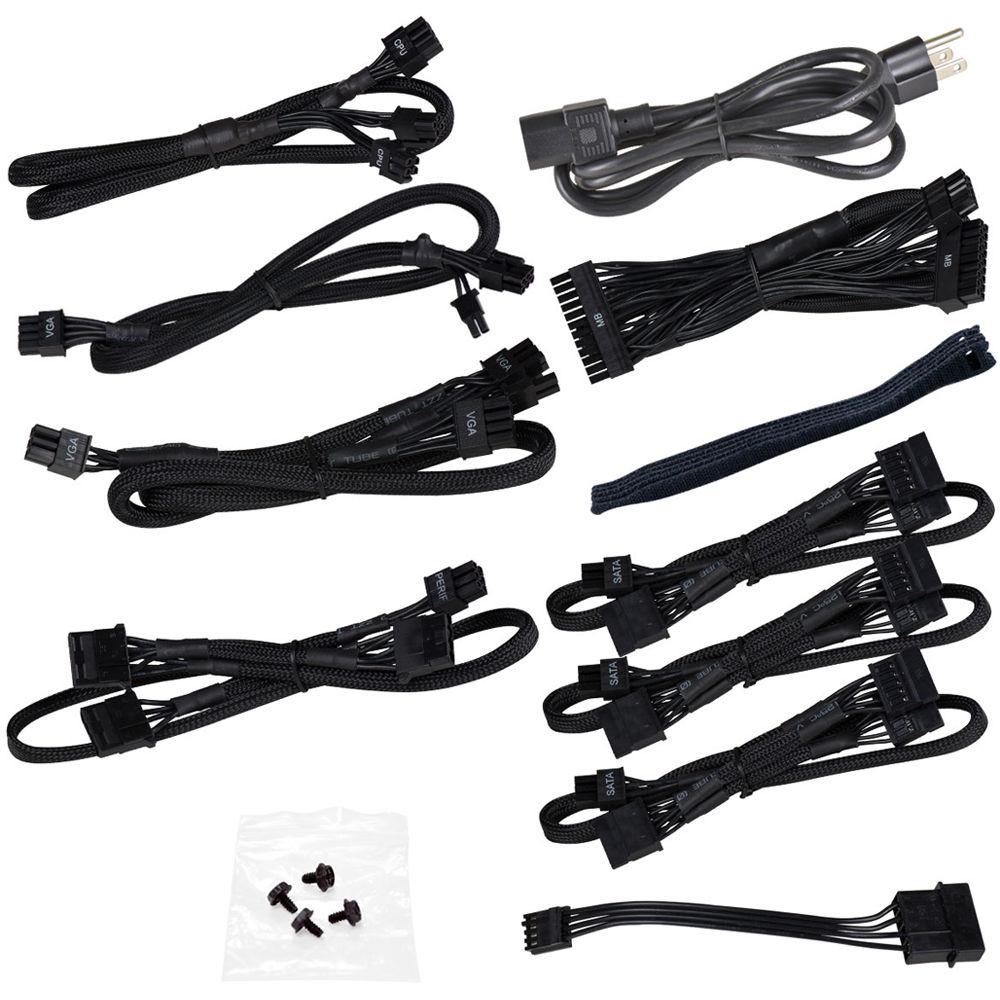

SCP (Short Circuit Protection) In the Box EVGA SuperNOVA 550 G2 550W 80 Plus Gold Modular Power Supply 24-Pin ATX Cable EPS (CPU) 8-Pin (4+4) Cable 2 x PCIe 8-Pin (6+2) Cable PCIe 6-Pin Cable 9 x SATA Cable 3 x 4-Pin Peripheral Cable Floppy Cable Power Cable Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 550 G2 550W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

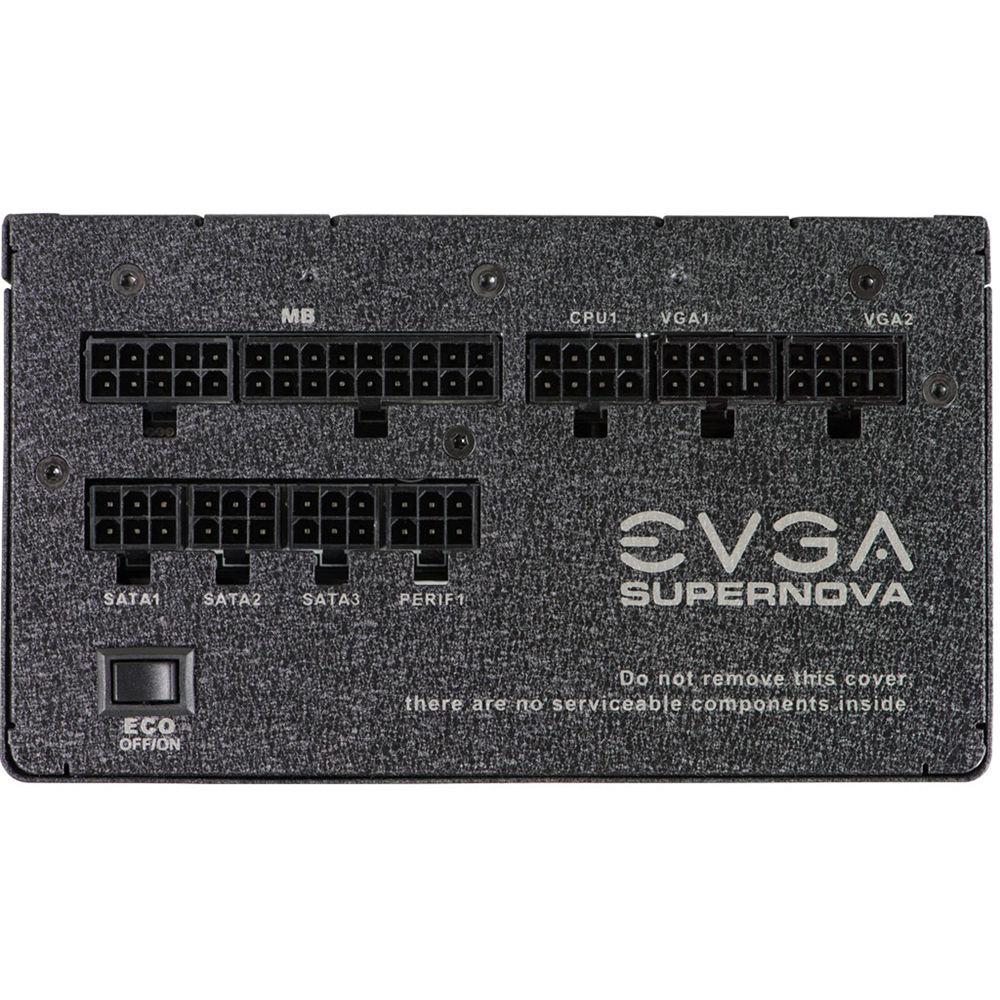

Technical parameters | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
1 x 6-Pin PCIe
9 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Modular | | PCIe Connector Distances | 27.6" / 700 mm
33.5" / 850 mm | | SATA Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm | | Peripheral Connector Distances | 19.7" / 500 mm
23.6" / 600 mm

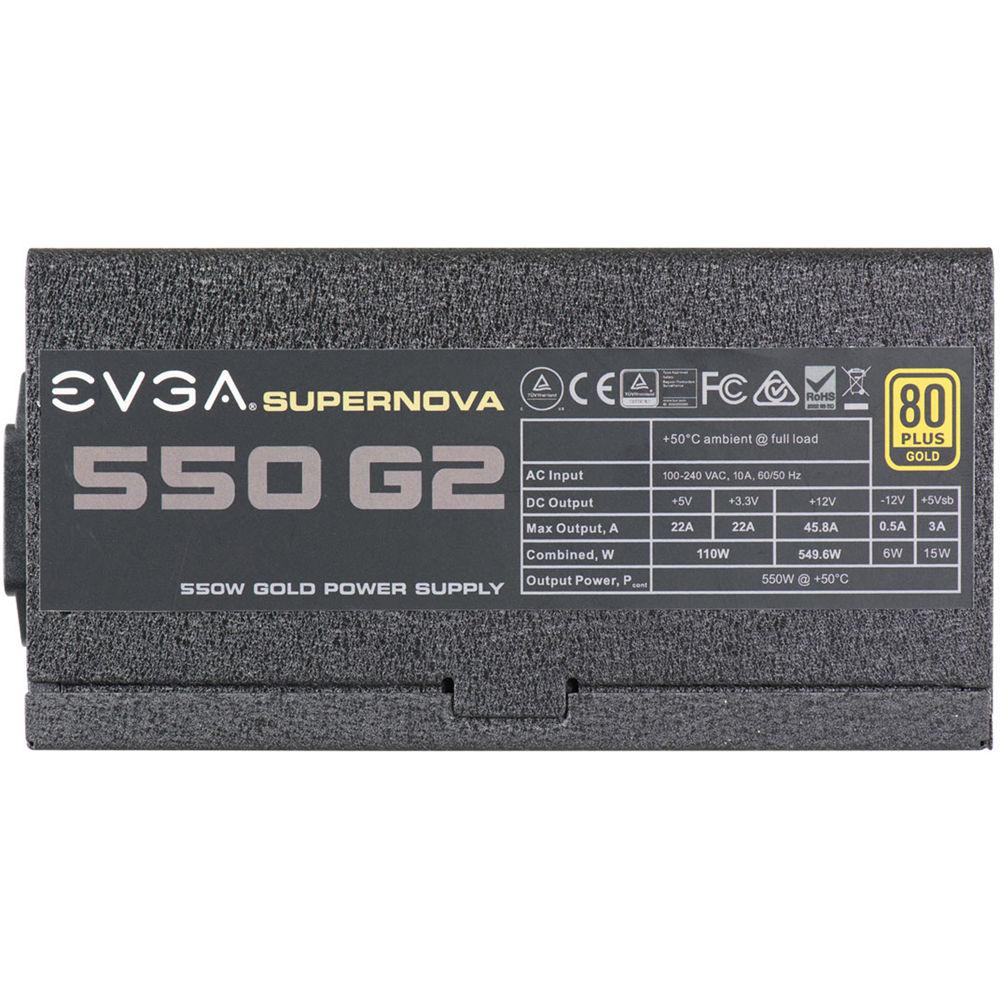

27.6" / 700 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 27.6" / 700 mm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 549.6 W | | Max Load for +12 V | 45.8 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 22 A | | Max Load for +5 V | 22 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 90% | | | | Fan Size | 140 mm | | Bearing Type | Ball | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX | | Protection | Over-Current Protection, Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 4.9' / 1.5 m | | Dimensions | 3.4 x 5.9 x 6.5" / 85.0 x 150.0 x 165.0 mm | | Weight | 5 lb / 2.3 kg |
