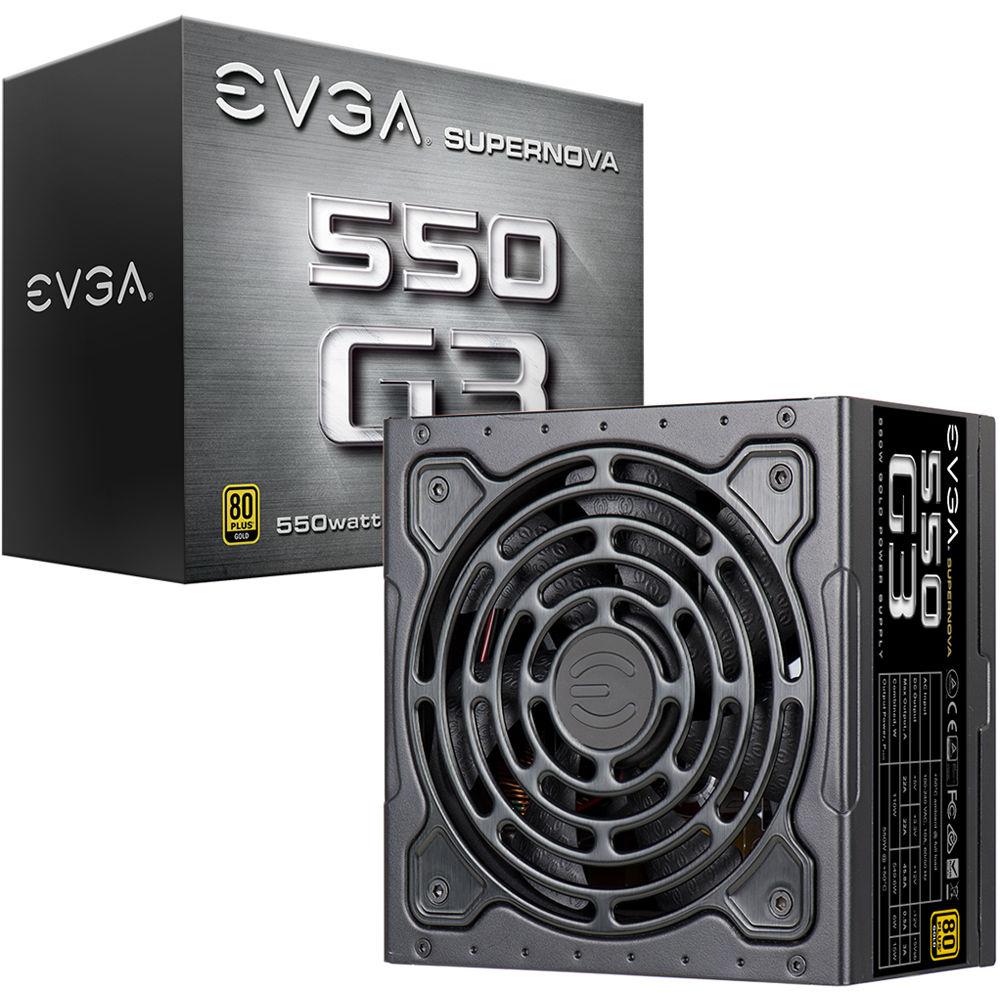

User Manual for EVGA SuperNOVA 550 G3 550W 80 Plus Gold Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA SuperNOVA 550 G3 550W 80
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA SuperNOVA 550 G3 550W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

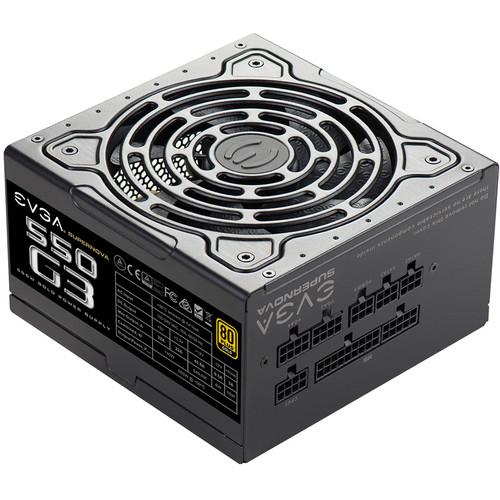

Product description The SuperNOVA 550 G3 80 Plus Gold Modular Power Supply from EVGA provides up to 550 W of power along with three PCIe 8-pin (6+2) connectors for NVIDIA SLI or AMD Crossfire gaming builds. This G3 version of the SuperNOVA series of power supplies comes with a smaller design and an improved hydraulic dynamic bearing fan when compared to the SuperNOVA G2. The 130mm fan and EVGA ECO intelligent thermal control system provide cooling performance while minimizing noise levels to a maximum of 25 dBA.
The ATX power supply sports a single rail and a modular design that enables you to connect only the cables you need. With less cable clutter, there will be better airflow within the chassis for lower temperatures. Other connections for your system's internal components include one floppy, six SATA, and four molex. Additionally, the SuperNOVA 550 comes with an 80-Plus Gold certification that utilizes power at an efficiency rating of 90%. - Japanese brand capacitors for long-term reliability
- Fully modular design to reduce clutter and improve airflow
- NVIDIA SLI and AMD Crossfire ready
- OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- EVGA ECO intelligent thermal control system helps eliminates fan noise at low to medium loads
- Hydraulic dynamic bearing fan for quiet operation and increased lifespan
UPC: 843368042547 In the Box EVGA SuperNOVA 550 G3 550W 80 Plus Gold Modular Power Supply Package of Cables Power Cable Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 550 G3 550W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 550 G3 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin EPS
3 x 6+2-Pin PCIe
6 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Modular | | PCIe Connector Distances | 23.6" / 600 mm
29.5" / 750 mm | | SATA Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm | | Peripheral Connector Distances | 19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm

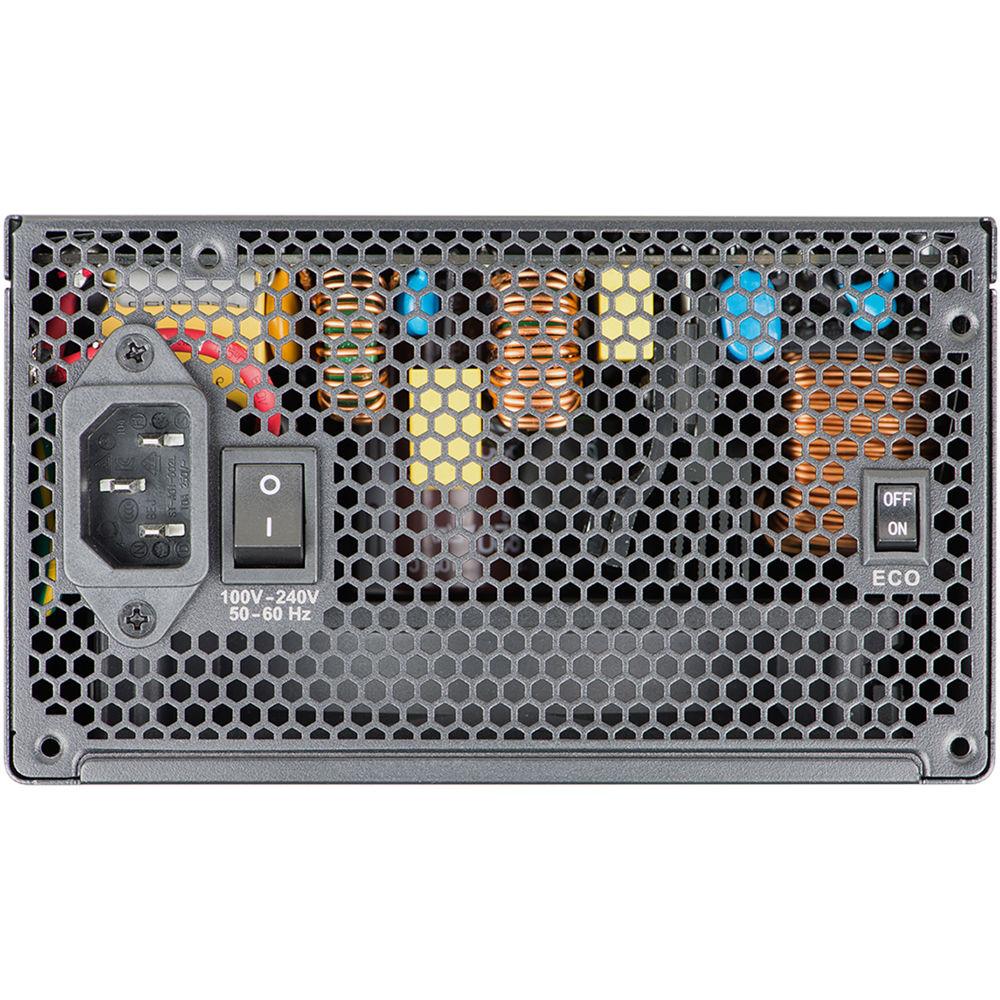

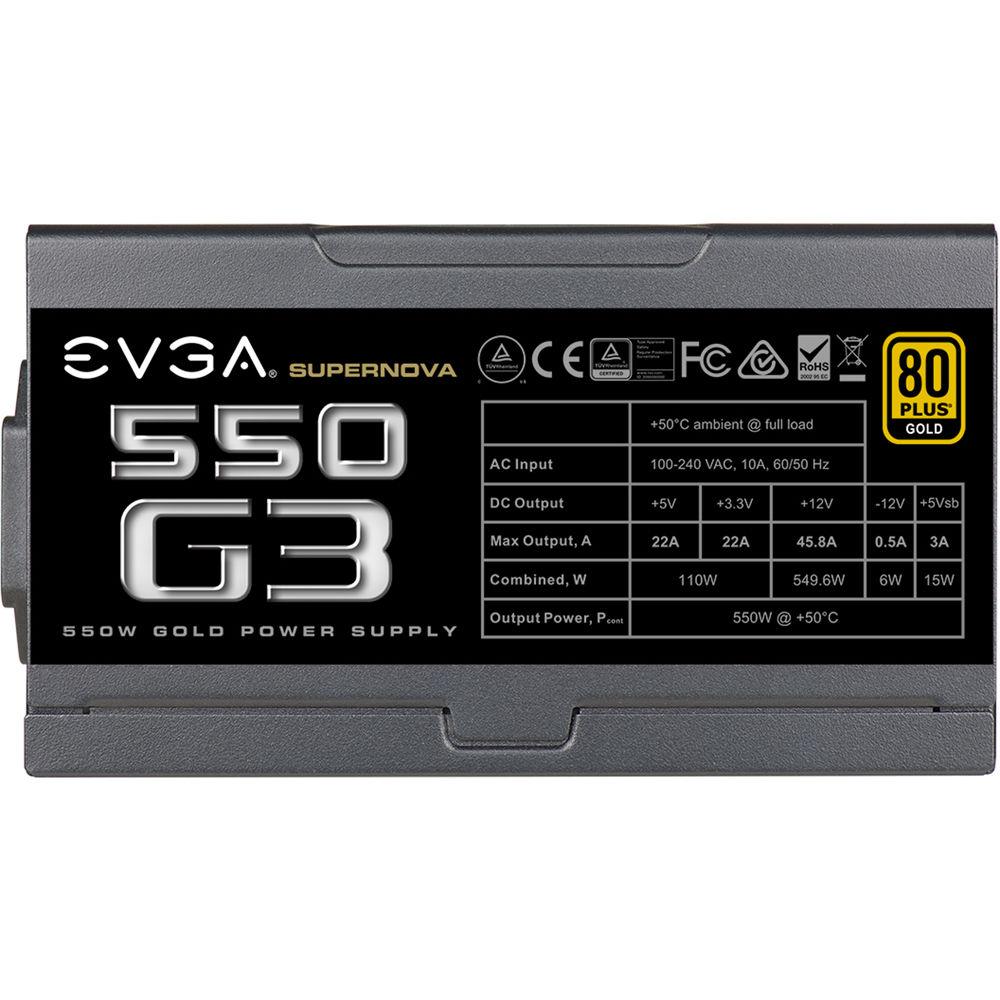

31.5" / 800 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 27.6" / 700 mm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 549.6 W | | Max Load for +12 V | 45.8 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 22 A | | Max Load for +5 V | 22 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 90% | | | | Fan Size | 130 mm | | Bearing Type | Hydro | | Noise Level | 0 to 25 dBA | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | CB, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 4.9' / 1.5 m | | Dimensions | 3.4 x 5.9 x 5.9" / 85.0 x 150.0 x 150.0 mm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 11.7 x 8.9 x 4.8" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
