User Manual for EVGA SuperNOVA 550 GM 550W 80 Plus Gold Modular SFX Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA SuperNOVA 550 GM 550W 80
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA SuperNOVA 550 GM 550W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

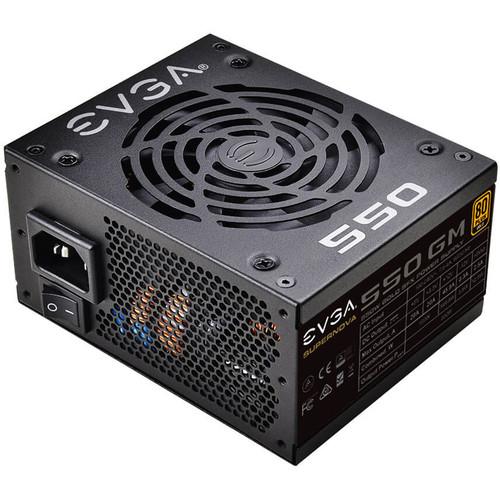

Product description The SuperNOVA 550 GM 550W 80 Plus Gold Modular SFX Power Supply from EVGA is built for performance, durability, and efficiency. Its fully modular design lets you connect the cables you need and store the rest. With less cables, there'll be less clutter resulting in improved airflow and lower temperatures. The SuperNOVA GM is built with a single +12 V rail, Japanese-grade capacitors, and a quiet 92mm fan that delivers efficient cooling at low noise levels. It comes with a SFX to ATX bracket adapter, and features heavy-duty protections to protect your system from damage. -
- SFX to ATX bracket adapter included for use with standard ATX cases
- 92mm double-ball bearing fan for durable and efficient cooling
- EVGA Auto ECO mode ensures the power supply stays silent during low-to-medium loads
- 80 Plus Gold rated for 90% efficiency
- Tight voltage regulation
- Multiple heavy-duty protections
- DC-to-DC converter

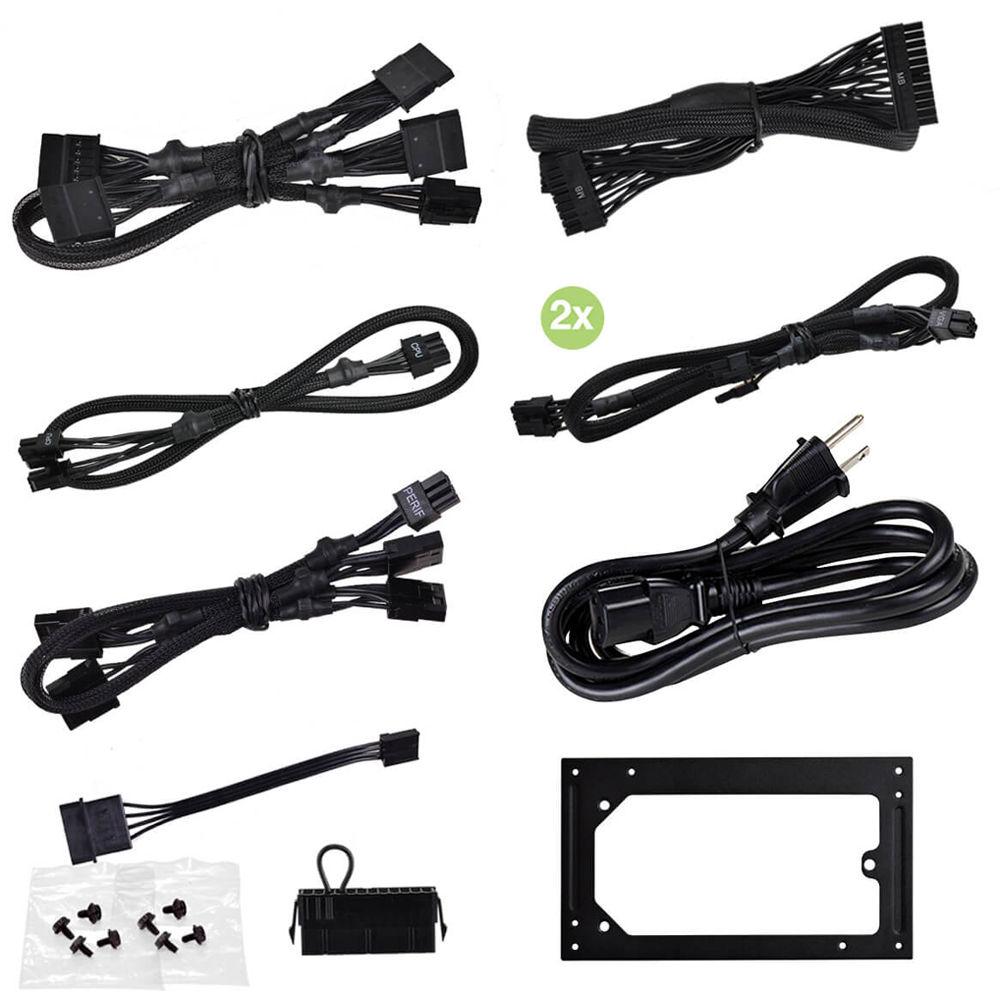

UPC: 843368056322 In the Box EVGA SuperNOVA 550 GM 550W 80 Plus Gold Modular SFX Power Supply 24-Pin ATX Cable 8-Pin (4+4) CPU Cable 2 x 8-Pin (6+2) PCIe Cable SATA Cable 4-Pin Peripheral Cable Floppy Adapter Power Cable SFX to ATX Bracket Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 550 GM 550W 80 Plus Gold Modular SFX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

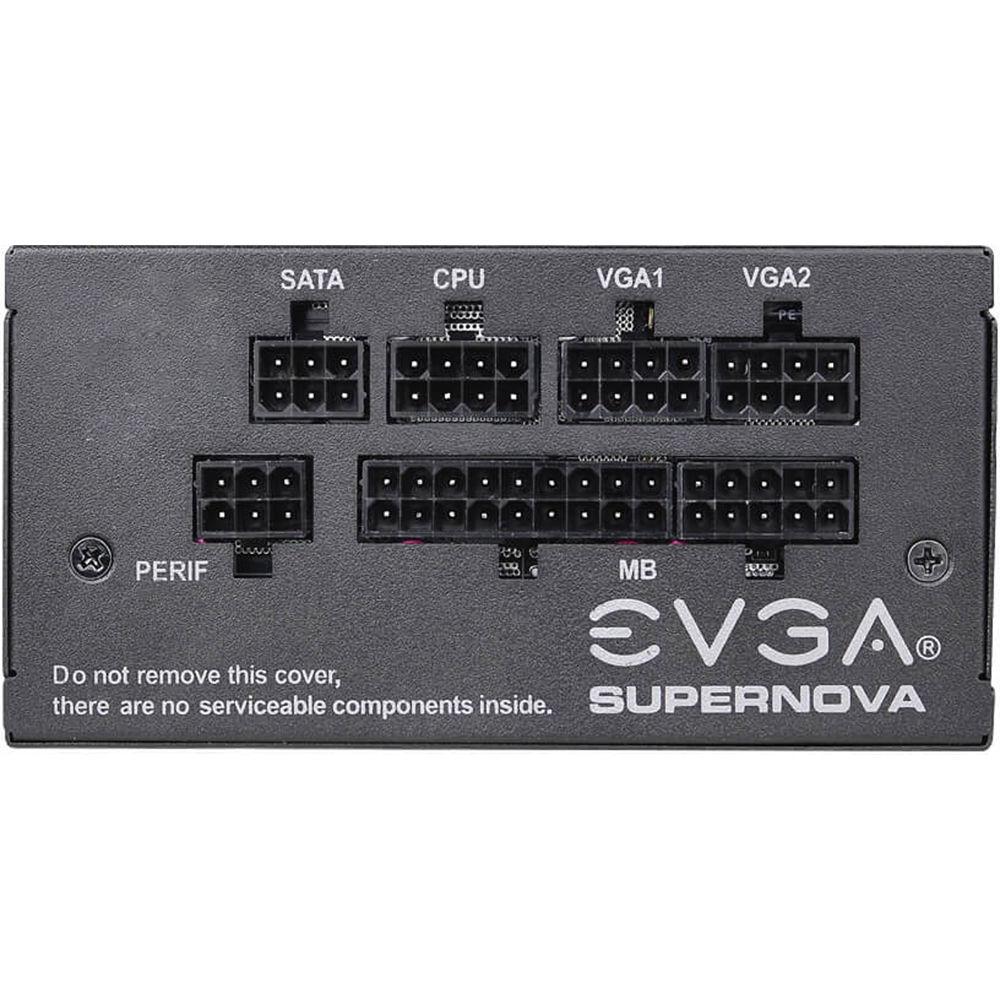

Technical parametersEVGA SuperNOVA 550 GM Specs | | | Total Connectors | 1 x 24-Pin ATX
1 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
4 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Modular | | PCIe Connector Distances | 15.8" / 400 mm
20.1" / 510 mm
24.4" / 620 mm | | SATA Connector Distances | 11.8" / 300 mm
16.1" / 410 mm
20.5" / 520 mm
24.8" / 630 mm | | Peripheral Connector Distances | 11.8" / 300 mm
16.1" / 410 mm
20.5" / 520 mm

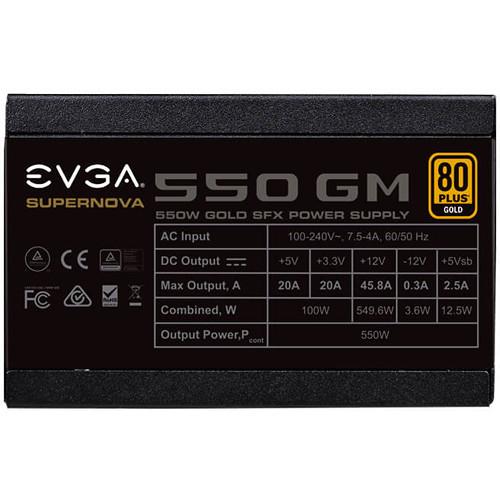

24.8" / 630 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 11.8" / 300 mm | | EPS Connector Distances | 15.7" / 400 mm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 549.6 W | | Max Load for +12 V | 45.8 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 12 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 7.5 A | | | | Efficiency Rating | 80 PLUS Gold | | Active Power Factor Correction | 90% | | | | Fan Size | 92 mm | | Bearing Type | Ball | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | SFX | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | CE, ErP Lot 6, FCC, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Power Cable Length | 59.06" / 1.5 m | | Dimensions | 4.9 x 2.5 x 3.9" / 125.0 x 63.0 x 100.0 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 11.0 x 7.8 x 4.0" |
