User Manual for EVGA SuperNOVA 650 G2 650W 80 Plus Gold Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA SuperNOVA 650 G2 650W 80
- Product category: Uncategorized EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Uncategorized
|
User manual for the EVGA SuperNOVA 650 G2 650W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

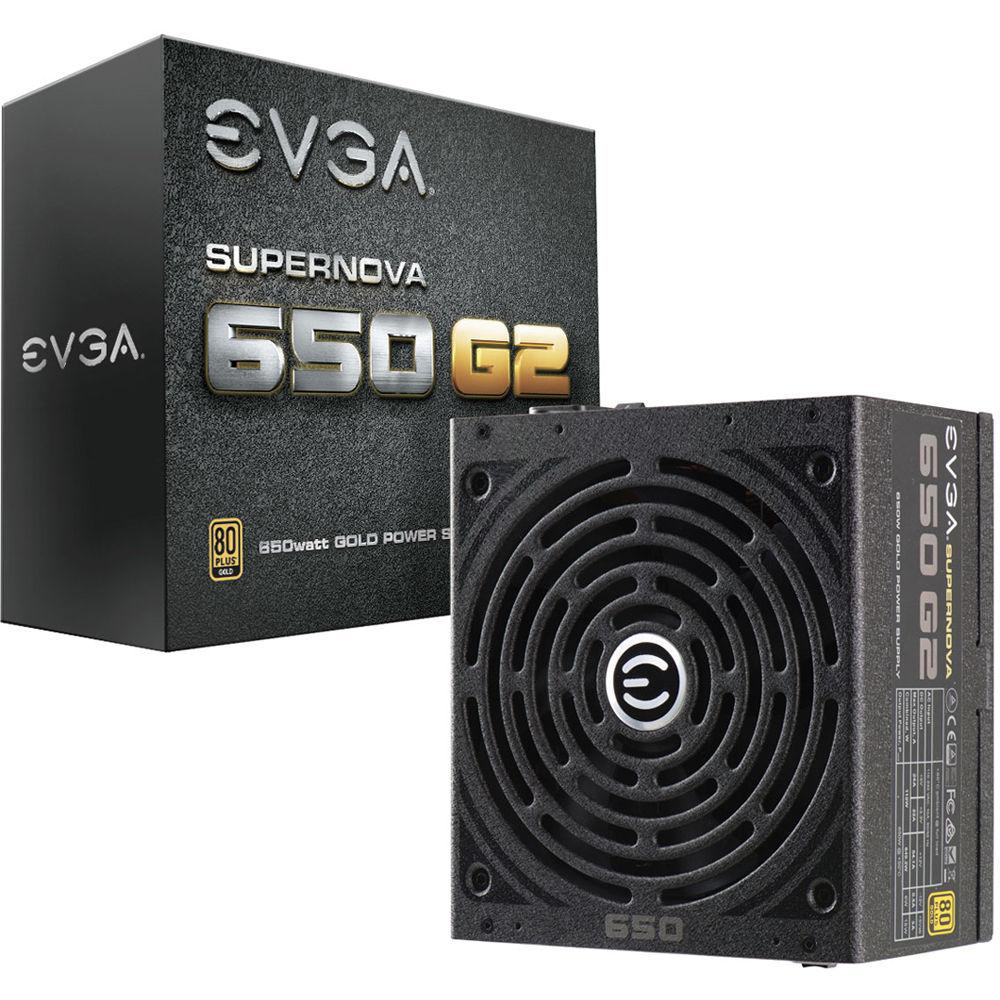

Product description The SuperNOVA 650 G2 650W 80 Plus Gold Modular Power Supply from EVGA is a powerful and efficient modular ATX power supply designed with a single +12 V rail for stability and compatibility among current generation hardware. It's built with multiple heavy-duty protection features and the modular design allows you to connect only the cables you need. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 140mm fan operates silently and provides additional heat dissipation. The SuperNOVA G2 comes with enough cables for multi-GPU setups and plenty of peripherals. - 80 Plus Gold certified, with 90% (115 VAC) / 92% (220 - 240 VAC) efficiency or higher under typical loads
- Japanese brand capacitors for long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Double Ball Bearing fan is reliable and operates quietly
- NVIDIA SLI & AMD Crossfire Ready
- Heavy Duty Protection
- OVP (Over Voltage Protection)

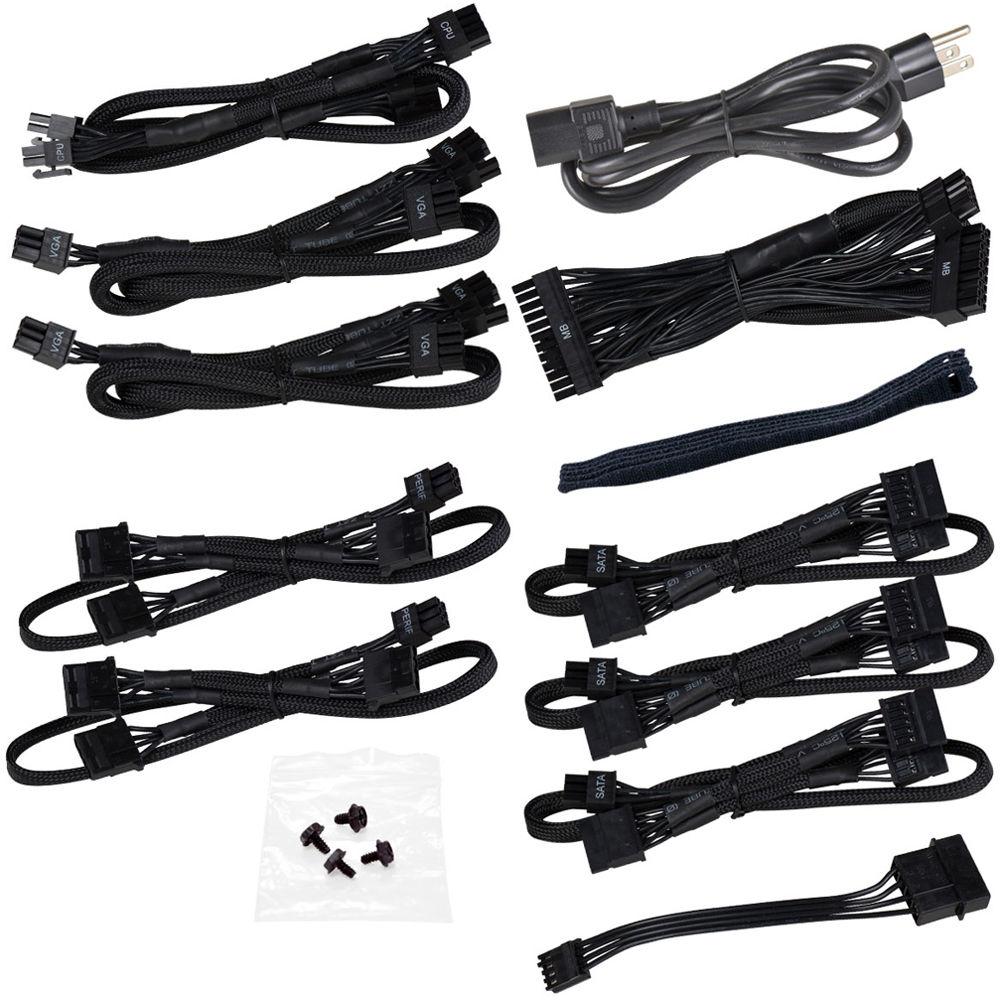

UVP (Under Voltage Protection) OCP (Over Current Protection) OPP (Over Power Protection) SCP (Short Circuit Protection) In the Box EVGA SuperNOVA 650 G2 650W 80 Plus Gold Modular Power Supply 24-Pin ATX Cable 2 x EPS (CPU) 8-Pin (4+4) Cable 2 x PCIe 8-Pin (6+2) Cable 2 x PCIe 6-Pin Cable 9 x SATA Cable 6 x 4-Pin Peripheral Cable Floppy Cable Power Cable Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 650 G2 650W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

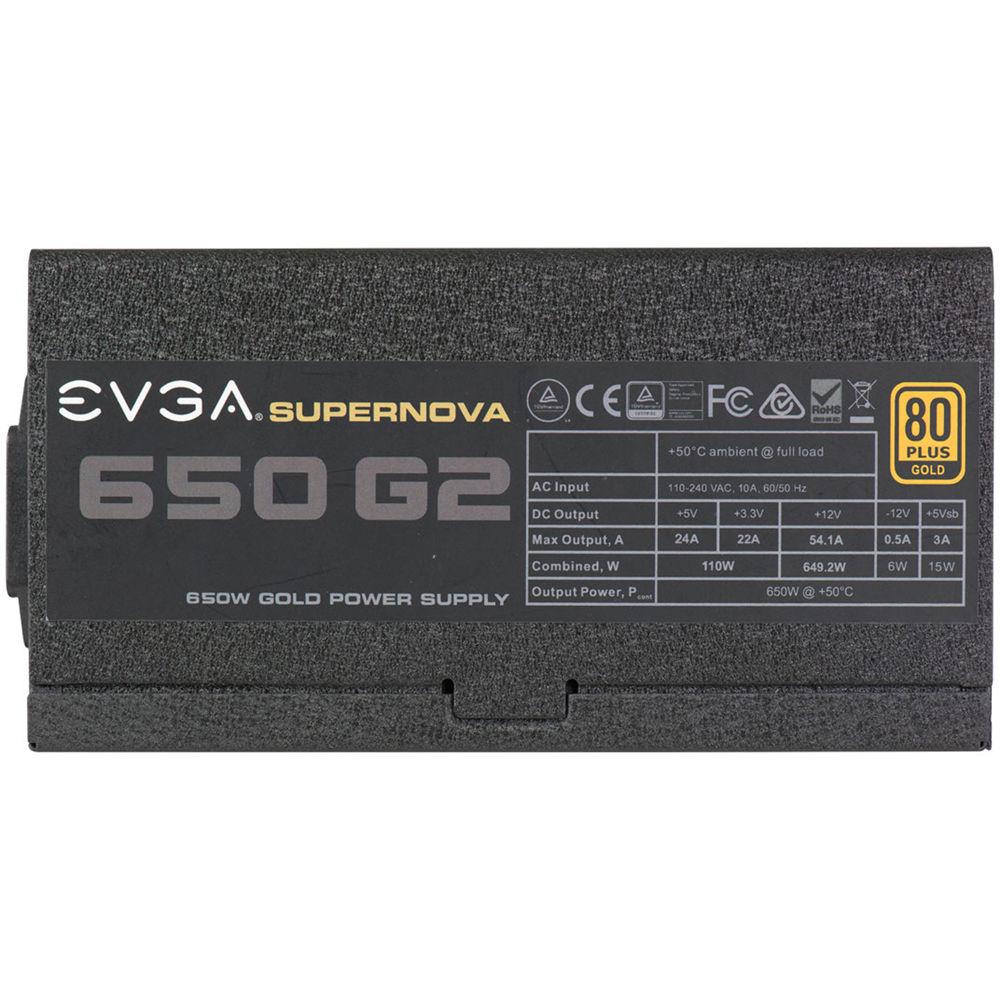

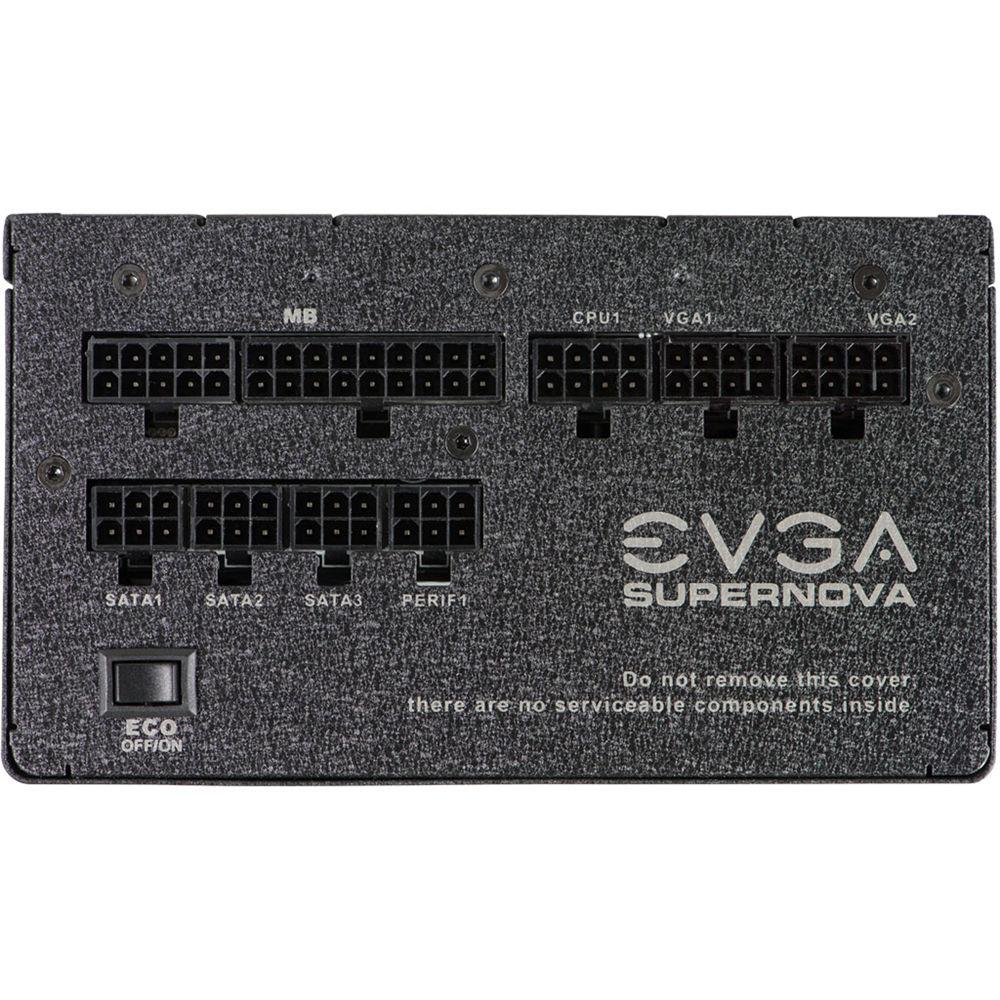

Technical parameters | Total Connectors | 1 x 24-Pin Motherboard 1 x 4+4-Pin EPS 1 x 8-Pin EPS 2 x 6+2-Pin PCIe 2 x 6-Pin PCIe 9 x 15-Pin SATA 6 x 4-Pin Peripheral / Molex 1 x 4-Pin Floppy | Cable Design | Modular | PCIe Connector Distances | 27.6" / 700 mm 33.5" / 850 mm | SATA Connector Distances | 19.7" / 500 mm 23.6" / 600 mm 27.6" / 700 mm | Peripheral Connector Distances | 19.7" / 500 mm 23.6" / 600 mm 27.6" / 700 mm | Floppy Connector Distances | 3.9" / 100 mm | ATX Connector Distance | 23.6" / 600 mm | EPS Connector Distances | 27.6" / 700 mm 33.5" / 850 mm | | Total Wattage | 650 W | Number of +12 V Rails | 1 | Combined Power for +12 V | 649.2 W | Max Load for +12 V | 54.1 A | Combined Power for +3.3/+5 V | 110 W | Max Load for +3.3 V | 24 A | Max Load for +5 V | 22 A | Max Power for +5 Vsb | 15 W | Max Load for +5 Vsb | 3 A | Max Power for -12 V | 6 W | Max Load for -12 V | 0.5 A | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A | | Efficiency Rating | 80 PLUS Gold | Efficiency | 90% | | Fan Size | 140 mm | Bearing Type | Ball | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Form Factor | ATX | Protection | Over-Current Protection, Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | Mean Time Between Failures (MTBF) | 100,000 Hours | Power Cable Length | 5' / 1.5 m | Dimensions | 3.4 x 5.9 x 6.5" / 85.0 x 150.0 x 165.0 mm | Weight | 6 lb / 2.7 kg |
