User Manual for EVGA SuperNOVA 650 P2 650W 80 Plus Platinum Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA SuperNOVA 650 P2 650W 80
- Product category: Power Supplies EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Power Supplies
 |
User manual for the EVGA SuperNOVA 650 P2 650W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

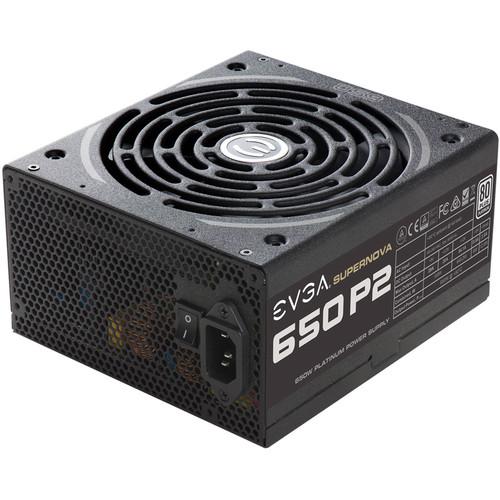

Product description The SuperNOVA 650 P2 650W 80 Plus Platinum Modular Power Supply from EVGA is built for performance, durability, and efficiency. Its fully modular design lets you connect the cables you need and store the rest. With less cables, there'll be less clutter resulting in improved airflow and lower temperatures. The SuperNOVA P2 is built with a single +12 V rail, Japanese grade capacitors, and a quiet 140 mm fan that delivers efficient cooling at low noise levels. It comes with a full set of cables, enough for even a multi-GPU setup, and features heavy-duty protection to protect your system from damage. - 80 Plus Platinum certified, with 92% (115 VAC) / 94% (220 - 240 VAC) efficiency or higher under typical loads

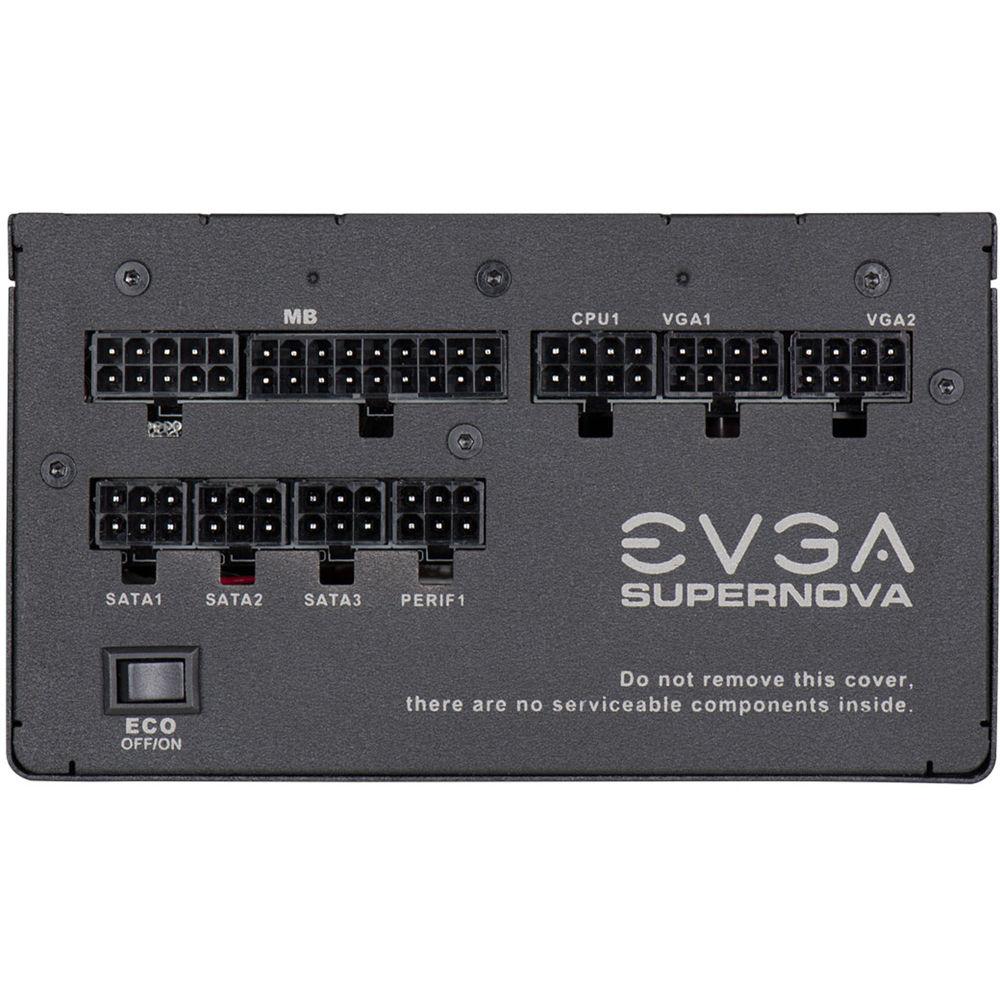

- Fully modular design lets you install the cables you need and store the others, eliminating cable clutter and improving air flow
- Japanese brand capacitors that ensure long-term reliability
- Double ball bearing fan for a reliable and quiet operation
- NVIDIA SLI & AMD Crossfire ready
- ECO switch to limit fan function until the internal components reach 45°C
- Heavy-duty protection including:
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)

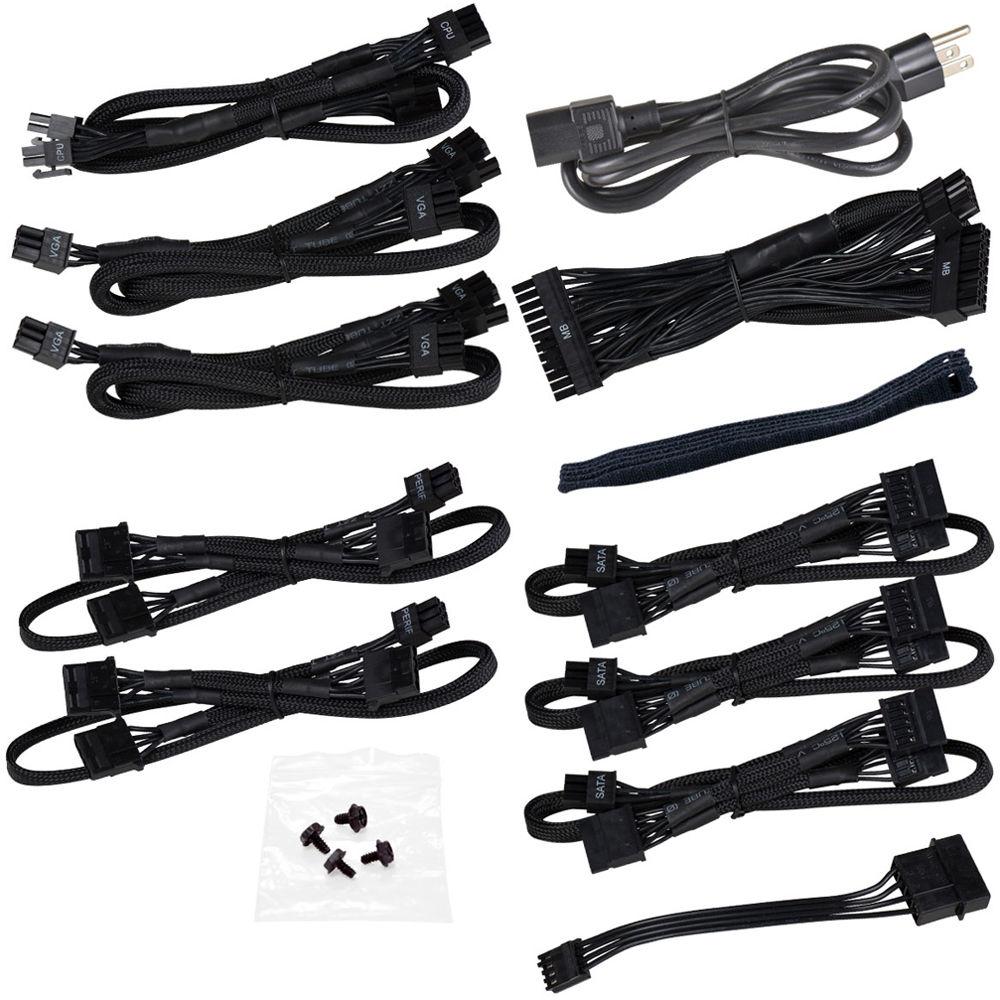

SCP (Short Circuit Protection) UPC: 843368034719 In the Box EVGA SuperNOVA 650 P2 650W 80 Plus Platinum Modular Power Supply 24-Pin ATX Cable 2 x EPS (CPU) 8-Pin (4+4) Cable 2 x PCIe 8-Pin (6+2) Cable 2 x PCIe 6-Pin Cable 9 x SATA Cable 6 x 4-Pin Peripheral Cable Floppy Cable Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 650 P2 650W 80 Plus Platinum Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA 220-P2-0650-X1 Specs | Form Factor | ATX | | Cables | 24-Pin ATX:
1 x 23.62" (600 mm)
EPS(CPU):
1 x 27.56" (700 mm)
1 x 33.46" (850 mm)
PCIe:
2 x 27.56" (700 mm)
2 x 33.46" (850 mm)
SATA:
3 x 19.69" (500 mm)
3 x 23.62" (600 mm)
3 x 27.56" (700 mm)
4-Pin Peripheral:
2 x 19.69" (500 mm)
2 x 23.62" (600 mm)
2 x 27.56" (700 mm)
Floppy:
1 x 3.9" (100 mm)
AC Power:

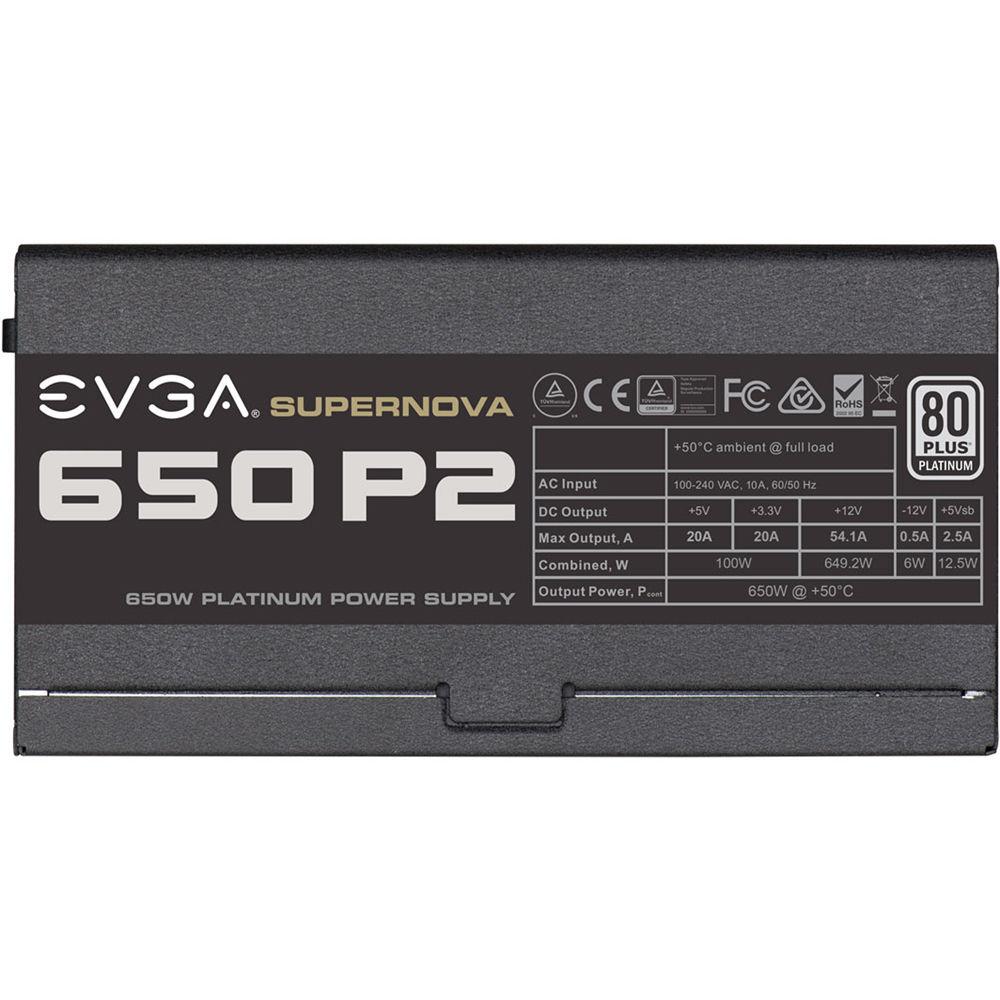

1 x 59" (1500 mm) | | | | AC Input | 100 - 240 VAC, 10 A, 50 - 60 Hz | | Output Voltage | +3.3 V, 20 A
+5 V, 20 A
+12 V, 54.1 A
+5 Vsb, 2.5 A
-12 V, 0.5 A | | | | Fan Type | Double Ball Bearing | | Fan Size | 140 x 140 mm | | | | Operating Temperature | 32 - 122°F (0 to 50°C) | | | | Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement | | MTBF (Approx.) | 100,000 Hours | | Dimensions (H x W x L) | 3.35 x 5.9 x 6.5" (85 x 150 x 165 mm) | | Weight | 5 lb (2.27 kg) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 11.8 x 8.9 x 4.8" |
