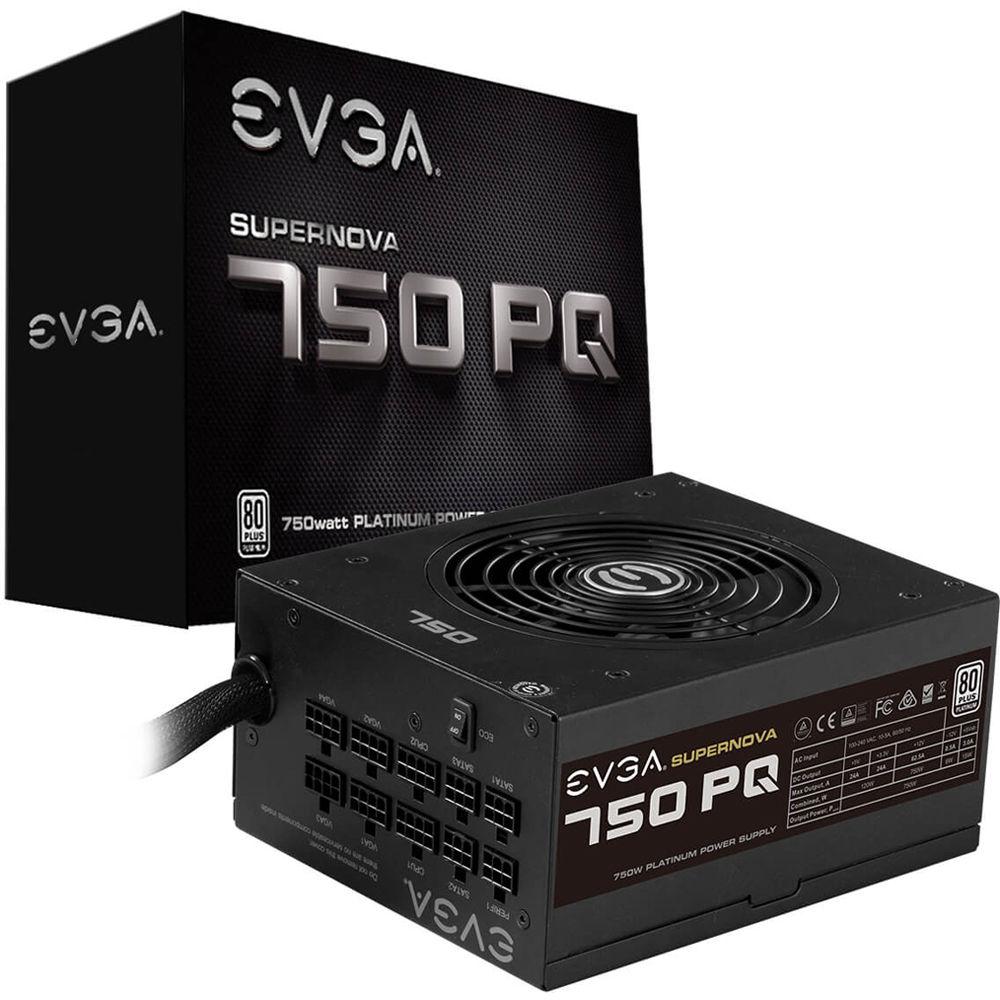

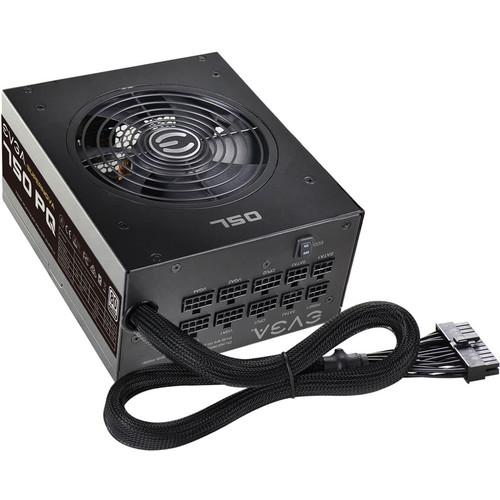

Product description Featuring an ATX form factor, the EVGA SuperNOVA 750W PQ Platinum Semi-Modular Power Supply provides a single +12 V rail for stability. It also achieves 80 PLUS Platinum certification, thanks to 92% efficiency under typical loads. It's built with multiple heavy-duty protection features and the semi-modular design allows you to remove certain unnecessary cables. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 135mm fan operates silently, thanks to EVGA ECO Intelligent Thermal Control System, and provides additional heat dissipation. Features - 80 PLUS Platinum certified
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Active Power Factor Correction (PFC)
- NVIDIA SLI & AMD Crossfire Ready
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Active Clamp +DC to DC design for efficient operation
- 135mm fluid dynamic bearing fan
- Semi-modular design to reduce clutter and improved airflow

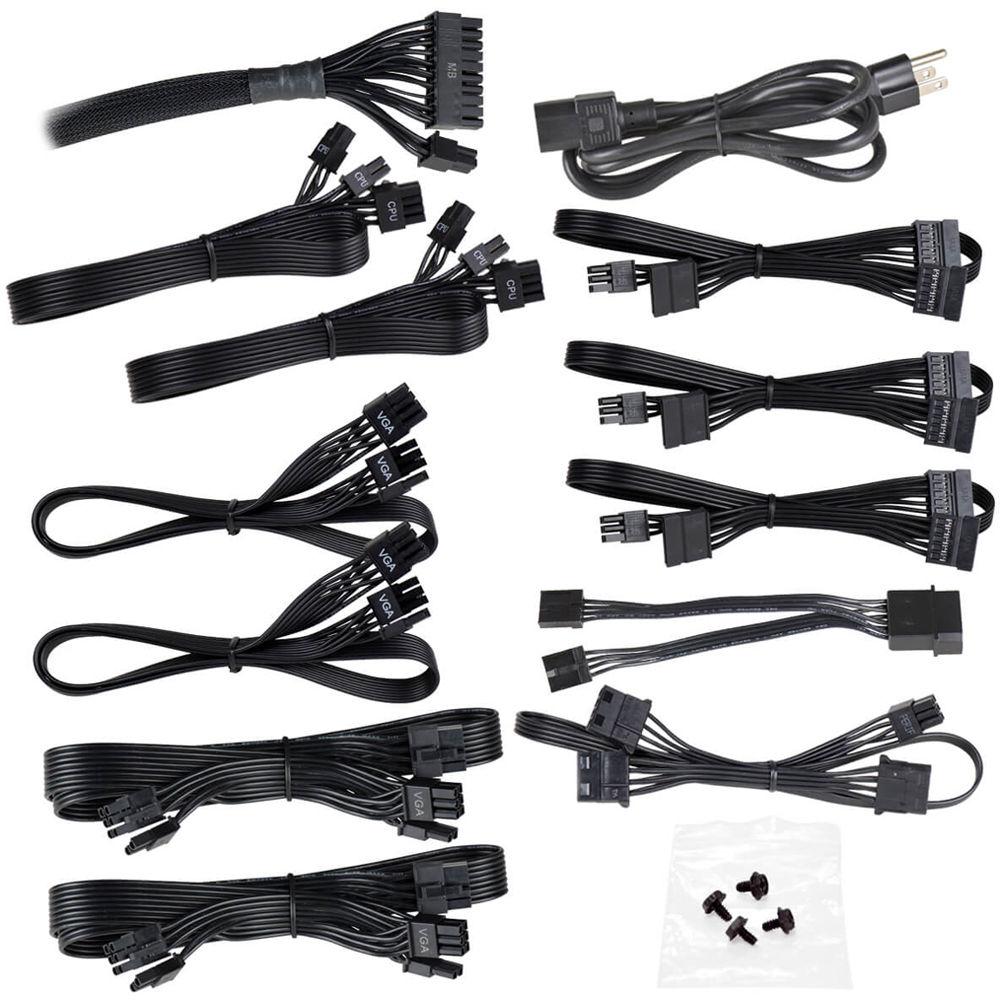

UPC: 843368050146 In the Box EVGA SuperNOVA 750W PQ Platinum Semi-Modular Power Supply Package of Cables Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 750W PQ Platinum Semi-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

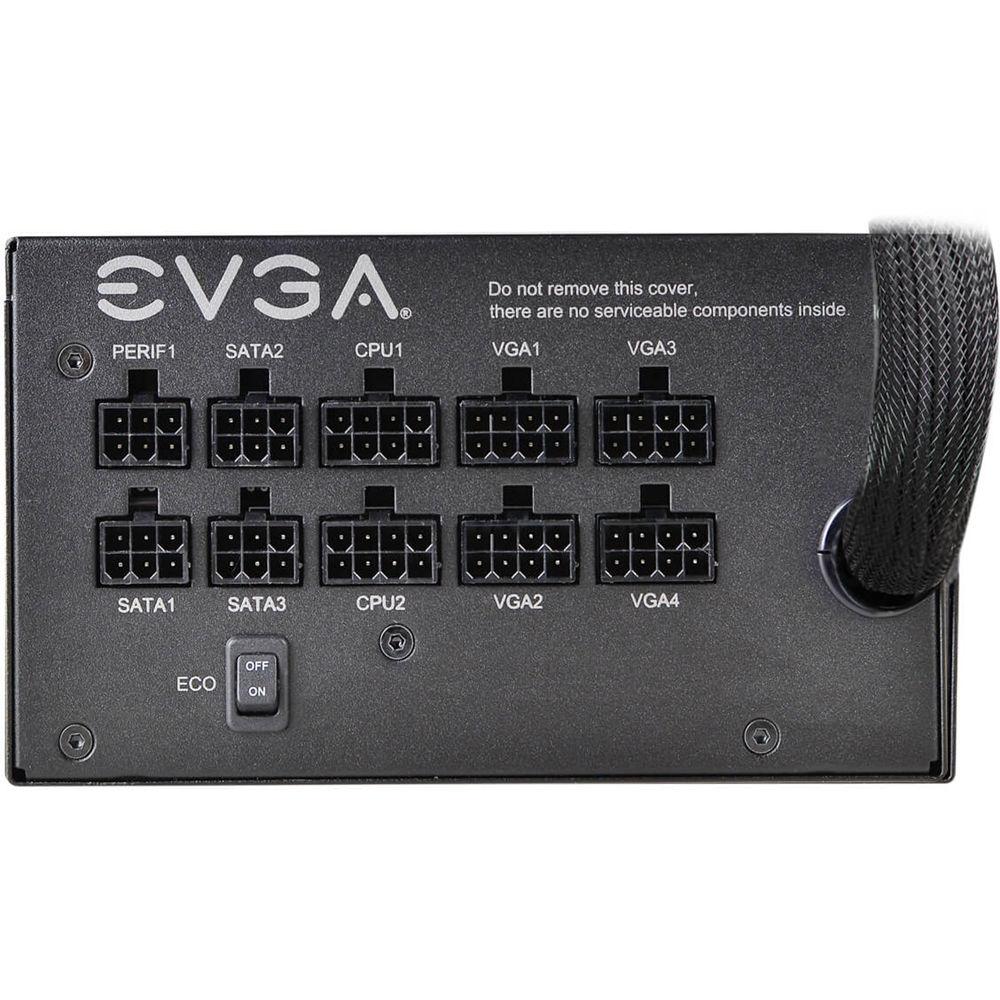

Technical parametersEVGA SuperNOVA 750 Specs | Form Factor | ATX | | Connectors | 1 x Main Power 24-pin
2 x CPU 8-pin (4+4)
6 x PCIe 8-pin (6+2)
9 x SATA
3 x Peripheral 4-pin

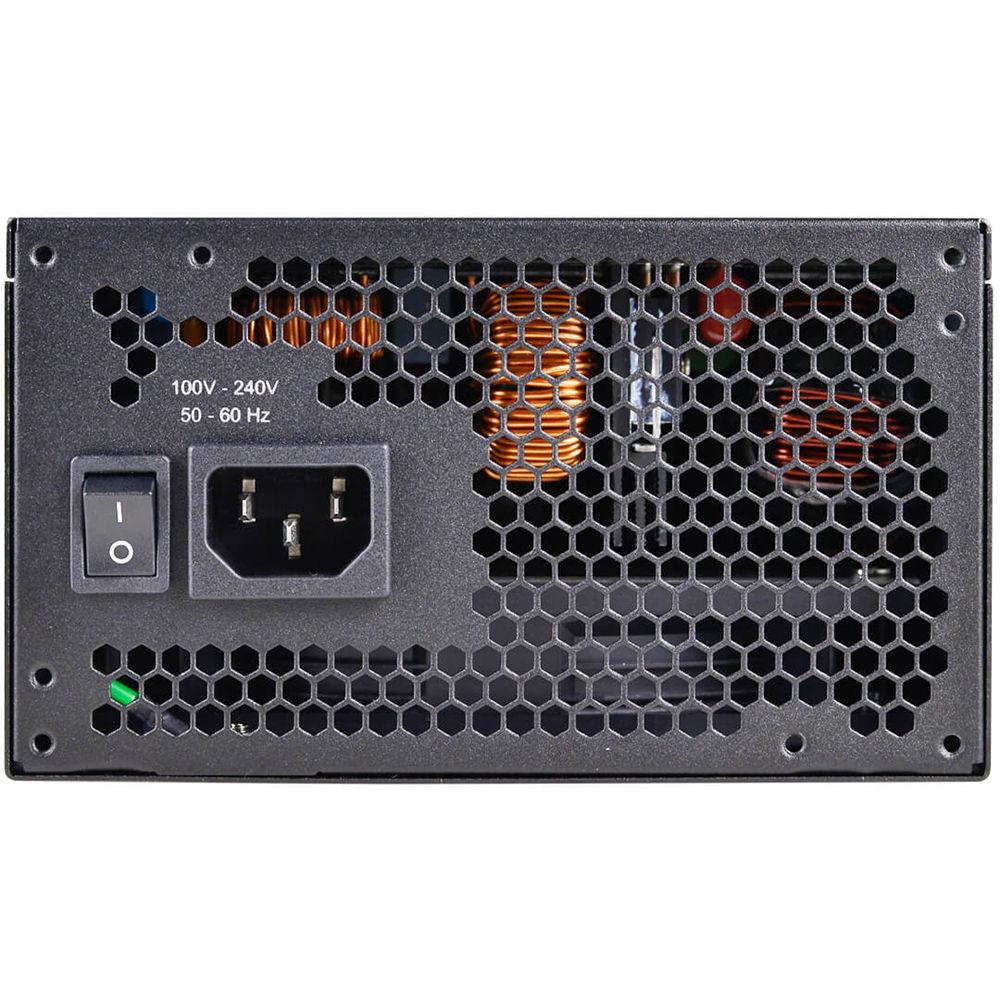

1 x Floppy | | | | AC Input | Voltage
100 - 240 VAC
Current
10 - 5 A
Frequency

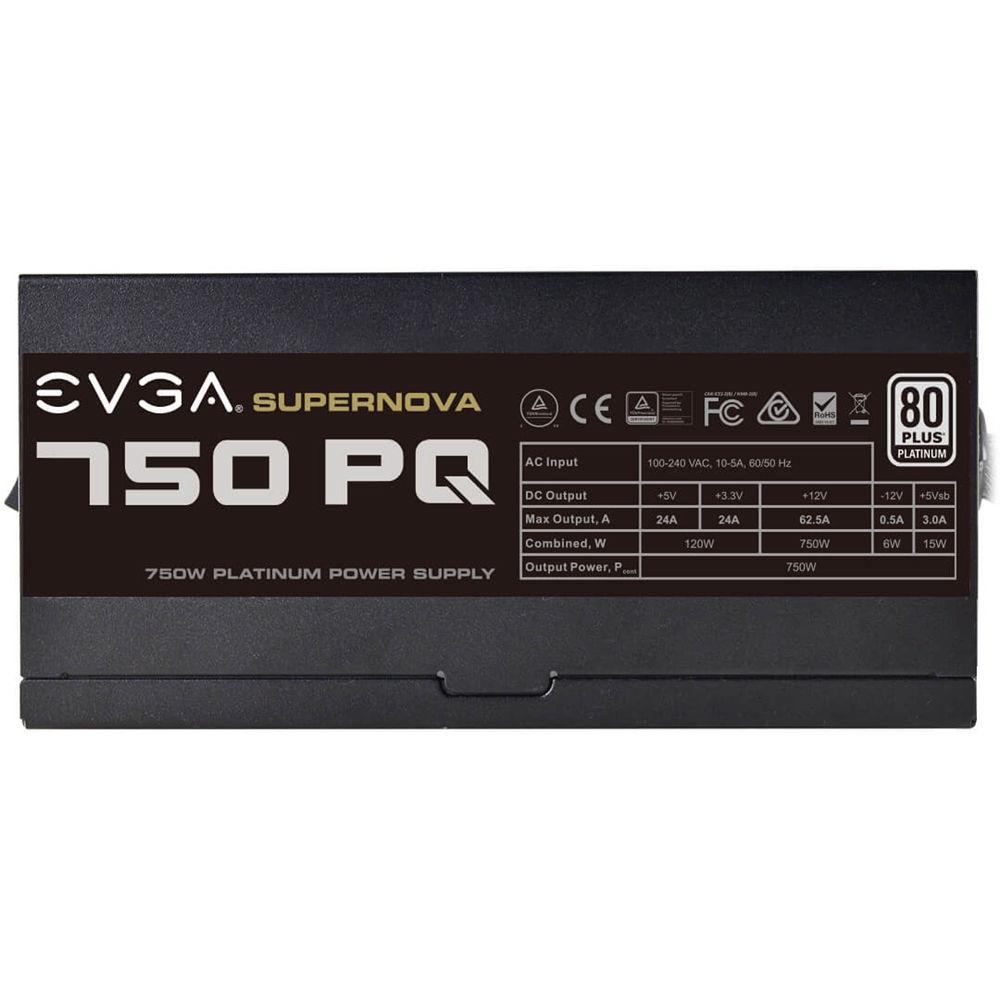

50 - 60 Hz | | DC Output | +3.3 V, 24 A (120 W)
+5 V, 24 A (120 W)
+12 V, 62.5 A (750 W)
-12 V, 0.5 A (6 W)
+5 Vsb, 3 A (15 W) | | Continuous Power | 750 W | | | | Fan Size | 135 mm | | Fan Control | EVGA ECO Intelligent Thermal Control System | | Fan Bearing | Fluid dynamic bearing | | | | Operating Temperature | 32 - 122°F / 0 - 50°C | | | | Protection | OVP, UVP, OCP, OPP, SCP, OTP | | MTBF | 100,000 hours | | Dimensions | 5.9 x 3.3 x 7.1" / 150 x 85 x 180 mm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 13.1 x 8.5 x 4.7" |
