User Manual for EVGA SuperNOVA 850 G1 850W 80 Plus Gold Modular Power Supply Click to enlarge the picture
Contents of the user manual for the EVGA SuperNOVA 850 G1 850W 80
- Product category: Uncategorized EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Uncategorized
|
User manual for the EVGA SuperNOVA 850 G1 850W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

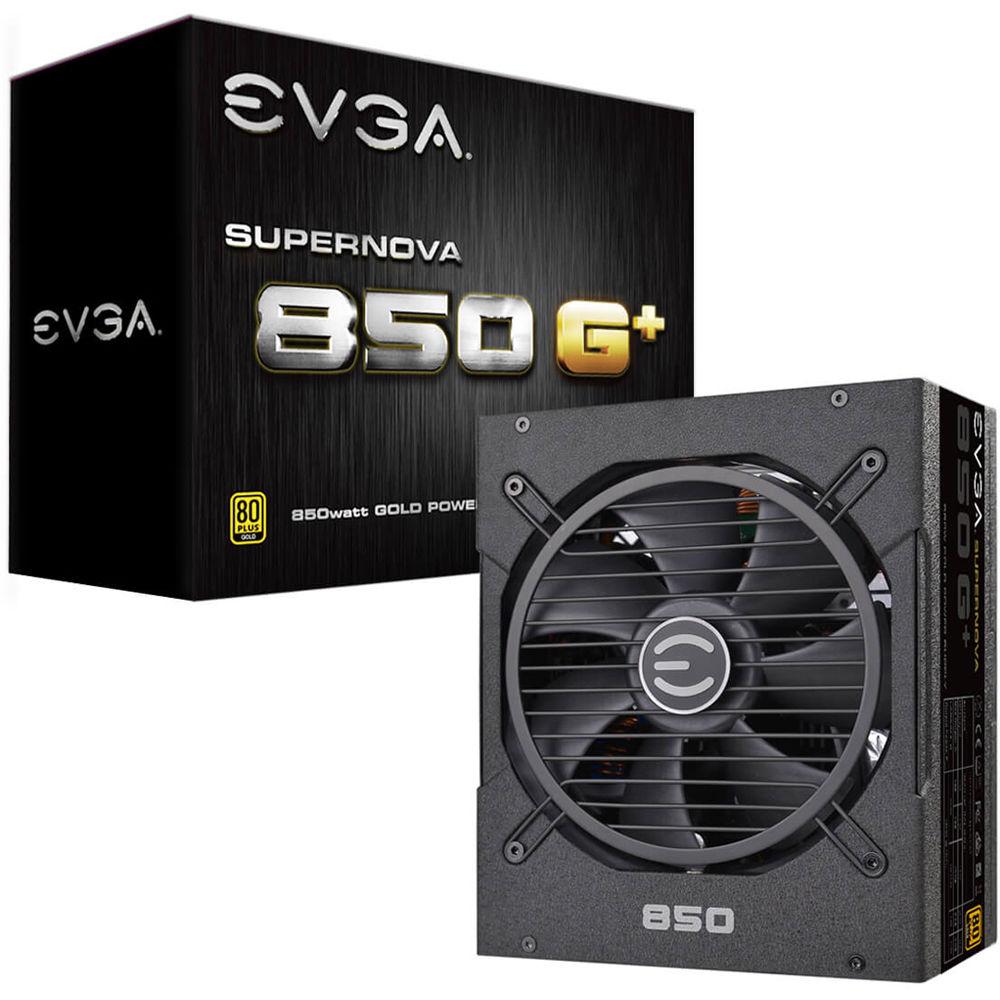

Product description The SuperNOVA 850 G1+ 850W 80 Plus Gold Modular Power Supply from EVGA is powerful, efficient, and designed with features and parts for durable, long-lasting power. It's built with a single +12V rail with tight voltage regulation to ensure stable power delivery, and a 135mm fan that keeps things cool and operational. Moreover, it's completely modular and comes with enough cables for a multiple GPU build with plenty of peripherals. When they're not needed, the extra cables can be stored to keep things minimal and free up room for improved airflow. Lastly, this unit is equipped with multiple heavy-duty protections to ensure your system isn't damaged during unexpected events. - 80 Plus Gold
- The 80 Plus Gold rating ensures that your power supply is operating efficiently. Under load, this power supply is 90% efficient or higher.
- Tight Voltage Regulation
- A single +12V rail provides you with stable power, up to 71A on a single rail.
- Fluid Dynamic Bearing Fan
- The 135mm built-in fan provides the SuperNOVA G1+ with efficient and silent cooling to keep things running longer.
- Heavy-Duty Protections
-
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)

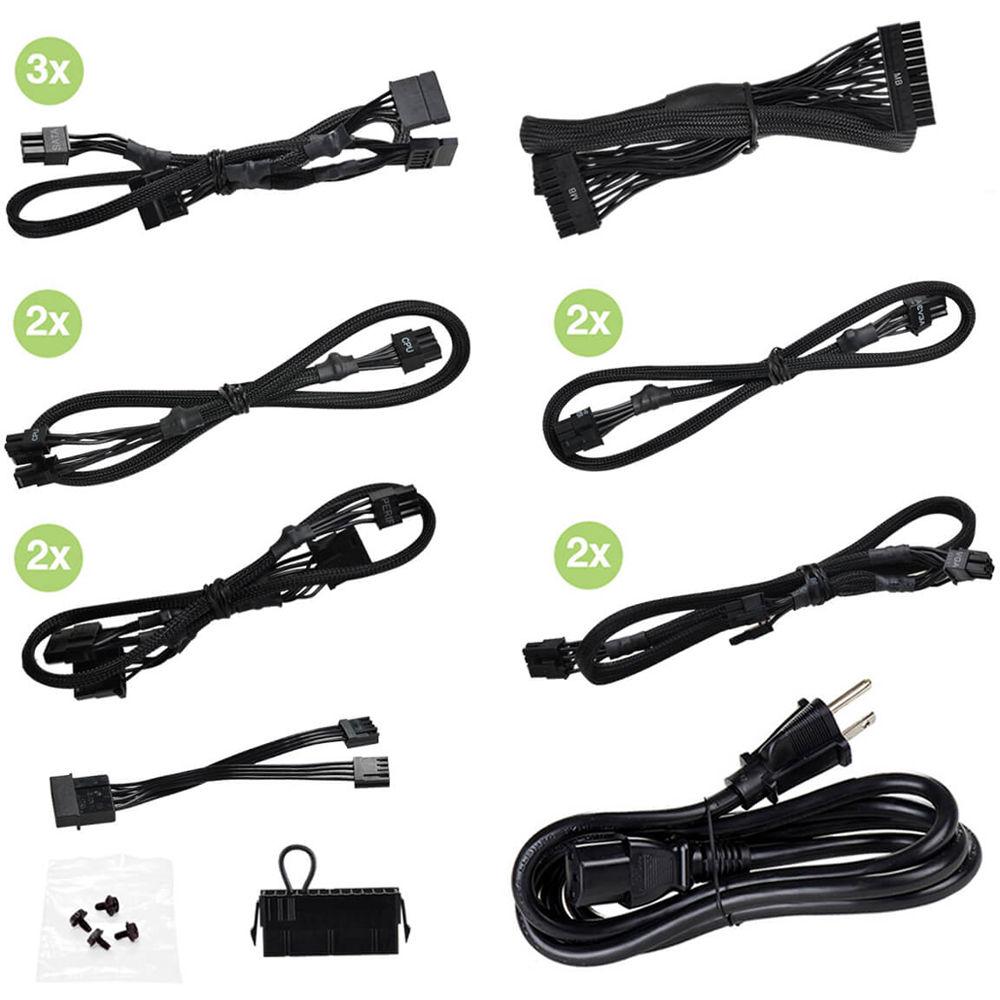

In the Box EVGA SuperNOVA 850 G1+ 850W 80 Plus Gold Modular Power Supply ATX Cable 2 x EPS (CPU) Cable 4 x PCIe Cables 3 x SATA Cables 2 x 4-Pin Peripheral Cables Floppy Adapter Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA SuperNOVA 850 G1 850W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

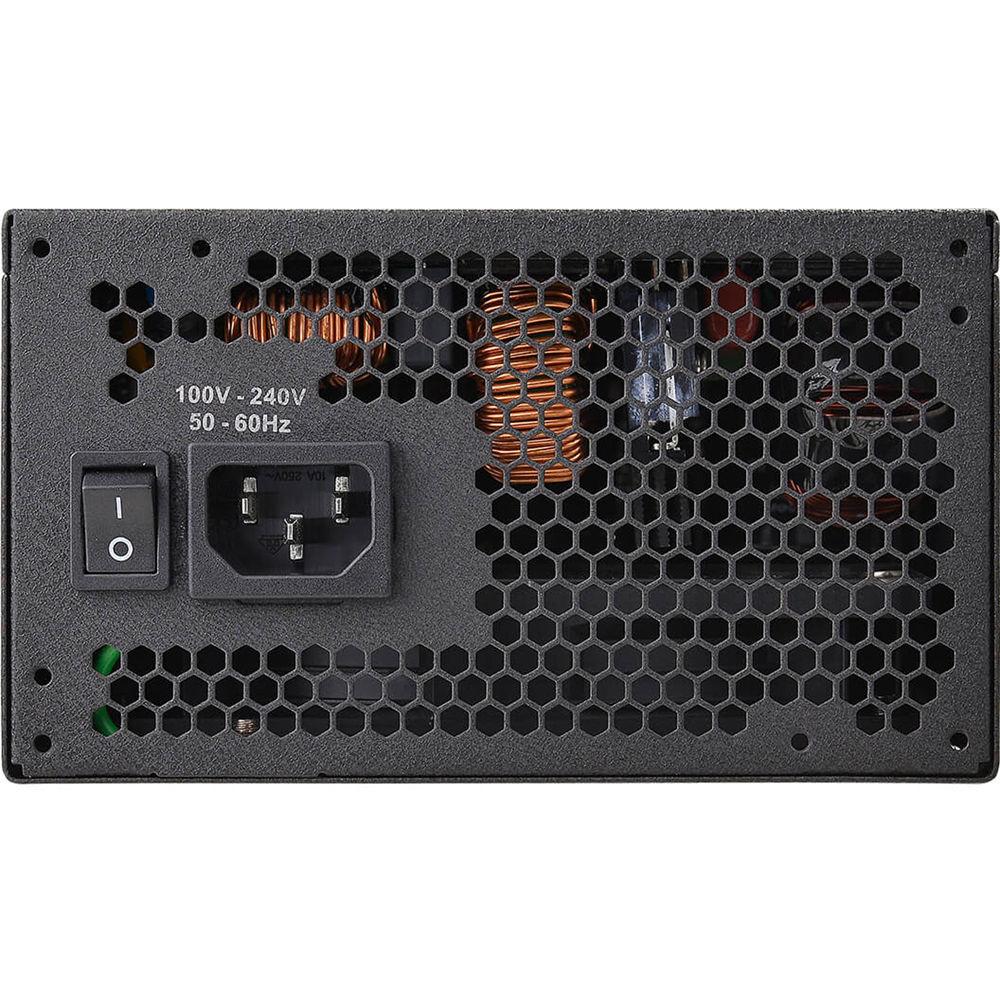

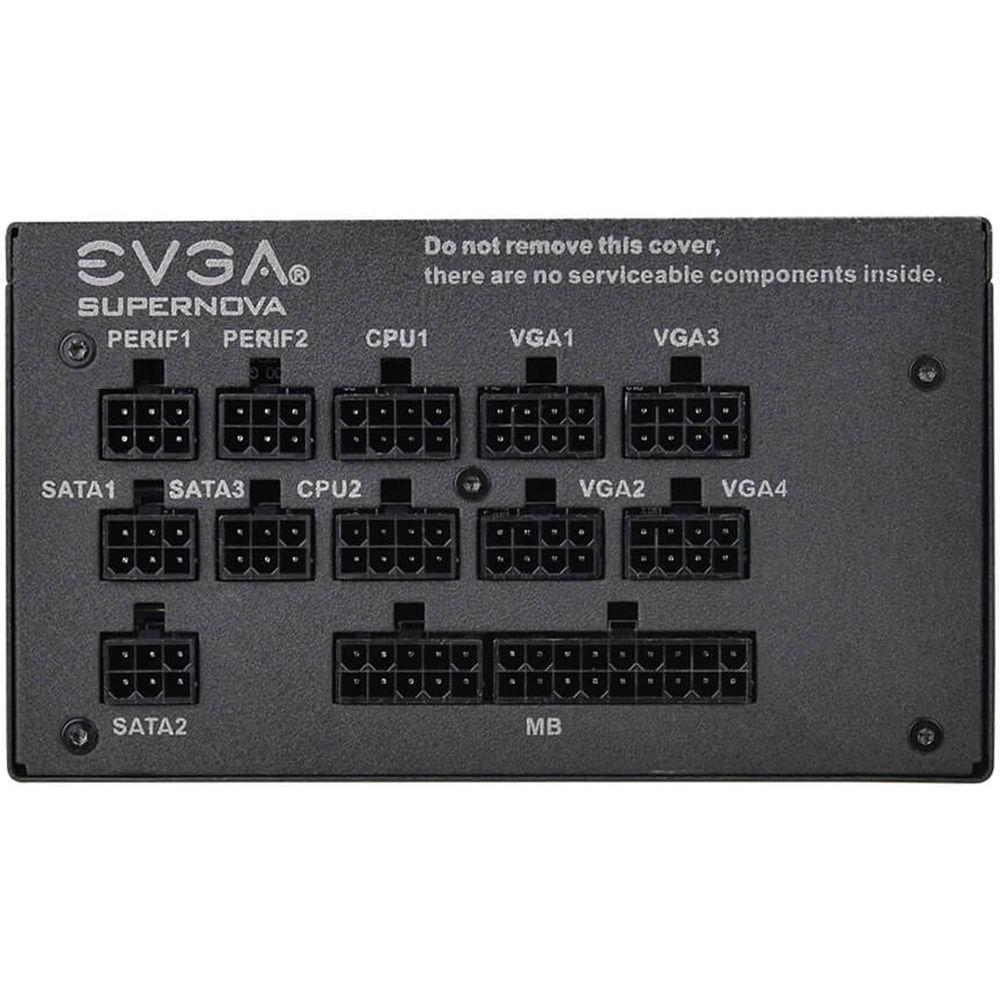

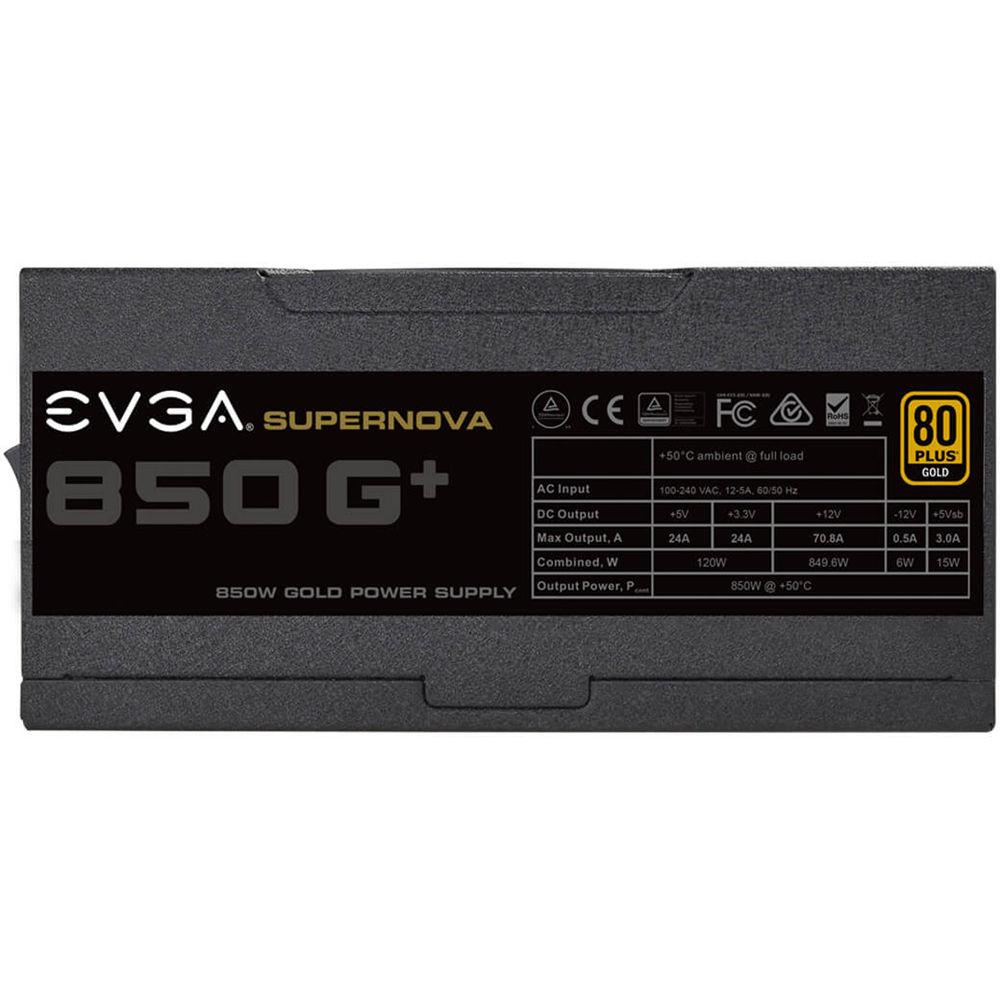

Technical parametersEVGA 120-GP-0850-X1 Specs Form Factor | ATX | Input Voltage | 100 - 240 VAC | AC Input | 12 - 5 A | Input Frequency Range | 50 - 60 Hz | Cable Length | ATX: 1 x 23.62" / 600 mm EPS: 2 x 25.59" / 650 mm PCIe: 2 x 25.59" / 650 mm PCIe: 2 x 25.59, 29.53" / 650, 750 mm SATA: 3 x 21.65, 25.59, 29.53" / 550, 650, 750 mm 4-Pin Peripheral: 2 x 21.65, 25.59, 29.53"/ 550, 650, 750 mm AC: 1 x 59.06" / 1500 mm | Connectors | 1 x 24-pin ATX 2 x 8-pin (4+4) EPS (CPU) 6 x 8-pin (6+2) PCIe 9 x SATA 6 x 4-pin peripheral 2 x Floppy | Output | +3.3 V - 24 A +5 V - 24 A 120 W +12V - 70.8 A 849.6 W +5 Vsb - 3 A 15 W -12 V - 0.5 A 6 W | Fan | 135 mm Fluid dynamic bearing | MTBF (Approx.) | 100,000 hours | | Operating Temperature | 32 to 122°F / 0 to 50°C | | 80 PLUS Certification | 80 Plus Gold | Dimensions (H x W x L) | 3.35 x 5.91 x 7.09" / 85 x 150 x 180 mm | Weight | 7 lb / 3.18 kg |
