User Manual for EVGA X299 FTW-K LGA 2066 E-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the EVGA X299 FTW-K LGA 2066 E-ATX
- Product category: Motherboards EVGA
- Brand: EVGA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EVGA Motherboards
 |
User manual for the EVGA X299 FTW-K LGA 2066 E-ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EVGA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EVGA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EVGA product will considerably shorten its lifespan!
|

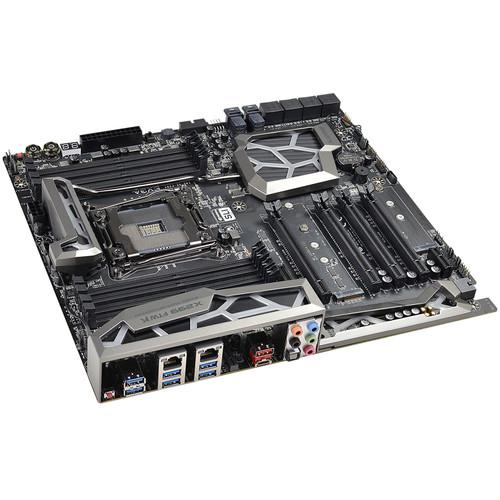

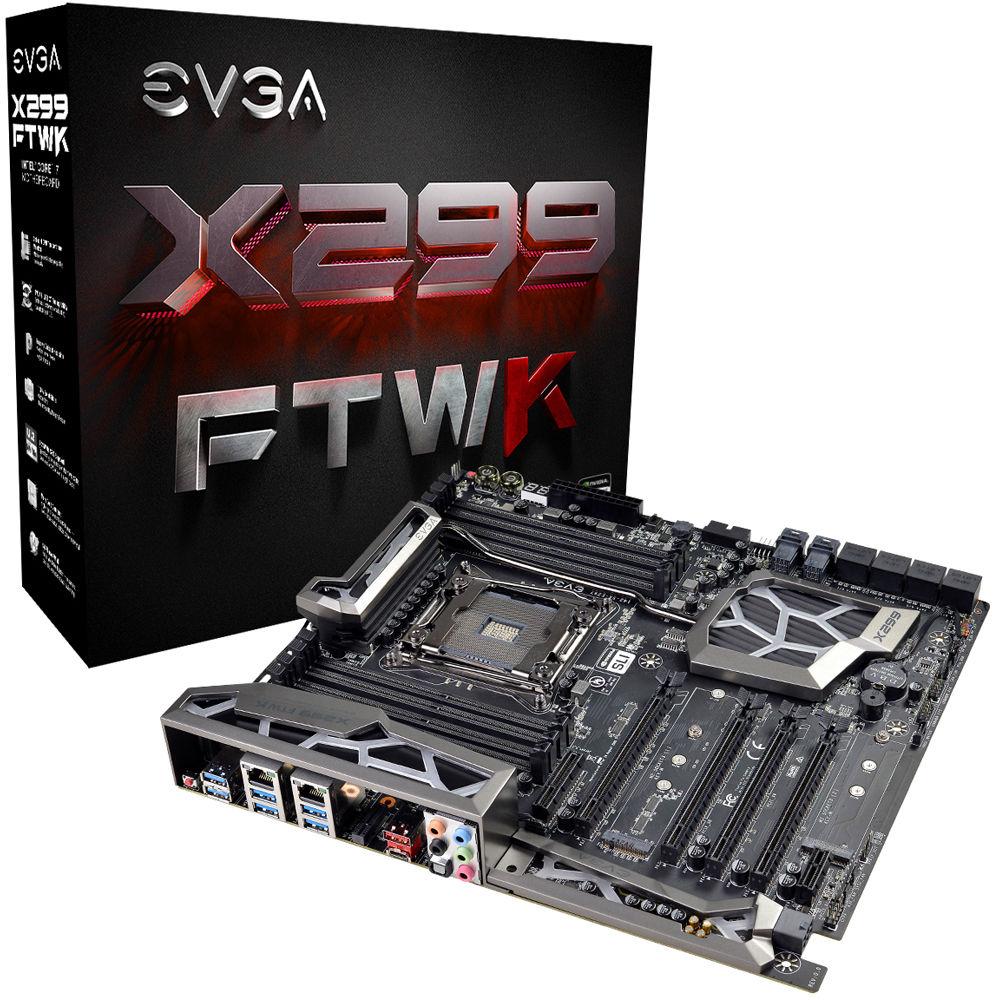

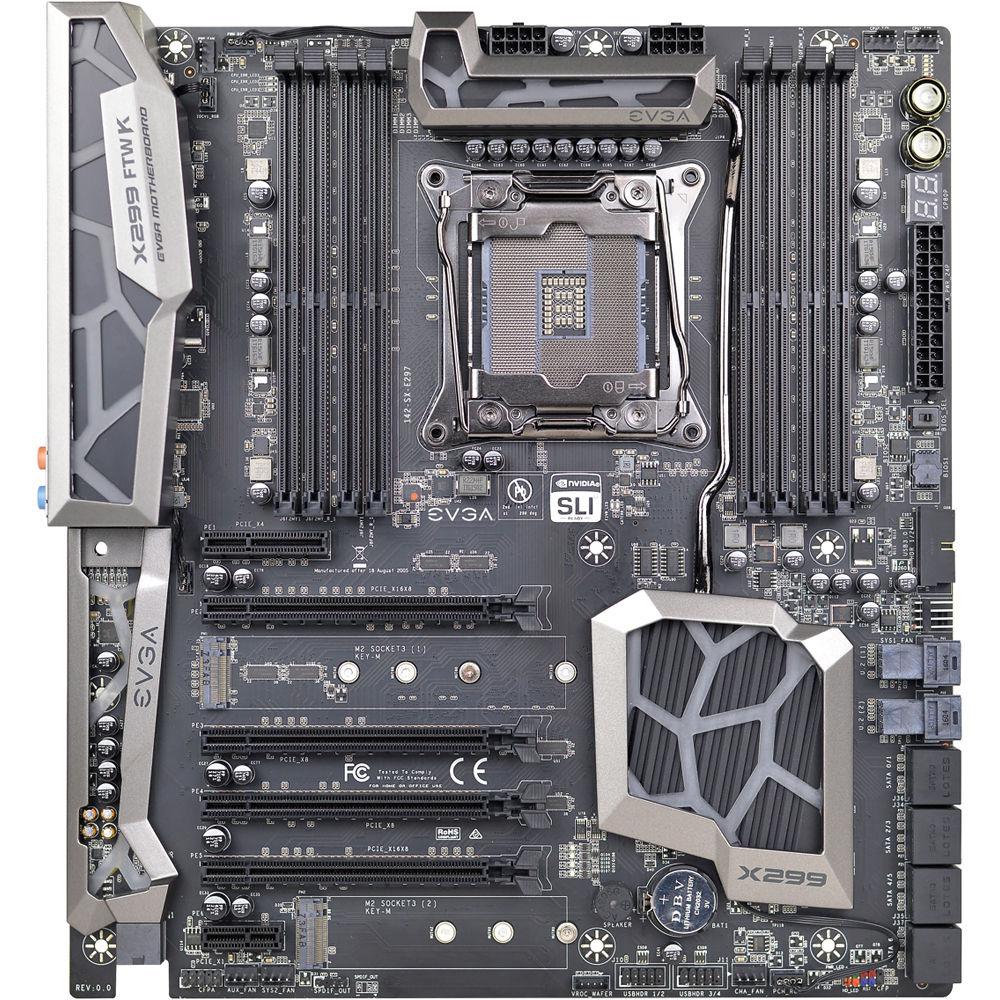

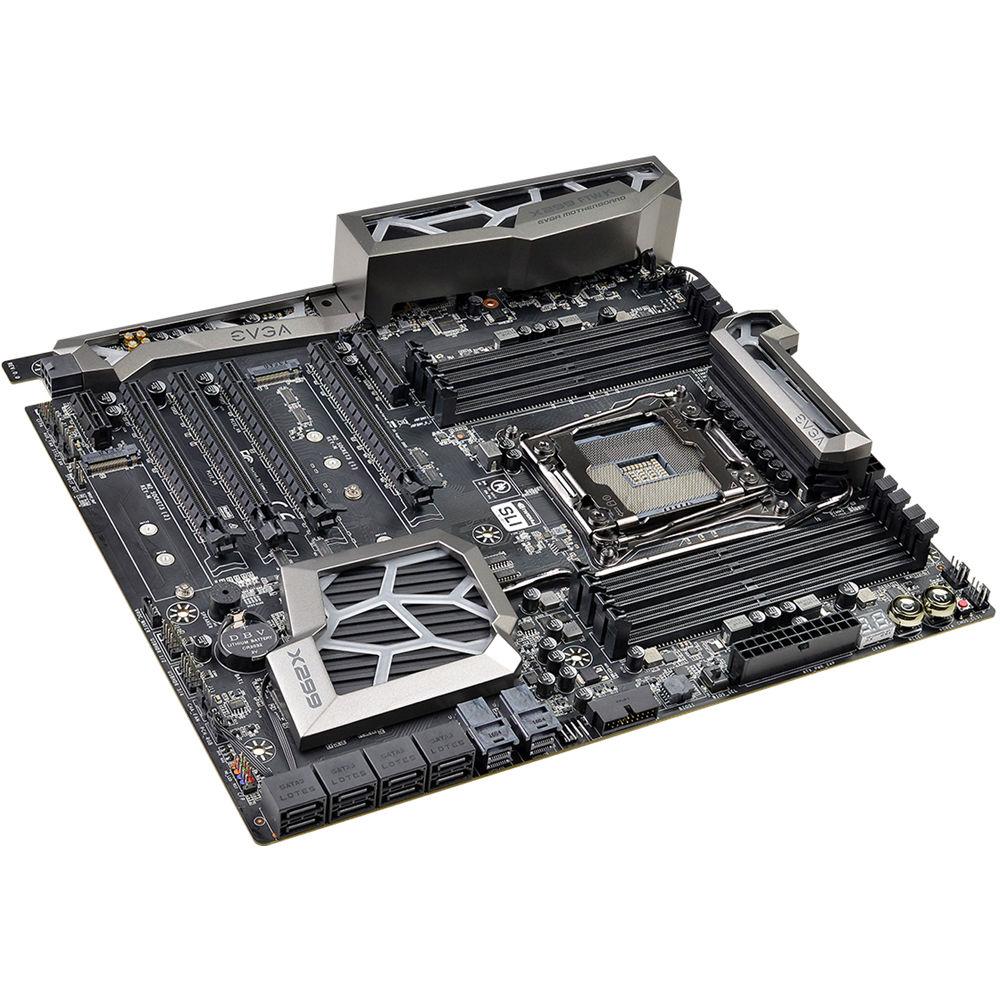

Product description The X299 FTW-K LGA 2066 E-ATX Motherboard from EVGA is built on the Intel X299 chipset supporting 7th generation Intel X-series processors. It has eight memory slots for quad-channel 4000 MHz DDR4 RAM, four PCIe x16 slots, one PCIe x4 slot, one PCIe x1 slot, eight SATA III headers, two U.2 ports, and three M.2 slots. With four PCIe x16 slots, this motherboard can support up to three-way NVIDIA SLI configurations for added performance. As for storage, SATA provides you with plenty of space whereas U.2 and M.2 offers faster speeds of up to 32 Gb/s. Other integrated features include multiple fan headers, USB ports, Killer 2500 and Intel i219 Gigabit Ethernet, and Realtek ALC1150 7.1-channel HD audio. -
- Full, easy-to-use UEFI GUI BIOS interface
- Optional E-LEET Tuning utility software for overclocking
- U.2 and M.2 storage connectivity
- 14-phase PWM for stable overclocking
- Higher gold content in CPU socket for better power delivery
- Onboard CPU temperature monitor
- Passive chipset heatsink
- 8-layer PCB for durability sand stability
- Onboard Power and CMOS Reset buttons

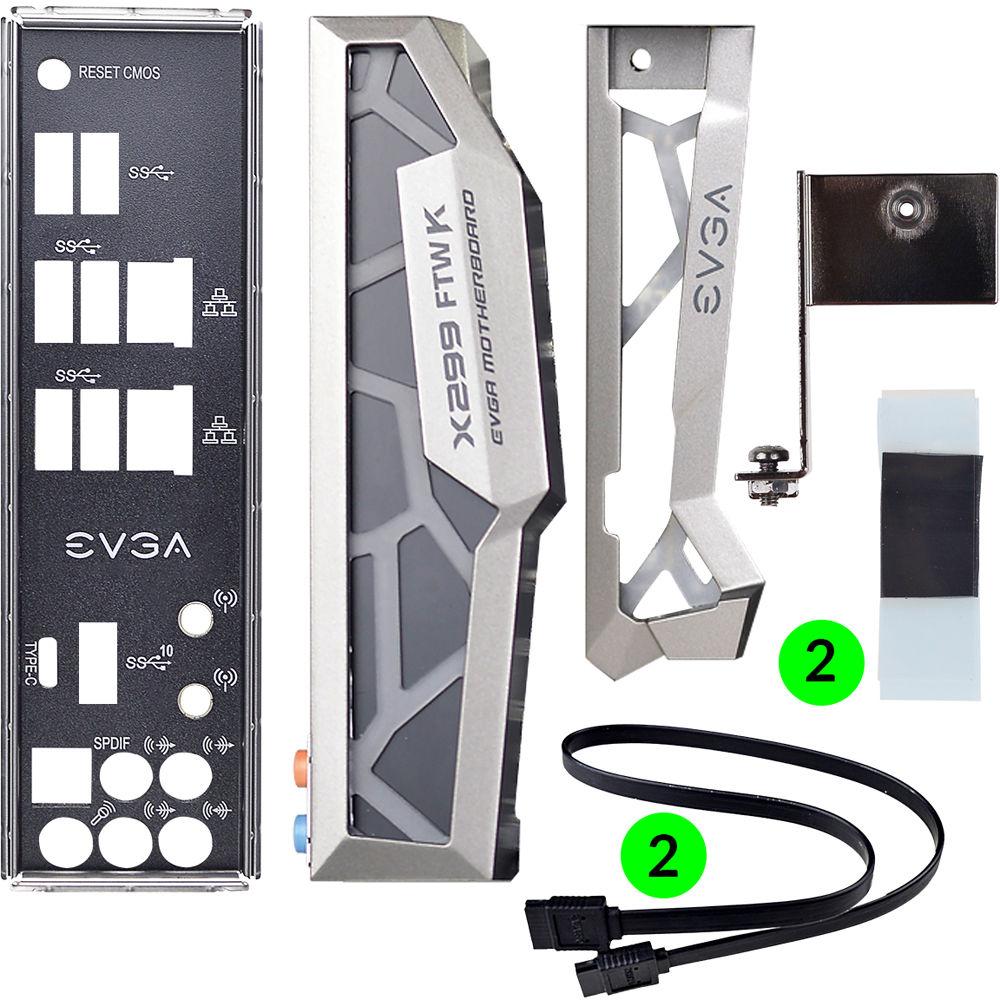

UPC: 843368049492 In the Box EVGA X299 FTW-K LGA 2066 E-ATX Motherboard Rear Case I/O Panel Rear Case I/O Cover Rear Case Audio Cover 2 x SATA 6 Gb/s Cable Vertical Adapter for M.2 Key-E 2 x Thermal Pads for M.2 SSDs Case Badge Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA X299 FTW-K LGA 2066 E-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA X299 FTW-K Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 6 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 2 Type-C
1 x USB 3.1 Gen 2 Type-A | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Killer Killer E2500 Gigabit
1 x Intel i219 Gigabit | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 4000, 4133 MHz | | Maximum Capacity | 128 GB | | Channel Architecture | Quad Channel | | | | SATA | 8 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110
1 x M Key 2242, 2260, 2280 | | U.2 | 2 | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2) | | | | Expansion Slots | 4 x PCIe 3.0 x16
1 x PCIe x4
1 x PCIe x1 | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
2 x USB 3.1 Gen 1 Header (Supports 1 USB Type-A Ports) | | Multi-GPU Support | 3-Way NVIDIA SLI | | Air Cooling | 7 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
2 x 8-Pin CPU | | Audio | None | | Diagnostics | 2-Digit Debug LED, Clear CMOS, Power | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | Realtek ALC1150 (7.1-Channel) | | | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | E-ATX | | Dimensions | 12 x 10.375" / 304.80 x 263.52 mm | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 14.0 x 12.5 x 3.5" |
