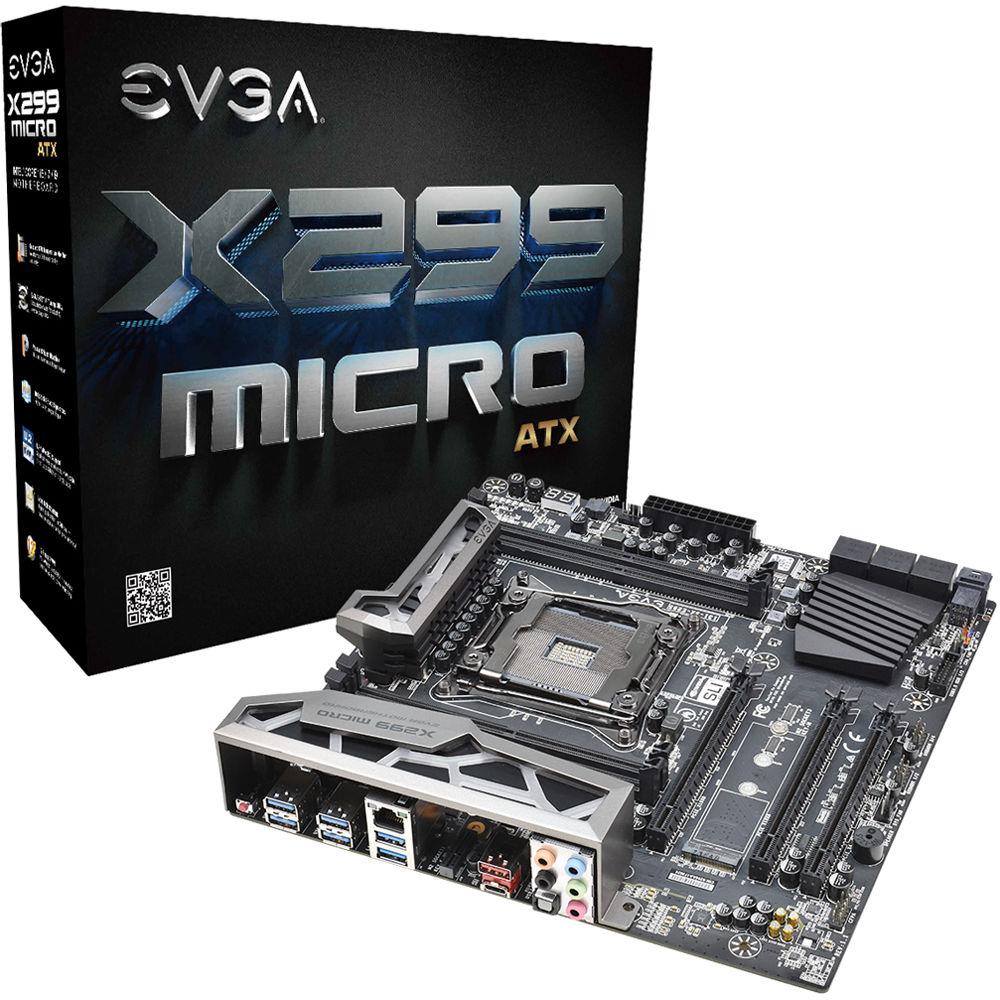

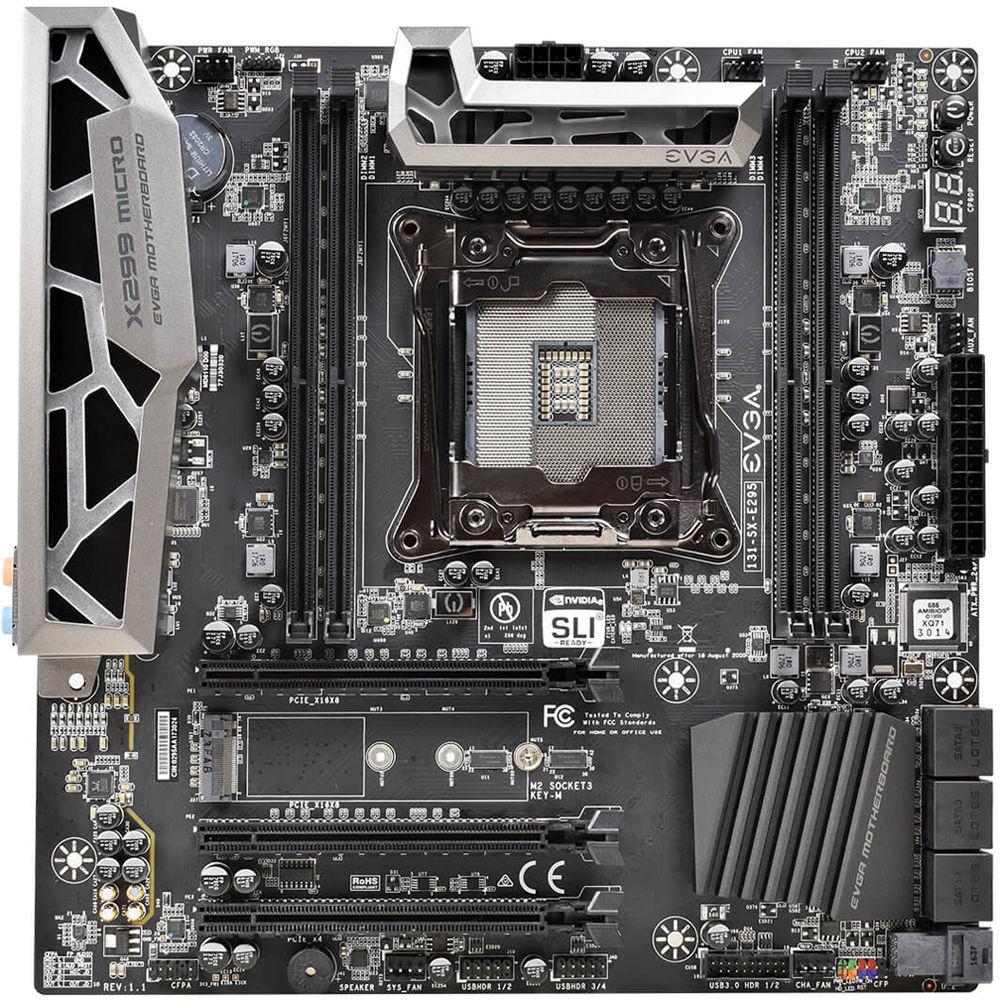

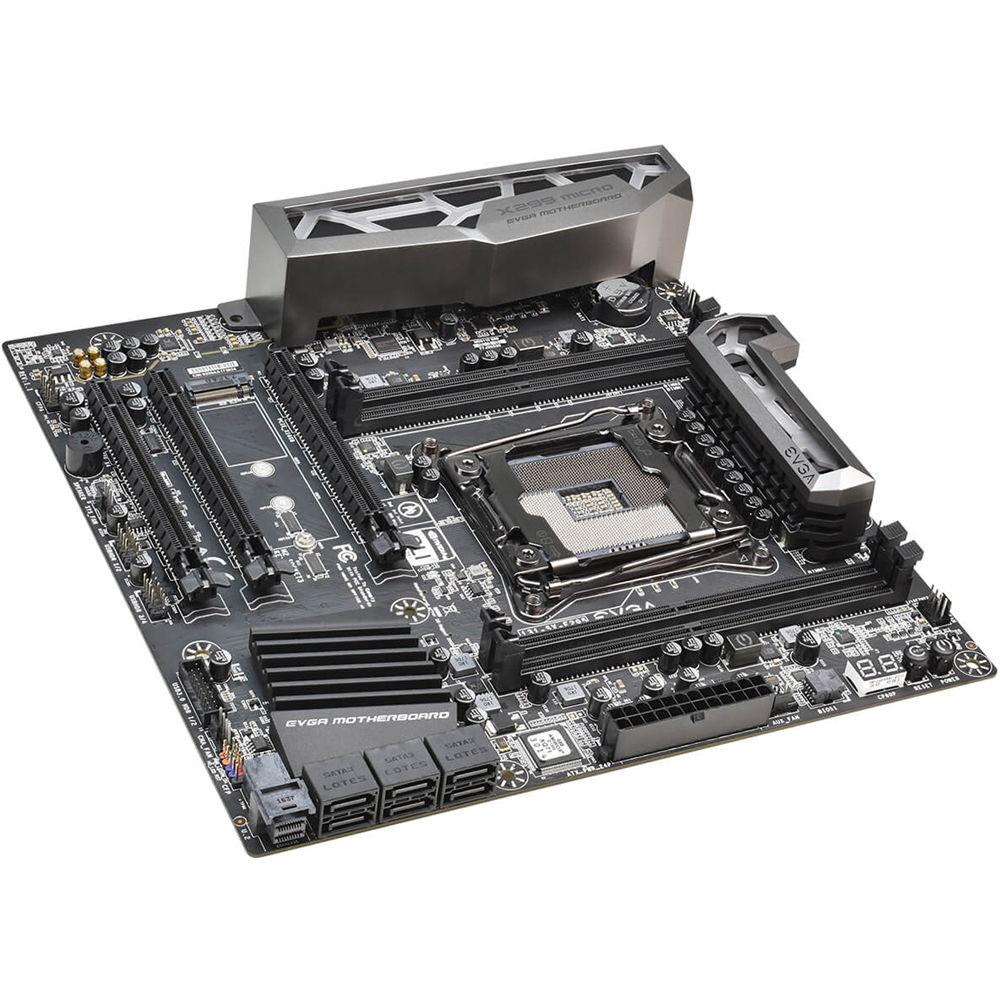

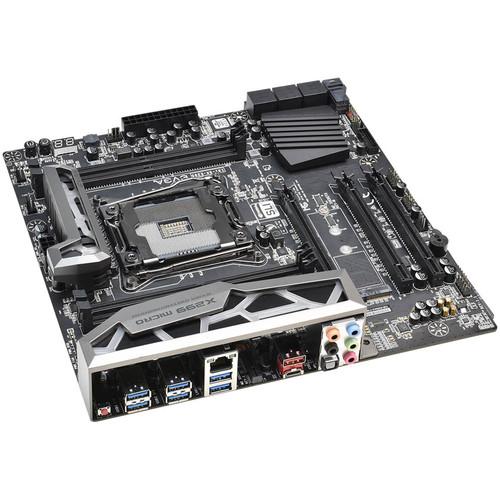

Product description Designed for overclockers and games, the X299 Micro LGA 2066 Micro-ATX Motherboard from EVGA supports Intel Skylake-X and Kaby Lake-X processors, along with U.2 and M.2. PCIe SSDs and Intel Optane Memory. It is designed to fit in micro-ATX sized cases, supports the LGA 2066 socket, the Intel X299 chipset, and is compatible with Windows 10 (64-bit).
The micro-ATX form factor of the X299 Micro can support 64GB of DDR4 RAM, or 16GB in each of the four 288-pin DIMM slots at memory speeds of 4000+ MHz (OC). It also has a total of 6 x SATA III 6 Gb/s ports that support hot plug and RAID 0, 1, 5, and 10, plus 1 x M.2 Socket 3 2242/2260/2280 Key M slot that supports NVMe PCIe and SATA SSDs, and 1 x U.2 slot (PCIe 3.0 x4). There is also one USB 3.1 Gen 2 Type-C port, one USB 3.1 Gen 2 Type-A port, and six USB 3.1 Gen 1 Type-A ports, all external at the back panel, as well as one USB 3.1 Gen 1 header (supports two ports), and two USB 2.0 headers (supports four ports), all internal. For those looking to expand their system using PCIe, there are two PCIe Gen 3.0 x16 (x16) slots and one PCIe Gen 3.0 x16/x4 slot.
The X299 Micro does not support integrated graphics or have any video outputs, meaning that users will need to purchase a dedicated and compatible GPU of their choice. Once that GPU is installed, multi-GPU support is possible with 2-Way NVIDIA SLI + PhysX technology and 2-Way AMD CrossFire technology. Using the Realtek ALC1150 audio codec with 7.1-channel HD surround, this motherboard delivers audio with high fidelity, which can be output using the five integrated 3.5mm audio jacks or one optical S/PDIF output. Network connectivity can be achieved using the Intel i219V Gigabit Ethernet jack, or use the included 802.11ac Wi-Fi adapter in the M.2 Key E slot, which combined with Bluetooth 4.1 for pairing wireless peripherals such as keyboards, mice, headsets, and more.
EVGA's X299 Micro LGA 2066 Micro-ATX Motherboard includes an a rear case I/O panel, a rear case I/O cover, two SATA III data cables, an 802.11ac dual-band M.2 Key E Wi-Fi adapter, an M.2 thermal pad, enthusiast stickers, and a case badge. This motherboard is protected by a limited 3-year warranty.
Please note that RAM and PCIe availability and speeds depend upon the number of lanes on the installed Kaby Lake-X or Skylake-X CPU. The above info is based on a 44-lane Skylake-X CPU. Additional info is available on EVGA's site. General Features - Intel X299 Express Chipset
-
- Supports up to 36 CPU threads (18-Core/18 HT)
- Supports four 288-pin quad-channel DDR4 DIMMs up to 64GB with Skylake-X and up to two 288-pin DDR4 DIMMs in dual-channel mode with Kaby Lake-X
- Supports DDR4 up to 4000+ MHz for Skylake-X and 4133+ MHz for Kaby Lake-X
- Intel Extreme Series with PCIe Gen 3.0 from PCH
- Intel Optane Memory Ready
- Be fully prepared to install Intel's storage solution that uses 3D XPoint architecture.
- Built-In U.2
- This next-gen storage interface supports up to 32 Gb/s of bandwidth.
- M.2 Wi-Fi
- An M.2 Key-E Wi-Fi controller and a vertical mounting adapter are included.
- USB 3.1 Gen 2 Type-A and Type-C
- Connect to compatible peripherals and devices at speeds up to 10 Gb/s with USB 3.1 Gen 2 Type-A and Type-C connections.
- High Gold Content for the CPU Socket
- A higher volume of precious metal used in the socket improves conductivity and produces a cleaner signal due to less resistance and impedance.
- Onboard Power, Reset, and CMOS Buttons
- The power, reset, and CMOS reset button are built into the X299 Micro, so you don't need to worry about wiring the board to a case when testing or benching in open-air environments. The reset button is located in the I/O panel.
Key Features - Onboard Power, Reset, and Clear CMOS
- EVGA E-LEET X Tuning Utility
- M.2 NVMe PCIe SSD support
- Intel Optane Memory ready
- BIOS switchable DC / PWM fan control to switch four 4-pin PWM headers to four 3-pin DC headers
- Onboard CPU temperature monitor

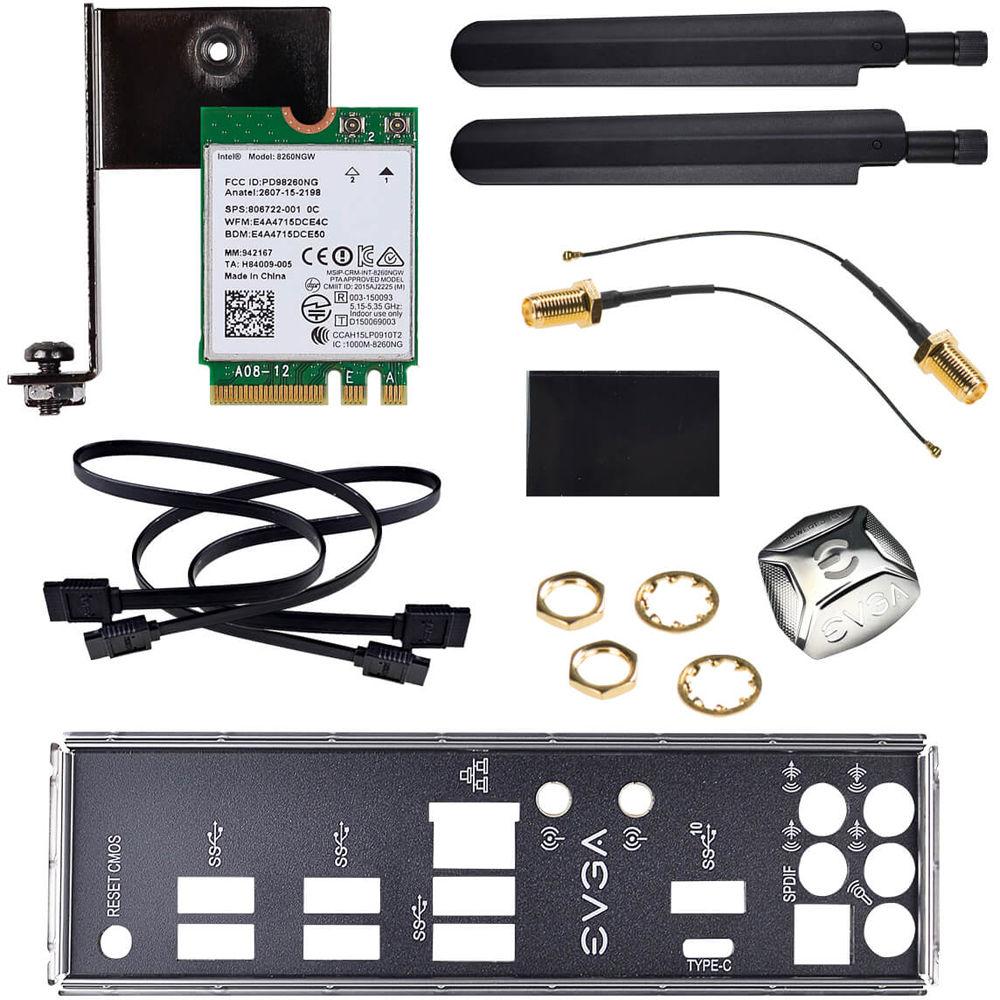

UPC: 843368049485 In the Box EVGA X299 Micro LGA 2066 Micro-ATX Motherboard 2 x SATA III 6 Gb/s Cables M.2 Key-E 802.11ac Dual Band Wi-Fi and Vertical Adapter M.2 Thermal Pad Rear Case I/O Panel Rear Case I/O Cover Enthusiast Stickers Case Badge Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA X299 Micro LGA 2066 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA X299 Micro Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 1 x USB 3.1 Gen 2 Type-C
1 x USB 3.1 Gen 2 Type-A
6 x USB 3.1 Gen 1 Type-A | | Display | None | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 1 x Intel i219v Gigabit | | Wi-Fi Antenna | 1 x Connector | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 4000 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Quad Channel | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x E Key | | U.2 | 1 | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode) | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way NVIDIA SLI
2-Way AMD CrossFireX | | Air Cooling | 6 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | LED Header | 1 x RGB | | Audio | 1 x Speaker | | Diagnostics | Clear CMOS, Power, Reset | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC1150 (7.1-Channel) | | | | Bluetooth | 4.1 | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 9.6" / 243.84 x 243.84 mm | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 3.0" |
