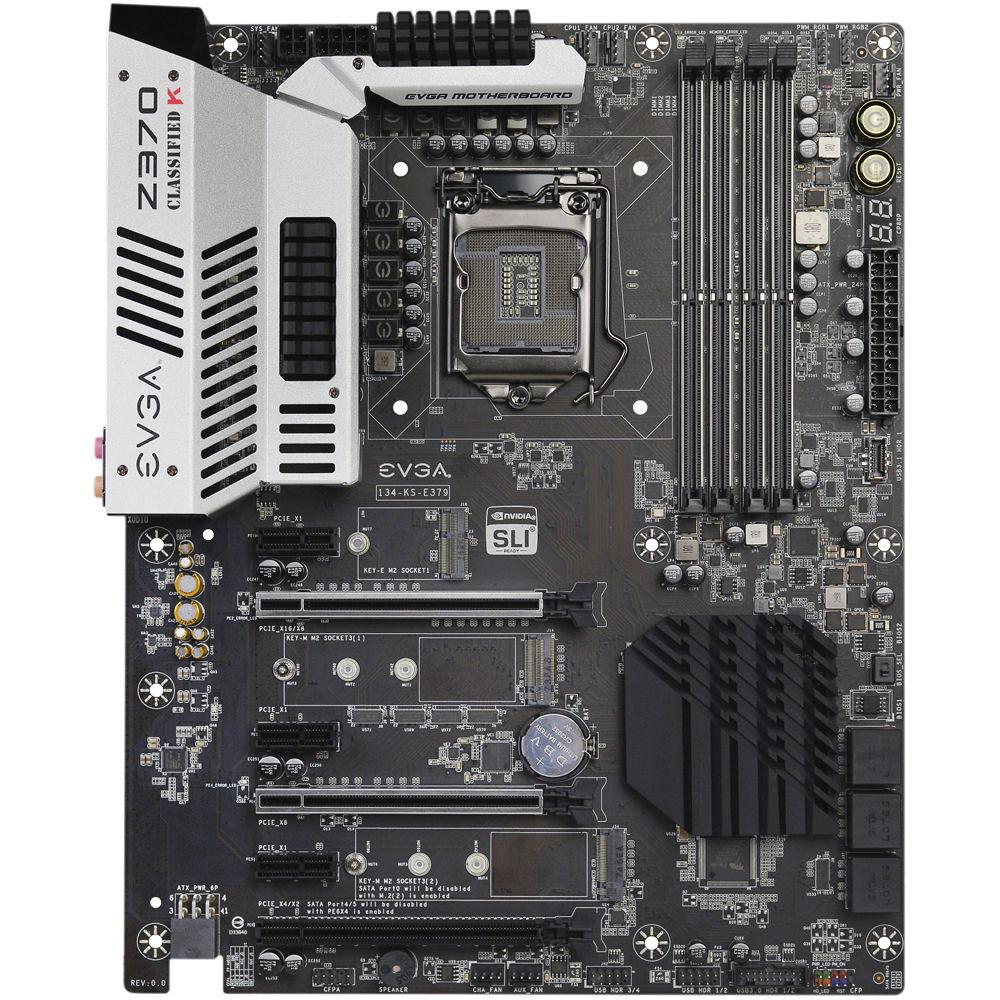

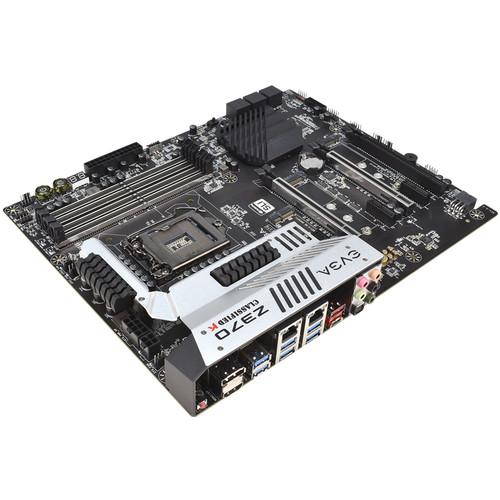

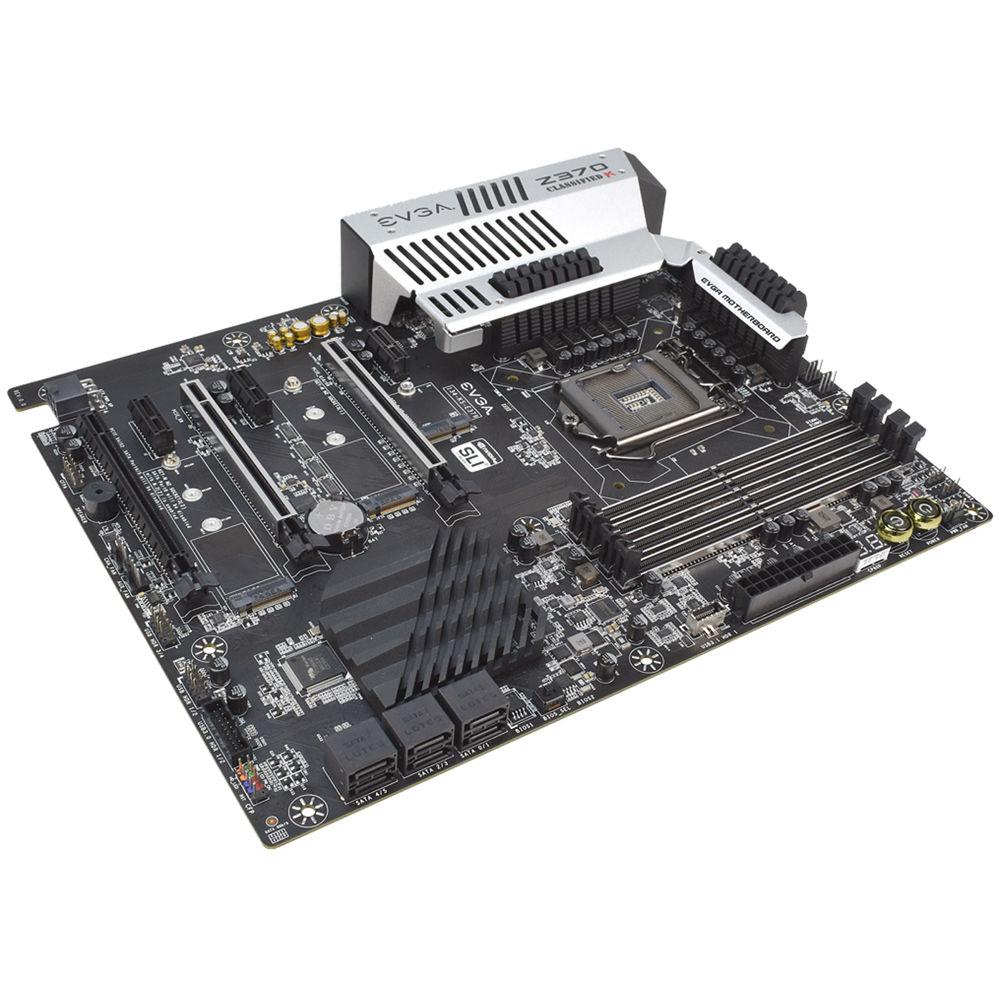

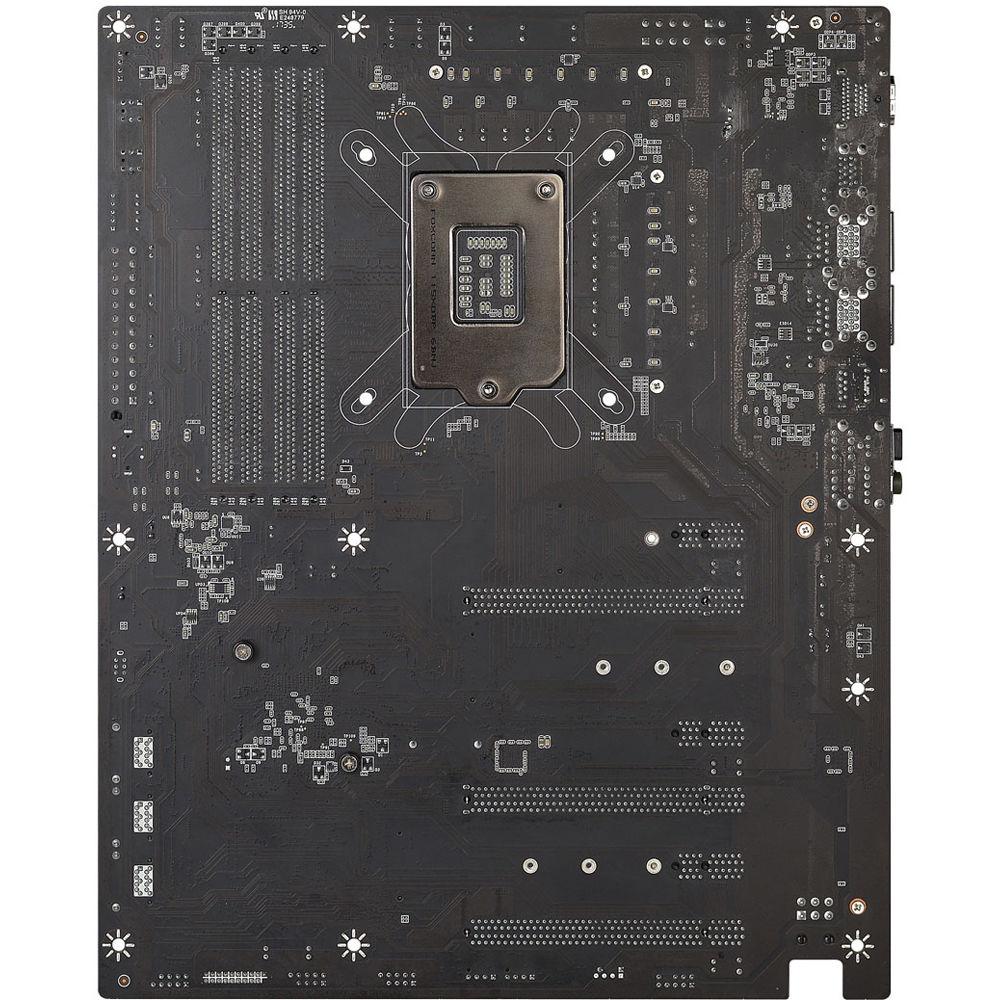

Product description Built to bring mainstream performance to higher levels, the Z370 Classified K LGA 1151 ATX Motherboard from EVGA is designed to provide users with power and stability. This motherboard is designed to fit in ATX sized cases, supports the LGA 1151 socket, the Intel Z370 chipset, and is compatible with Windows 10 (64-bit).
The ATX form factor of the Z370 Classified K can support 64GB of DDR4 RAM, or 16GB in each of the four 288-pin DIMM slots at memory speeds of 4133+ MHz (OC). It also has a total of 6 x SATA III 6 Gb/s ports and 2 x M.2 Socket 3 (Key M) slots. Both M.2 slots support 80mm (2280) storage devices and the SATA ports support RAID 0, 1, 5, and 10. There is also one USB 3.1 Gen 2 Type-C port, one USB 3.1 Gen 2 Type-A port, and six USB 3.1 Gen 1 Type-A ports, all external at the back panel, as well as one USB 3.1 Gen 2 header, one USB 3.1 Gen 1 header (supports two ports), and two USB 2.0 headers (supports four ports), all internal. For those looking to expand their system using PCIe, there is one PCIe Gen 3.0 x16 (x16) slot, one PCIe Gen 3.0 x16 (x8) slot, one PCIe 3.0 x16 (x4) slot, and three PCIe 2.0 x1 slots.
The Z370 Classified K supports integrated graphics from the processor, and this video can be output using the DisplayPort 1.2 and HDMI 2.0 outputs. Dedicated graphics are also supported, and once that GPU is installed, multi-GPU is possible with 2-Way NVIDIA SLI + PhysX technology and 2-Way AMD CrossFire technology. Using the Creative Sound Core3D 5.1-channel audio codec, this motherboard delivers audio with high fidelity, which can be output using the five integrated 3.5mm audio jacks or one optical S/PDIF output. Network connectivity can be achieved using the dual Killer NIC E2500 Gigabit Ethernet jacks, or install a Wi-Fi card in the available M.2 Socket 1 Key E (32mm) slot. Included is an I/O shield, two SATA III data cables, a 2-Way SLI Bridge, an M.2 thermal pad, and a case badge. This motherboard is protected by a limited 3-year warranty. General Features - Intel 8th Generation Core i7/i5/i3 Coffee Lake-S Processors
- The Z370 Classified K supports 6-core/12-thread processors, powered by a 13 Phase Digital VRM.
- Intel Optane Memory Ready
- Accelerate your system with Intel's solutions for fast boot times and increased performance for gaming and everyday tasks.
- Reinforced PCIe and DIMM Slots
- Reinforced PCIe and DIMM slots help protect against damage that can be caused by heavy internal components, such as graphics cards and memory.
- Dual BIOS Chips
- Switch between BIOS configurations to use a custom BIOS, troubleshoot a problem, or fix a failed BIOS update.
- Optimized Power Connector Layout for Cable Management
- EVGA Z370 motherboards feature a layout for some power connectors to avoid compatibility issues with cases and tight spaces.
- Killer DoubleShot Pro
- Killer DoubleShot Pro helps you maintain network performance while gaming or streaming.
- Integrated HDMI 2.0 & DisplayPort 1.2
- The EVGA Z370 Classified K features an HDMI 2.0 port and DisplayPort 1.2 port to allow 4K gaming or streaming at 60 fps with supported Intel HD Graphics.
- External Clock Generator
- The EVGA Z370 Classified K features an external clock generator to improve overclocking stability and increase your overall performance.
Key Features - 100% Solid State Capacitors
- Increased Socket Gold Content
- 1x M.2 Key E (32mm) + 2 x M.2 Key M (80mm)
- 2-Way SLI Support + PhysX
- EVGA E-LEETX Tuning Support
- HDMI 2.0 and DisplayPort 1.2
- Intel Optane Memory Ready
- Killer E2500 NIC with DoubleShot Pro
- On-Board Power Button with Integrated Power Light
- On-Board Reset Button with Integrated HDD Activity Light
- Reinforced PCIe and DIMM slots
- Supports Intel Core i3, i5, and i7 Socket 1151 Coffee Lake-S Processors
- USB 3.1 Internal Header for USB Fast Charge Support

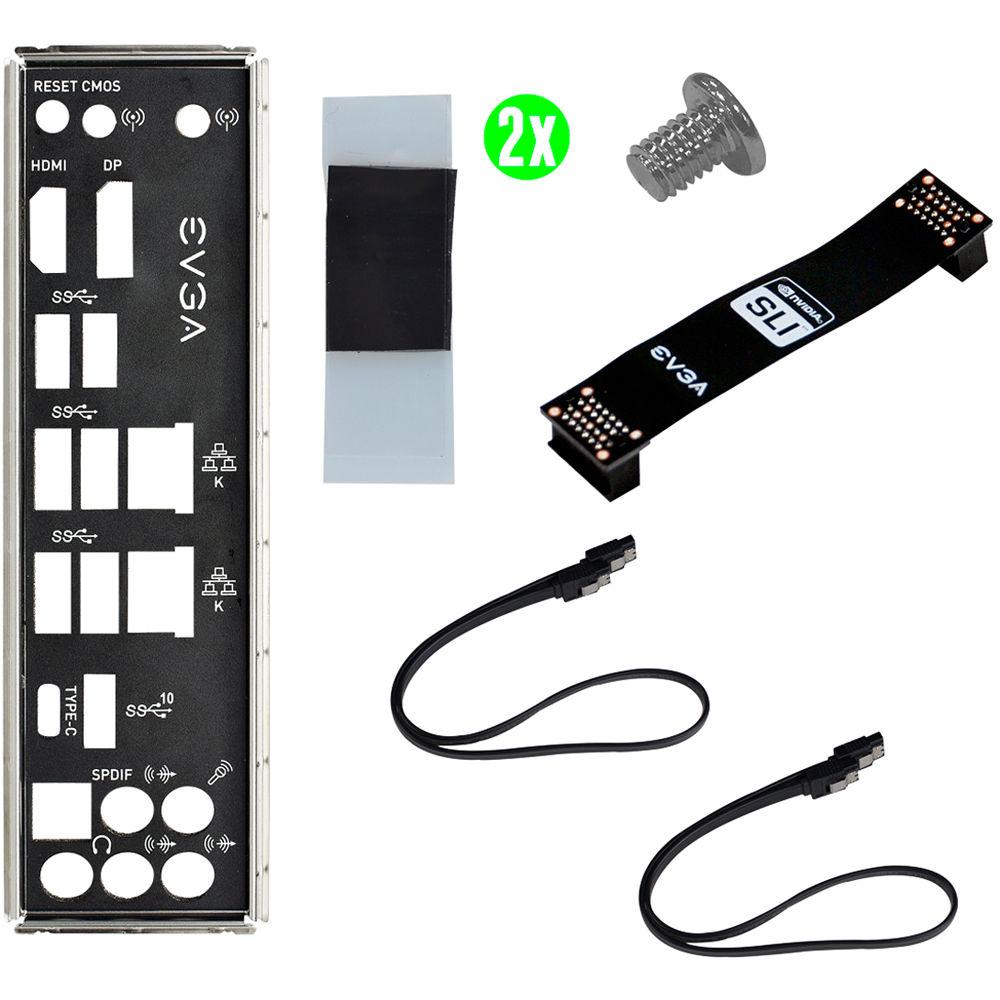

UPC: 843368050818 In the Box EVGA Z370 Classified K LGA 1151 ATX Motherboard 2 x SATA III / SATA II Data Cables 2-Way SLI Bridge M.2 Thermal Pad I/O Shield Case Badge Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA Z370 Classified K LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA Z370 Classified K Specs | | | Chipset | Intel Z370 | | CPU Socket | LGA 1151 | | | | USB | 1 x USB 3.1 Gen 2 Type-C
1 x USB 3.1 Gen 2 Type-A
6 x USB 3.1 Gen 1 Type-A | | Display | 1 x DisplayPort 1.2
1 x HDMI 2.0 | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 2 x Killer NIC E2500 Gigabit | | Buttons | Clear CMOS | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 4133 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | | | SATA | 6 x SATA III | | M.2 | 2 x M Key 2280 | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-A Ports)
1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way NVIDIA SLI
2-Way AMD CrossFireX | | Air Cooling | 6 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 4-Pin CPU
1 x 8-Pin CPU
1 x 6-Pin ATX | | LED Header | 1 x RGB | | Audio | 1 x Speaker | | Diagnostics | Power, Reset | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 30.48 x 24.38 cm | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.5 x 11.0 x 4.0" |
