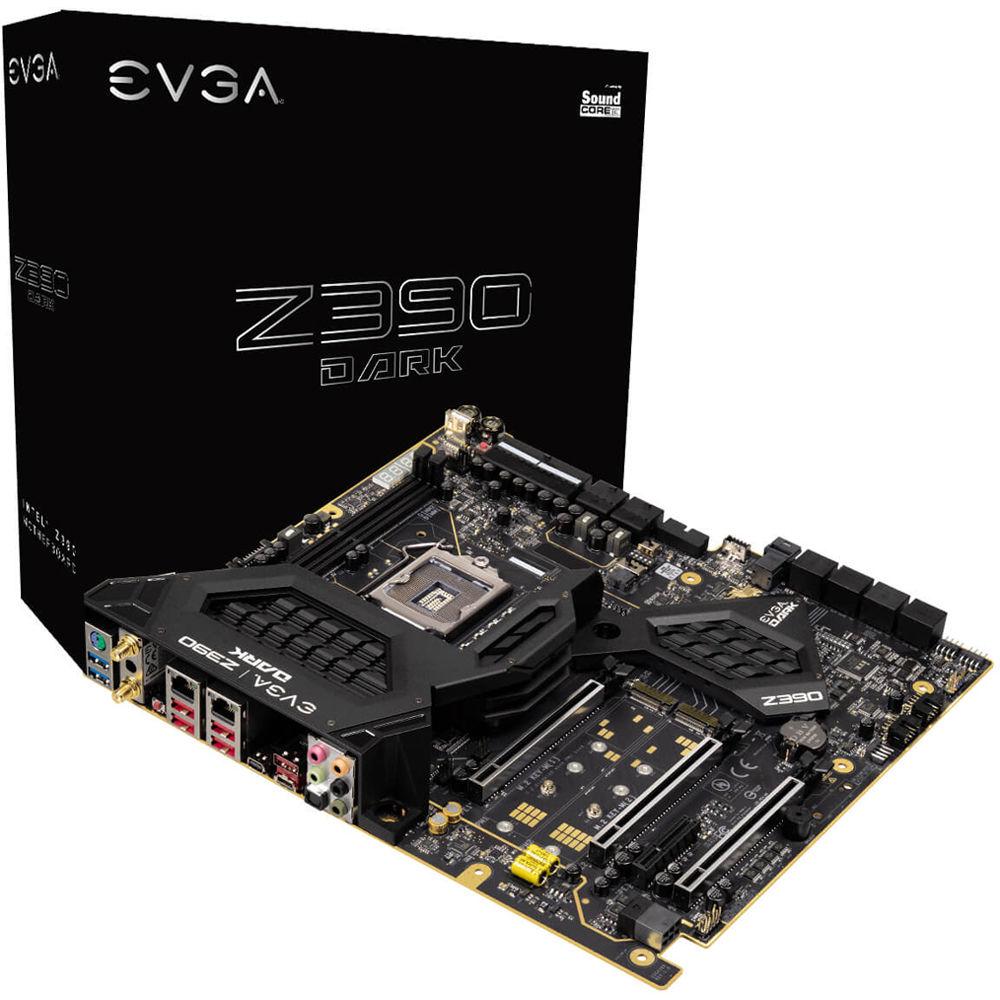

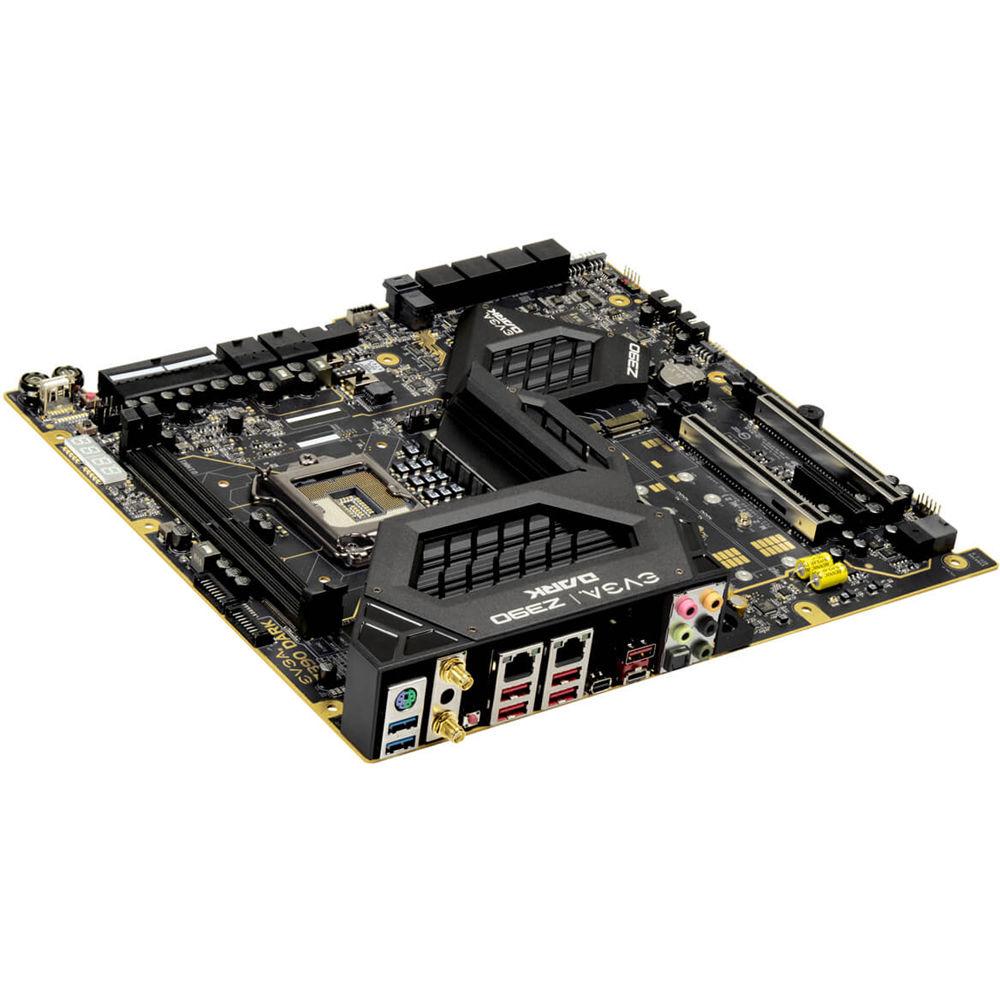

Product description The Z390 Dark LGA 1151 E-ATX Motherboard from EVGA is an enthusiast-level board designed for users mainly looking to overclock and benchmark their hardware. Built with a 17-phase PWM and on the Intel Z390 chipset, it's compatible with 8th and 9th gen Intel Core i3, i5, and i9 Coffee Lake-S LGA 1151 processors, catering more so to high-end i9 CPUs. It's also equipped with two dual-channel DDR4 slots that support up to 32GB of 4600 MHz+ memory, eight SATA III ports, two M.2 slots, one U.2 port, three PCIe x16 slots, and a single PCIe x4 slot. To keep up with the hardware, there are multiple fan headers, temperature sensors, and system monitoring features located throughout the board. - Layout

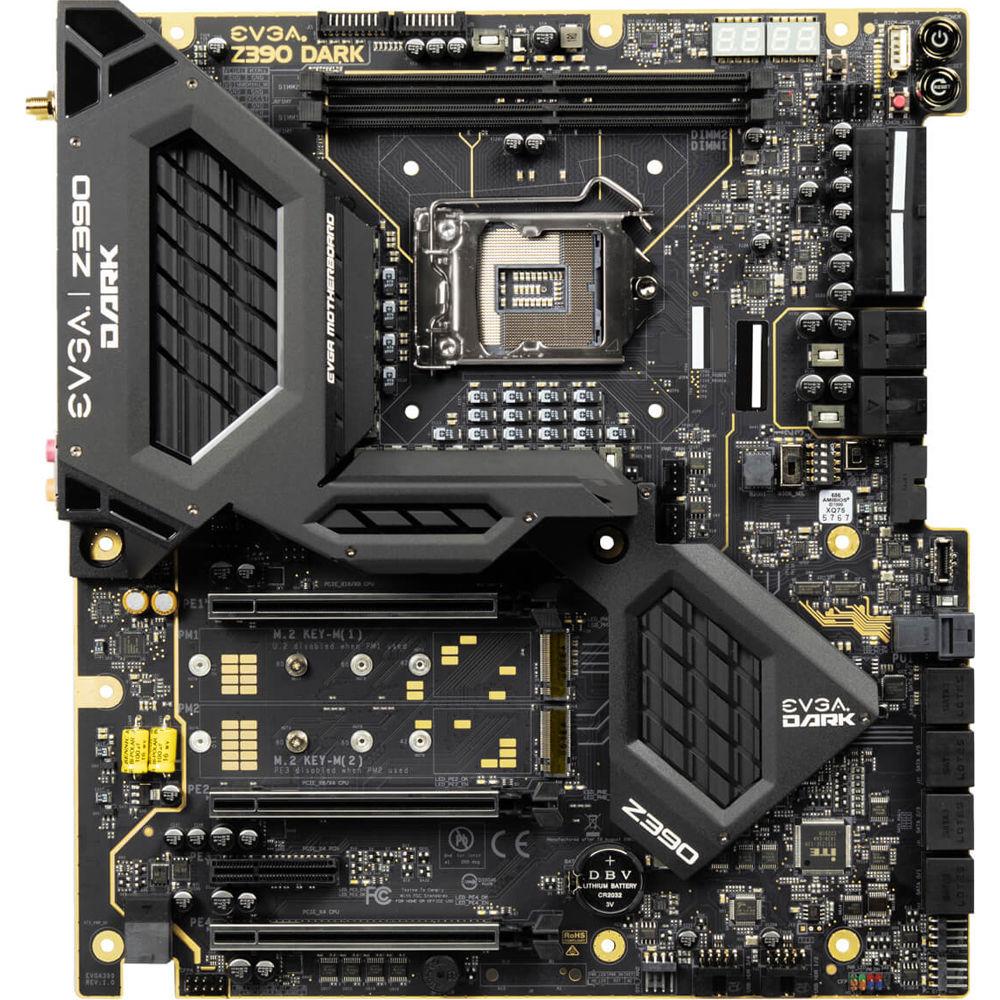

- The Z390 Dark features two eight-pin CPU power connectors alongside the main 24-pin ATX connector placed at right-angles to help cable-management enthusiasts. Moreover, the CPU socket was rotated 90° counter-clockwise, so the memory could be placed at the top of the board. This results in an unobstructed front-to-back airflow for better system cooling without interference from the RAM and power cables.

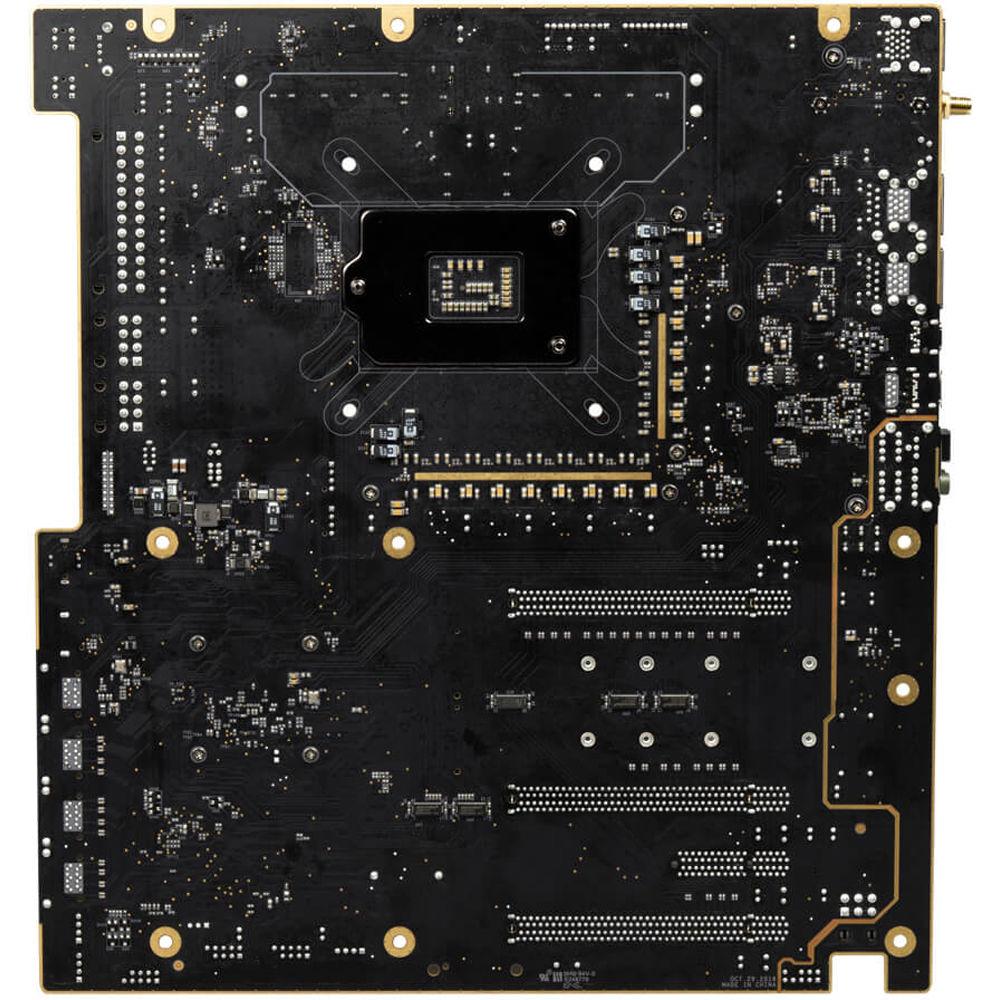

- 10-Layer PCB
- Crafted from 10-layers of PCB with gold-plated shielding, the Z390 Dark is designed for stability, durability, and heavy loads.
- 17-Phase PWM
- The Z390 Dark features a 17-phase Digital VRM (12 VCore, 1 VSA, 1 VCCIO, 2VCT, 1 Phase Memory PWM) for stable power capable of handling Intel Core i9 processors.
- External BCLK / Clock Generators
- The external BCLK controller lets you fine-tune CFL-S system performance and the clock generator for PCIe stability and performance.
- Eight SATA Ports
- Two of the eight ports are controlled by ASMedia ASM1061, which provides limited Windows XP support for benching OS flexibility.
- PCIe Disable Switches
- The PCIe Disable switches lets you quickly turn off PCIe slots to troubleshoot or restore resources without having to physically remove the hardware.
- Triple BIOS Selection Switch
- Have three different BIOS profiles for overclocking, benching, 24/7 use, and switch between them as needed.
- SW Slow Mode Switch
- Lower the CPU ratio to the minimum in real-time reduce heat/power and increase stability between long benching sessions.
- ProbeIT Connectors
- Attach your own digital multimeter to the included ProbeIT adapter to monitor all your voltages in real-time.
- Creative Core3D Audio
- The Creative Core3D Audio quad-core processor provides you with 5.1-channel sound.
- EVGA NU Audio
- EVGA NU Audio is available via the front panel connector for a boost of power and audio quality for headphones or speakers.
- SafeBoot Button
- The SafeBoot button restarts the system into BIOS at safe settings in case the boards fails to POST.
- Additional Features
- 2 x M.2 M-Key 110mm slots
1 x M.2 E-Key slot
Intel Optane Ready
1 x U.2 NVMe Port
1 x mini DisplayPort
USB BIOS Flash without a CPU
Post Indicator LEDs

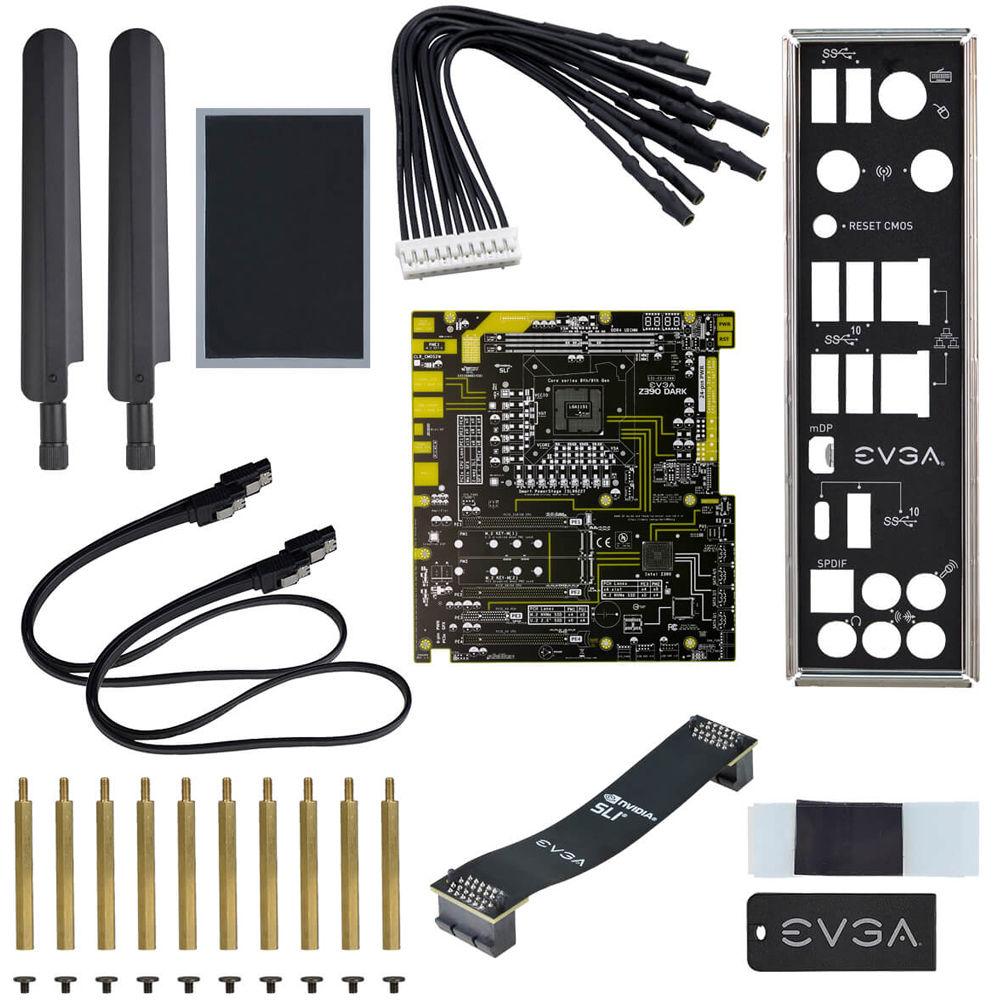

PCIe / DIMM Status LEDs UPC: 843368058876 In the Box EVGA Z390 Dark LGA 1151 E-ATX Motherboard Limited 3-Year Warranty Spec sheet PDF 360.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the EVGA Z390 Dark LGA 1151 E-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVGA Z390 Dark Specs | | | Chipset | Intel Z390 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
5 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Thunderbolt | None | | Display | 1 x Mini DisplayPort | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 2 x Intel Gigabit | | PS/2 | 1 x PS/2 | | Wi-Fi Antenna | 2 x Connector | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 4600 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 8 x SATA III | | M.2 | 2 x 22110 (PCIe 3.0 x4) | | U.2 | 1 | | Optane Memory Support | Yes | | | | Expansion Slots | 3 x PCIe x16
1 x PCIe x4 | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-C Ports)
1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | 2-Way NVIDIA SLI | | Air Cooling | 2 x 4-Pin CPU
6 x 4-Pin Assistant | | Power Connectors | 1 x 24-Pin Mainboard
2 x 8-Pin CPU | | Audio | None | | Diagnostics | 2-Digit Debug LED, Clear CMOS, PCIe Selection, Power, Reset, Safe Boot, Slow Mode | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Creative Sound Core3D (5.1-Channel) | | | | Bluetooth | 5.0 | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Module Support | 1 E Key M.2 | | | | Package Weight | 5.355 lb | | Box Dimensions (LxWxH) | 13.9 x 12.4 x 3.6" |
