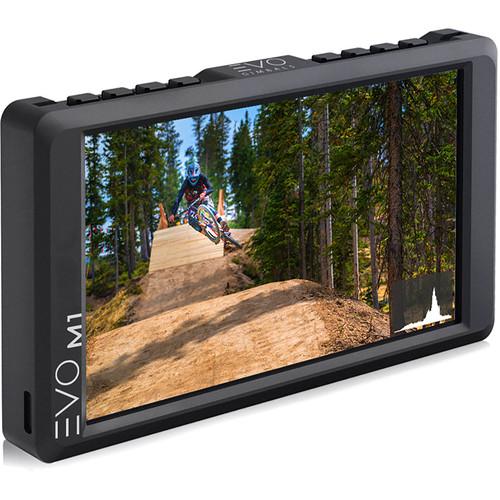

Product description The EVO Gimbals EVO M1 5" HD Field Monitor is a lightweight field monitor offering professional monitoring tools for viewing your DSLR or mirrorless camera. This 460 cd/m² bright, 1920 x 1080 IPS LCD panel features 4K pass-through for interfacing with 4K-compatible recorders and monitors.Display features include focus peaking, false colors, exposure zebra, image flip, anamorphic mode, and a variety of screen markers. A 3.5mm headphone jack enables you to listen to your audio, and a 1/4"-20 interface can be used to mount the EVO M1 on its bottom or side.Power the EVO M1 monitor using the included battery plate and a separately available L-series battery, or via a separately available adapter. A ball head arm, sunshade, and mini-HDMI cable are included with the monitor. - Key Features
-
- 5" IPS panel with 1920 x 1080 resolution
- HDMI pass-through
- 1400:1 contrast ratio
- 460 cd/m² brightness
- Center/screen/ratio markers
- L-series battery plate

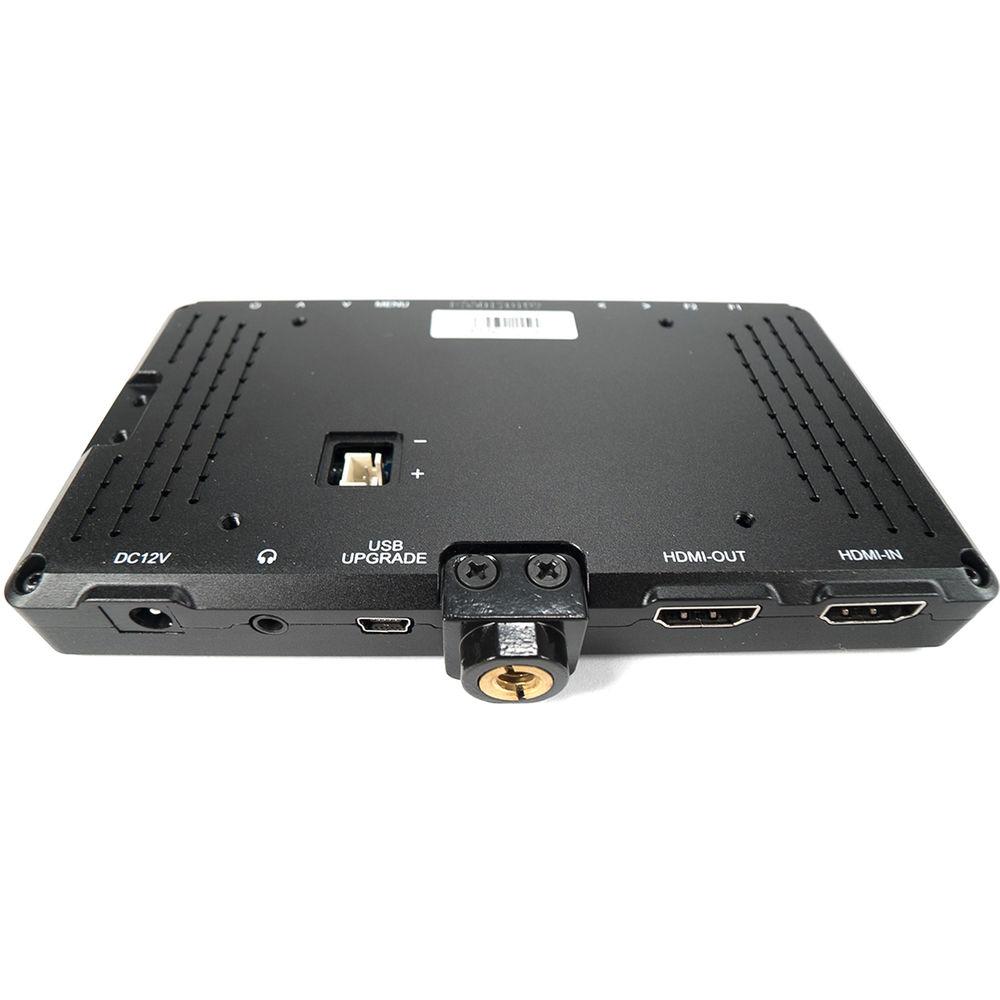

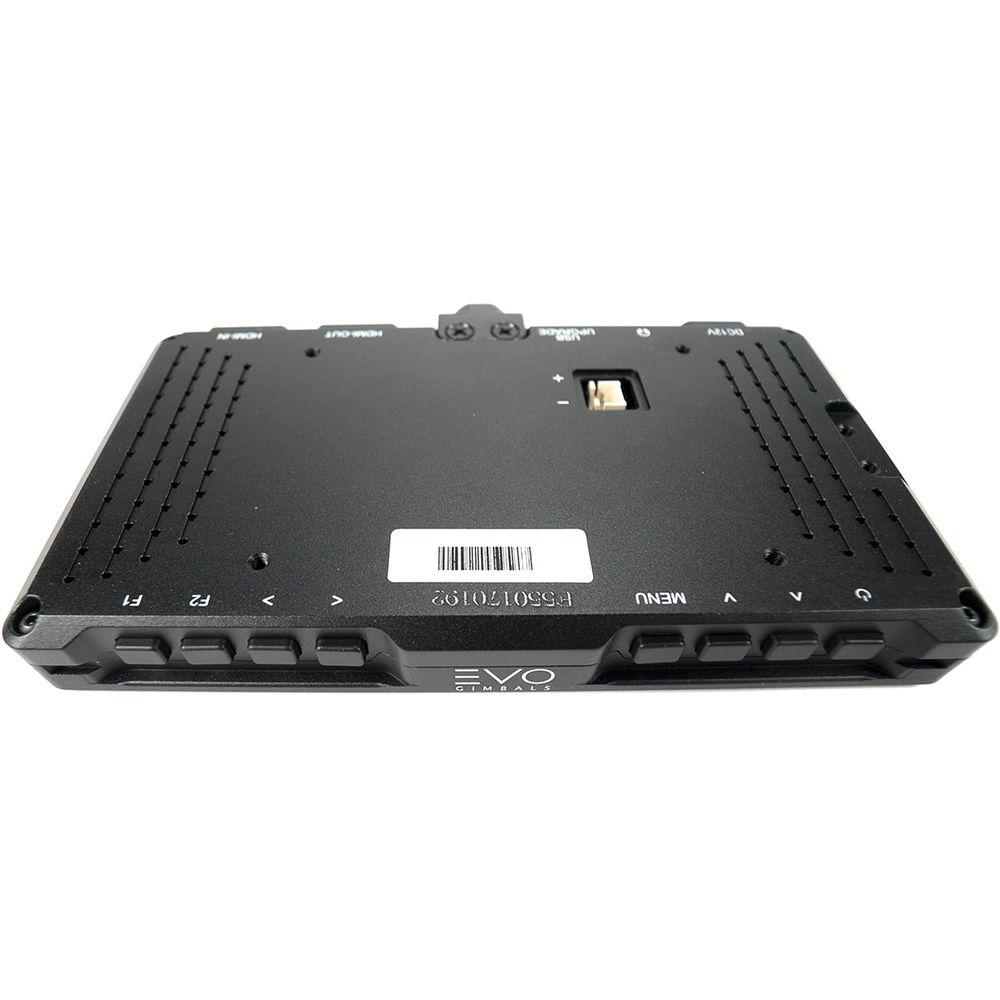

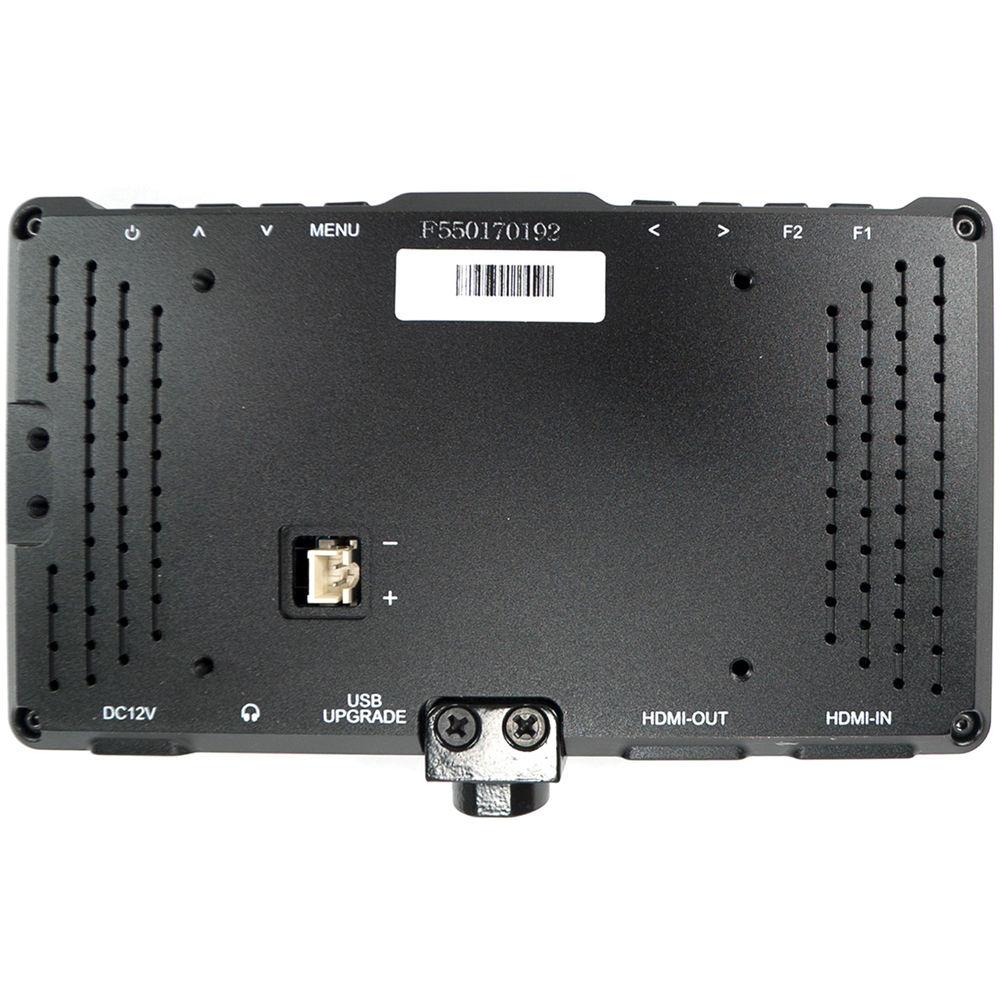

- Inputs / Outputs
-
- HDMI input
- HDMI output
- Mini-USB port (firmware upgrades)
- 3.5mm headphone jack
- 12 VDC barrel power input
- Display Tools
-
- Brightness histogram
- Peaking focus assist
- False colors
- Zebra exposure
- Check field
- Camera mode
- Anamorphic mode
- Image flip
- Center/screen/ratio markers
- Adjustable color temperature
- Nine-grid
- Zoom
UPC: 852709005561 In the Box EVO Gimbals EVO M1 5" HD Field Monitor with 4K HDMI Pass-Through Sunshade L-Series Battery Plate Mini HDMI Cable Shoe Mount Adapter 1/4"-20 Thread Mount Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EVO Gimbals EVO M1 5" HD Field Monitor with 4K HDMI Pass-Through in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEVO Gimbals M1 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.7" / 14.5 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 19:9 | | Viewing Angle | Horizontal: 85°
Vertical: 85° | | Touchscreen | No | | Maximum Brightness | 460 cd/m2 | | Contrast Ratio | 1400:1 | | Real-Time LUT Monitoring | No | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x USB 2.0 (Mini-USB) | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p Plus 576i, 480i | | | | DC Input Power | 12 to 24 VDC | | Battery Type | 1 x L-Series Removable plate. | | Power Consumption | 8 W | | | | Mounting | 1 x 1/4"-20 Female Via included adapter, side or bottom mountable. | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Material of Construction | Aluminum | | | | Package Weight | 1.465 lb | | Box Dimensions (LxWxH) | 7.3 x 4.9 x 3.25" |
