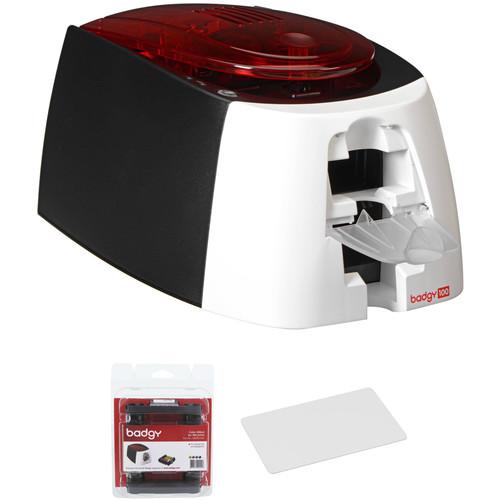

User Manual for Evolis Badgy Badgy100 Single-Sided Card Printer with YMCKO Ribbon and 500 Cards Kit Click to enlarge the picture
Contents of the user manual for the Evolis Badgy Badgy100 Single-Sided Card Printer
- Product category: ID Card Printers Evolis Badgy
- Brand: Evolis Badgy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis Badgy ID Card Printers
|
User manual for the Evolis Badgy Badgy100 Single-Sided Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis Badgy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis Badgy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis Badgy product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More sasreeuvzyxxwydvtbzbtzudztwuvaxtadyyur This Evolis Badgy100 Single-Sided Card Printer Kit put together by bundles the Badgy100 printer with a pack of 500 CR-80 PVC cards and a compatible YMCKO ribbon, so you can start producing ID cards right away. The full color ribbon with overlay yields approximately 100 images and allows for printing at speeds of up to 80 cards per hour, making for an efficient workflow for small businesses. - Evolis Badgy Badgy100 Single-Sided Card Printer Produce a variety of ID cards and badges with the compact Badgy100 Single-Sided Card Printer from Evolis. This printer utilizes dye sublimation and thermal transfer technology to produce prints at 300 dpi and with 16 million colors. Also, it is quite fast with a color YMCKO print speed of 80 cards per hour and a monochrome speed of 180 cards per hour. And, for standard compatibility it works with CR-80 cards from 20-30 mil thick.
General usage allows for single-sided printing with small margins of 0.05" and it has a 25-card input feeder and a 25-card output hopper for convenience. The Badgy100 also has an LED display for alerts such as cleaning and end of ribbon. There is even a Kensington-style lock slot for security and it offers USB 2.0 connectivity. Additionally, this unit comes with Evolis Badge Studio software for personalizing your cards to your needs. - Evolis Badge Studio software allows users to design and print badges with a variety of tools. It is compatible with Windows XP SP3, Vista, 7, and 8, as well as Mac OS X 10.6-10.9.
- Badgy Premium Suite for Windows includes a driver along with a printer management and configuration tool with graphic notifications and 24/7 online support. It is compatible with Windows XP SP3, Vista, 7, and 8.
- Standard print driver included for Mac OS X 10.6 or later.
- Evolis Badgy YMCKO Color Ribbon for Badgy100 & Badgy200 Card Printers This YMCKO Color Ribbon from Evolis is designed for use with the Badgy100 and Badgy200 card printers and will provide 100 prints.
- Compatible Printers
- Badgy100 Card Printer
Badgy200 Card Printer - IDC CR-80 PVC Cards (30 mil Thick, 500 Cards) Create sharp, vibrant IDs with this 500-card pack of CR-80/30 PVC Cards from IDC. These CR-80 size PVC cards are 30 mil thick and can be used with most card printers.
In the Box - Badgy100 Single-Sided Card Printer
- Evolis YMCKO Consumables Pack (50 Prints)
- USB Cable
- Power Supply Unit and Cable
- Installation CD-ROM
- Limited 1-Year Warranty
- YMCKO Color Ribbon for Badgy100 & Badgy200 Card Printers
- IDC - CR-80 PVC Cards (30 mil Thick, 500 Cards)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Badgy Badgy100 Single-Sided Card Printer with YMCKO Ribbon and 500 Cards Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Evolis Badgy Badgy100 Single-Sided Card Printer
| | | Print Method | Dye sublimation / thermal transfer | | Print Resolution | 300 dpi, 16 million colors | | Ribbon Options | YMCKO: 100 prints/roll
Black Monochrome: 500 prints/roll | | Double/Single-Sided | Single, with 0.05" (1.35 mm) border | | | | Print Speed | Color YMCKO: 80 cards/hour (45 sec per card)
Black Monochrome: 180 cards/hour (16 sec per card) | | Print Size | CR-80, ISO 7810: 3.375 x 2.125" (85.6 x 54.0 mm) | | Card Type | PVC, composite PVC, and PET cards | | Media Thickness | 20-30 mil (0.50-0.76 mm) | | Capacity | Input: 25 cards (30 mil) or 40 cards (20 mil)
Output: 25 cards (30 mil) or 40 cards (20 mil) | | Encoding | None | | Duty Cycle | 500-2,500 cards per year
Card Lifespan: 1-3 years | | | | Interface | USB 2.0 | | Memory | 16 MB | | Compatible Operating Systems | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP SP3 (32/64-bit)
Mac OS X 10.6 or later | | | | Display | LEDs for graphic printer notifications (cleaning alerts, end of ribbon alert, ribbon due to end) | | Security | Kensington lock slot | | Certifications | Erp 2009/125/CE
CE, FCC, VCCI, CIS, CCC, KC
RoHS | | Acoustics | Operating: 60 dB(A)
Standby: Background noise level | | Power Requirements | Power Supply: 100-240 VAC, 50-60 Hz, 1.7 A
Printer: 24 VDC, 2.7 A | | Operating Conditions | Temperature: 59 to 86°F (15 to 30°C)
Humidity: 20 to 65% non-condensing | | Storage Conditions | Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 20 to 70% non-condensing | | Dimensions | 5.8 x 7.9 x 10.9" (14.7 x 20.0 x 27.6 cm) | | Weight | 3.8 lb (1.7 kg) | | | | Box Dimensions (LxWxH) | 14.9 x 12.2 x 11.4" | - Evolis Badgy YMCKO Color Ribbon for Badgy100 & Badgy200 Card Printers
| Color | YMCKO Color | | Yield | 100 prints | | | | Box Dimensions (LxWxH) | 6.2 x 5.7 x 1.7" | - IDC CR-80 PVC Cards (30 mil Thick, 500 Cards)
| Quantity | 500 | | Size | CR-80: 3.375 x 2.125" / 85.6 x 54.0 mm | | Thickness | 30 mil / 0.76 mm | | Material | PVC | | Magnetic Stripe | None | | Surface Finish | Glossy White | | | | Box Dimensions (LxWxH) | 16.772 x 3.858 x 2.205" |
