User Manual for Evolis Lamination Module with LCD for Primacy ID Card Printers Click to enlarge the picture
Contents of the user manual for the Evolis Lamination Module with LCD for
- Product category: Printer Upgrades Evolis
- Brand: Evolis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis Printer Upgrades
 |
User manual for the Evolis Lamination Module with LCD for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis product will considerably shorten its lifespan!
|

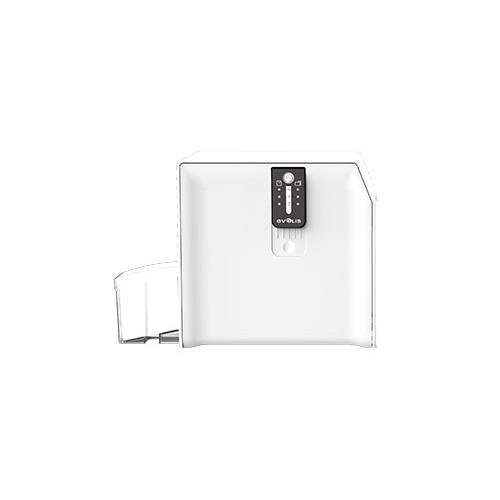

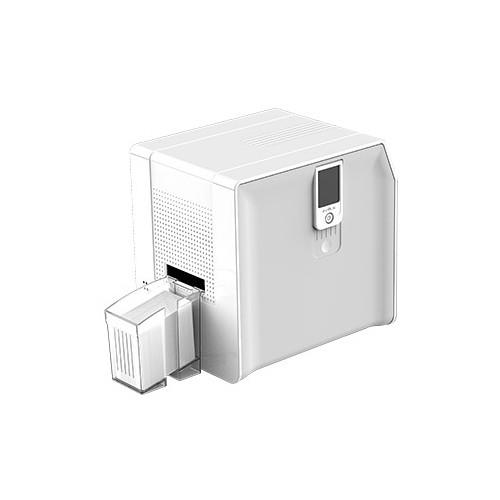

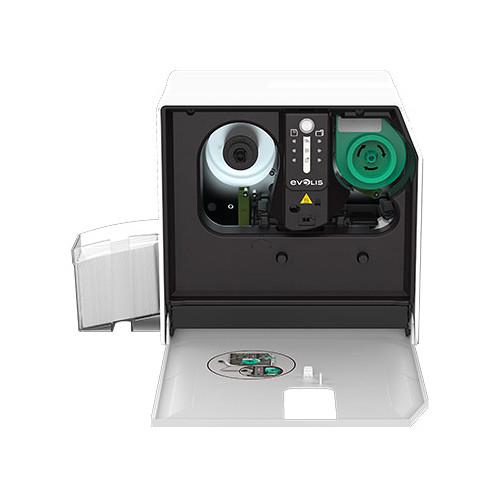

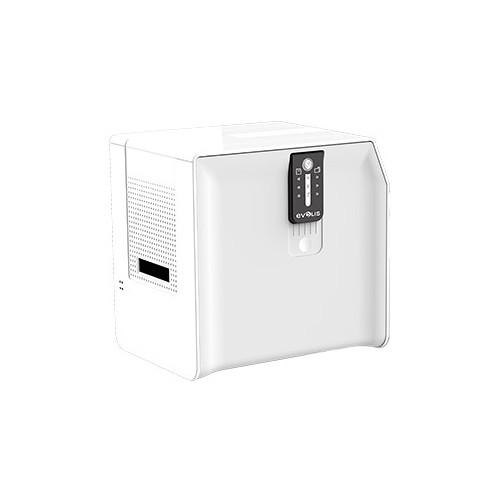

Product description Laminate your ID cards for additional durability and protection against fraud with this Lamination Module with LCD from Evolis. This module is an accessory for the Primacy ID badge printer, featuring infrared connectors that communicate with the printer for seamless production of any CR-80 sized card with a thickness between 30 and 40 mil. It can laminate one of the sides of the card in a single pass, or both sides by flipping the card over. This version of the laminator comes equipped with a 2.4" LCD touchscreen that shows error messages and gives you access to detailed information about both the printer and the laminator. It also allows you to configure cleaning cycles and manage password protection options. Included with the module is an output hopper, the necessary connection materials, a CD-ROM with the printer driver, and a power supply. In the Box Evolis Lamination Module with LCD for Primacy ID Card Printers Output Hopper Fork Connector Infrared Connection Kit CD-ROM with Printer Driver Cleaning Material Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Lamination Module with LCD for Primacy ID Card Printers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvolis S10252 Specs | Compatibility | Evolis Primacy printers produced after March 2013 (firmware update may be required) | | Lamination | Single-sided or dual-sided | | Display | 2.4" TFT-LCD color touchscreen, 240 x 320 dpi | | Output Hopper Capacity | 100 cards | | Ribbon Options | Transparent patch, 0.5 or 1 mil (600 prints/roll)
Holographic patch, 0.6 or 1 mil (600 prints/roll)
Patch with contact chip cutout, 0.5 or 1 mil (600 prints/roll)
Patch with magnetic stripe cutout, 0.5 or 1 mil (600 prints/roll)
Transparent varnish (1200 prints/roll)
Continuous holographic varnish (1200 prints/roll)
Registered holographic varnish (1200 prints/roll) | | Card Type | PVC
Composite PVC
PET
Recycled PET
ABS1
Special varnished cards | | Card Sizes | ISO CR-80, 2.13 x 3.37" (5.4 x 8.6 cm) | | Card Thickness | 30 to 40 mil (0.76 to 1.00 mm) | | Operating Conditions | Temperature: 59 to 86°F (15 to 30°C)
Humidity: 20 to 65%, non-condensing | | Storage Conditions | Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 20 to 70%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 2.0 A / 24 VDC, 6.25 A |
