User Manual for Evolis Primacy Expert Single-Sided ID Card Printer Click to enlarge the picture
Contents of the user manual for the Evolis Primacy Expert Single-Sided ID Card
- Product category: ID Card Printers Evolis
- Brand: Evolis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis ID Card Printers
|
User manual for the Evolis Primacy Expert Single-Sided ID Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis product will considerably shorten its lifespan!
|

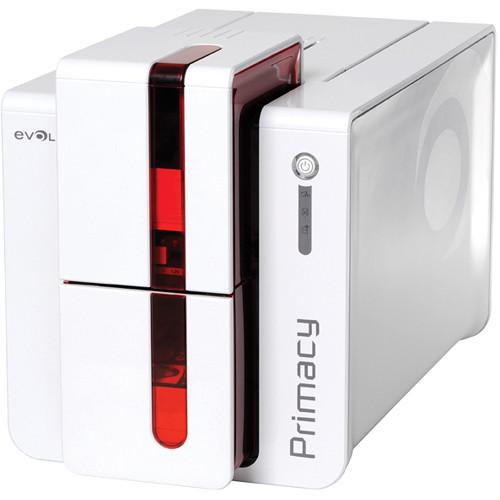

Product description A Guide to Purchasing an ID Card Printer Read More zfzavxqxvvusfucdzuzfvcswze Fast and feature-rich, the fire red Primacy Expert Single-Sided ID Card Printer from Evolis will satisfy the requirements of many demanding institutions or businesses looking to create a secure, personalized ID system. Using a direct-to-card dye sublimation or resin thermal transfer process, the Primacy can create vivid, detailed cards at resolutions starting at 300 x 300 dpi and going up to 300 x 1200 dpi. Also, the CR-80 system can produce up to 225 full color YMCKO cards or 1000 monochrome cards in just one hour. Along with this, the printer boasts edge-to-edge printing for card designs without limitations.
For operation, the Primacy can handle batch jobs with ease thanks to a 100 card input hopper and a 100 card output hopper. Along with this there is a 50-card reject box available to quickly and easily separate mistakes from a batch of otherwise good set. The printer is also simplified with notification and status LEDs on the front to serve as alerts for the user. Additionally, the Primacy has a Kensington-style lock slot for security and features both USB and Ethernet connectivity. - Evolis Premium Suite for Windows
- Included on the CD is a printer driver for Windows operating systems from XP and later, the Evolis Print Center for administrative tasks and settings, the Evolis Printer Manager for on-screen graphical notifications, and access to 24/7 online support.
- cardPresso XXS
- This software is used for designing and editing cards and features an internal database with an unlimited number of records. Additionally, it is compatible with both Windows and Mac operating systems.
In the Box Evolis Primacy Expert Single-Sided ID Card Printer (Fire Red) Starter Cleaning Kit Reject Box USB Cable AC Power Supply and Cable Documentation and Software CD-ROM Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Primacy Expert Single-Sided ID Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvolis Primacy Specs | | | Print Technology | Direct-to-card dye sublimation / resin thermal transfer | | Resolution | 300 x 300 dpi (standard)
300 x 600 dpi (color and monochrome)
300 x 1200 dpi (monochrome) | | Double/Single-Sided | Single | | Encoding | None | | Colors Supported | 16 million | | Ribbon Options | YMCKO
1/2 YMCKO
KO
Monochrome
Hologram | | | | Print Speed | YMCKO: 190-225 cards/hour
Monochrome: 800-1000 cards/hour | | Card Type | PVC
Composite PVC
PET
Recycled PET
ABS
Clear overlaid | | Card Sizes | CR-80, ISO 7810: 3.375 x 2.125" / 85.6 x 54.0 mm | | Card Thickness | 10-50 mil / 0.25-1.25 mm | | Capacity | Input: 100 cards
Output: 100 cards
Reject Box/Rear Hopper: 50 cards | | | | Interface | USB
Ethernet | | Memory | 32 MB RAM | | OS Compatibility | Windows XP SP3, Vista, 7, 8, 8.1, 10
Mac OS X 10.6 and later
Linux (on request) | | | | Front Panel | LEDs | | Security | Kensington lock slot (lock sold separately)
Data encryption for magnetic encoding | | Certifications | CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC
RoHS
13.56 MHz, PLL/ASK/semi-duplex operation | | Power Requirements | Power Supply: 100-240 VAC, 50-60 Hz, 1.7 A
Printer: 24 VDC, 2.7 A | | Operating Conditions | Temperature: 59 to 86°F / 15 to 30°C
Humidity: 20 to 65% | | Storage Conditions | Temperature: 23 to 158°F / -5 to 70°C
Humidity: 20 to 70% | | Dimensions | 9.7 x 8.1 x 19.2" / 24.7 x 20.5 x 48.7 cm with reject box | | Weight | 9.1 lb / 4.1 kg with reject box | | | | Package Weight | 14.25 lb | | Box Dimensions (LxWxH) | 19.5 x 16.0 x 12.4" |
