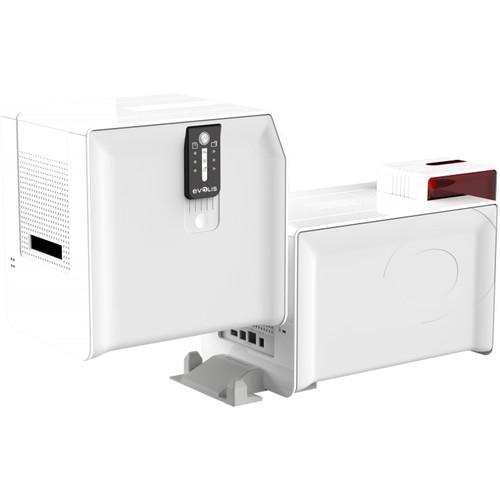

User Manual for Evolis Primacy Lamination Simplex Expert Printer with Mag ISO Dual HiCo LoCo 3-Track Magnetic Stripe Click to enlarge the picture
Contents of the user manual for the Evolis Primacy Lamination Simplex Expert Printer
- Product category: ID Card Printers Evolis
- Brand: Evolis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis ID Card Printers
 |
User manual for the Evolis Primacy Lamination Simplex Expert Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis product will considerably shorten its lifespan!
|

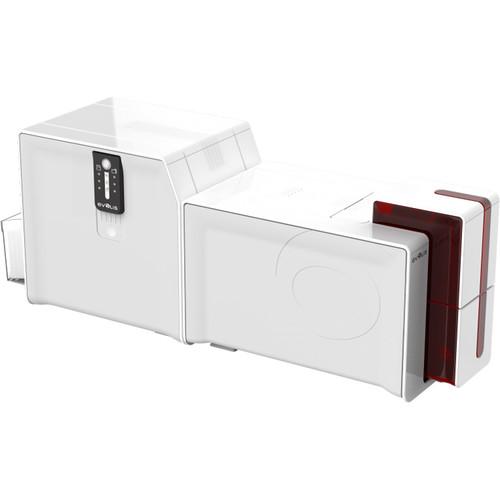

Product description A Guide to Purchasing an ID Card Printer Read More The fire red Primacy Lamination Simplex Expert Printer from Evolis prevents incidents of fraud as it has maximum durability and a high level of security. Using a direct-to-card dye sublimation or resin thermal transfer process, the Primacy can create vivid, detailed cards at resolutions starting at 300 x 300 dpi and going up to 300 x 1200 dpi. It is capable of single-sided printing and laminating with a speed of 215 cards per hour with a YMCK and 1/2 YMCK ribbon.
The printer features Mag ISO Dual HiCo/LoCo 3-track magnetic stripe encoder and both USB & Ethernet connectivity. For operation, the Primacy can handle batch jobs with ease thanks to a 100-card input hopper and a 100-card output hopper. Along with this there is a 100-card reject box available to quickly and easily separate mistakes from an otherwise good batch. The printer is also simplified with notification and status LEDs on the front to serve as alerts for the user. Additionally, the Primacy has a Kensington-style lock slot for security. - Durable Cards
- The cards are laminated by heat-sealing a film (varnish or patch of varying thickness) over the entire surface of the card once it has been encoded and printed.
- Highly Secure Cards
- Magnetic stripe encoder ISO 7811, track 1, 2 and 3 high and low coercivity, stripe down (0.76 mm - 30 mil cards only)
- Scalable
- When you install your system, you connect the lamination module to the printer in one easy step by infrared communication. Your system is up and running within minutes. If you already have a Primacy printer, you can upgrade your system by buying the lamination module separately. The different ribbons and laminates are installed intuitively and are automatically recognized by the system.
- User-Friendly Operation
- On side operation
Graphical notifications from the machine: cleaning, alerts, empty/low level ribbon/film and card alerts, and more
Easy to reach on/off button
Easy to access technical parts (sides opening)
Drop-in cassette with easy handling
Ergonomic laminate for easy handling
Operator replaceable print head In the Box Evolis Primacy Lamination Simplex Expert Printer with Mag ISO Dual HiCo/LoCo 3-Track Magnetic Stripe (Fire Red) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Primacy Lamination Simplex Expert Printer with Mag ISO Dual HiCo LoCo 3-Track Magnetic Stripe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvolis Primacy Specs | | | Print Technology | Direct-to-card dye sublimation / resin thermal transfer | | Resolution | Standard Mode: 300 x 300 dpi (dots per inch) for standard monochrome and color printing
Extended Mode: 300 x 600 dpi (dots per inch) for enhanced monochrome and color printing
Extended Mode: 300 x 1200 dpi (dots per inch) for enhanced monochrome printing | | Double/Single-Sided | Single | | Encoding | Magnetic stripe encoder ISO 7811, track 1, 2 and 3 high and low coercivity, stripe down (0.76 mm - 30 mil cards only) | | | | Print Speed | Single-Side Printing and Laminating: 215 cards per hour | | Card Type | PVC, Composite PVC, PET, polycarbonate, special varnished cards | | Card Sizes | ISO 7810 format, Type ID 1, CR-80 size: 3.37 x 2.125" (85.6 x 53.98 mm) | | Card Thickness | 0.76 mm (30 mil) | | Capacity | Input: 100 cards
Output: 100 cards
Reject Box/Rear Hopper: 100 cards | | | | Interface | USB (1.0, 1.1, 2.0, 3.0)
Ethernet TCP-IP, 10BaseT, 100BAseT (Traffic Led), Wireless range: wireless connection 802.11 b/g | | Memory | 32 MB RAM | | OS Compatibility | Compatible with Windows (32/64 bits) XP SP3, Vista, W7, W8, W10 | | Software | Delivered with Evolis Premium Suite for Windows: Printer driver
Evolis Print Center for administration and settings
Evolis Printer Manager for graphical notification3
24/7 online support
Delivered with cardPresso XXS for designing and editing badges: Internal database (unlimited records) | | Languages | English, French, Spanish, German, Italian, Portuguese (Brazil), Dutch, Simplified Chinese, Traditional Chinese, Japanese, Korean, Russian, Polish, Turkish | | | | Front Panel | LEDs | | Security | Kensington lock slot (lock sold separately) | | Certifications | CE, FCC, ICES, VCCI, CCC, KC, BIS
RoHS | | Dimensions | 10.6 x 8.1 x 29.6" (26.9 x 20.5 x 75.1 cm) | | Weight | 22.04 lb (9.99 kg) |
