User Manual for Evolis Primacy LCD Simplex Printer with Touch Screen USB Ethernet Click to enlarge the picture
Contents of the user manual for the Evolis Primacy LCD Simplex Printer with
- Product category: ID Card Printers Evolis
- Brand: Evolis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis ID Card Printers
 |
User manual for the Evolis Primacy LCD Simplex Printer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis product will considerably shorten its lifespan!
|

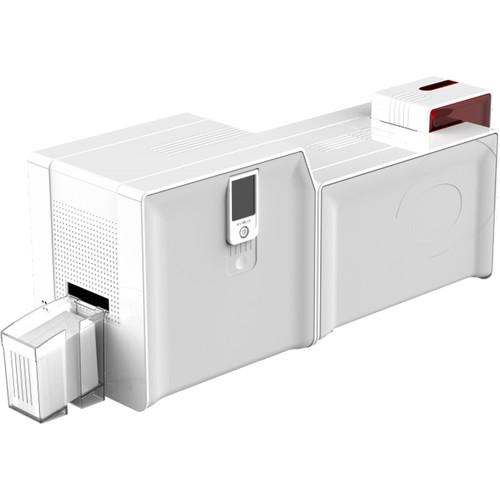

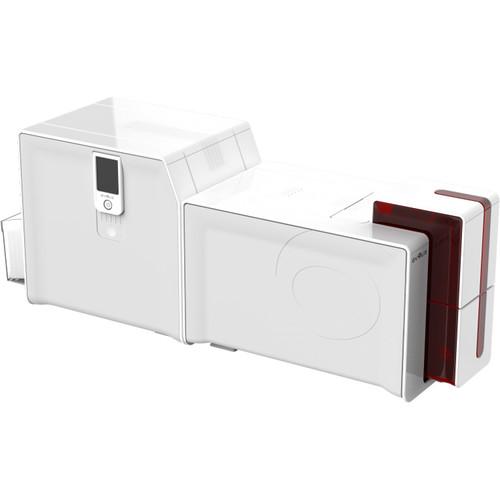

Product description A Guide to Purchasing an ID Card Printer Read More yfxcufbsvuybrydfzabqzzvda The fire red Primacy LCD Simplex Printer from Evolis will satisfy the requirements of many demanding institutions or businesses looking to create a secure, personalized ID system. Using a direct-to-card dye sublimation or resin thermal transfer process, the Primacy can create vivid, detailed cards at resolutions starting at 300 x 300 dpi and going up to 300 x 1200 dpi. It is capable of single-sided printing as well with a speed of 190 to 225 cards per hour with a YMCKO ribbon and 800 to 1000 cards per hour with a monochrome ribbon. Along with this, the printer boasts edge-to-edge printing for card designs without limitations.
For operation, the Primacy can handle batch jobs with ease thanks to a 100-card input hopper and a 100-card output hopper. Along with this there is a 50-card reject box available to quickly and easily separate mistakes from an otherwise good batch. The printer is also simplified with notification and status LEDs on the front to serve as alerts for the user. Additionally, the Primacy has a Kensington-style lock slot for security and features both USB and Ethernet connectivity. - Enhanced Productivity
- Primacy is suitable for printing large runs because it personalizes color cards in record time, up to 225 cards per hour for single-sided printing.
- High Capacity
- The large capacity card feeder and output tray hold 100 cards so you don't have to refill the printer as often. Primacy offers high capacity in a compact footprint.
- Professional Printing
- Primacy features 300-dpi photographic resolution and edge-to-edge printing for optimum print quality. Thanks to enhanced graphical processing, you get a faithful depiction of the images in high definition and more precise monochrome texts.
- Ease of Use
-
- The card feeder and hopper can be directly accessed on the front, so you can keep an eye on the printing
- The Evolis High Trust print ribbons are easy to install and automatically recognized by the printer

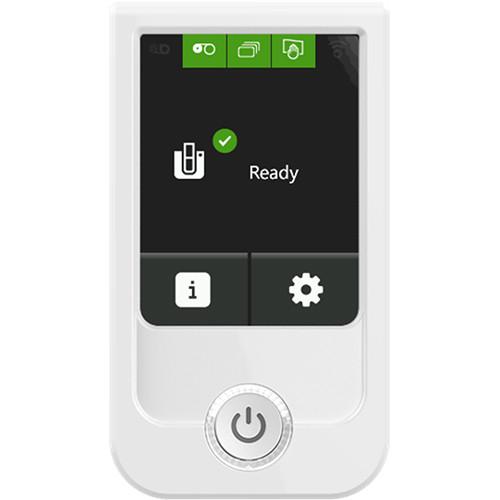

- The printer adapts to how you use it: From your computer, the Evolis Premium Suite® software lets you easily control the printer thanks to notifications on your screen. From the printer, you can interact with the printer in real time using the optional LCD screen. This is ideal for over-the-counter uses (bank cards, travel cards, casino cards, loyalty cards, gift cards, and many more)
- Scalability
- You can upgrade your printer with magnetic stripe, contact or contactless chip encoders whenever you want.
In the Box Evolis Primacy LCD Simplex Printer with Touch Screen/USB/Ethernet (Fire Red) USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Primacy LCD Simplex Printer with Touch Screen USB Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvolis Primacy Specs | | | Print Technology | Direct-to-card dye sublimation / resin thermal transfer | | Resolution | 300 x 300 dpi (standard) | | Double/Single-Sided | Single | | Encoding | None | | Ribbon Options | Color (YMCKO), Monochrome | | | | Print Speed | 190 to 225 cards/hour
800 to 1000 cards/hour | | Card Type | PVC cards, composite PVC cards, PET cards, ABS cards, special varnished cards | | Card Sizes | CR-80, ISO 7810: 3.37 x 2.12" (85.6 x 54.0 mm) | | Card Thickness | 10-50 mil / 0.25-1.25 mm | | Capacity | Input: 100 cards
Output: 100 cards
Reject Box/Rear Hopper: 50 cards | | | | Interface | USB (1.0, 1.1, 2.0, 3.0), cable supplied
Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
802.11b/g wireless connection on the Wireless range | | Memory | 32 MB RAM | | OS Compatibility | Compatible with Windows (32/64 bits): XP SP3, Vista, W7, W8, W10
Windows (from XP onwards) and Mac OS X
Delivered with a driver for Mac OS X (from 10.6 onwards)
Linux OS upon request | | Software | Delivered with Evolis Premium Suite for Windows: Printer driver
Evolis Print Center for administration and settings
Evolis Printer Manager for graphical notification
24/7 online support
Delivered with cardPresso XXS for designing and editing badges: Internal database (unlimited records) | | | | Front Panel | LEDs | | Security | Kensington lock slot (lock sold separately) | | Certifications | CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC
RoHS | | Dimensions | 9.7 x 8.1 x 15" (24.7 x 20.5 x 38.1 cm)
9.7 x 8.1 x 19.2" (24.7 x 20.5 x 48.7 cm) with reject box | | Weight | 8.86 lb (4.02 kg)
9.1 lb (4.1 kg) with reject tray/output hopper at the back |
