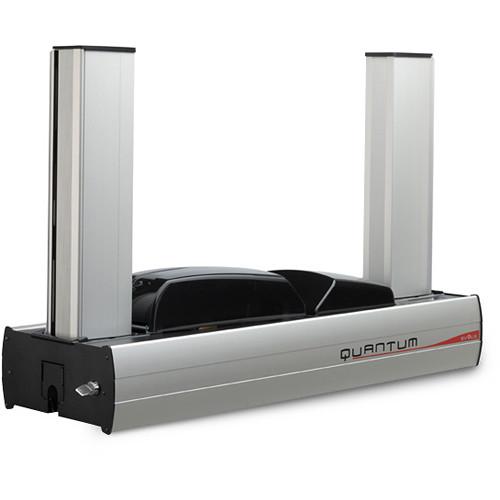

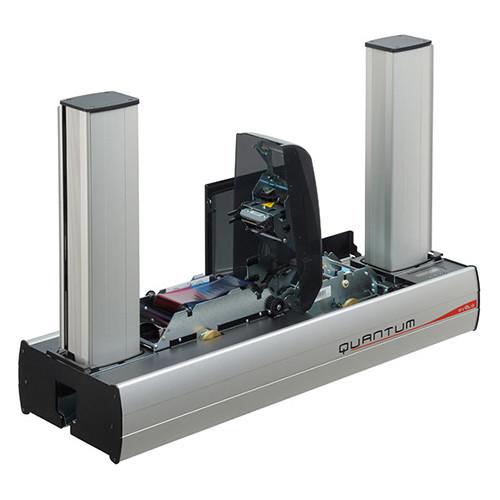

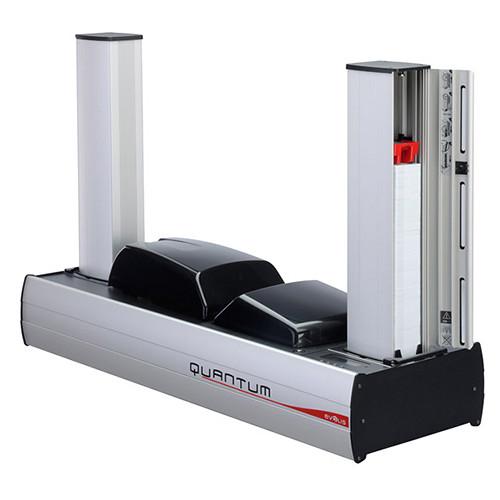

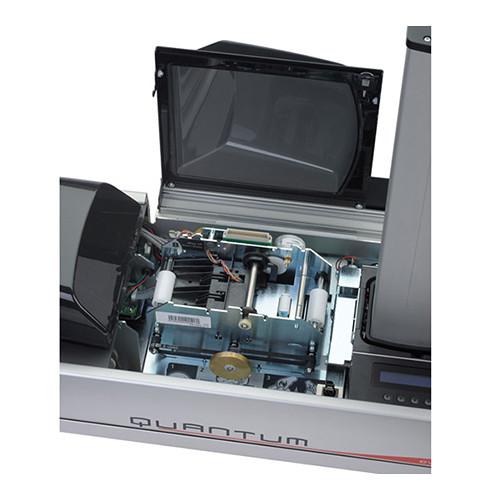

User Manual for Evolis Quantum 2 Printer Kit with Production and Backup Packs Click to enlarge the picture
Contents of the user manual for the Evolis Quantum 2 Printer Kit with
- Product category: ID Card Printers Evolis
- Brand: Evolis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis ID Card Printers
 |
User manual for the Evolis Quantum 2 Printer Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The Quantum 2 Printer Kit from Evolis comes with a Quantum 2 Standard Mag ISO, Smart Contact Card Printer; a Standard Production Pack; and a Backup Pack. The Quantum production pack for standard version aims at improving Quantum 2 user operation and reducing downtime. The included Quantum backup pack aims at providing the end-user with a critical component replacement kit to avoid production down time. - Quantum 2 Standard Mag ISO, Smart Contact Card Printer The Quantum 2 Standard Mag ISO, Smart Contact Card Printer from Evolis is the solution for printing and encoding cards in large volumes. It personalizes the cards front and back and can print 1000 cards per hour in monochrome and 150 cards per hour in color. The printer features a resolution of 300 dpi and can be used to print temporary badges and ID cards. It uses a direct-to-card dye-sublimation printing method. Additionally, this printer is compatible with CR-80 sized cards.
-
- Direct-to-card dye-sublimation/Resin thermal transfer
- Single-sided and dual-sided printing module
- Edge-to-edge printing
- 300 dpi print head (11.8 dots/mm)
- 16MB RAM allowing two card storages (front & back)
- Interchangeable input and output hoppers, capacity of 500 cards each (30 mil)
- Aluminum body, black plastic covers
- Connecting panel and mounting area for user's own integration of encoding units
- Ergonomic and wide opening system with doors for easy and quick card loading
- Quantum Production Pack for Standard Quantum 2 Card Printer
- Quantum Backup Pack for Standard Quantum Card Printer
In the Box Bundle Items Quantum 2 Standard Mag ISO, Smart Contact Card Printer vaxtxxeryrdswxcdzurydvrefebz Quantum Production Pack for Standard Quantum 2 Card Printer Quantum Backup Pack for Standard Quantum Card Printer Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Quantum 2 Printer Kit with Production and Backup Packs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quantum 2 Standard Mag ISO, Smart Contact Card Printer
| Resolution | 300 dpi print head (11.8 dots/mm) | | Printing Method | Direct-to-card dye-sublimation/Resin thermal transfer | | Print Speed | Single Side
Color (YMCKO): 150 Cards per hour
Monochrome: 1000 Cards per hour
Dual Side
Color (YMCKO-K): 115 Cards per hour
Monochrome: 320 Cards per hour | | Hopper Capacity | Input and Output: 500x 30 mil (0.76 mm) cards
Hopper Rejection Capacity for Defective Cards: 20x 30 mil (0.76 mm) cards | | RAM | 16 MB | | Cards Accepted | PVC, composite PVC, PET, ABS, special varnished cards | | Card Format | ISO CR-80 - ISO 7810 (53.98 x 85.6 mm) | | Card Thickness | 30 to 40 mil (0.76 to 1 mm) | | Encoding | Reversible upper and lower encoding unit for magnetic stripes and contact smart cards (patented)
HiCo/LoCo magnetic stripe encoder ISO 7811 or JIS2
Smart contact station - ISO 7816-2 | | Display | 2-line LCD display
Status LED for printer and encoding unit monitoring | | Certifications | RoHS | | OS | Windows (32/64-bit): XP SP3, Vista, Windows 7, 8, 10 | | Dimensions (H x W x D) | With Hoppers: 22.3 x 11.8 x 33.5" (567 x 300 x 850 mm)
Without Hoppers: 8.46 x 11.81 x 33.46" (215 x 300 x 850 mm) | | Weight | With Hoppers: 47.8 lb (21.7 kg)
Without Hoppers: 40.3 lb (18.3 kg) | - Quantum Production Pack for Standard Quantum 2 Card Printer
- Quantum Backup Pack for Standard Quantum Card Printer
