User Manual for Evolis Tattoo RW Mag ISO Printer Click to enlarge the picture
Contents of the user manual for the Evolis Tattoo RW Mag ISO Printer
- Product category: ID Card Printers Evolis
- Brand: Evolis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evolis ID Card Printers
 |
User manual for the Evolis Tattoo RW Mag ISO Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evolis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evolis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evolis product will considerably shorten its lifespan!
|

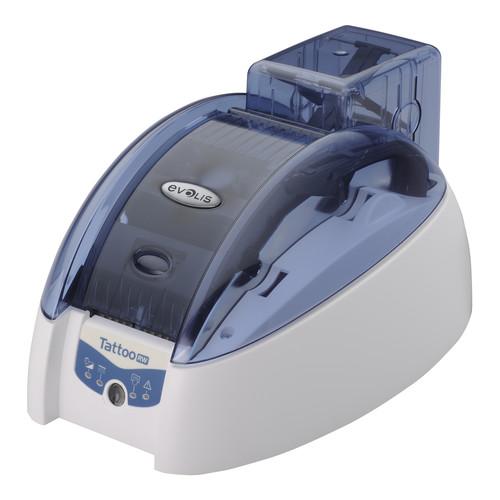

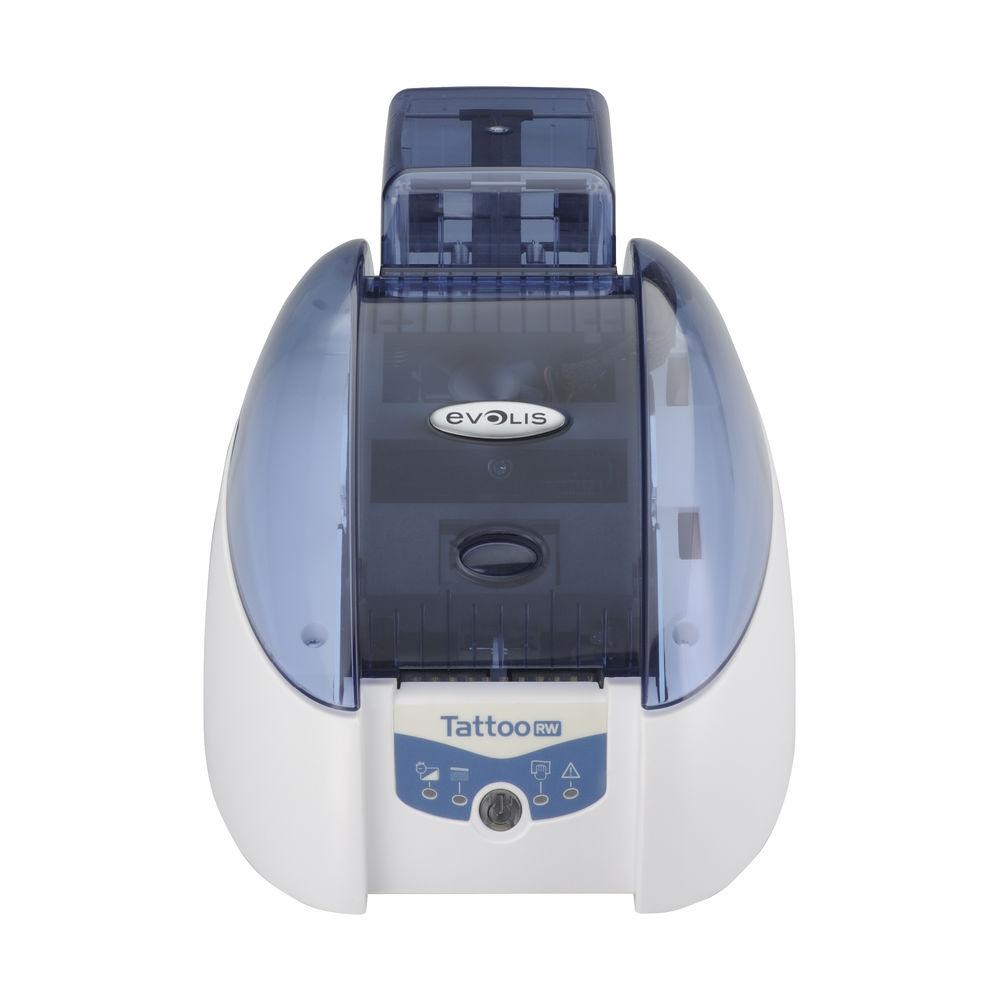

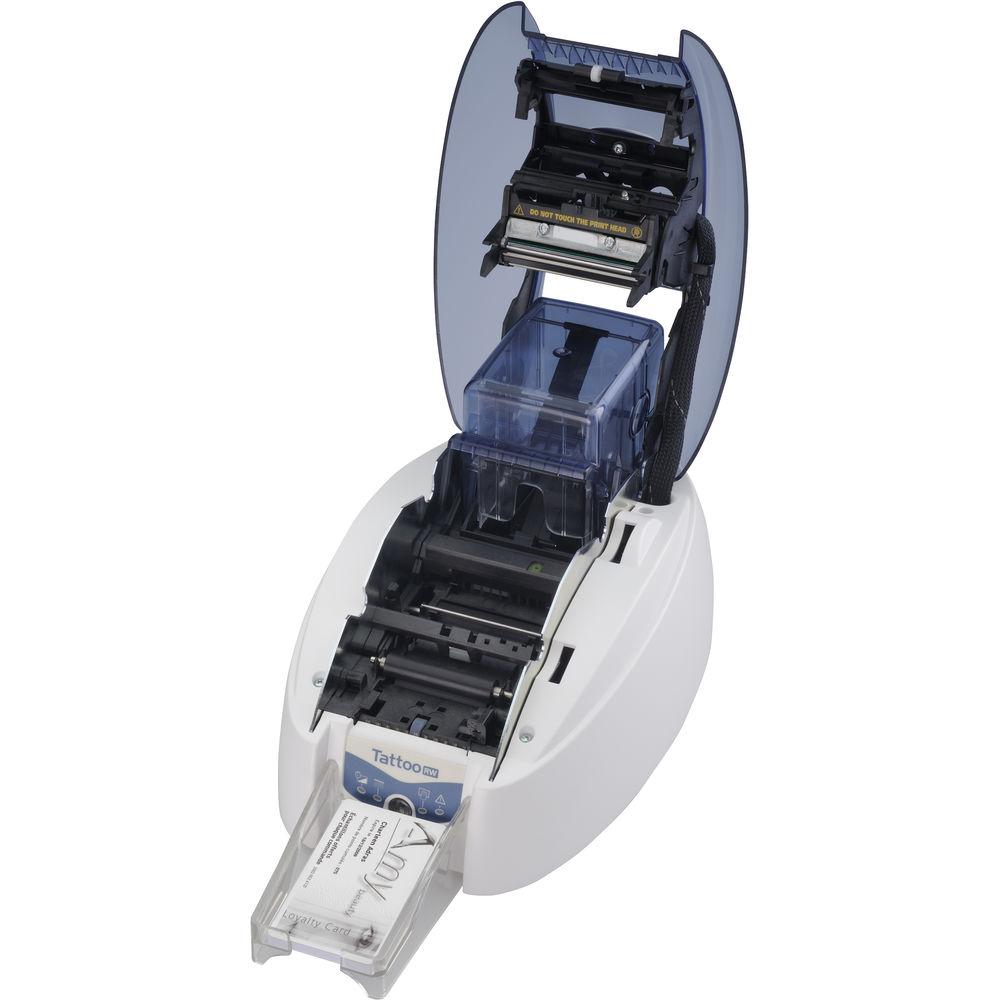

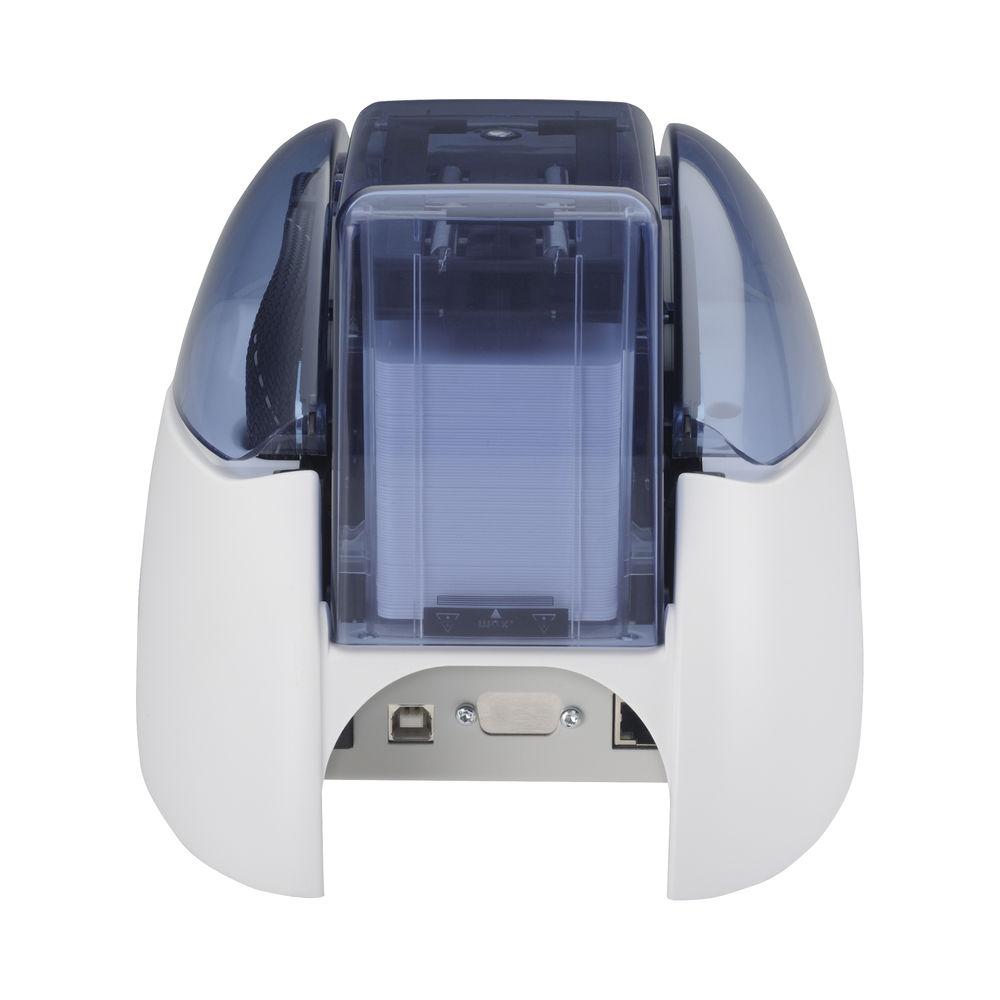

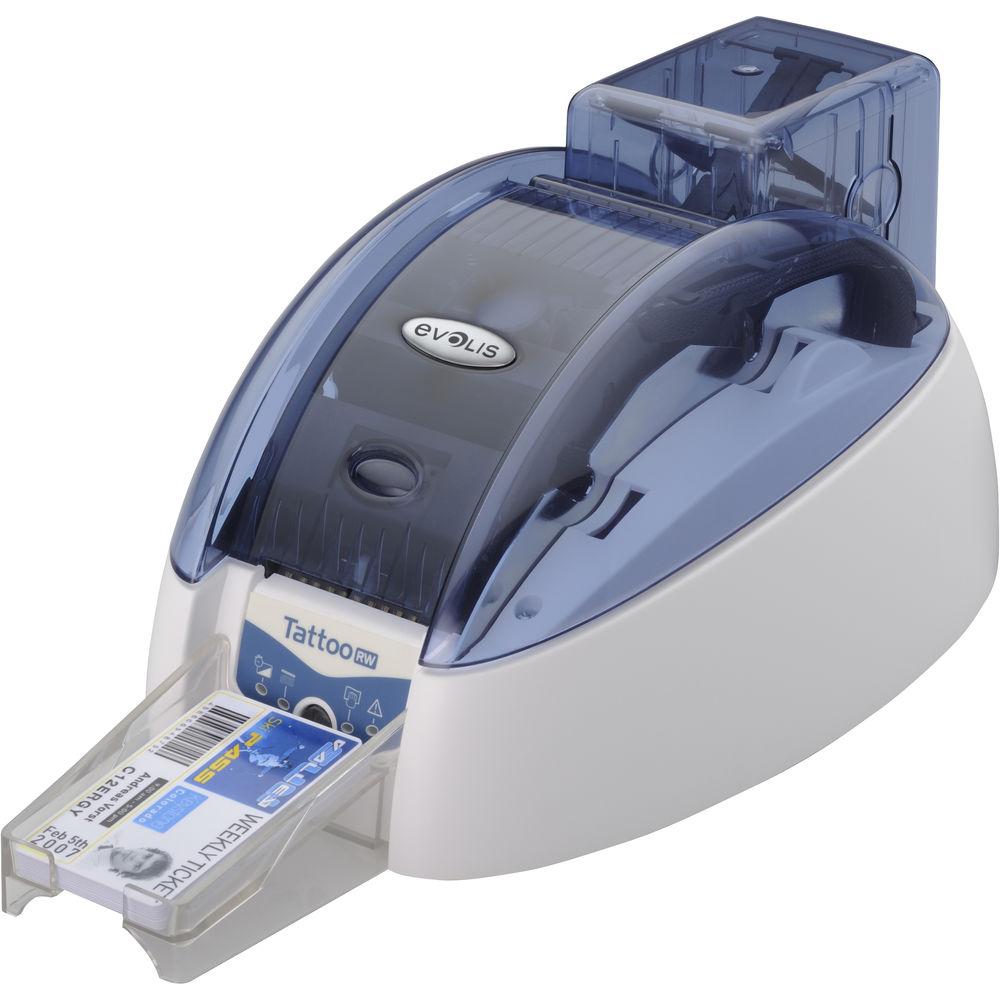

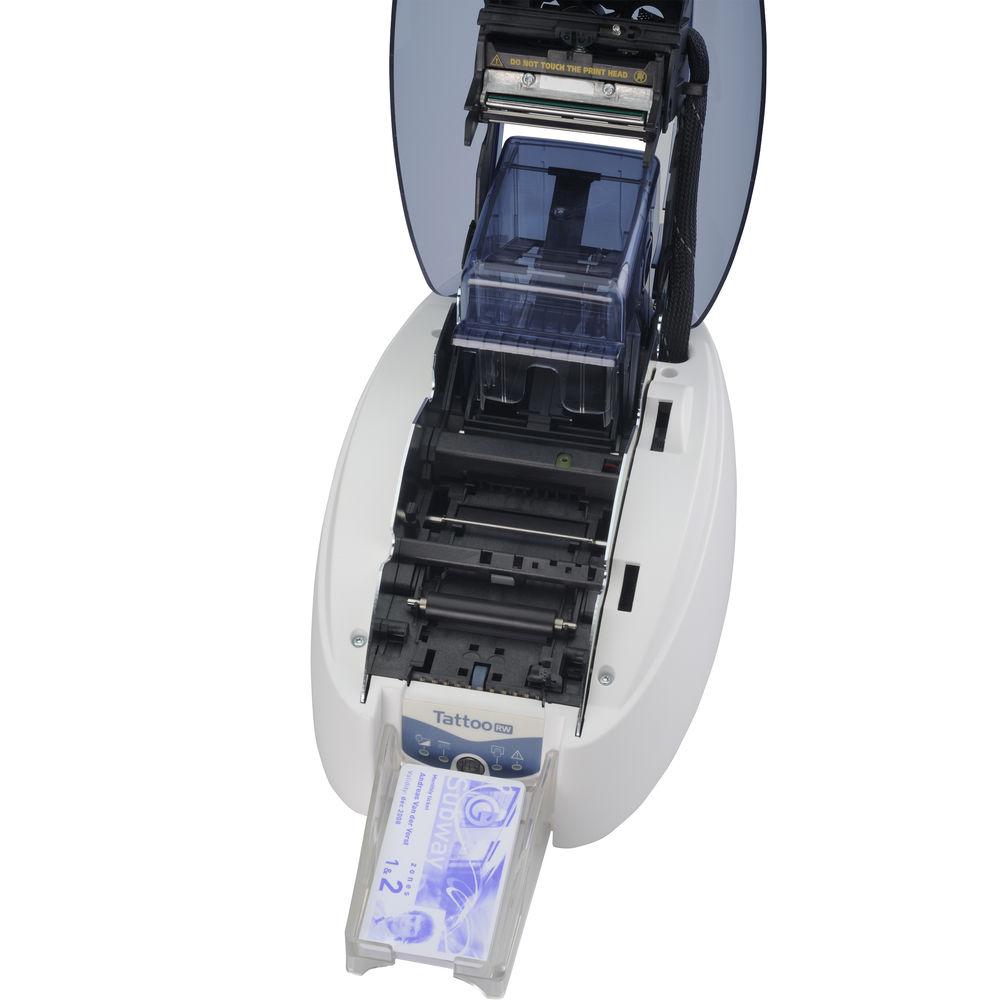

Product description A Guide to Purchasing an ID Card Printer Read More The Tattoo RW Mag ISO Printer from Evolis comes with a Mag ISO Dual HiCo/LoCo 3-track magnetic stripe encoder. It can be used for your temporary badges and cards that require regular updates. With Tattoo RW printer, your cards can be updated whenever needed, would they be loyalty cards with the updated number of points, membership cards with subscription details, or visitor badges with personal data. This printer uses rewritable technology that requires no ribbon. Using this printer, the same card can be erased, revised, and printed again up to 500 times. -
- Uses rewritable cards and requires no ribbon

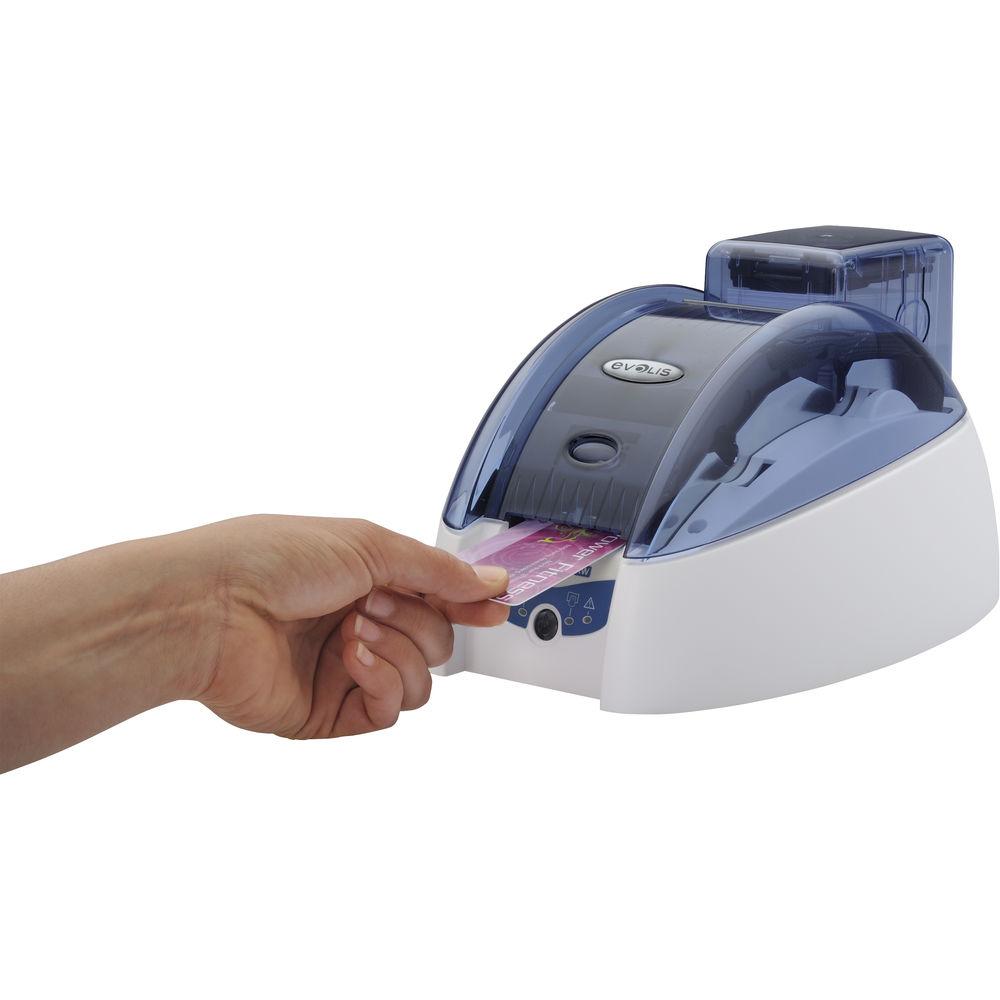

- Manual or card-feeder insertion
- Delivery to removable hopper
- Automated mode allows the printer to select a card from the feeder if no card is inserted manually
- Supports rewritable thermochromic material cards like Mitsubishi black & blue
In the Box Evolis Tattoo RW Mag ISO Printer USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evolis Tattoo RW Mag ISO Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvolis Tattoo RW Specs | Print Technology | Direct thermal printing and erasing on rewritable material | | Print Area | 1.89 x 2.99" (48 x 76 mm) | | Resolution (DPI) | 300 dpi print head for premium quality printing (11.8 dots/mm) | | RAM | 16 MB | | Card Feeder Capacity | Detachable feeder with a capacity of 100x 30 mil (0.76 mm) cards | | Output Hopper Capacity | Detachable output hopper with a capacity of 15x 30 mil (0.76 mm) cards | | Control Panel | 1-Button and 4-LED | | Speed | Manual: 8 sec
Card Feeder: 12 sec

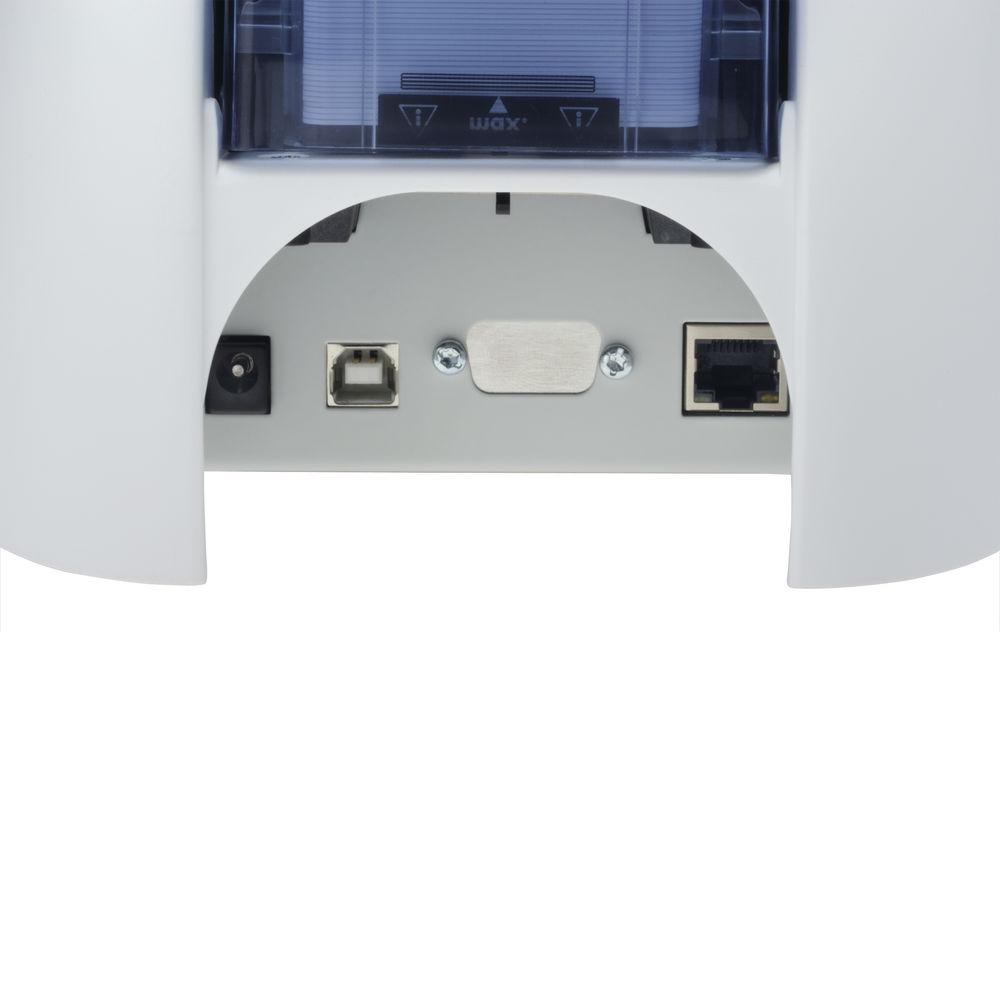

3-Track ISO Magnetic Encoding: 4 sec per card | | Interface | USB (1.0, 1.1, 2.0, 3.0)
Ethernet | | Card Thickness | 20 to 30 mil (0.5 to 0.8 mm) | | Card Format | CR-80: ISO 7810
2.13 x 3.37" (53.98 x 85.6 mm) | | Encoding | HiCo/LoCo magnetic stripe encoder ISO 7811 or JIS2 | | Supported Platforms | Windows (32/64-bit): XP SP3, Vista, 7, 8, 10 | | Power Supply | 100/240 VAC, 1.8 A, 50 to 60 Hz
Printer: 24 VDC, 3 A | | Operating Temperature | 59 to 86°F (15 to 30°C)
Humidity: 20 to 65% non-condensing | | Storage Temperature | 23 to 158°F (-5 to 70°C)
Storage Humidity: 20 to 70% non-condensing | | Dimensions (H x W x D) | Without Output Hopper: 6.54 x 7.36 x 11.42" (166 x 187 x 290 mm)
With Output Hopper: 6.54 x 7.36 x 14.49" (166 x 187 x 368 mm) | | Weight | 5.3 lb (2.4 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
